MARKING RINGS PA 1 /G

Name: MARKING RINGS PA 1 /G
Brand: LAPP
SKU: 61819470
Price: 1391 VND
Availability: OutOfStock

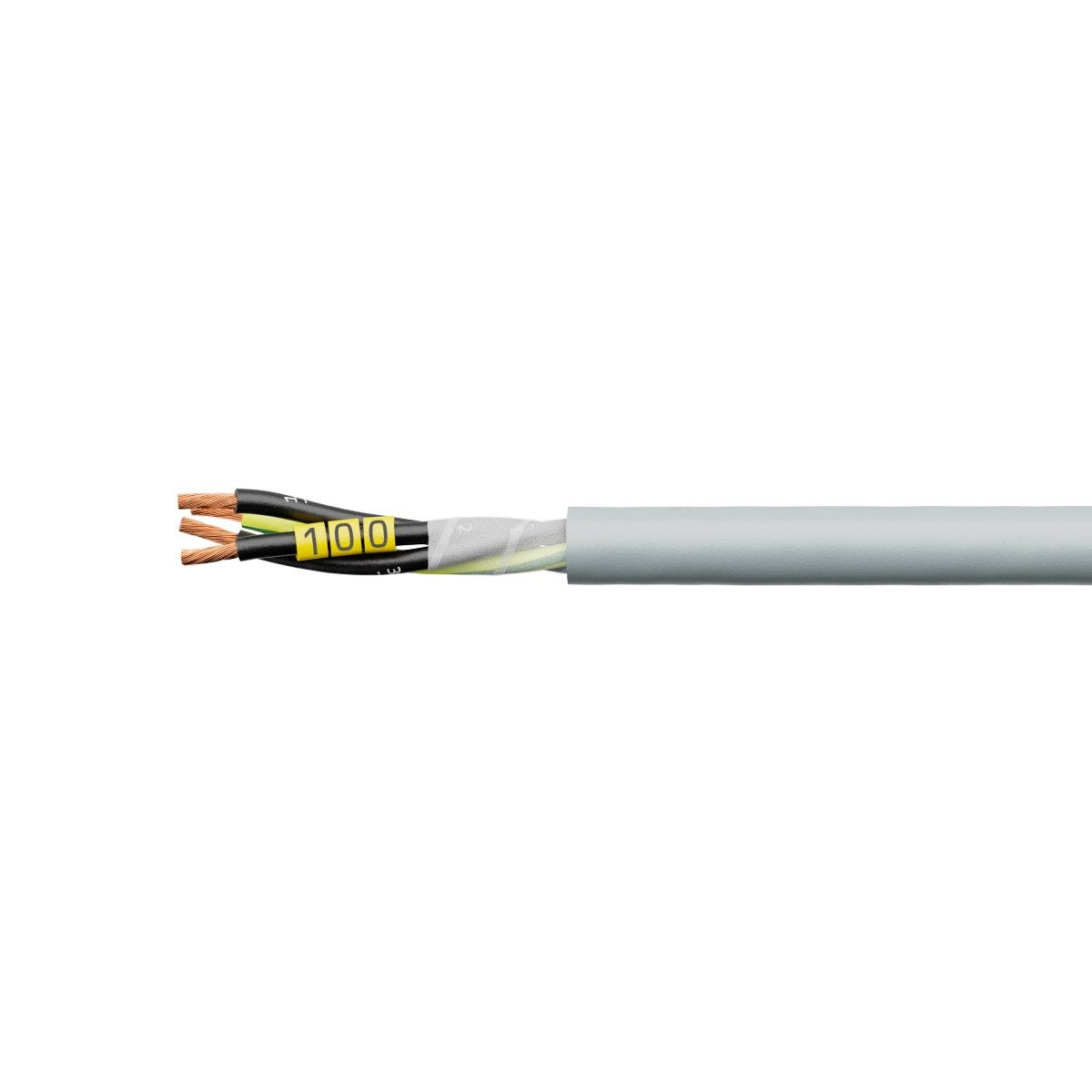

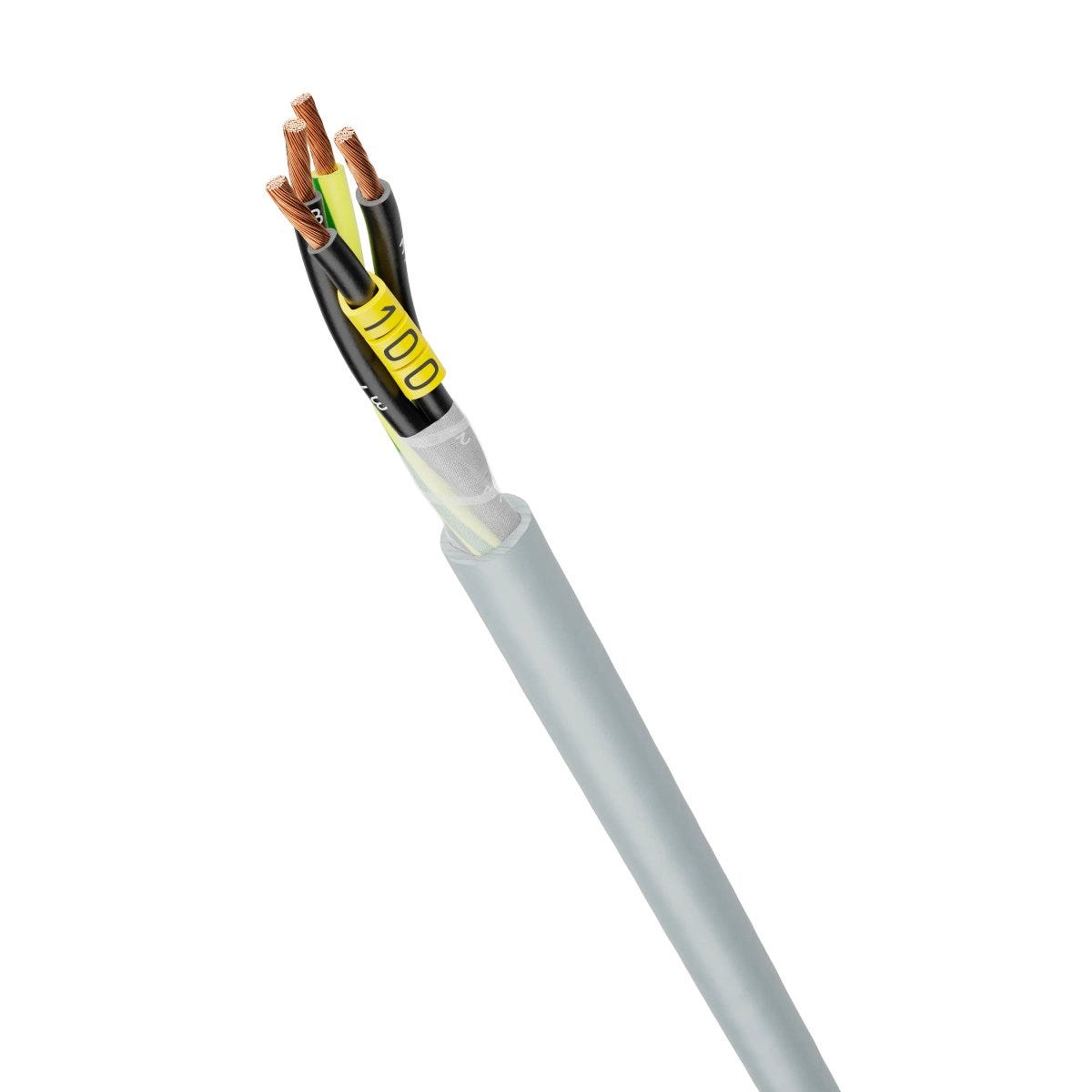

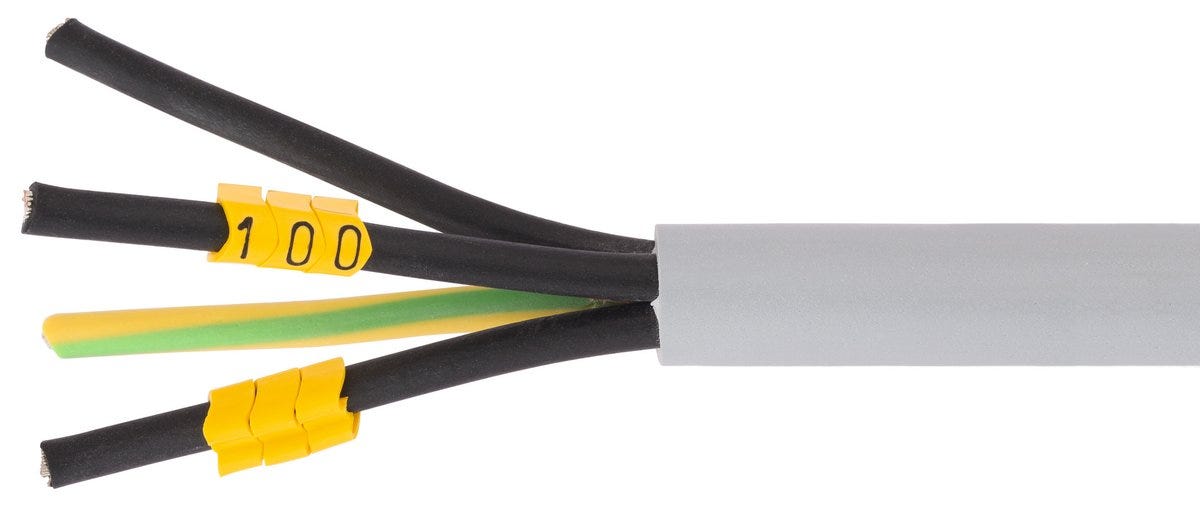

Marking ring; Imprint: G; Cable diameter: 2.5mm - 5mm; For cross-section (min./max.): 1.5mm² - 4mm²; yellow; Soft PVC;

LAPPSKU: 61819470Article No.#: 61819470

MARKING RINGS PA 1 /G

Marking ring; Imprint: G; Cable diameter: 2.5mm - 5mm; For cross-section (min./max.): 1.5mm² - 4mm²; yellow; Soft PVC;

MARKING RINGS PA 1 /G

1.391₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Technical Attributes

General Information

Product type	Marking ring
Printing procedure	Heat embossing process
Packaging type	Bag
Brand	FLEXIMARK®
Marking for	Cores, Cables
Time of installation	Before installation
Pieces per PU	200
Installation type	push on
Delivery Unit	200.000
Weight	0 kg

Electrical Characteristics

Product Design

Total length	3
For max. cable outer diameter	5
For cross-section (min.)	1.5
Overall width	4.2
Colour	yellow
Lettering colour	black
Marking	G
Total height	5.5
For cross-section (max.)	4
Label type	Marking ring
Material	Soft PVC
For min. cable outer diameter	2.5
Labelling	Letters

Product Characteristics

Flame-retardant
Oil-resistant
Waterproof
Chemical resistant
UV-resistant
Flame retardance according to	UL 94 V-0
Halogenfree

Certifications and Standards

Ecolab certified
CE marked

Documentation

Downloads

Datasheet - en-UK (PDF)

Datasheet - de-DE (PDF)

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Trade product, not a LAPP product.

Product Family List

All articles from Marking rings PA

Article number	Marking	For min. cable outer diameter	For max. cable outer diameter	For cross-section (min.)	For cross-section (max.)	Pieces per PU
61817800	0	1.3	3	0.2	1.5	200
61817810	1	1.3	3	0.2	1.5	200
61817820	2	1.3	3	0.2	1.5	200
61817830	3	1.3	3	0.2	1.5	200
61817840	4	1.3	3	0.2	1.5	200
61817850	5	1.3	3	0.2	1.5	200
61817860	6	1.3	3	0.2	1.5	200
61817870	7	1.3	3	0.2	1.5	200
61817880	8	1.3	3	0.2	1.5	200
61817890	9	1.3	3	0.2	1.5	200
61817900	blank	1.3	3	0.2	1.5	200
61817910	A	1.3	3	0.2	1.5	200
61817920	B	1.3	3	0.2	1.5	200
61817930	C	1.3	3	0.2	1.5	200
61817940	D	1.3	3	0.2	1.5	200
61817950	E	1.3	3	0.2	1.5	200
61817960	F	1.3	3	0.2	1.5	200
61817970	G	1.3	3	0.2	1.5	200
61817980	H	1.3	3	0.2	1.5	200
61817990	I	1.3	3	0.2	1.5	200
61818000	J	1.3	3	0.2	1.5	200
61818011	K	1.3	3	0.2	1.5	200
61818020	L	1.3	3	0.2	1.5	200
61818030	M	1.3	3	0.2	1.5	200
61818040	N	1.3	3	0.2	1.5	200
61818050	O	1.3	3	0.2	1.5	200
61818060	P	1.3	3	0.2	1.5	200
61818070	Q	1.3	3	0.2	1.5	200
61818080	R	1.3	3	0.2	1.5	200
61818090	S	1.3	3	0.2	1.5	200
61819100	T	1.3	3	0.2	1.5	200
61819110	U	1.3	3	0.2	1.5	200
61819120	V	1.3	3	0.2	1.5	200
61819130	W	1.3	3	0.2	1.5	200
61819140	X	1.3	3	0.2	1.5	200
61819150	Y	1.3	3	0.2	1.5	200
61819160	Z	1.3	3	0.2	1.5	200
61819170	/	1.3	3	0.2	1.5	200
61819180	.	1.3	3	0.2	1.5	200
61819190	,	1.3	3	0.2	1.5	200
61819200	:	1.3	3	0.2	1.5	200
61819210	=	1.3	3	0.2	1.5	200
61819220	Earth	1.3	3	0.2	1.5	200
61819260	+	1.3	3	0.2	1.5	200
61819270	-	1.3	3	0.2	1.5	200
61819280	~	1.3	3	0.2	1.5	200
61819300	0	2.5	5	1.5	4	200
61819310	1	2.5	5	1.5	4	200
61819320	2	2.5	5	1.5	4	200
61819330	3	2.5	5	1.5	4	200
61819340	4	2.5	5	1.5	4	200
61819350	5	2.5	5	1.5	4	200
61819360	6	2.5	5	1.5	4	200
61819370	7	2.5	5	1.5	4	200
61819380	8	2.5	5	1.5	4	200
61819390	9	2.5	5	1.5	4	200
61819400	blank	2.5	5	1.5	4	200
61819410	A	2.5	5	1.5	4	200
61819420	B	2.5	5	1.5	4	200
61819430	C	2.5	5	1.5	4	200
61819440	D	2.5	5	1.5	4	200
61819450	E	2.5	5	1.5	4	200
61819460	F	2.5	5	1.5	4	200
61819470	G	2.5	5	1.5	4	200
61819480	H	2.5	5	1.5	4	200
61819490	I	2.5	5	1.5	4	200
61819500	J	2.5	5	1.5	4	200
61819510	K	2.5	5	1.5	4	200
61819520	L	2.5	5	1.5	4	200
61819530	M	2.5	5	1.5	4	200
61819540	N	2.5	5	1.5	4	200
61819550	O	2.5	5	1.5	4	200
61819560	P	2.5	5	1.5	4	200
61819570	Q	2.5	5	1.5	4	200
61819580	R	2.5	5	1.5	4	200
61819590	S	2.5	5	1.5	4	200
61819600	T	2.5	5	1.5	4	200
61819610	U	2.5	5	1.5	4	200
61819620	V	2.5	5	1.5	4	200
61819630	W	2.5	5	1.5	4	200
61819640	X	2.5	5	1.5	4	200
61819650	Y	2.5	5	1.5	4	200
61819660	Z	2.5	5	1.5	4	200
61819670	/	2.5	5	1.5	4	200
61819680	.	2.5	5	1.5	4	200
61819690	,	2.5	5	1.5	4	200
61819700	:	2.5	5	1.5	4	200
61819710	=	2.5	5	1.5	4	200
61819720	Earth	2.5	5	1.5	4	200
61819760	+	2.5	5	1.5	4	200
61819770	-	2.5	5	1.5	4	200
61819780	~	2.5	5	1.5	4	200
61819800	0	4	10	2.5	16	100
61819810	1	4	10	2.5	16	100
61819820	2	4	10	2.5	16	100
61819830	3	4	10	2.5	16	100
61819840	4	4	10	2.5	16	100
61819850	5	4	10	2.5	16	100
61819860	6	4	10	2.5	16	100
61819870	7	4	10	2.5	16	100
61819880	8	4	10	2.5	16	100
61819890	9	4	10	2.5	16	100
61819900	blank	4	10	2.5	16	100
61819910	A	4	10	2.5	16	100
61819920	B	4	10	2.5	16	100
61819930	C	4	10	2.5	16	100
61819940	D	4	10	2.5	16	100
61819950	E	4	10	2.5	16	100
61819960	F	4	10	2.5	16	100
61819970	G	4	10	2.5	16	100
61819980	H	4	10	2.5	16	100
61819990	I	4	10	2.5	16	100
61820000	J	4	10	2.5	16	100
61820010	K	4	10	2.5	16	100
61820020	L	4	10	2.5	16	100
61820030	M	4	10	2.5	16	100
61820040	N	4	10	2.5	16	100
61820050	O	4	10	2.5	16	100
61820060	P	4	10	2.5	16	100
61820070	Q	4	10	2.5	16	100
61820080	R	4	10	2.5	16	100
61820090	S	4	10	2.5	16	100
61820100	T	4	10	2.5	16	100
61820110	U	4	10	2.5	16	100
61820120	V	4	10	2.5	16	100
61820130	W	4	10	2.5	16	100
61820140	X	4	10	2.5	16	100
61820150	Y	4	10	2.5	16	100
61820160	Z	4	10	2.5	16	100
61820170	/	4	10	2.5	16	100
61820180	.	4	10	2.5	16	100
61820190	,	4	10	2.5	16	100
61820200	:	4	10	2.5	16	100
61820210	=	4	10	2.5	16	100
61820220	Earth	4	10	2.5	16	100
61820260	+	4	10	2.5	16	100
61820270	-	4	10	2.5	16	100
61820280	~	4	10	2.5	16	100
61820300	0	8	16	16	70	20
61820310	1	8	16	16	70	20
61820320	2	8	16	16	70	20
61820330	3	8	16	16	70	20
61820340	4	8	16	16	70	20
61820350	5	8	16	16	70	20
61820360	6	8	16	16	70	20
61820370	7	8	16	16	70	20
61820380	8	8	16	16	70	20
61820390	9	8	16	16	70	20
61820400	blank	8	16	16	70	20
61820410	A	8	16	16	70	20
61820420	B	8	16	16	70	20
61820430	C	8	16	16	70	20
61820440	D	8	16	16	70	20
61820450	E	8	16	16	70	20
61820460	F	8	16	16	70	20
61820470	G	8	16	16	70	20
61820480	H	8	16	16	70	20
61820490	I	8	16	16	70	20
61820500	J	8	16	16	70	20
61820510	K	8	16	16	70	20
61820520	L	8	16	16	70	20
61820530	M	8	16	16	70	20
61820540	N	8	16	16	70	20
61820550	O	8	16	16	70	20
61820560	P	8	16	16	70	20
61820570	Q	8	16	16	70	20
61820580	R	8	16	16	70	20
61820590	S	8	16	16	70	20
61820600	T	8	16	16	70	20
61820610	U	8	16	16	70	20
61820620	V	8	16	16	70	20
61820630	W	8	16	16	70	20
61820640	X	8	16	16	70	20
61820650	Y	8	16	16	70	20
61820660	Z	8	16	16	70	20
61820670	/	8	16	16	70	20
61820680	.	8	16	16	70	20
61820720	Earth	8	16	16	70	20
61820760	+	8	16	16	70	20
61820770	-	8	16	16	70	20
61820780	~	8	16	16	70	20
