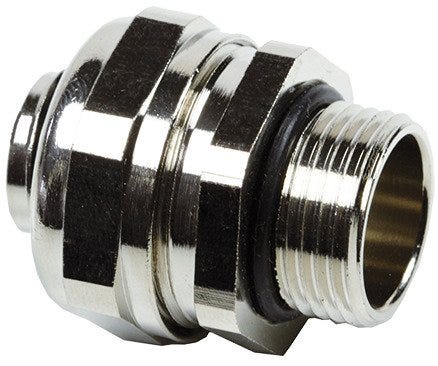

SILVYN® COMPACT M20X1.5 - 5/16 NPB

Name: SILVYN® COMPACT M20X1.5 - 5/16 NPB
Brand: LAPP
SKU: 61803847
Price: 391489 VND
Availability: OutOfStock

Conduit gland; M 20; Nominal size: 3/8; Halogenfree; UV-resistant; IP 67;

LAPPSKU: 61803847Article No.#: 61803847

Conduit gland; M 20; Nominal size: 3/8; Halogenfree; UV-resistant; IP 67;

391.489₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

High tensile strength, For high mechanical stress, Space-saving application, Corrosion-resistant

Applications

In combination with protective conduit:, Suitable for SILVYN® HTDL/EF/OR/HCX/HFX, Mechanical engineering, Railway applications

Technical Attributes

General Information

Electrical Characteristics

Product Design

Lockable (two-part)
Nominal size	3/8
Divisible fitting
Suitable protective conduit	SILVYN® FG, SILVYN® FG NM
EMC screening
Thread size	M 20
Outer diameter	29.5
Screw-in sleeve material	Steel
Inner diameter	11
Thread length	10
Gland body material	Brass
Conduit gland design	Straight
Cable gland body material, short form	CuZn
Hexagon corner dimensions	29.5
Spanner size	26
Bending protection
Clear width	11
O-ring material, short form	NBR
Bending protection fixed installation
O-ring material	Acrylonitrile butadiene rubber
Pitch of thread	1,5
Surface protection	Nickel-plated
Flexibly installed bending protection
Rotatable thread
Spanner size 1	26
Thread standard	DIN EN 60423
Sealing material, short form	PA
Spanner size 2	24
Sealing material	Polyamide

Product Characteristics

Flame-retardant
IP protection rating	IP 67
Acid-resistant
IP-protection class cable side	IP 67
Chemical resistant
UV-resistant
Oil-resistant
Strain relief
Suitable for EX-applications
Impact-resistant
Vibration protection
Halogenfree

Certifications and Standards

EHEDG certified
DNV-certified
cUR recognized
CSA certified
FDA certified
GGVS certified
Tested for fire protection for railway vehicles
Product standard according to IEC	IEC 61386-1, IEC 61386-23
Ecolab certified
cUL listed
UL listed
CE marked
UL recognized
NSF certified
VDE certified

Documentation

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Trade product, not a LAPP product.

Product Family List

Article number	Thread size	Delivery Unit
61803800	M 16	10.000
61803801	M 20	10.000
61803802	M 20	10.000
61803803	M 25	5.000
61803804	M 32	5.000
61803805	M 40	2.000
61803806	M 50	2.000
61803807	M 63	2.000
61803846	M 16	10.000
61803847	M 20	10.000
