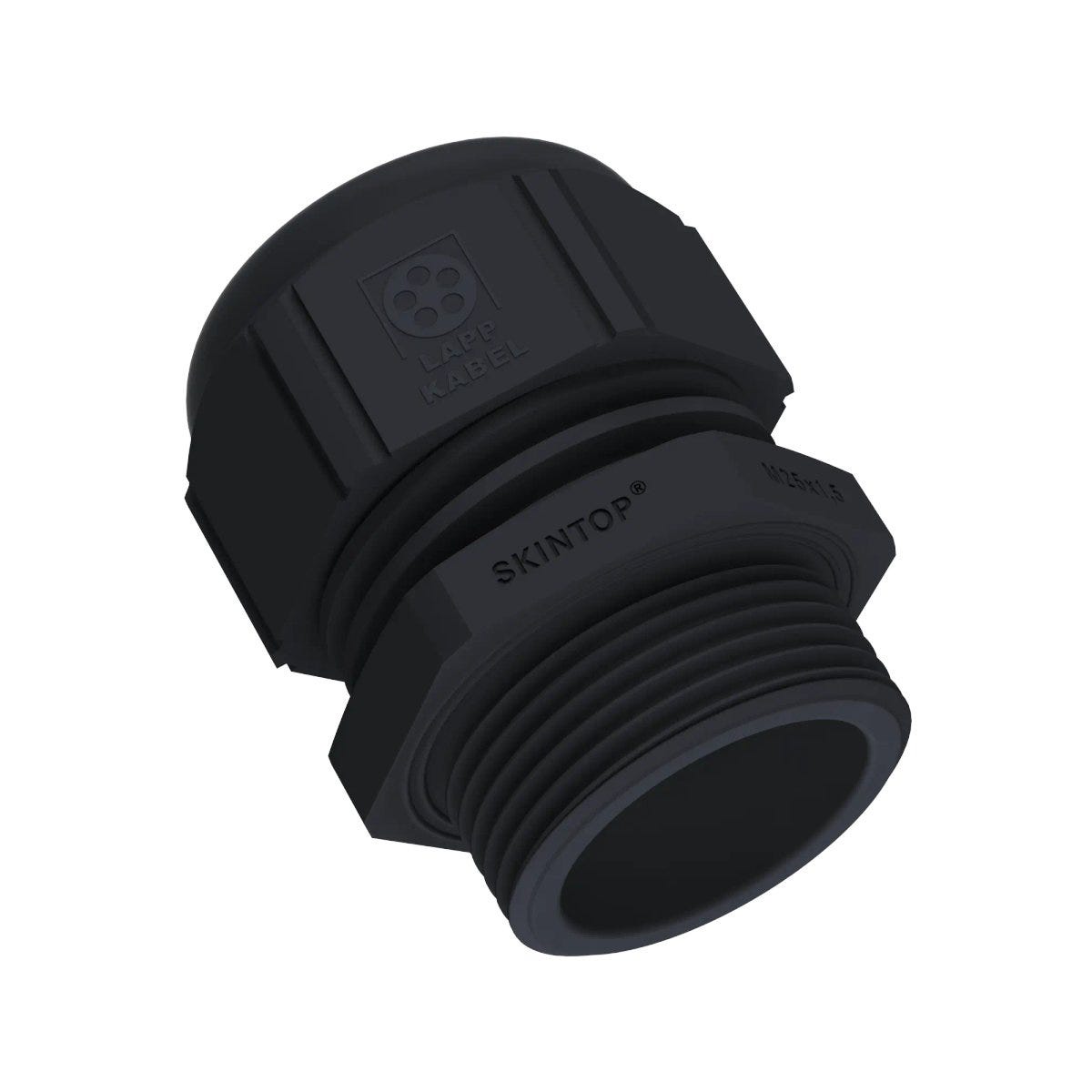

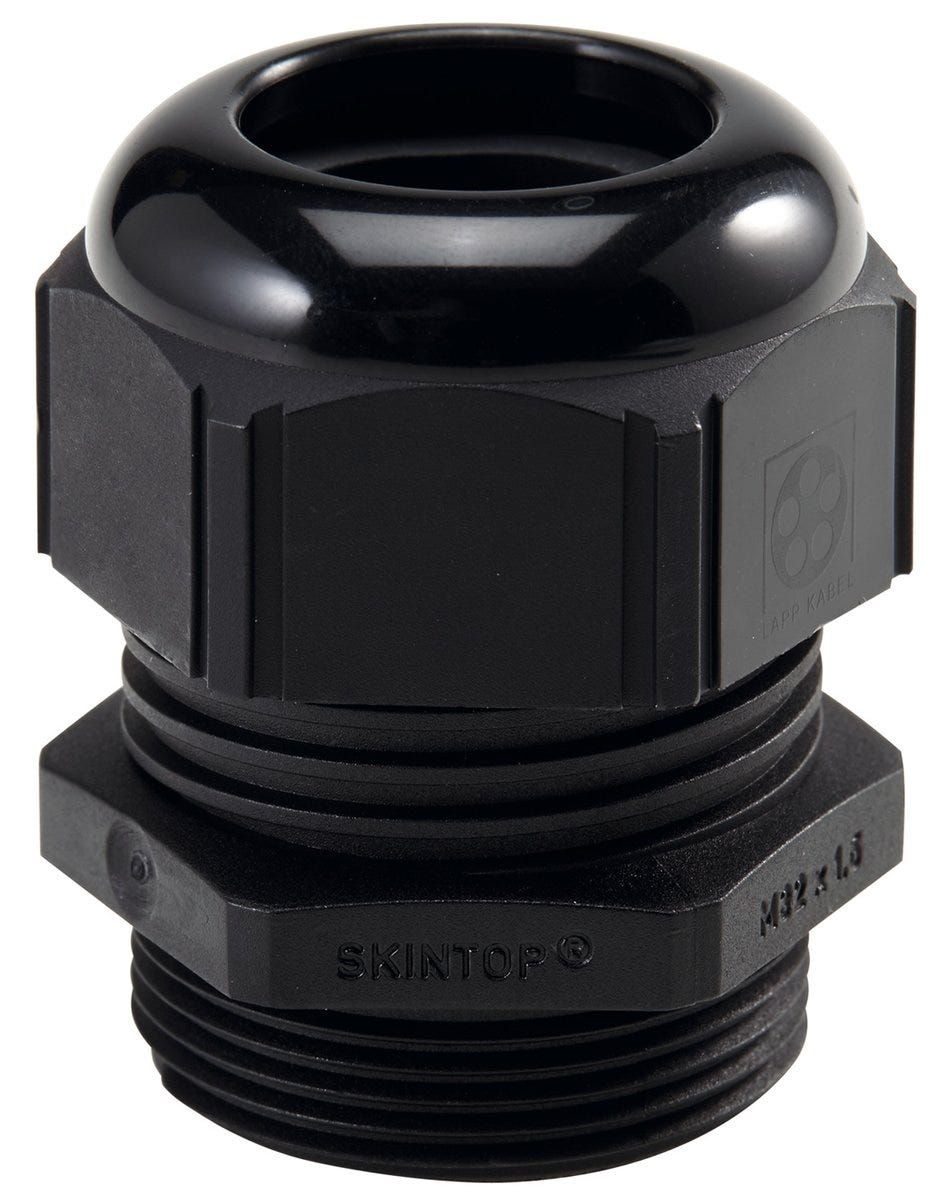

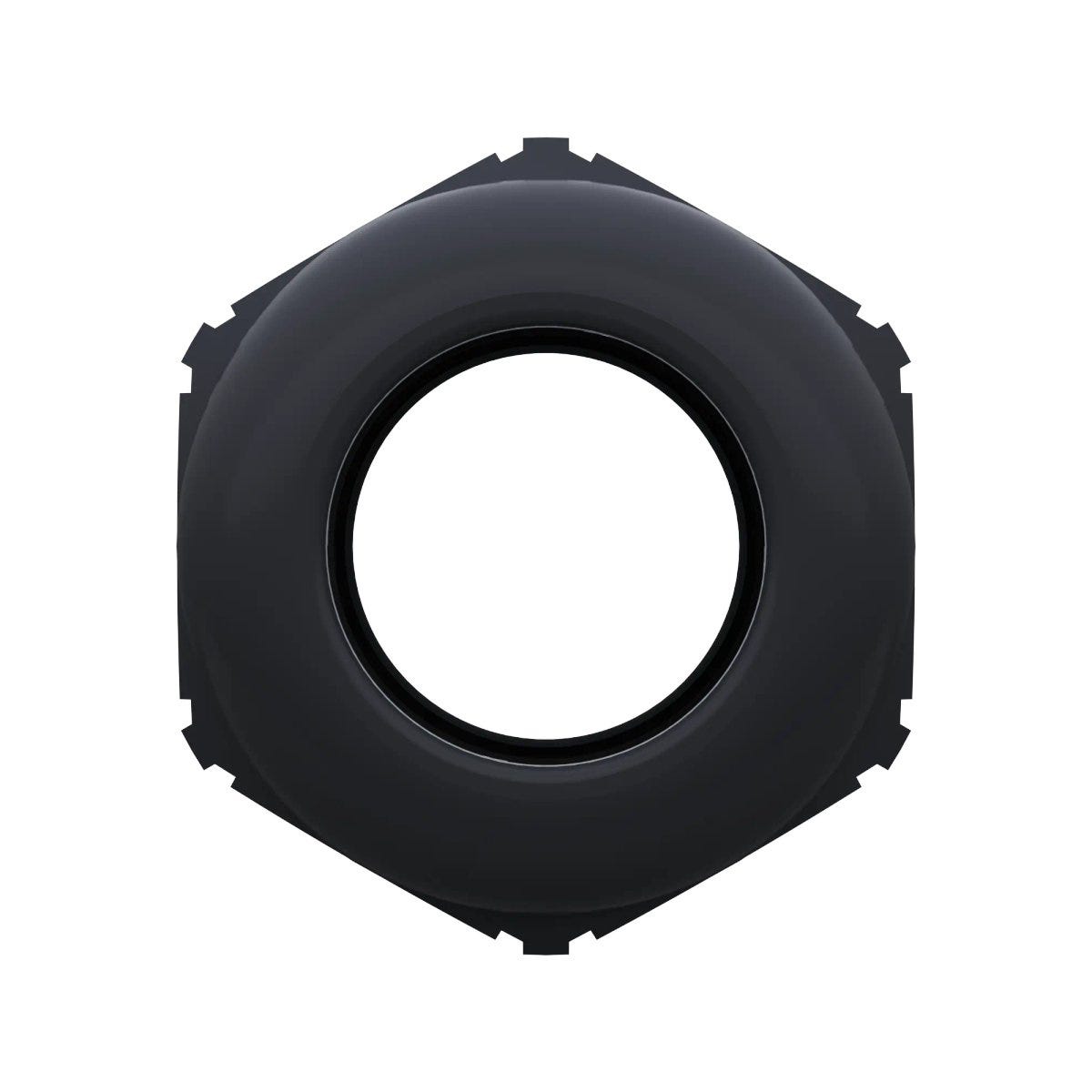

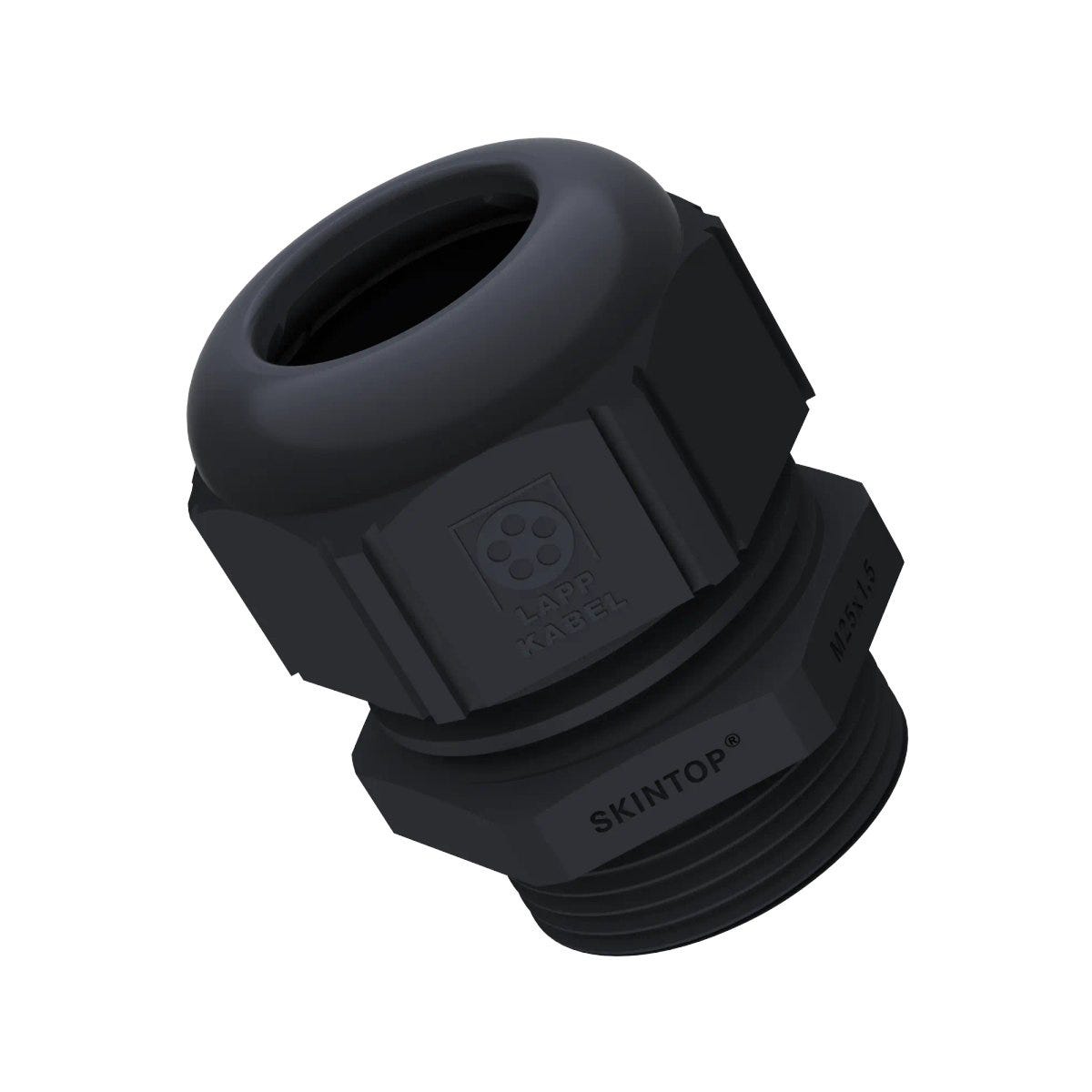

SKINTOP® STR PG 7 RAL 9005 BK

Name: SKINTOP® STR PG 7 RAL 9005 BK
Brand: LAPP
SKU: 53015300
Price: 31881 VND
Availability: OutOfStock

Cable gland; PG 7; Clamping range (min./max.): 1.5 - 5 mm; Wrench width 1: 15; black; Polyamide Uncoated; UV-resistant; IP 68 - 5 bar (30 min);

LAPPSKU: 53015300Article No.#: 53015300

SKINTOP® STR PG 7 RAL 9005 BK

Cable gland; PG 7; Clamping range (min./max.): 1.5 - 5 mm; Wrench width 1: 15; black; Polyamide Uncoated; UV-resistant; IP 68 - 5 bar (30 min);

SKINTOP® STR PG 7 RAL 9005 BK

31.881₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Technical Attributes

General Information

Including lock nut
Including o-ring
Brand	SKINTOP®
Product type	Cable gland
Packaging type	Bag
Delivery Unit	100.000
Weight	0.004 kg

Electrical Characteristics

Product Design

Total length	32
Number of cable entries	1
Material body	Polyamide
Thread type	PG
Cable gland design	Straight
EMC screening
Material body shortname	PA
Thread size	PG 7
Colour	black
Thread length	7.8
Hexagon corner dimensions	16.4
Bending protection
Clear width	5
Max. clamping range	5
Seal type	Conduit sealing ring
RAL colour	RAL 9005
Glass-fibre reinforced
Pitch of thread	1,27
Surface protection	Uncoated
Spanner size 1	15
Min. clamping range	1.5
For armoured cables
Sealing material, short form	CR
Spanner size 2	15
Sealing material	Chloroprene rubber

Product Characteristics

Flame-retardant
IP protection rating	IP 68 - 5 bar (30 min)
Acid-resistant
Temperature static min.	-40
Chemical resistant
UV-resistant
Temperature (max.)	100
Temperature dynamic min.	-20
Oil-resistant
Max. dynamic temperature	100
Temperature (min.)	-40
Strain relief
Suitable for EX-applications
Impact-resistant
Vibration protection
NEMA type rating	Type 1, Type 12
Flame retardance according to	UL 94 V-2
Temperature static max.	100
Halogenfree

Certifications and Standards

EHEDG certified
DNV-certified
cUR recognized
CSA certified
FDA certified
GGVS certified
Tested for fire protection for railway vehicles
UL AWM certification	according to UL 514B (CCN: QBPZ2 / e-file number: E79903)
Ecolab certified
cUL listed
UL listed
cUR certification	according to CSA C22.2 No. 18.3 (CCN: QBPZ8 / e-file number: E79903)
For Ex zone gas	without
For Ex-zone dust	without
CE marked
UL recognized
NSF certified
VDE certified

Documentation

Downloads

approval tuev - de-DE (PDF)

Approval UL - en-UK (PDF)

assembly instructions - de-DE (PDF)

CE declaration of conformity - de-DE (PDF)

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

Package insert - de-DE (PDF)

Selection table - it-IT (PDF)

Selection table - pl-PL (PDF)

Selection table - cs-CZ (PDF)

Selection table - es-ES (PDF)

Selection table - de-DE (PDF)

Selection table - fr-FR (PDF)

Selection table - ro-RO (PDF)

Selection table - tr-TR (PDF)

Selection table - nl-NL (PDF)

Selection table - zh-CN (PDF)

Selection table - en-UK (PDF)

Selection table - pt-PT (PDF)

Selection table - ru-RU (PDF)

Selection table - ja-JP (PDF)

Selection table - ko-KR (PDF)

Technical table - tr-TR (PDF)

Technical table - es-ES (PDF)

Technical table - ko-KR (PDF)

Technical table - es-ES (PDF)

Technical table - ko-KR (PDF)

Technical table - es-ES (PDF)

Technical table - ko-KR (PDF)

Technical table - zh-CN (PDF)

Technical table - ja-JP (PDF)

Technical table - de-DE (PDF)

Technical table - cs-CZ (PDF)

Technical table - nl-NL (PDF)

Technical table - de-DE (PDF)

Technical table - pt-PT (PDF)

Technical table - ja-JP (PDF)

Technical table - cs-CZ (PDF)

Technical table - ro-RO (PDF)

Technical table - fr-FR (PDF)

Technical table - en-UK (PDF)

Technical table - ro-RO (PDF)

Technical table - fr-FR (PDF)

Technical table - ro-RO (PDF)

Technical table - en-UK (PDF)

Technical table - fr-FR (PDF)

Technical table - pl-PL (PDF)

Technical table - ru-RU (PDF)

Technical table - pl-PL (PDF)

Technical table - it-IT (PDF)

Technical table - ru-RU (PDF)

Technical table - pl-PL (PDF)

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.

Product Family List

All articles from SKINTOP® ST / SKINTOP® STR

Article number	Thread size	Thread length	Min. clamping range	Max. clamping range	Spanner size 1	Colour	Delivery Unit
53015000	PG 7	7.8	2.5	6.5	15	silver grey	100.000
53015010	PG 9	8	3.5	8	19	silver grey	100.000
53015020	PG 11	8	4	10	22	silver grey	100.000
53015030	PG 13,5	9	6	12	24	silver grey	100.000
53015040	PG 16	10	9	14	27	silver grey	50.000
53015050	PG 21	11	13	18	33	silver grey	50.000
53015060	PG 29	10.7	14	25	42	silver grey	25.000
53015070	PG 36	13.3	24	32	53	silver grey	10.000
53015080	PG 42	13.4	35	38	60	silver grey	5.000
53015090	PG 48	14.3	39	44	65	silver grey	5.000
53015100	PG 7	7.8	1.5	5	15	silver grey	100.000
53015110	PG 9	8	2	6	19	silver grey	100.000
53015120	PG 11	8	2	7	22	silver grey	100.000
53015130	PG 13,5	9	4	9	24	silver grey	100.000
53015140	PG 16	10	6	12	27	silver grey	50.000
53015150	PG 21	11	9	16	33	silver grey	50.000
53015160	PG 29	10.7	11	20	42	silver grey	25.000
53015170	PG 36	13.3	17	26	53	silver grey	10.000
53015180	PG 42	13.4	22	31	60	silver grey	5.000
53015190	PG 48	14.3	26	35	65	silver grey	5.000
53015200	PG 7	7.8	2.5	6.5	15	black	100.000
53015210	PG 9	8	3.5	8	19	black	100.000
53015220	PG 11	8	4	10	22	black	100.000
53015230	PG 13,5	9	6	12	24	black	100.000
53015240	PG 16	10	9	14	27	black	50.000
53015250	PG 21	11	13	18	33	black	50.000
53015260	PG 29	10.7	14	25	42	black	25.000
53015270	PG 36	13.3	24	32	53	black	10.000
53015280	PG 42	13.4	35	38	60	black	5.000
53015290	PG 48	14.3	39	44	65	black	5.000
53015300	PG 7	7.8	1.5	5	15	black	100.000
53015310	PG 9	8	2	6	19	black	100.000
53015320	PG 11	8	2	7	22	black	100.000
53015330	PG 13,5	9	4	9	24	black	100.000
53015340	PG 16	10	6	12	27	black	50.000
53015350	PG 21	11	9	16	33	black	50.000
53015360	PG 29	10.7	11	20	42	black	25.000
53015370	PG 36	13.3	17	26	53	black	10.000
53015380	PG 42	13.4	22	31	60	black	5.000
53015390	PG 48	14.3	26	35	65	black	5.000
53018000	PG 7	7.8	2.5	6.5	15	light grey	100.000
53018010	PG 9	8	3.5	8	19	light grey	100.000
53018020	PG 11	8	4	10	22	light grey	100.000
53018030	PG 13,5	9	6	12	24	light grey	100.000
53018040	PG 16	10	9	14	27	light grey	50.000
53018050	PG 21	11	13	18	33	light grey	50.000
53018060	PG 29	10.7	14	25	42	light grey	25.000
53018070	PG 36	13.3	24	32	53	light grey	10.000
53018080	PG 42	13.4	35	38	60	light grey	5.000
53018090	PG 48	14.3	39	44	65	light grey	5.000
53018100	PG 7	7.8	1.5	5	15	light grey	100.000
53018110	PG 9	8	2	6	19	light grey	100.000
53018120	PG 11	8	2	7	22	light grey	100.000
53018130	PG 13,5	9	4	9	24	light grey	100.000
53018140	PG 16	10	6	12	27	light grey	50.000
53018150	PG 21	11	9	16	33	light grey	50.000
53018160	PG 29	10.7	11	20	42	light grey	25.000
53018170	PG 36	13.3	17	26	53	light grey	10.000
53018180	PG 42	13.4	22	31	60	light grey	5.000
53018190	PG 48	14.3	26	35	65	light grey	5.000
53110154	PG 7	7.8	2.5	6.5	15	silver grey	10.000
53110155	PG 9	8	3.5	8	19	silver grey	10.000
53110156	PG 11	8	4	10	22	silver grey	10.000
53110157	PG 13,5	9	6	12	24	silver grey	10.000
53110158	PG 16	10	9	14	27	silver grey	10.000
53110159	PG 21	11	13	18	33	silver grey	5.000
53110160	PG 29	10.7	14	25	42	silver grey	5.000
53110161	PG 36	13.3	24	32	53	silver grey	5.000
53110162	PG 42	13.4	35	38	60	silver grey	5.000
53110163	PG 48	14.3	39	44	65	silver grey	5.000
