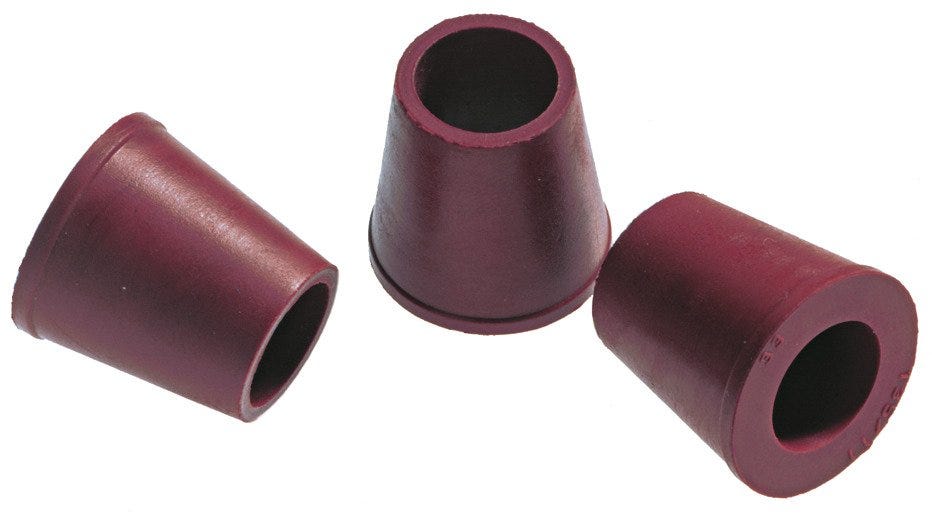

SKINDICHT® SHV PG 13.5/9 CONE SEAL FKM

Name: SKINDICHT® SHV PG 13.5/9 CONE SEAL FKM
Brand: LAPP
SKU: 52021271
Price: 117511 VND
Availability: OutOfStock

Sealing cone; Clear width: 9mm; Fluorinated rubber; FKM; red

LAPPSKU: 52021271Article No.#: 52021271

SKINDICHT® SHV PG 13.5/9 CONE SEAL FKM

Sealing cone; Clear width: 9mm; Fluorinated rubber; FKM; red

SKINDICHT® SHV PG 13.5/9 CONE SEAL FKM

117.511₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Technical Attributes

General Information

Product type	Sealing cone
Packaging type	Loose
Brand	SKINDICHT®
Delivery Unit	100.000
Weight	0.005 kg

Electrical Characteristics

Product Design

Seal type	Sealing cone
Total length	18.5
Material body	Fluorinated rubber
Cable gland design	Straight
Material body shortname	FKM
Thread size	PG 13,5
Outer diameter	18.9
Colour	red
Inner diameter	9
Sealing material, short form	FKM
Bending protection
Clear width	9
Sealing material	Fluorinated rubber

Product Characteristics

Flame-retardant
Oil-resistant
Temperature (min.)	-20
Suitable for EX-applications
Acid-resistant
Chemical resistant
UV-resistant
Temperature (max.)	200
Halogenfree

Certifications and Standards

Ecolab certified
CE marked

Documentation

Downloads

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

Selection table - it-IT (PDF)

Selection table - pl-PL (PDF)

Selection table - cs-CZ (PDF)

Selection table - es-ES (PDF)

Selection table - de-DE (PDF)

Selection table - fr-FR (PDF)

Selection table - ro-RO (PDF)

Selection table - tr-TR (PDF)

Selection table - nl-NL (PDF)

Selection table - zh-CN (PDF)

Selection table - en-UK (PDF)

Selection table - pt-PT (PDF)

Selection table - ru-RU (PDF)

Selection table - ja-JP (PDF)

Selection table - ko-KR (PDF)

Technical table - tr-TR (PDF)

Technical table - es-ES (PDF)

Technical table - ko-KR (PDF)

Technical table - es-ES (PDF)

Technical table - ko-KR (PDF)

Technical table - es-ES (PDF)

Technical table - ko-KR (PDF)

Technical table - zh-CN (PDF)

Technical table - ja-JP (PDF)

Technical table - de-DE (PDF)

Technical table - cs-CZ (PDF)

Technical table - nl-NL (PDF)

Technical table - de-DE (PDF)

Technical table - pt-PT (PDF)

Technical table - ja-JP (PDF)

Technical table - cs-CZ (PDF)

Technical table - ro-RO (PDF)

Technical table - fr-FR (PDF)

Technical table - en-UK (PDF)

Technical table - ro-RO (PDF)

Technical table - fr-FR (PDF)

Technical table - ro-RO (PDF)

Technical table - en-UK (PDF)

Technical table - fr-FR (PDF)

Technical table - pl-PL (PDF)

Technical table - ru-RU (PDF)

Technical table - pl-PL (PDF)

Technical table - it-IT (PDF)

Technical table - ru-RU (PDF)

Technical table - pl-PL (PDF)

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.

Product Family List

All articles from SKINDICHT® SHV FKM

Article number	Clear width	Delivery Unit
52021146	6	100.000
52021259	5	100.000
52021261	7	100.000
52021262	7	100.000
52021263	9	100.000
52021265	13	50.000
52021266	20	50.000
52021267	22	50.000
52021268	18	50.000
52021269	15	50.000
52021271	9	100.000
52021272	11	100.000
