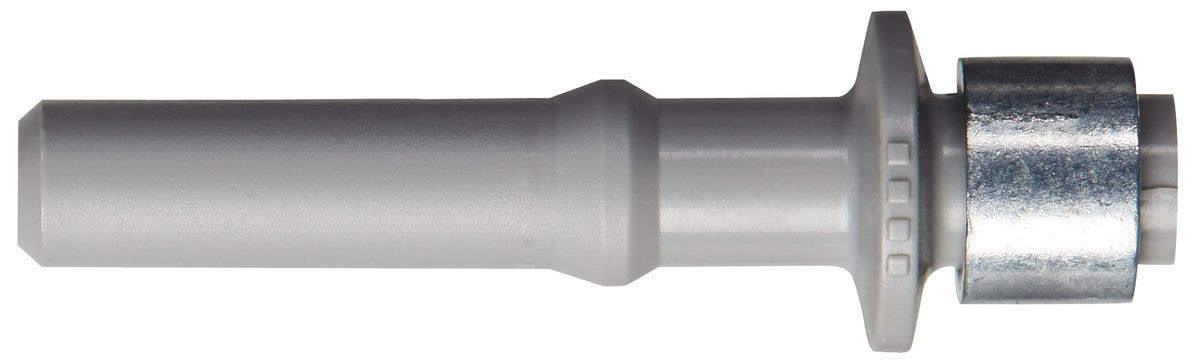

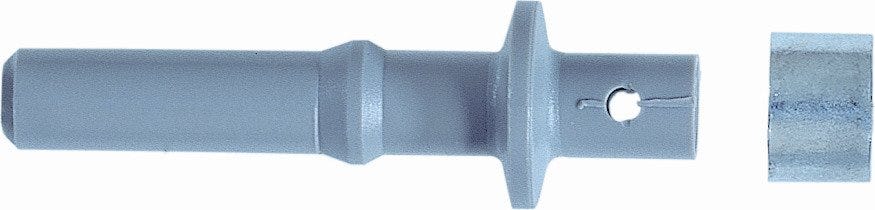

POF CONNECTOR HFBR4501 GY SIMPLEX /50PC

Name: POF CONNECTOR HFBR4501 GY SIMPLEX /50PC
Brand: LAPP
SKU: 29140098
Price: 90236 VND
Availability: OutOfStock

Fibre optic connector; HFBR-4501; Plug; Straight; Simplex; Suitable fibre width: 1000; crimp;

LAPPSKU: 29140098Article No.#: 29140098

Fibre optic connector; HFBR-4501; Plug; Straight; Simplex; Suitable fibre width: 1000; crimp;

90.236₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Benefits

Compatible with HP Versatile Link Connectors and Components series, Different colours for channel coding

Applications

Factory automation, Medical equipment, Telecommunications Switching Systems, Automotive Networks, Printed Circuit Board

Technical Attributes

General Information

Electrical Characteristics

Product Design

Assembly type	Field configurable
Total length	25.4
Flange
Design connector housing	Straight
Connector type	Plug
Type of plug connection	HFBR-4501
Direct mounting possible
Bend protection boot
Connector colour	grey
Housing base material	Plastic
Dust protection cap
Reusable
Variant of connector	Simplex
Connectable core diameter max. (mm)	2.2
Connector diameter	7.6
Ferrule length	19.1
Suitable type of optical fibre	Simplex
Contact connection type	Crimp termination
Ferrule material	Plastic
Suitable fibre width	1000
Ferrule diameter	3.8

Product Characteristics

IP protection rating	IP 20
Max. storage temperature	+85
Max. assembly temperature	70
Storage temperature min.	-40
Installation temperature min.	0
UV-resistant
Operating temperature min.	-40
Operating temperature max.	+85

Certifications and Standards

EAC certification number	Отказное письмо № 481
EAC-certified	Not required

Documentation

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
