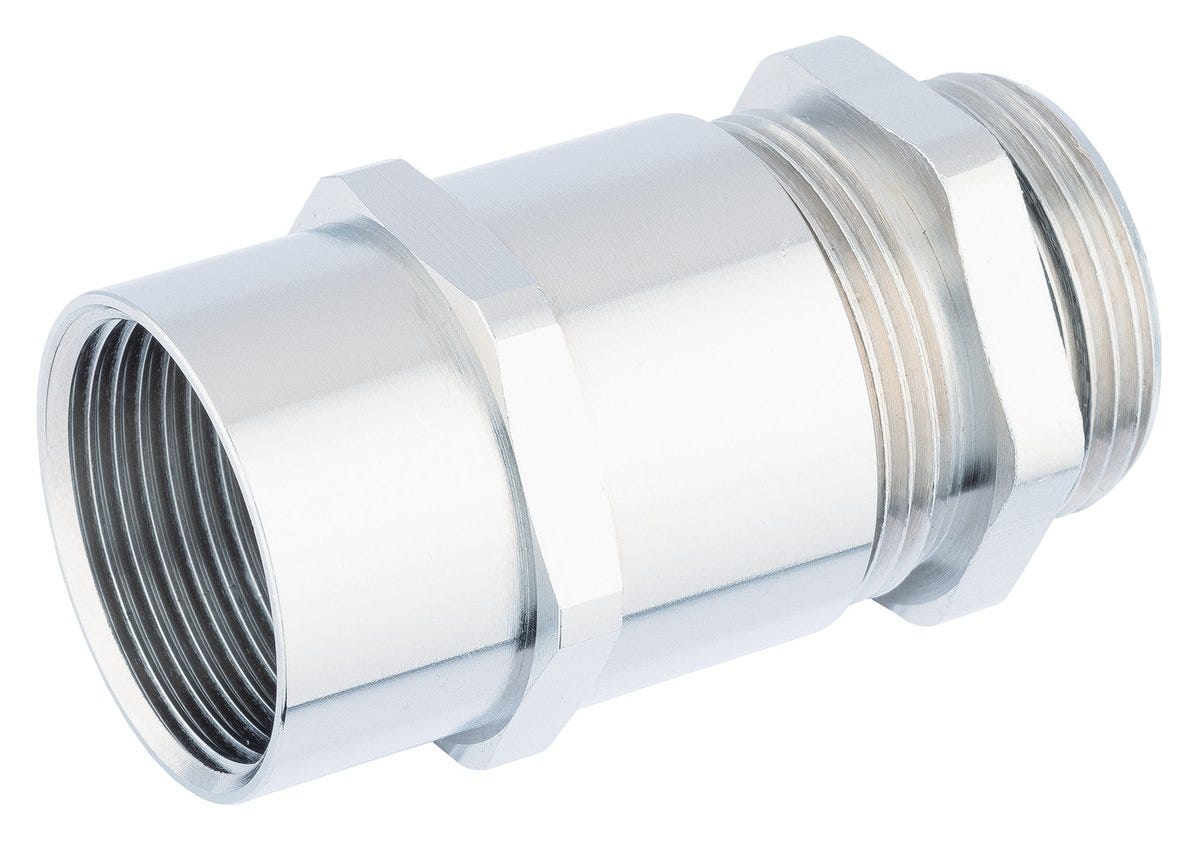

SILVYN® MSK-U-M 20X1.5 ADAPTER

Name: SILVYN® MSK-U-M 20X1.5 ADAPTER
Brand: LAPP
SKU: 55506131
Price: 619357 VND
Availability: OutOfStock

Collar; M 20; Brass Nickel-plated; UV-resistant;

LAPPSKU: 55506131Article No.#: 55506131

SILVYN® MSK-U-M 20X1.5 ADAPTER

Collar; M 20; Brass Nickel-plated; UV-resistant;

SILVYN® MSK-U-M 20X1.5 ADAPTER

619.357₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

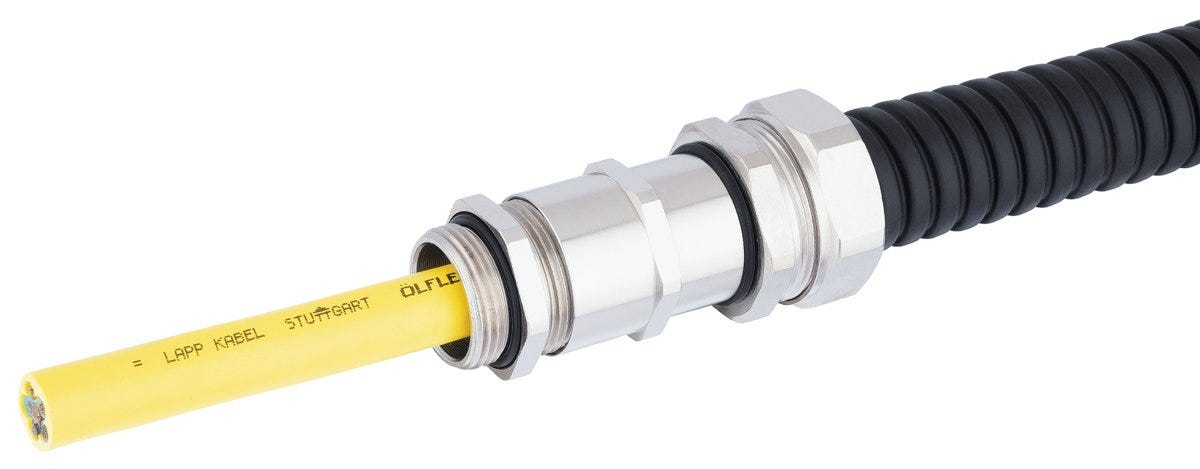

Additional strain relief for the protective conduit thanks to integrated SKINTOP® cable gland with flexible lamella

Mounted O-ring enables optimum sealing to the housing (protection class IP 68 (5 bar)). The seal on the conduit side depends on the protective conduit system used

Large, variable clamping ranges allow different cable outer diameters

Can be combined with all metric conduit glands.

Applications

For protective hose systems that require additional strain relief while simultaneously sealing the cable

Can be used in dry, damp and, especially, harsh and oily environments

Withstands high mechanical stress

Suitable for outdoor use.

Technical Attributes

General Information

Product type	Collar
Scope of delivery	including O-ring
Including o-ring
Brand	SILVYN®
Delivery Unit	5.000
Weight	0.094 kg

Electrical Characteristics

Product Design

O-ring material, short form	NBR
Max. clamping range	13
O-ring material	Acrylonitrile butadiene rubber
Total length	52
Material body	Brass
Pitch of thread	1,5
EMC screening
Insert material	Polyamide 6
Surface protection	Nickel-plated
Material body shortname	CuZn
Thread size	M 20
Overall width	26.4
Insert material, short form	PA 6
Min. clamping range	7
Thread length	8
Conduit gland design	Straight
Thread standard	DIN EN 60423
Spanner size	24
Sealing material, short form	CR
Bending protection
Sealing material	Chloroprene rubber

Product Characteristics

Flame-retardant
Oil-resistant
Strain relief
Suitable for EX-applications
IP-protection class cable side	IP 68
UV-resistant
Halogenfree

Certifications and Standards

EHEDG certified
Ecolab certified
cUR recognized
cUL listed
CSA certified
UL listed
CE marked
GGVS certified
UL recognized
NSF certified
VDE certified

Documentation

Downloads

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

Package insert - de-DE (PDF)

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
