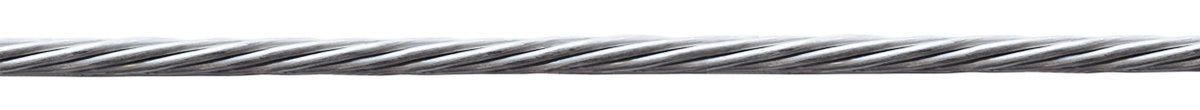

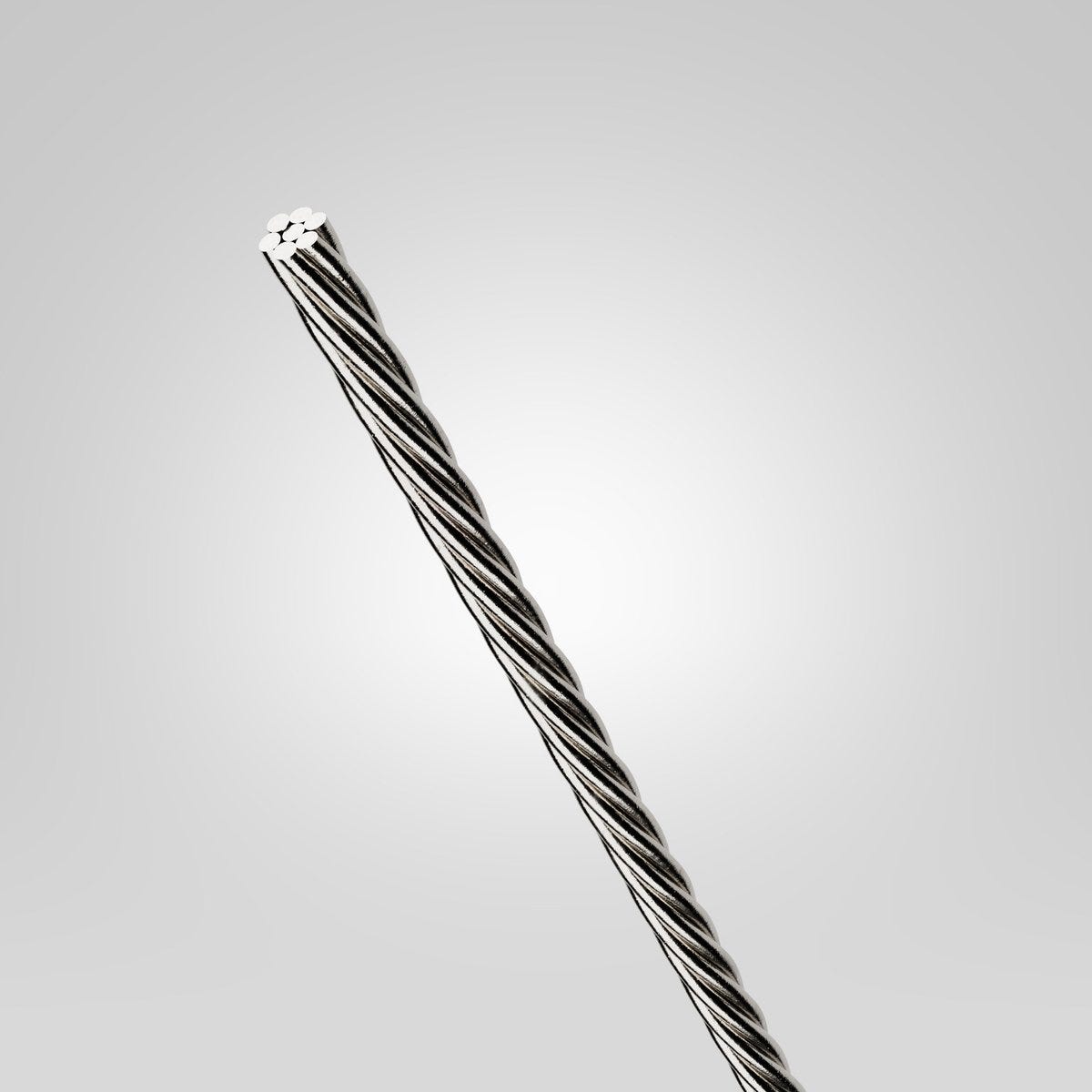

COPPER ROPE TINNED CLASS 2 1X25

Name: COPPER ROPE TINNED CLASS 2 1X25
Brand: LAPP
SKU: 4571203
Price: 375755 VND
Availability: OutOfStock

Single core; 1X25;

LAPPSKU: 4571203Article No.#: 4571203

Single core; 1X25;

375.755₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Benefits

Copper conductor with additional tin coating

Corrosion-resistant and therefore durable even in damp and salty environments

Better suited for soldering compared to bare copper conductors thanks to tin coating

Various conductor cross-sections available.

Applications

For safety-relevant equipotential bonding on machine parts and IT systems

For the installation of meshed equipotential bonding systems

Can be used in dry and damp environments

Suitable for outdoor use.

Technical Attributes

General Information

Electrical Characteristics

Max. conductor resistance at 20°C

0.734 Ω/km

Product Design

Nominal conductor cross-section (metric)	25 mm²
Cable dimension	1X25
Shape of cable	Round

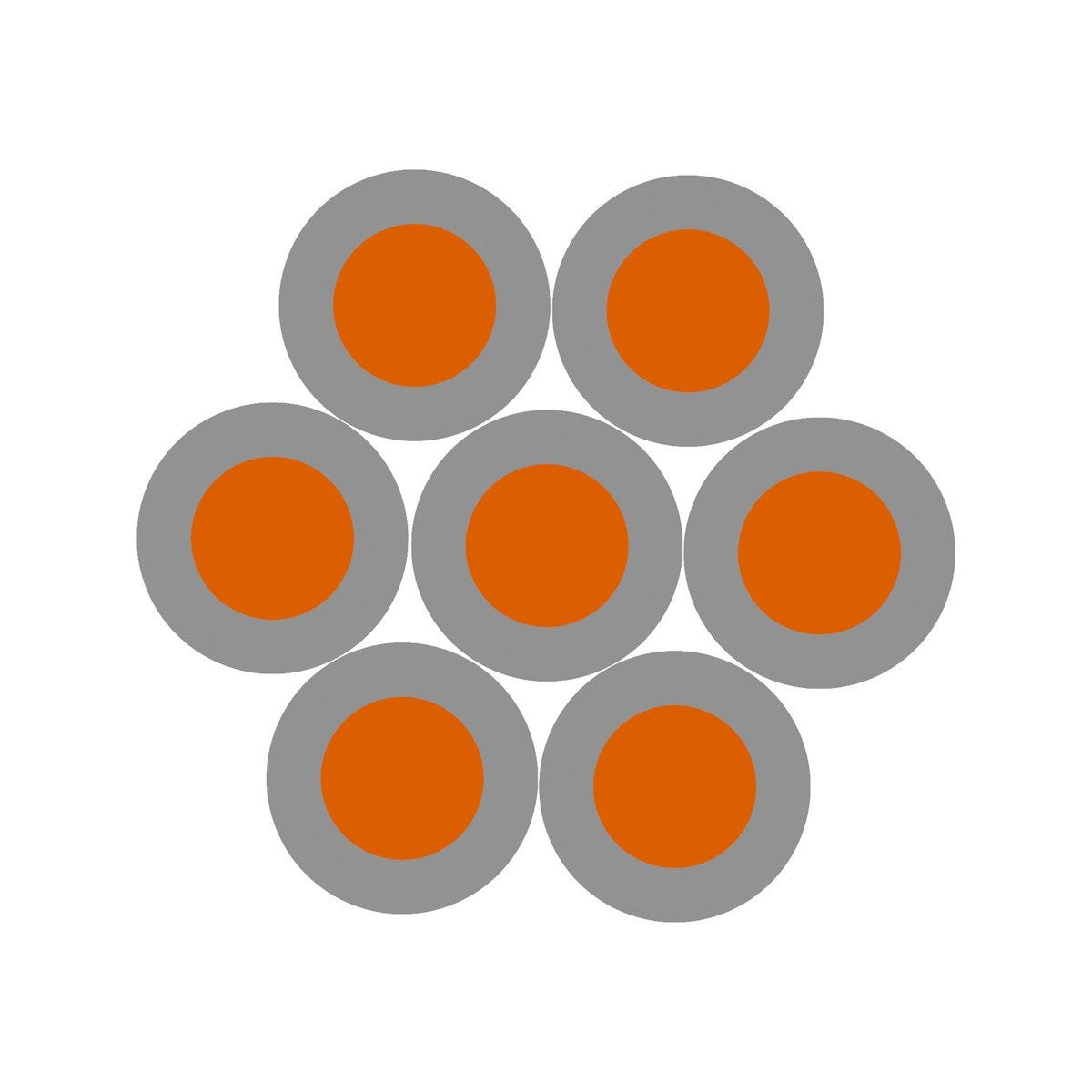

Conductor design	IEC 60228 class 2: multi-wire
Nominal outer diameter	6.4 mm
Conductor material	Tin-plated copper
Including protective earth
Number of cores	1

Product Characteristics

Certifications and Standards

CE marked
VDE certified
Flame retardance tested according to UN/ECE-R118

Documentation

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Trade product, not a LAPP product.

Product Family List

Article number	Conductor cross-section (mm2)	Nominal outer diameter	Weight
4571200	6	3.1	53 kg/km
4571201	10	4.1	88 kg/km
4571202	16	5.1	143 kg/km
4571203	25	6.4	217 kg/km
4571204	35	7.5	298 kg/km
4571205	50	8.9	405 kg/km
4571206	70	11	593 kg/km
4571207	95	13	809 kg/km
4571208	120	14.2	1032 kg/km
4571209	150	15.8	1308 kg/km
4571210	185	17.5	1600 kg/km
