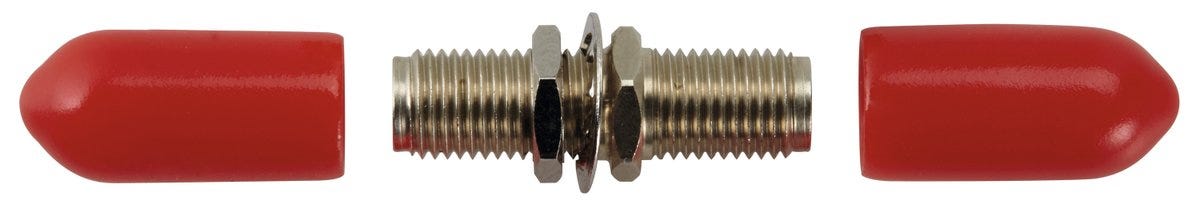

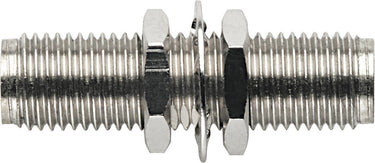

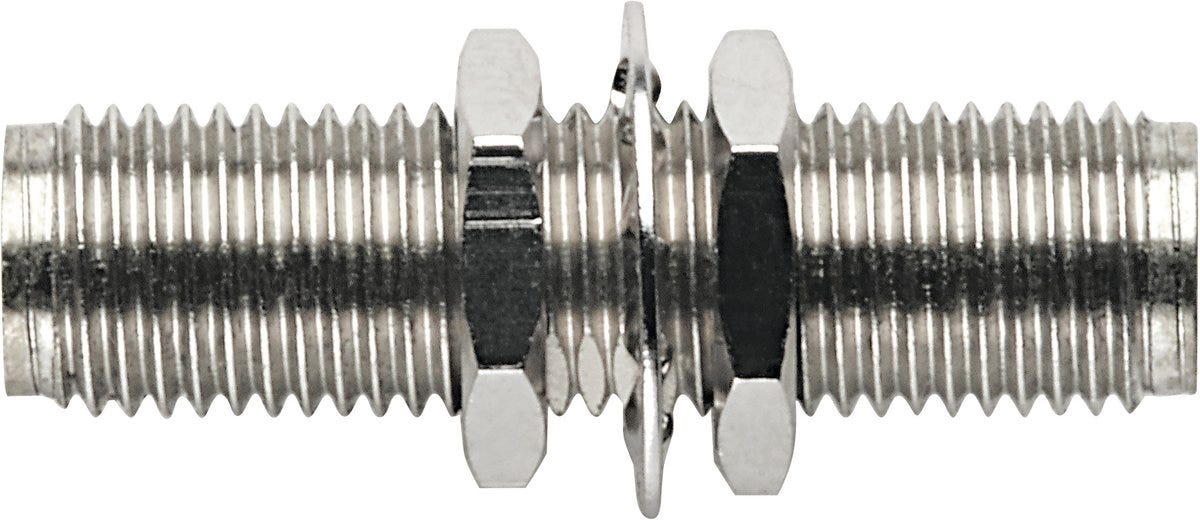

POF ADAPTER FSMA /4PC

Name: POF ADAPTER FSMA /4PC
Brand: LAPP
SKU: 29430099
Price: 663705 VND
Availability: OutOfStock

Fibre optic coupling; Coupling; Straight; Simplex; Suitable fibre width: 1000; screw;

LAPPSKU: 29430099Article No.#: 29430099

Fibre optic coupling; Coupling; Straight; Simplex; Suitable fibre width: 1000; screw;

663.705₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Technical Attributes

General Information

Electrical Characteristics

Product Design

Assembly type	Field configurable
Total length	23.5
Flange
Design connector housing	Straight
Connector type	Coupling
Type of plug connection	F-SMA
Dust protection cap colour	red
Direct mounting possible
Bend protection boot
Coupling connection type	F-SMA
Dust protection cap RAL colour	RAL 3000
Connector colour	silver
Housing base material	Nickel silver
Dust protection cap
Reusable
Variant of connector	Simplex
Connector diameter	6.35
Guide sleeve material	Nickel silver
Suitable type of optical fibre	Simplex
Contact connection type	Screw connection
Suitable fibre width	1000

Product Characteristics

Max. storage temperature	100
Min. number of insertion cycles	500
Insertion attenuation	1.0
Vibration protection
Storage temperature min.	-55
UV-resistant
Operating temperature min.	-40
Operating temperature max.	85
Contact application areact	Fibre optic cables, Data / signals

Certifications and Standards

Documentation

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
