PCF CONNECTOR HFBR4521 CLAMP 3.0 /50PC

Name: PCF CONNECTOR HFBR4521 CLAMP 3.0 /50PC
Brand: LAPP
SKU: 29141798
Price: 2766418 VND
Availability: OutOfStock

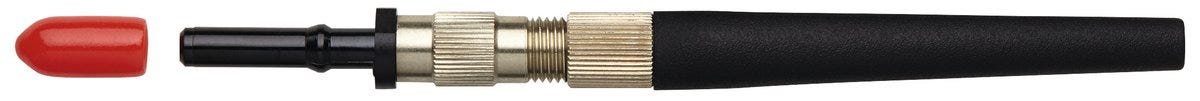

Fibre optic connector; HFBR-4521; Plug; Straight; Simplex; Suitable fibre width: 230; clamp;

LAPPSKU: 29141798Article No.#: 29141798

Fibre optic connector; HFBR-4521; Plug; Straight; Simplex; Suitable fibre width: 230; clamp;

2.766.418₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Benefits

Compatible with HP Versatile Link Connectors and Components series

Applications

Factory automation, Medical equipment, Telecommunications Switching Systems

Technical Attributes

General Information

Product type	Fibre optic connector
Scope of delivery	50 connectors, including dust protection cap, including anti-kink sleeves (one colour)
Brand	HITRONIC®
Fibre optic cable type	PCF
Installation type	clamp
Delivery Unit	50.000
Weight	0.007 kg

Electrical Characteristics

Product Design

Total length	91.7
Design connector housing	Straight
Connector type	Plug
Type of plug connection	HFBR-4521
Dust protection cap colour	red
Anti-kink sleeve material, short form	TPE
Direct mounting possible
Bend protection boot
Connector RAL colour	RAL 9005
Dust protection cap RAL colour	RAL 3000
Connector colour	black
Anti-kink sleeve material	Thermoplastic
Housing base material	Stainless steel
Dust protection cap
Housing base material, short form	VA
Reusable
Variant of connector	Simplex
Anti-kink sleeve RAL colour	RAL 9005
Connectable core diameter max. (mm)	3.0
Connector diameter	7
Anti-kink sleeve colour	black
Suitable type of optical fibre	Simplex
Contact connection type	Insulation displacement contact
Ferrule material	Stainless steel
Suitable fibre width	230

Product Characteristics

IP protection rating	IP 20
Max. storage temperature	85
Insertion attenuation	1.25
Vibration protection
Tensile force, short-term	80
Storage temperature min.	-40
UV-resistant
Operating temperature min.	-40
Tensile force fixed installation	80
Tensile strength after assembly	80
Operating temperature max.	85
Contact application areact	Fibre optic cables

Certifications and Standards

Documentation

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.

Product Family List

Article number	Scope of delivery	Installation type
29140798	50 connectors, including dust protection cap	crimp
29140799	4 connectors, including dust protection cap	crimp
29141798	50 connectors, including dust protection cap, including anti-kink sleeves (one colour)	clamp
