ETHERLINE® LAN Cat.6A F/UTP 4x2xAWG23

Name: ETHERLINE® LAN Cat.6A F/UTP 4x2xAWG23
Brand: LAPP
SKU: 2170961
Price: 57411 VND
Availability: OutOfStock

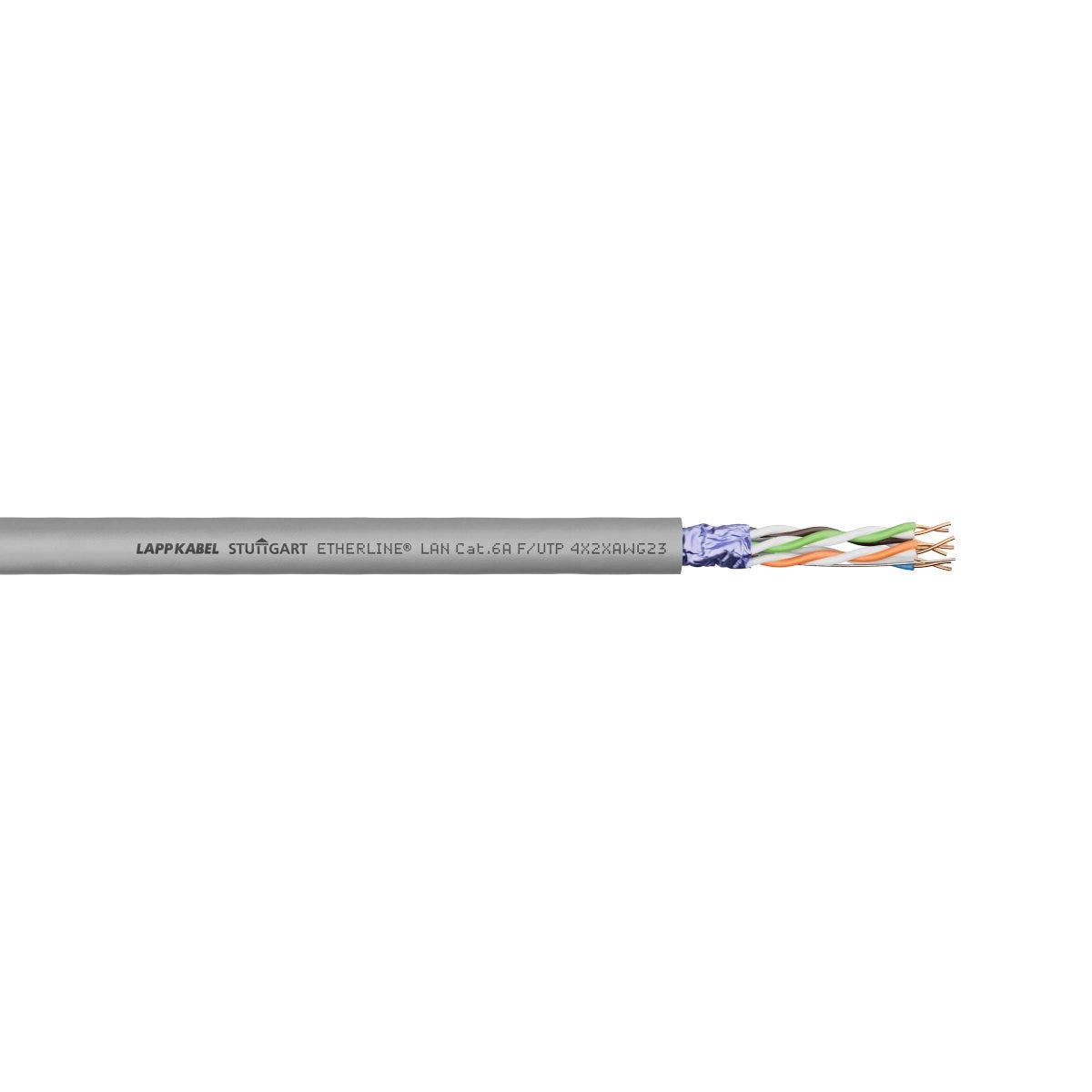

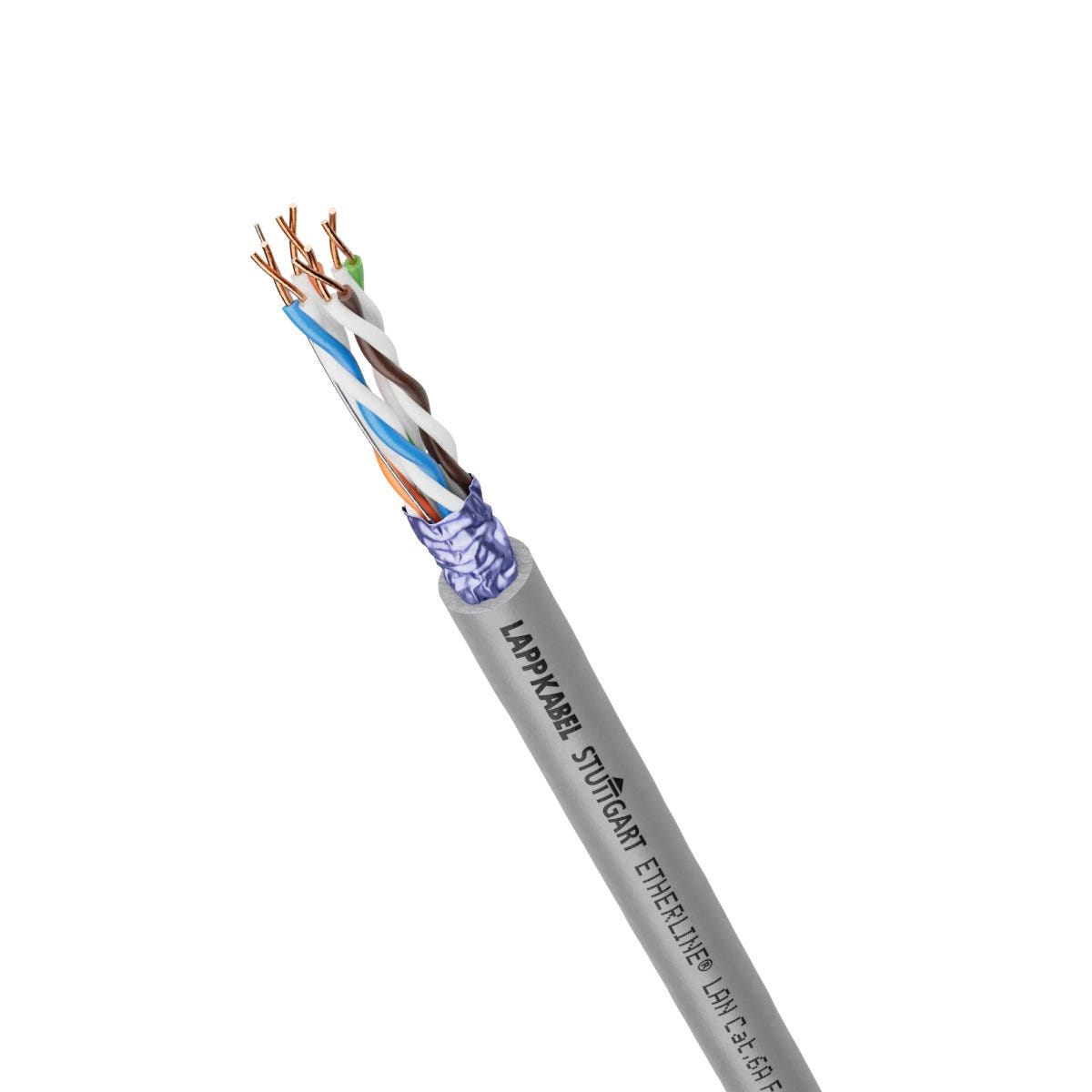

Ethernet cable; Fixed installation; Cat.6A; F/UTP; PVC; grey

LAPPSKU: 2170961Article No.#: 2170961

Ethernet cable; Fixed installation; Cat.6A; F/UTP; PVC; grey

57.411₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

Fast information exchange through Ethernet technology. , Cat. 6A performance up to 10 Gbit/s

For transmission of analogue and digital signals in the frequency range up to 500 MHz

Available with robust PVC or halogen free LSZH outer sheath

Classified fire behaviour according to EU Directive 305/2011 (BauPVO/CPR) with article number selection on the LAPP website.

Applications

For fixed installation and structured building cabling according to EN 50173 and ISO/IEC 11801

For horizontal floor cabling with a max. cable length of 100 m (90 m for installation and 10 m at the workstation)

Suitable for all LAN networks and Ethernet applications up to 10GBASE-T.

Technical Attributes

General Information

Electrical Characteristics

Maximum operating voltage (not for power transmission)	100
Nominal surge impedance	100
Segregation class according to EN 50174-2	C
Nominal voltage	48 V AC rms according to IEC
Supports Power over Ethernet	IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.3bt (4PPoE)
Loop resistance at 20°C	160
Possible data transmission rates	10000
Test voltage core/screening	1
Test voltage core/core	1
Rated voltage core to core	50 V AC rms according to IEC

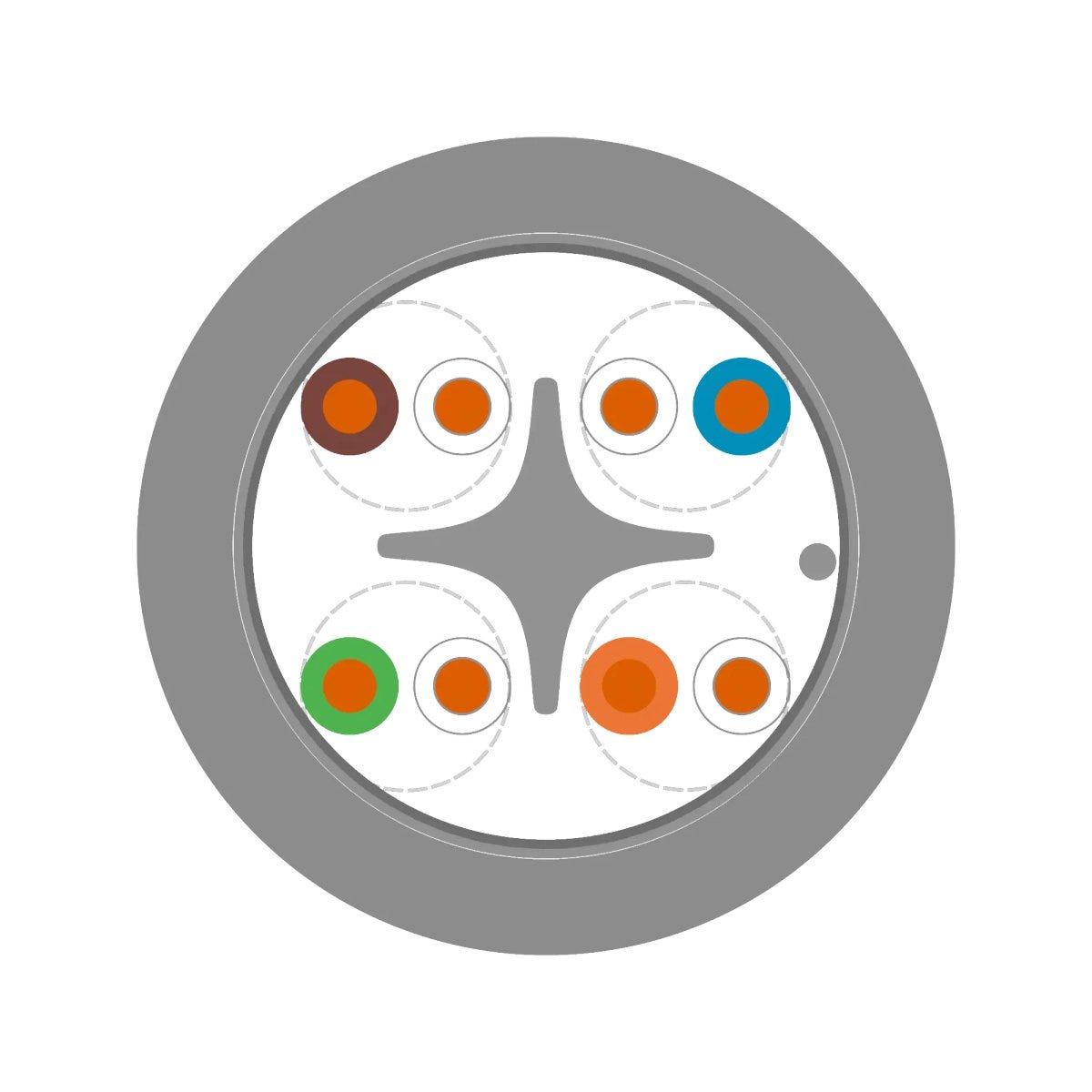

Product Design

Nominal core diameter	1.3
Conductor design	solid conductor
Nominal outer diameter	7.4 mm
Conductor material	Bare copper
Min. outer diameter	7.2
Conductor count/size	4x2x23/1AWG
Shielded
Core identification	Colours
Shape of cable	Round
Number of pairs	4
Outer sheath colour	grey
Stranding type	Twisted-pair
Leading conductor cross-section	AWG
Abbreviation shielding	F/UTP
Cable sheath RAL colour	RAL 7035
With rodent protection
Type of overall screen	Aluminium-laminated plastic foil
Number of cores	8
Nominal conductor cross-section (AWG)	23 AWG
Core insulation basic material	Polyethylene
Basic material of outer sheath	Polyvinylchloride
Including protective earth
Core insulation basic material, short form	PE
With armouring
Max. outer diameter	7.6
Number of wires	1
Basic material of outer sheath, short form	PVC
Additional stranding element	Cross separator

Product Characteristics

Flame-retardant
PWIS-free according to	VDMA 24364-B2-L
Fast Connect (FC) cable
Installation temperature min.	0
UV-resistant
Minimum bending radius in mm, fixed installation	30.4 mm
PWIS-free
Application area	Fixed installation
max. conductor temperature, occasionally moved	0 °C to 50 °C max. conductor temperature:
Oil-resistant
Ethernet cable category	Cat.6A
Minimum bending radius in mm, occasionally flexing	60.8 mm
Max. assembly temperature	50
Minimum bending radius, stationary	4 x outer diameter
Minimum bending radius, occasionally flexing	8 x outer diameter
Temperature, fixed installation	-20 °C to 60 °C max. conductor temperature:
Flame retardance according to	IEC 60332-1-2
Windable
Halogenfree

Certifications and Standards

Documentation

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.

Product Family List

Article number	Conductor count/size	Abbreviation shielding	Nominal outer diameter	Halogenfree	Weight
2170143	4x2x23/1AWG	S/FTP	7.3	No	58 kg/km
2170960	4x2x23/1AWG	S/FTP	7.3	No	58 kg/km
2170961	4x2x23/1AWG	F/UTP	7.4	No	60 kg/km
2170962	4x2x23/1AWG	F/FTP	7.3	Yes	60 kg/km
2170963	4x2x23/1AWG	F/UTP	7.4	Yes	60 kg/km
