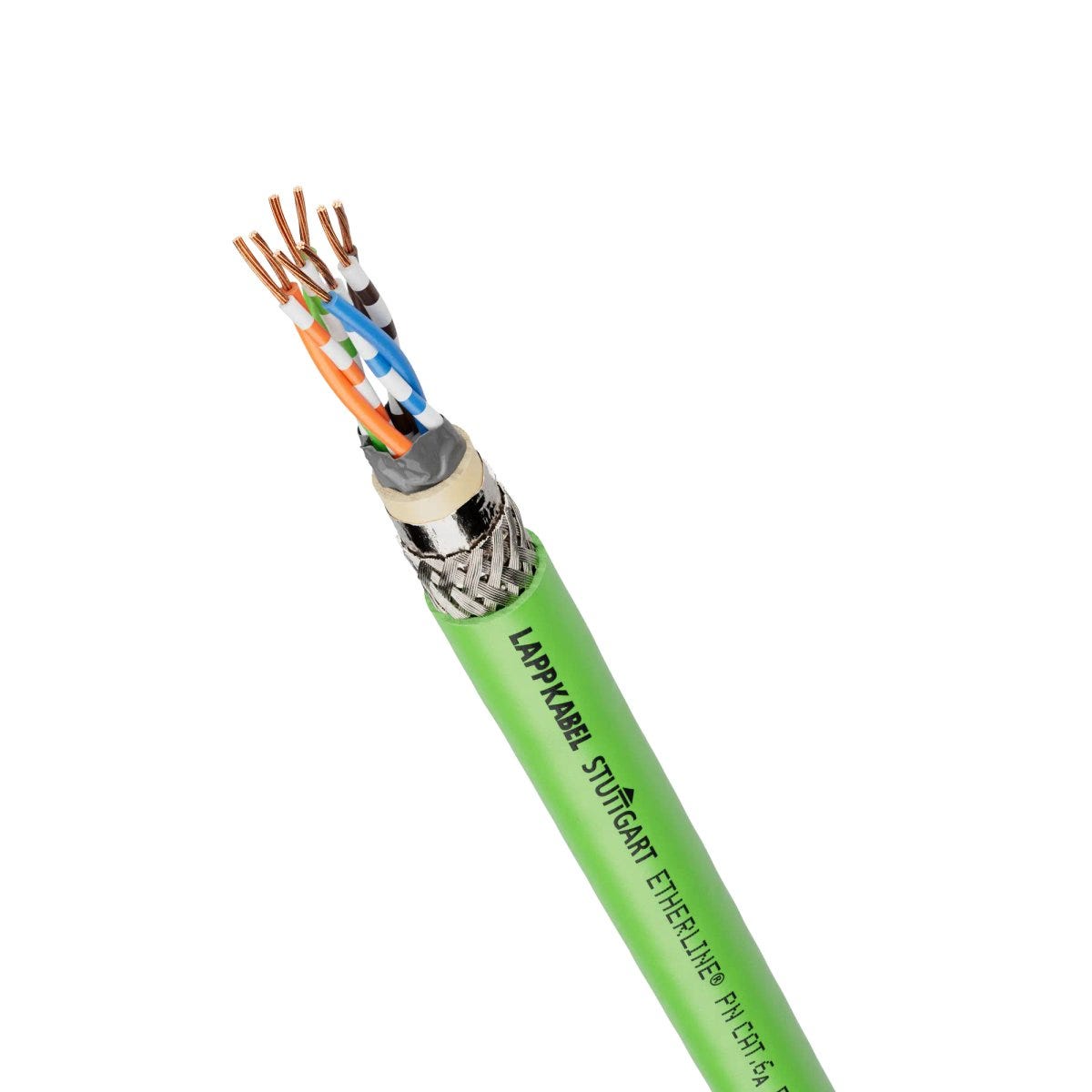

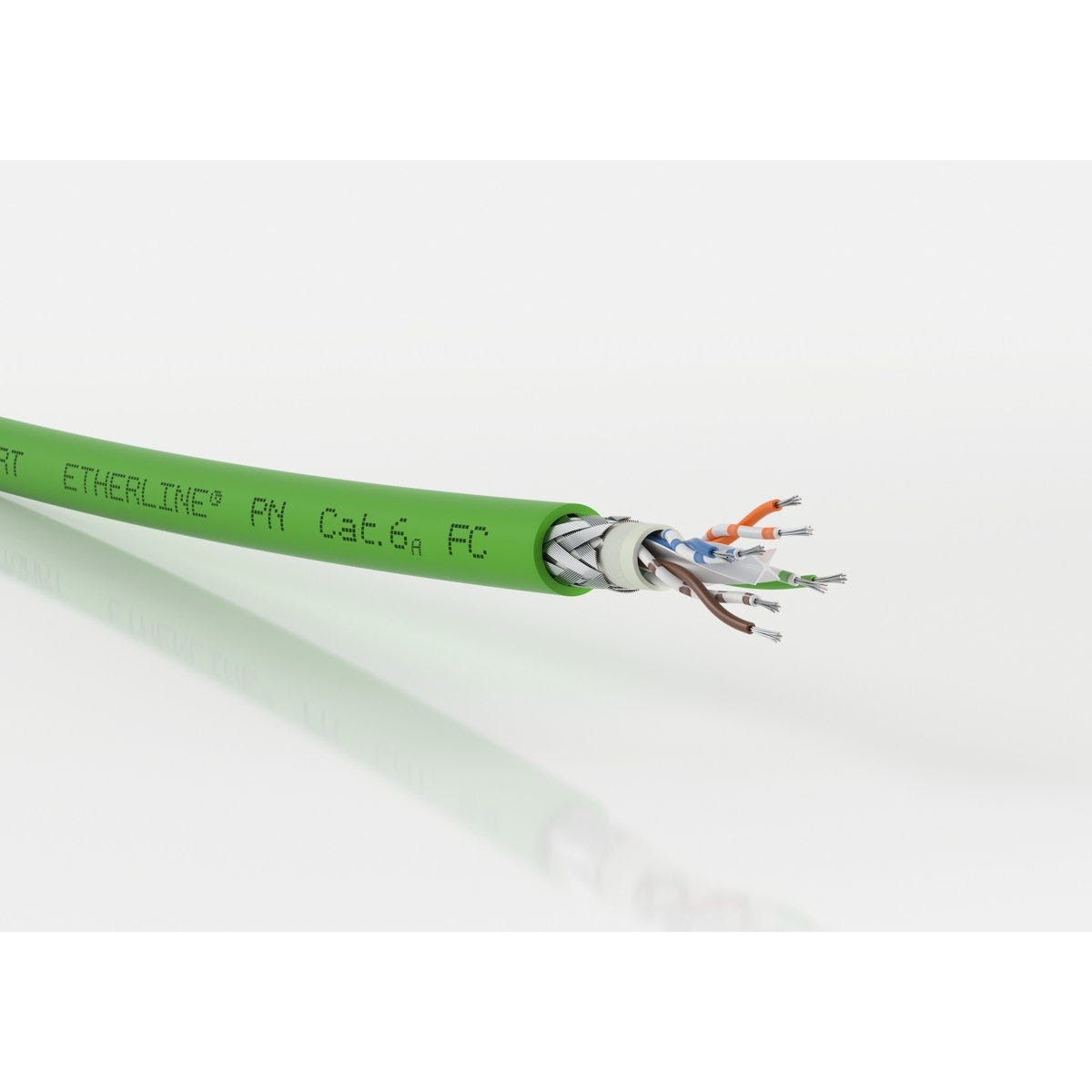

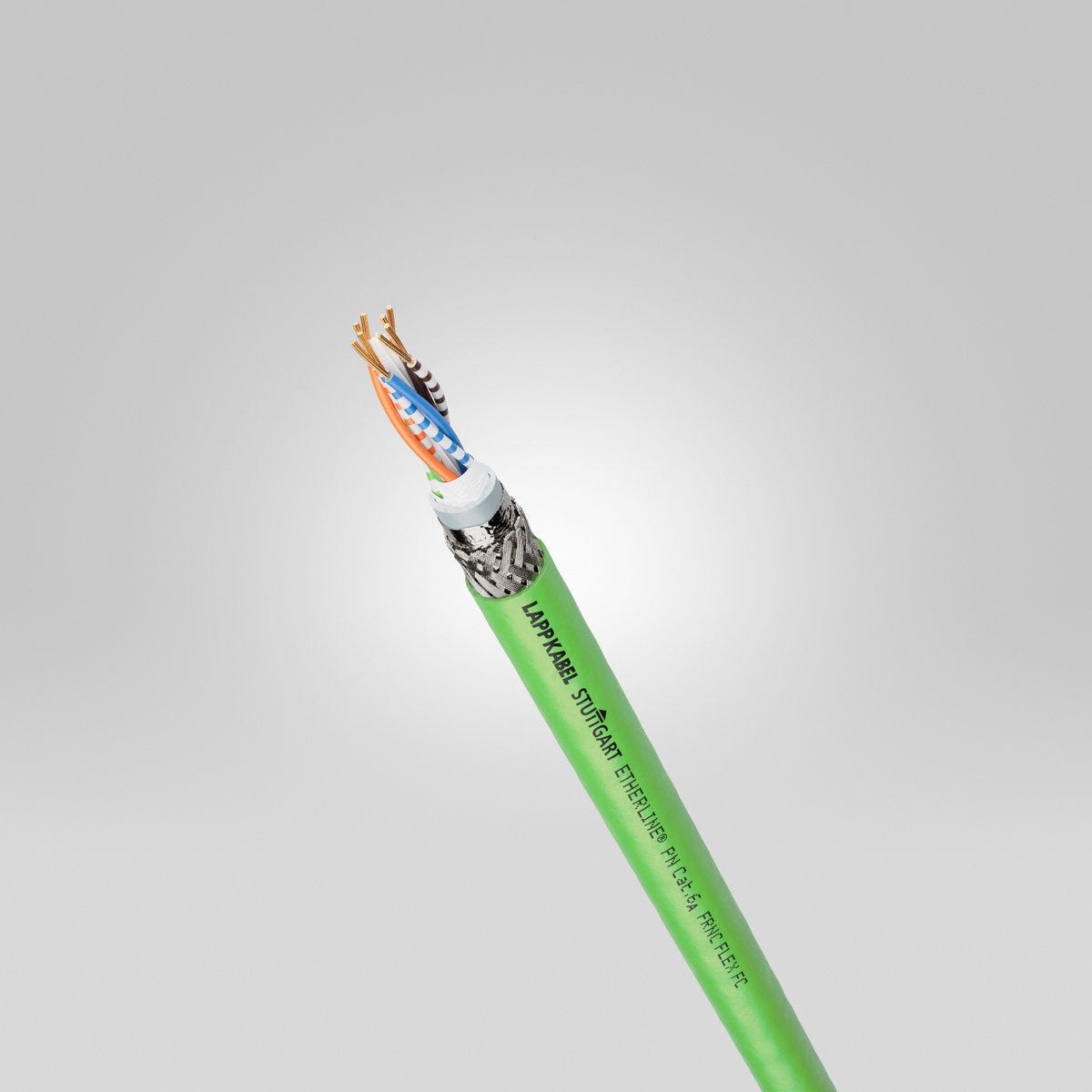

ETHERLINE® PN CAT.6A Y FLEX FC

Name: ETHERLINE® PN CAT.6A Y FLEX FC
Brand: LAPP
SKU: 2170586
Price: 279120 VND
Availability: OutOfStock

Ethernet cable; Flexible; PROFINET, ETHERNET/IP, Ethernet; PROFINET® application: Type C; Cat.6A; SF/UTP; PVC; green

LAPPSKU: 2170586Article No.#: 2170586

ETHERLINE® PN CAT.6A Y FLEX FC

Ethernet cable; Flexible; PROFINET, ETHERNET/IP, Ethernet; PROFINET® application: Type C; Cat.6A; SF/UTP; PVC; green

ETHERLINE® PN CAT.6A Y FLEX FC

279.120₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

Fast information exchange through Ethernet technology. , Cat. 6A performance up to 10 Gbit/s

For transmission of analogue and digital signals in the frequency range up to 600 MHz

Power over Ethernet-capable cable for simultaneous power and data supply of smaller network components with low energy requirements (e.g. IP cameras, wireless access points)

Available as robust PVC variant with proven resistance to ECOLAB® disinfectants and cleaning agents

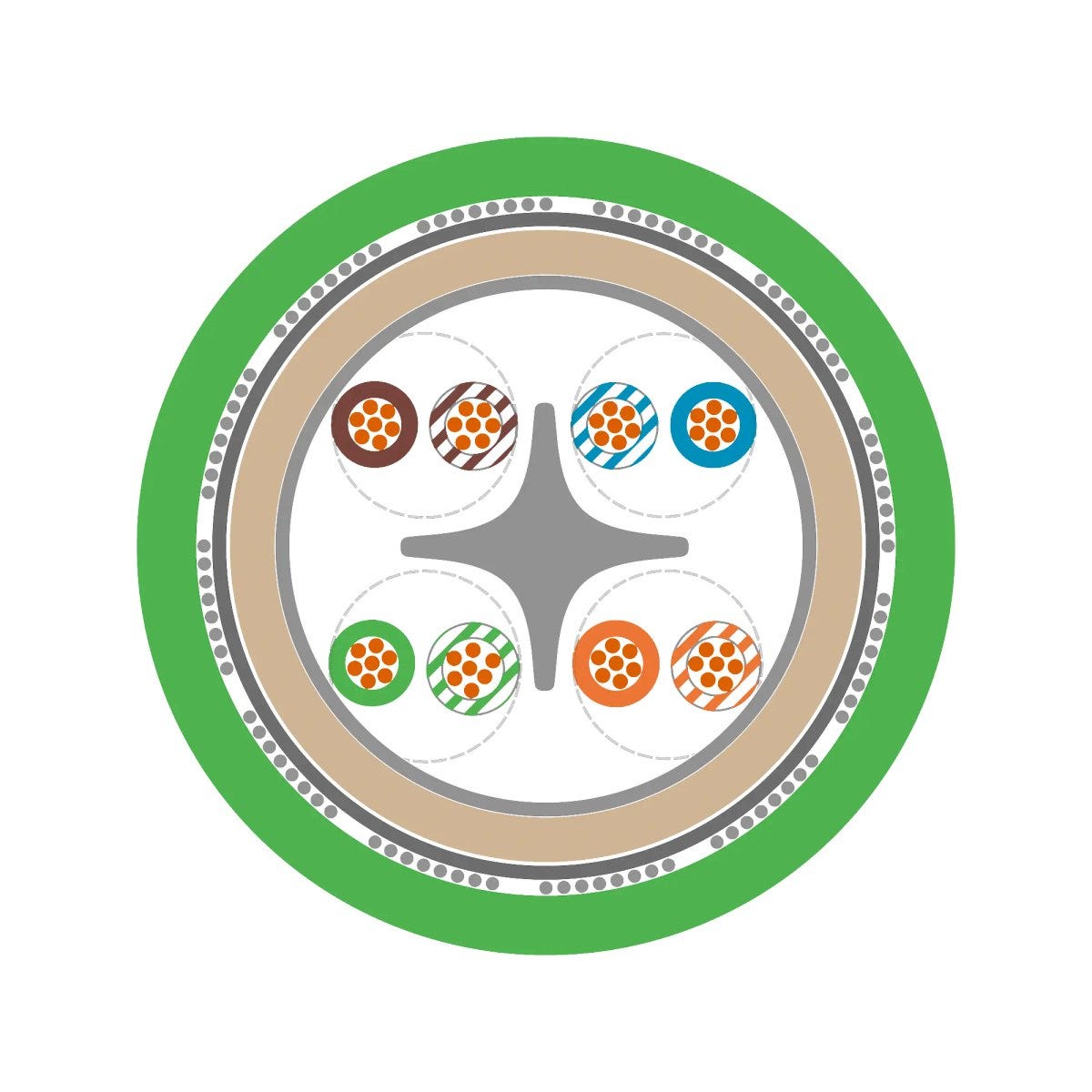

The "Fast Connect" design, including inner sheath and cross separator, significantly reduces the cable assembly time, by eliminating the time-consuming removal of the pair shielding. It also provides undiminished shielding of the core pairs

Additional protection against electromagnetic interference thanks to double overall shielding made of aluminium-laminated foil and copper stranded shielding with a high degree of coverage (SF/UTP)

UL/CSA certification according to technical data enables the product to be used in the North American market.

Applications

For flexible use in the PROFINET network (type B), due to stranded conductor design

Also suitable for EtherCAT and EtherNet/IP applications

Suitable for all LAN networks and Ethernet applications up to 10GBASE-T

For fixed installation and occasional flexing

Can be used in dry, damp or wet environments

Suitable for many applications, depending on the sheath material.

Technical Attributes

General Information

Product type	Ethernet cable
valid fieldbus or Ethernet system	PROFINET, ETHERNET/IP, Ethernet
Copper index	57.000 kg/km
Copper index (lb)	383.020 lb
Weight	130 kg/km

Electrical Characteristics

Maximum operating voltage (not for power transmission)	125
Nominal surge impedance	100
Supports Power over Ethernet	IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.3bt (4PPoE)
Loop resistance at 20°C	190
Possible data transmission rates	10000
Signal propagation speed (nom.)	0.78
Test voltage core/screening	2
Test voltage core/core	2
Rated voltage core to core	50 V AC rms according to IEC, 300 V AC rms according to UL

Product Design

Nominal core diameter	1.15
Conductor design	7-wire
Nominal outer diameter	8.9 mm
Conductor material	Bare copper
Conductor count/size	4X2X23/7AWG
Optical degree of coverage of the stranded screening, overall screen	85
Wrapping over stranding	Plastic film
Shielded
Core identification	Colours
Shape of cable	Round
Number of pairs	4
base material inner sheath shortname	TPE
Outer sheath colour	green
Stranding type	Twisted-pair
Leading conductor cross-section	AWG
Abbreviation shielding	SF/UTP
Cable sheath RAL colour	RAL 6018
With rodent protection
Conductor colour code	PROFINET Colour code 4-pair
Type of overall screen	Aluminium-laminated plastic foil, Tin-plated copper braiding
Number of cores	8
Nominal conductor cross-section (AWG)	23 AWG
Core insulation basic material	Polyethylene foam
Basic material of outer sheath	Polyvinylchloride
Basic material of inner sheath	Thermoplastic elastomers
Including protective earth
Core insulation basic material, short form	Foam-Skin PE
Number of wires	7
Basic material of outer sheath, short form	PVC
Additional stranding element	Cross separator

Product Characteristics

Flame-retardant
PWIS-free according to	VDMA 24364-B2-L
For continuous flexing
Fast Connect (FC) cable
PROFINET® application	Type C
Installation temperature min.	-5
UV-resistant
Minimum bending radius in mm, fixed installation	35.6 mm
PWIS-free
Application area	Flexible
max. conductor temperature, occasionally moved	-5 °C to 50 °C max. conductor temperature:, to 75 °C max. conductor temperature: according to cULus CMX
Oil-resistant
Ethernet cable category	Cat.6A
Minimum bending radius in mm, occasionally flexing	71.2 mm
Max. assembly temperature	50
Minimum bending radius, stationary	4 x outer diameter
Minimum bending radius, occasionally flexing	8 x outer diameter
Temperature, fixed installation	-40 °C to +80 °C max. conductor temperature:
Flame retardance according to	IEC 60332-1-2, UL VW-1
Oil resistance according to	IEC 60811-404
UV-resistant according to	UL sunlight resistant
Windable
Halogenfree

Certifications and Standards

DNV-certified
cUR recognized
CSA certified
TÜV certified
UL certification	UL CMX according to UL 444 (e-file number: E236660)
Ecolab certified
cUL listed
UL listed
CE marked
cUL certification	cUL CMX (75°C) according to CSA C22.2 No. 214 (e-file number: E236660)
UL recognized
VDE certified
EAC certification number	ЕАЭС N RU Д-DE.АЮ64.В.00130/20
EAC-certified

Documentation

Downloads

approval cul - en-UK (PDF)

Approval UL - en-UK (PDF)

CE declaration of conformity - en-UK (PDF)

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

declaration of conformity - de-DE (PDF)

trcu declaration of conformity - ru-RU (PDF)

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
PROFINET® is a registered trademark of PNO (PROFIBUS user organisation).
