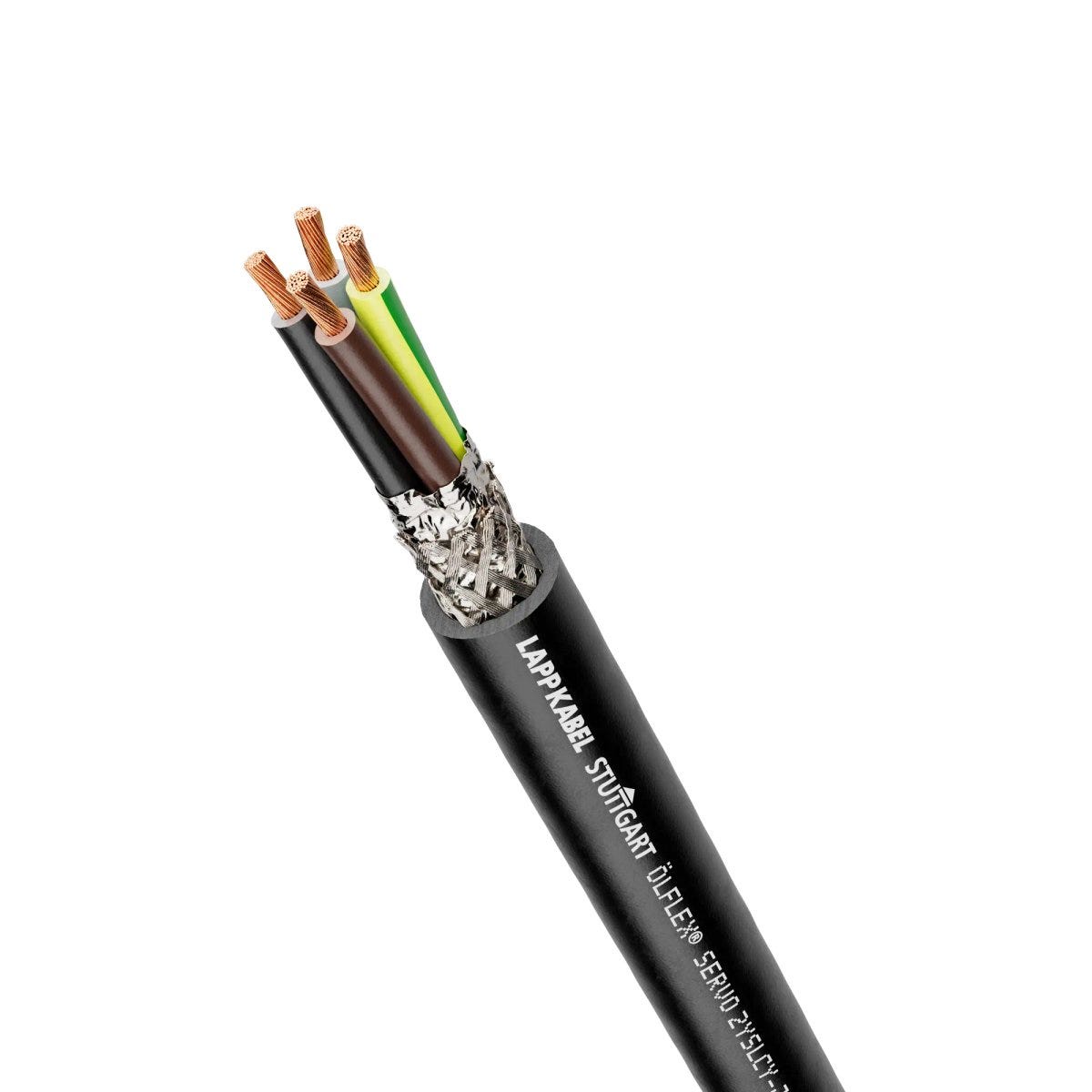

ÖLFLEX® SERVO 2YSLCY-JB BK 4G6

Name: ÖLFLEX® SERVO 2YSLCY-JB BK 4G6
Brand: LAPP
SKU: 1136453
Price: 502726 VND
Availability: OutOfStock

Motor connection cable; 4G6; black; U₀/U: 0,6/1 kV; PVC; Shielded; Flexible

LAPPSKU: 1136453Article No.#: 1136453

ÖLFLEX® SERVO 2YSLCY-JB BK 4G6

Motor connection cable; 4G6; black; U₀/U: 0,6/1 kV; PVC; Shielded; Flexible

ÖLFLEX® SERVO 2YSLCY-JB BK 4G6

502.726₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

Power supply for large electric drives possible

Ideal protection against electromagnetic interference thanks to double shielding made of aluminium-laminated foil and copper stranded shielding with a high degree of coverage

Low-capacitance core insulation for long transmission paths

Variants with balanced cable design and three-part protective earth largely prevent the generation of harmful currents on the motor bearing. A reduction in motor bearing damage contributes to the longevity of electric motors

Available as a 4-core variant and 3+3 balanced variant.

Applications

For connecting frequency converters and motors

For fixed installation and occasional flexing

Can be used in dry, damp or wet environments

Suitable for medium mechanical stress

The PVC outer sheath is resistant to acids and alkalis and has limited oil resistance

Black variants are suitable for outdoor use, subject to the temperature range

Flexible use at temperatures up to -15°C (ÖLFLEX® SERVO 2YSLCYK).

Technical Attributes

General Information

Brand	ÖLFLEX®
Product type	Motor connection cable
Copper index	320.000 kg/km
Copper index (lb)	2150.300 lb
Weight	630 kg/km

Electrical Characteristics

Nominal voltage	U₀/U: 0,6/1 kV AC rms according to IEC
Max. conductor resistance at 20°C	3.3 Ω/km
Current rating according to	VDE 0298-4
Test voltage core/screening	4
Test voltage core/core	4

Product Design

Conductor design	IEC 60228 class 5: fine-wire
Nominal outer diameter	17 mm
Conductor material	Bare copper
Nominal conductor cross-section (metric)	6 mm²
Conductor count/size	4G6
Shielded
Core identification	Colours
Shape of cable	Round
Outer sheath colour	black
Stranding type	Layered stranding
Cable sheath RAL colour	RAL 9005
Conductor colour code	VDE 0293-308
Type of overall screen	Tin-plated copper braiding, Aluminium-laminated plastic foil

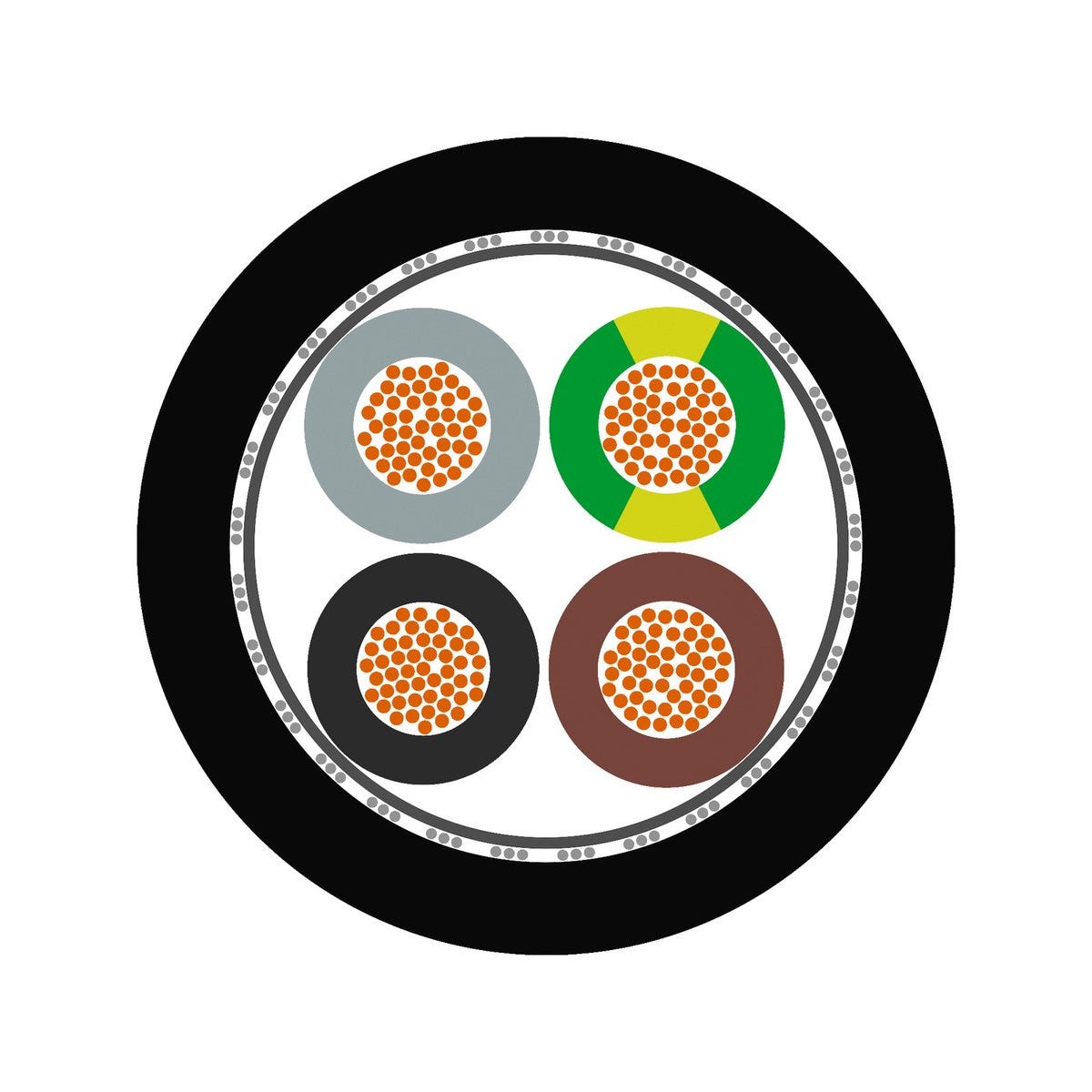

Cable element 1	Power core: 4G(6), Shielding: Aluminium-laminated plastic foil and Tin-plated copper braiding
Number of cores	4
Low capacitance motor cable type	2YSLCY-JB
Core insulation basic material	Polyethylene
Basic material of outer sheath	Polyvinylchloride
Including protective earth
Core insulation basic material, short form	PE
Basic material of outer sheath, short form	PVC

Product Characteristics

Flame-retardant
PWIS-free according to	VDMA 24364-B2-L
Low capacitance
UV-resistant
Minimum bending radius in mm, fixed installation	68.0 mm
PWIS-free
Application area	Flexible, Fixed installation
max. conductor temperature, occasionally moved	-5 °C to 70 °C max. conductor temperature:
Oil-resistant
Minimum bending radius in mm, occasionally flexing	255.0 mm
Minimum bending radius, stationary	4 x outer diameter
Minimum bending radius, occasionally flexing	15 x outer diameter
Temperature, fixed installation	-40 °C to 70 °C max. conductor temperature:
Flame retardance according to	IEC 60332-1-2
UV-resistant according to	EN 50525-1 (cables with a black sheath are suitable for permanent outdoor use)
Halogenfree

Certifications and Standards

Flame retardance tested according to UN/ECE-R118
CE marked
EAC certification number	ЕАЭС RU С-DE.АЮ64.В.00091/19
EAC-certified

Documentation

Downloads

assembly instructions - de-DE (PDF)

assembly instructions - en-UK (PDF)

CE declaration of conformity - en-UK (PDF)

cpr declaration of conformity - en-UK (PDF)

Datasheet - en-UK (PDF)

Datasheet - de-DE (PDF)

Technical table - pt-PT (PDF)

Technical table - it-IT (PDF)

Technical table - pl-PL (PDF)

Technical table - ro-RO (PDF)

Technical table - ru-RU (PDF)

Technical table - en-UK (PDF)

Technical table - fr-FR (PDF)

Technical table - es-ES (PDF)

Technical table - de-DE (PDF)

Technical table - zh-CN (PDF)

Technical table - tr-TR (PDF)

Technical table - nl-NL (PDF)

Technical table - ko-KR (PDF)

Technical table - ja-JP (PDF)

Technical table - cs-CZ (PDF)

Further Links

EPLAN Data in EPLAN Data Portal

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.

Product Family List

All articles from ÖLFLEX® SERVO 2YSLCY-JB

Article number	Conductor count/size	Outer sheath colour	Nominal outer diameter	Weight
0036425	4G1,5	transparent	11.4	184 kg/km
0036426	4G2,5	transparent	12.4	224 kg/km
0036427	4G4	transparent	15.6	361 kg/km
0036428	4G6	transparent	17	630 kg/km
0036429	4G10	transparent	19.6	860 kg/km
0036430	4G16	transparent	22.1	1290 kg/km
0036431	4G25	transparent	26.3	1860 kg/km
0036432	4G35	transparent	29.5	2610 kg/km
0036433	4G50	transparent	35.8	2950 kg/km
0036434	4G70	transparent	40.3	3950 kg/km
0036435	4G95	transparent	46.5	5300 kg/km
0036436	4G120	transparent	53.2	6600 kg/km
0036437	4G150	transparent	57.3	7590 kg/km
0036438	4G185	transparent	62.3	9420 kg/km
0036439	3X1,5+3G0,25	black	11.4	177 kg/km
0036440	3X2,5+3G0,5	black	12.2	230 kg/km
0036441	3X4+3G0,75	black	14.4	323 kg/km
0036442	3X6+3G1	black	15.7	420 kg/km
0036443	3X10+3G1,5	black	18	635 kg/km
0036444	3X16+3G2,5	black	20.2	930 kg/km
0036445	3X25+3G4	black	23.8	1350 kg/km
0036446	3X35+3G6	black	26.9	1780 kg/km
0036447	3X50+3G10	black	32.6	2530 kg/km
0036448	3X70+3G10	black	36.4	3225 kg/km
0036449	3X95+3G16	black	42	4511 kg/km
0036450	3X120+3G16	black	47.8	5663 kg/km
0036451	3X150+3G25	black	51.6	6720 kg/km
0036453	3X240+3G50	black	65.1	12850 kg/km
0036479	3x185+3G35	black	56.5	7855 kg/km
1136450	4G1,5	black	11.4	230 kg/km
1136451	4G2,5	black	12.4	300 kg/km
1136452	4G4	black	15.6	485 kg/km
1136453	4G6	black	17	630 kg/km
1136454	4G10	black	19.6	860 kg/km
1136455	4G16	black	22.1	1290 kg/km
1136456	4G25	black	26.3	1860 kg/km
1136457	4G35	black	29.5	2610 kg/km
1136458	4G50	black	35.8	2950 kg/km
1136459	4G70	black	40.3	3950 kg/km
1136460	4G95	black	46.5	5300 kg/km
1136461	4G120	black	53.2	6600 kg/km
1136462	4G150	black	57.3	7590 kg/km
1136463	4G185	black	62.3	9420 kg/km
