SILVYN® TC NW26 (28.9X34.5) M32X1.5BK

Name: SILVYN® TC NW26 (28.9X34.5) M32X1.5BK
Brand: LAPP
SKU: 64400651
Price: 123007 VND
Availability: OutOfStock

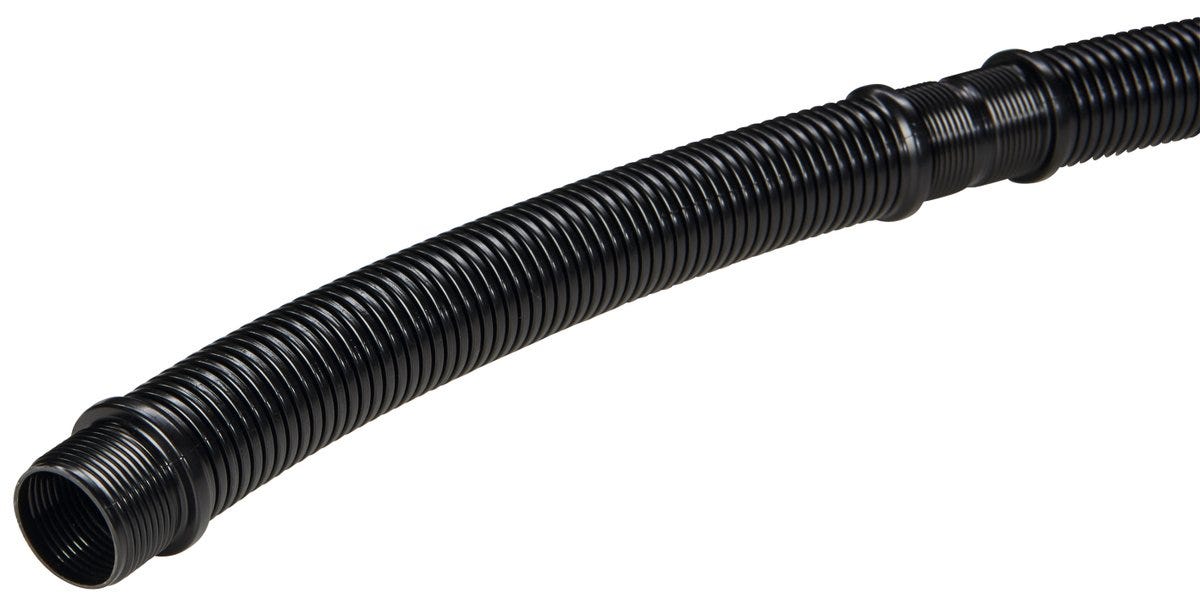

Parallel corrugated protective conduit with thread; M 32; Nominal size: 26; Inner diameter: 28.9mm; Outer diameter: 34.5mm; Polyamide; Halogenfree; UV-resistant

LAPPSKU: 64400651Article No.#: 64400651

SILVYN® TC NW26 (28.9X34.5) M32X1.5BK

Parallel corrugated protective conduit with thread; M 32; Nominal size: 26; Inner diameter: 28.9mm; Outer diameter: 34.5mm; Polyamide; Halogenfree; UV-resistant

SILVYN® TC NW26 (28.9X34.5) M32X1.5BK

123.007₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

Cost-saving due to quick and easy installation, Dimensionally stable, Flexible, Threaded

Applications

Mechanical engineering, Plant engineering, For indoor and outdoor use, Control cabinet manufacturing

Technical Attributes

General Information

Brand	SILVYN®
Product type	Parallel corrugated protective conduit with thread
Packaging type	Ring
Installation type	in threaded borehole
Delivery Unit	50.000
Weight	122 kg/km

Electrical Characteristics

Product Design

Lockable (two-part)
Conduit material, short form	PA
Nominal size	26
Total length	50
Material body	Polyamide
Protection against hot chips
EMC screening
Material body shortname	PA
Slit
Thread size	M 32
Outer diameter	34.5
Colour	black
Smooth inner conduit surface
Inner diameter	28.9
Conduit material	Polyamide
Bending protection
Smooth outer conduit surface
Bending protection fixed installation
RAL colour	RAL 9005
Pitch of thread	1,5
Flexibly installed bending protection
Thread standard	DIN EN 60423

Product Characteristics

Flame-retardant
IP protection rating	IP 68
For continuous flexing
Acid-resistant
Chemical resistant
UV-resistant
Oil-resistant
Strain relief
Suitable for EX-applications
Impact-resistant
Flame retardance according to	UL 94 V-2
Short term temperature max.	150
Halogenfree

Certifications and Standards

EHEDG certified
DNV-certified
cUR recognized
CSA certified
FDA certified
GGVS certified
Tested for fire protection for railway vehicles
Ecolab certified
cUL listed
UL listed
CE marked
UL recognized
NSF certified
VDE certified

Documentation

Downloads

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
