AS-I CLIPPING CLAMP

Name: AS-I CLIPPING CLAMP
Brand: LAPP
SKU: 61825000
Price: 34327 VND
Availability: OutOfStock

Fastening clamp; white; Polyamide; Halogenfree;

LAPPSKU: 61825000Article No.#: 61825000

AS-I CLIPPING CLAMP

Fastening clamp; white; Polyamide; Halogenfree;

AS-I CLIPPING CLAMP

34.327₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Benefits

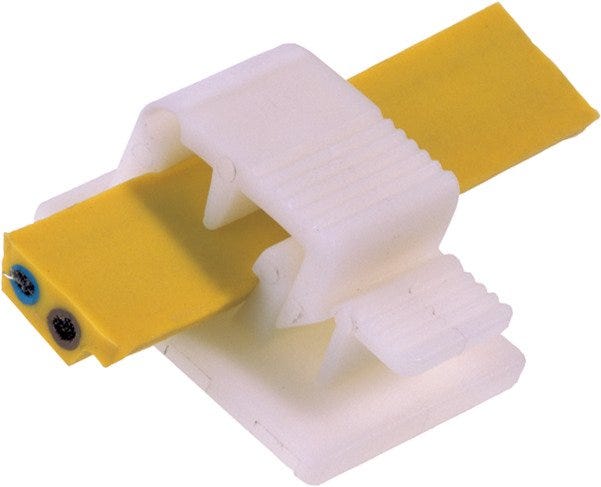

AS-i clip clamp: Conical shape of the receptacle in the socket ensures that the cable is firmly secured, releasable closure, The high-grade acrylate adhesive allows quick mounting and the socket can be immediately stressed, can also be secured using a screw

Applications

Fastening elements for cables and conductors, For use with UNITRONIC® AS-Interface bus cables

Technical Attributes

General Information

Product type	Fastening clamp
Pieces per PU	500
Suitable for	AS-I cables
Delivery Unit	500.000
Weight	0.002 kg

Electrical Characteristics

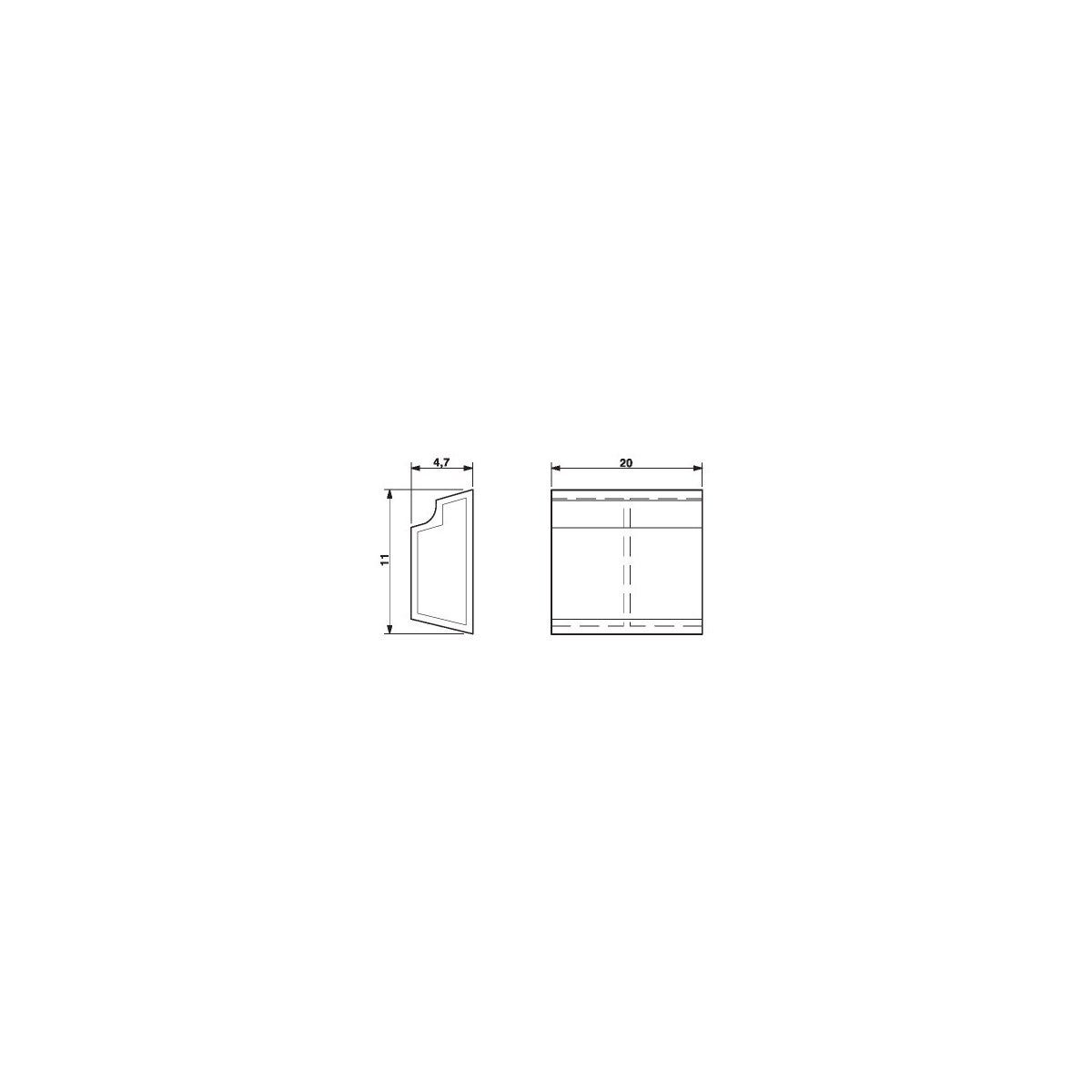

Product Design

Glue	Acrylic-based
Total length	25
Overall width	20
Colour	white
Total height	11.7
For cable outer diameter	3.3
Material	Polyamide

Product Characteristics

Flame-retardant
Oil-resistant
UV-resistant
PWIS-free
Halogenfree

Certifications and Standards

Ecolab certified
DNV-certified
cUR recognized
cUL listed
CSA certified
UL listed
UL recognized
VDE certified

Documentation

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Trade product, not a LAPP product.
