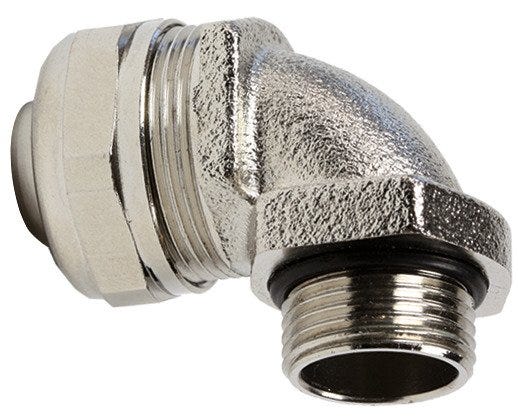

SILVYN® FCE COMPACT 90° M16X1.5 NPB

Name: SILVYN® FCE COMPACT 90° M16X1.5 NPB
Brand: LAPP
SKU: 61803860
Price: 605587 VND
Availability: OutOfStock

Angled conduit gland; M 16; Nominal size: 16; Brass Nickel-plated; Halogenfree; UV-resistant; IP 68;

LAPPSKU: 61803860Article No.#: 61803860

Angled conduit gland; M 16; Nominal size: 16; Brass Nickel-plated; Halogenfree; UV-resistant; IP 68;

605.587₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

High mechanical stability, High tensile strength, Space-saving application, Corrosion-resistant

Applications

In combination with protective conduit:, SILVYNFCE-V0, SILVYN® FCE-LFH

Technical Attributes

General Information

Electrical Characteristics

Product Design

Lockable (two-part)
Nominal size	16
Total length	31
Divisible fitting
Material body	Brass
EMC screening
Material body shortname	CuZn
Slit
Thread size	M 16
Screw-in sleeve material	Brass
Thread length	10
Gland body material	Brass
Conduit gland design	90° angle
Cable gland body material, short form	CuZn
Bending protection
Clear width	11.2
O-ring material, short form	EPDM
Seal type	Compression ring
Bending protection fixed installation
O-ring material	Ethylene propylene diene rubber
Pitch of thread	1,5
Surface protection	Nickel-plated
Flexibly installed bending protection
Rotatable thread
Spanner size 1	26
Thread standard	DIN EN 60423
Sealing material, short form	NBR
Spanner size 2	22
Sealing material	Acrylonitrile butadiene rubber

Product Characteristics

Flame-retardant
IP protection rating	IP 68
Acid-resistant
Chemical resistant
UV-resistant
Oil-resistant
Suitable for EX-applications
Impact-resistant
Halogenfree

Certifications and Standards

EHEDG certified
DNV-certified
cUR recognized
CSA certified
FDA certified
GGVS certified
Tested for fire protection for railway vehicles
Product standard according to IEC	IEC 61386-1
Ecolab certified
cUL listed
UL listed
CE marked
UL recognized
NSF certified
VDE certified

Documentation

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
