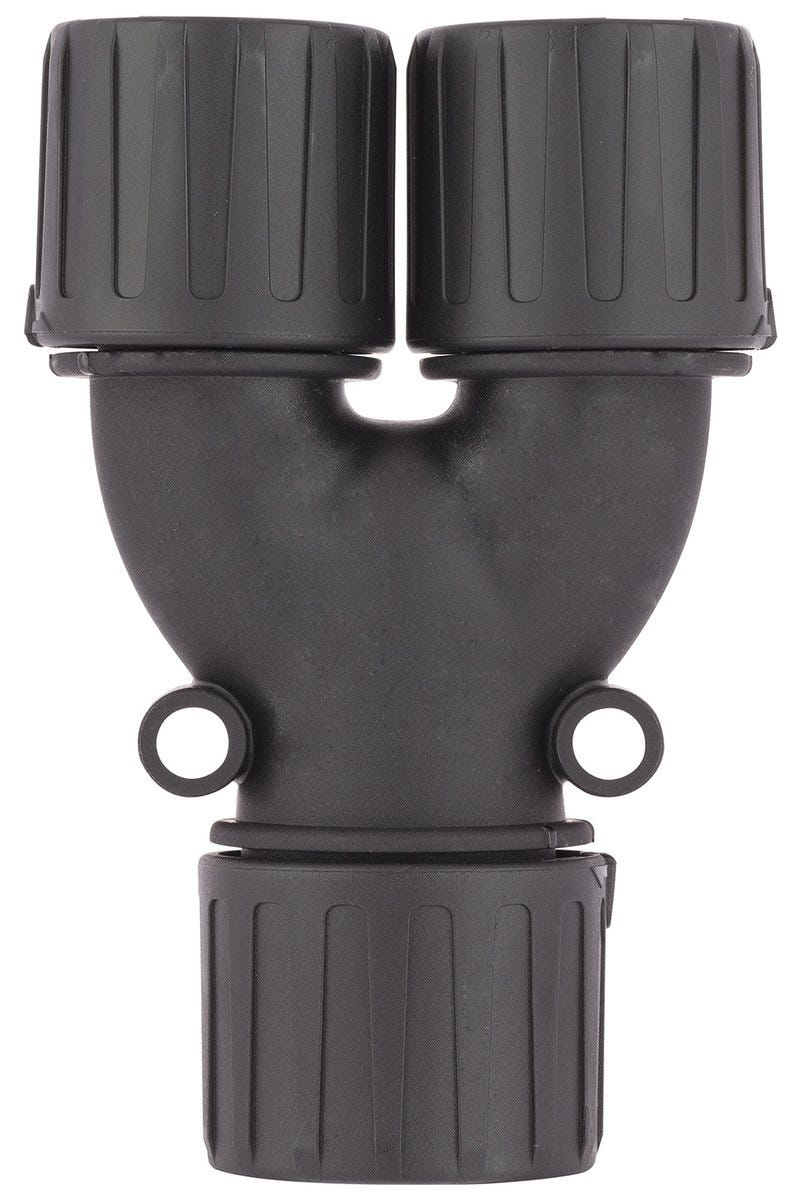

SILVYN® FPAX Y 21-16-16 BK

Name: SILVYN® FPAX Y 21-16-16 BK
Brand: LAPP
SKU: 55507351
Price: 312150 VND
Availability: OutOfStock

Y-connector; Polyamide; Halogenfree; UV-resistant; IP 68, IP 69K, IP 66, IP 67

LAPPSKU: 55507351Article No.#: 55507351

Y-connector; Polyamide; Halogenfree; UV-resistant; IP 68, IP 69K, IP 66, IP 67

312.150₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

Fast assembly, High tensile strength, Watertight, Vibration protection

Applications

In combination with protective conduit:, SILVYN® FPAS

Technical Attributes

General Information

Electrical Characteristics

Product Design

Lockable (two-part)
Nominal size	21-16-16
Total length	89
Divisible fitting
Material body	Polyamide
EMC screening
Material body shortname	PA
Overall width	59
Colour	black
Gland body material	Polyamide
Conduit gland design	Y-piece
Cable gland body material, short form	PA
Bending protection
Clear width	16
Bending protection fixed installation
RAL colour	RAL 9005
Flexibly installed bending protection
Borehole diameter	5
Rotatable thread
Sealing material	Polyester

Product Characteristics

Flame-retardant
IP protection rating	IP 68, IP 69K, IP 66, IP 67
Acid-resistant
Chemical resistant
UV-resistant
Oil-resistant
Suitable for EX-applications
Impact-resistant
Vibration protection
Flame retardance according to	UL 94 V-2
Halogenfree

Certifications and Standards

EHEDG certified
cUR recognized
CSA certified
FDA certified
GGVS certified
Tested for fire protection for railway vehicles
Product standard according to IEC	IEC 61386-23, IEC 61386-22, IEC 61386-1
Ecolab certified
cUL listed
UL listed
CE marked
UL recognized
NSF certified
VDE certified

Documentation

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.

Product Family List
