SILVYN® HIPROJACKET AMG 45° M25X1.5 NPB

Name: SILVYN® HIPROJACKET AMG 45° M25X1.5 NPB
Brand: LAPP
SKU: 55503525
Price: 1345143 VND
Availability: OutOfStock

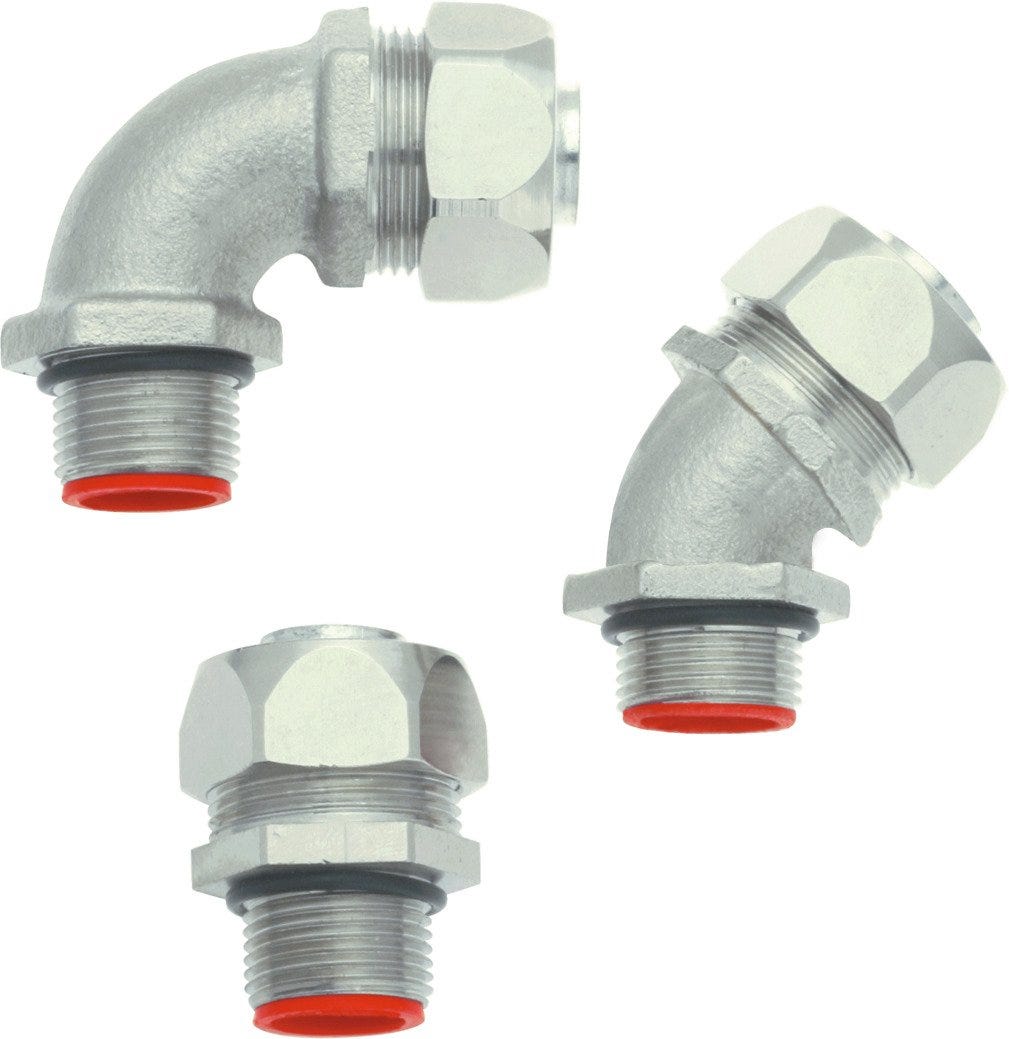

Angled conduit gland; M 25; Suitable for protective cable conduit size: 19; Brass Nickel-plated; Halogenfree; UV-resistant; IP 67;

LAPPSKU: 55503525Article No.#: 55503525

Angled conduit gland; M 25; Suitable for protective cable conduit size: 19; Brass Nickel-plated; Halogenfree; UV-resistant; IP 67;

1.345.143₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

High tensile strength, For high mechanical stress, 45° and 90° elbow enables optimal assembly

Applications

In combination with protective conduit:, SILVYN® HIPROJACKET

Technical Attributes

General Information

Electrical Characteristics

Product Design

Lockable (two-part)
Total length	66
Divisible fitting
Suitable protective conduit	SILVYN® HIPROJACKET
Material body	Brass
Thread type	Metric
Protection against hot chips
Slit
Thread size	M 25
Screw-in sleeve material	Brass
Thread length	15
Gland body material	Brass
Conduit gland design	45° angle
Suitable for protective cable conduit size	19
Cable gland body material, short form	CuZn
Bending protection
Clear width	18.5
O-ring material, short form	NBR
Bending protection fixed installation
O-ring material	Acrylonitrile butadiene rubber
Pitch of thread	1,5
Surface protection	Nickel-plated
Flexibly installed bending protection
Rotatable thread
Spanner size 1	35
Thread standard	DIN EN 60423
Spanner size 2	33

Product Characteristics

Flame-retardant
IP protection rating	IP 67
UV-resistant
Oil-resistant
Strain relief
Suitable for EX-applications
Halogenfree

Certifications and Standards

Documentation

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
