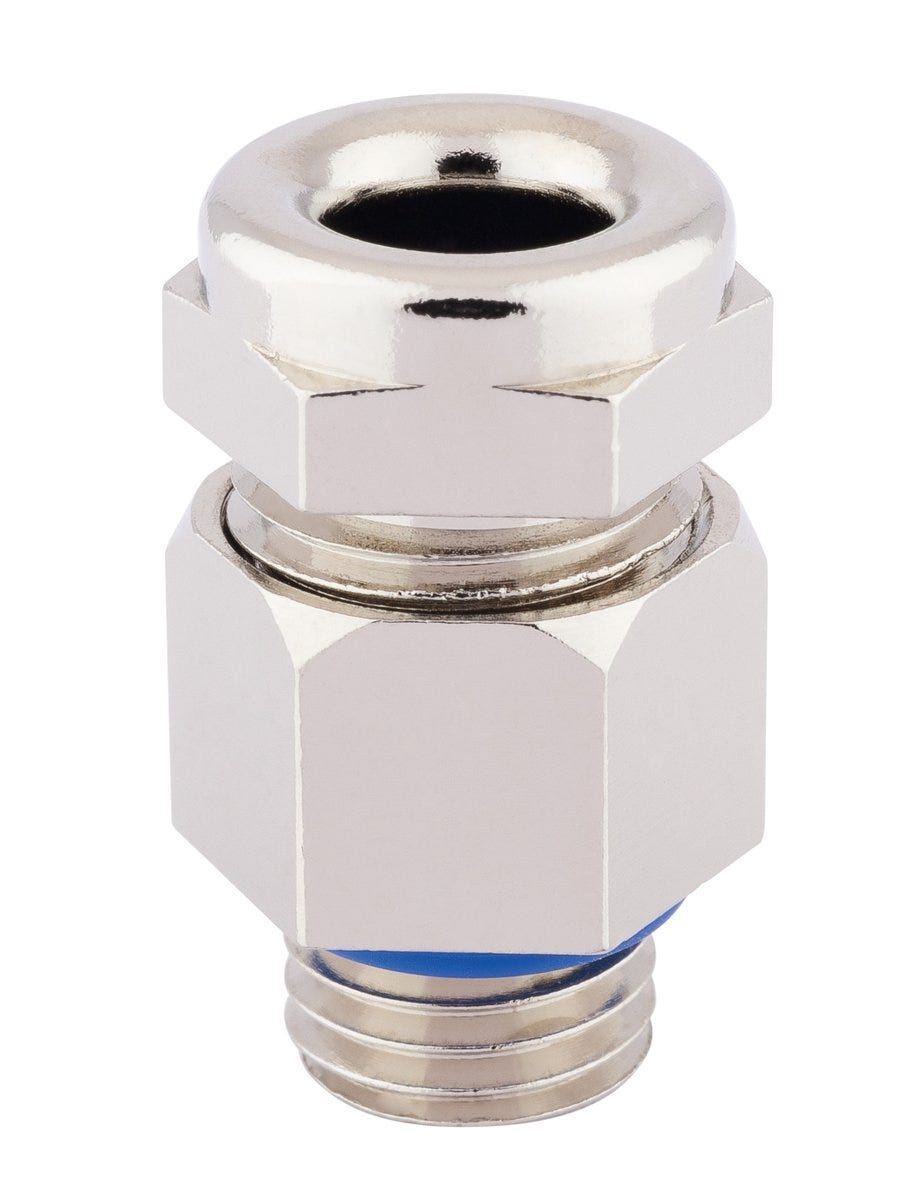

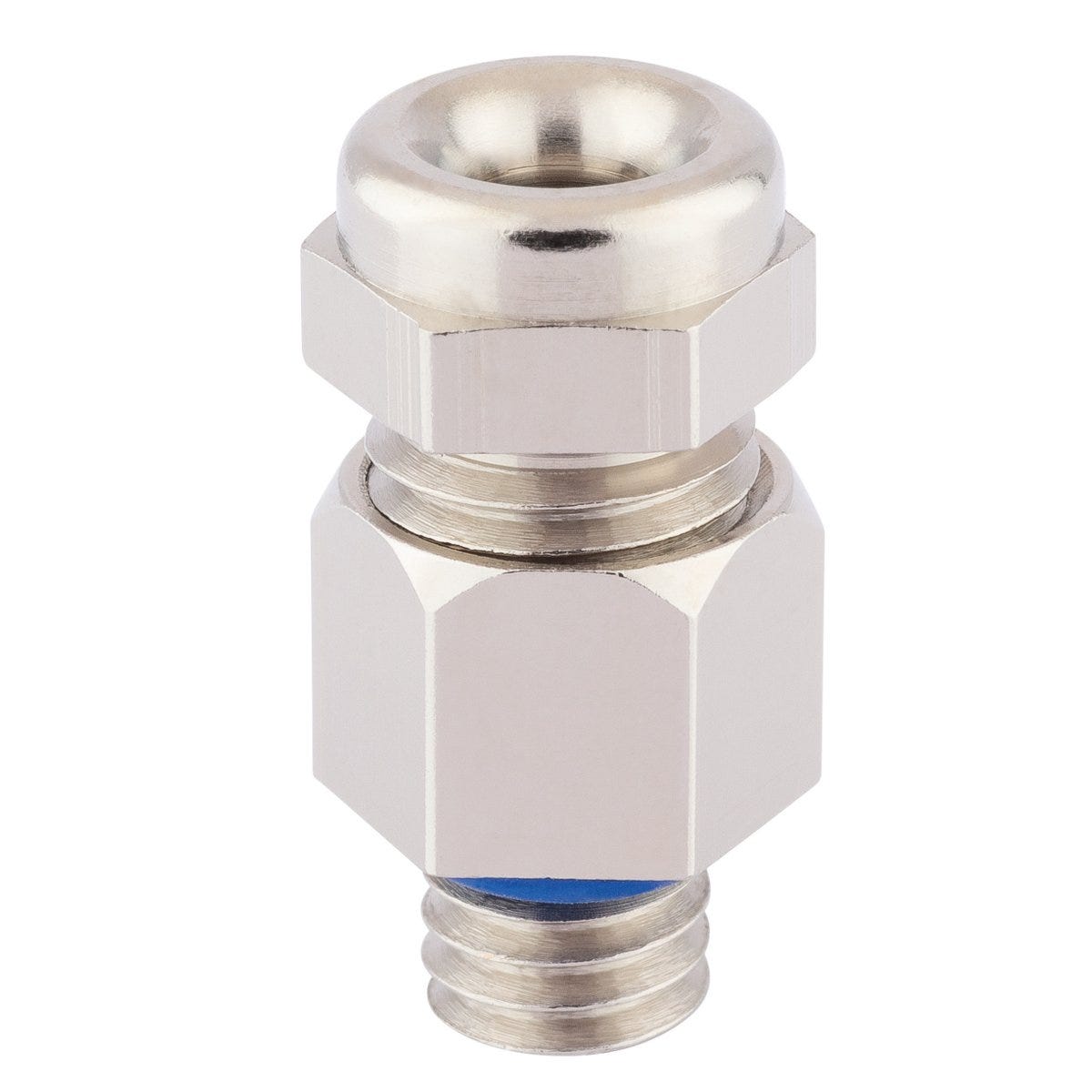

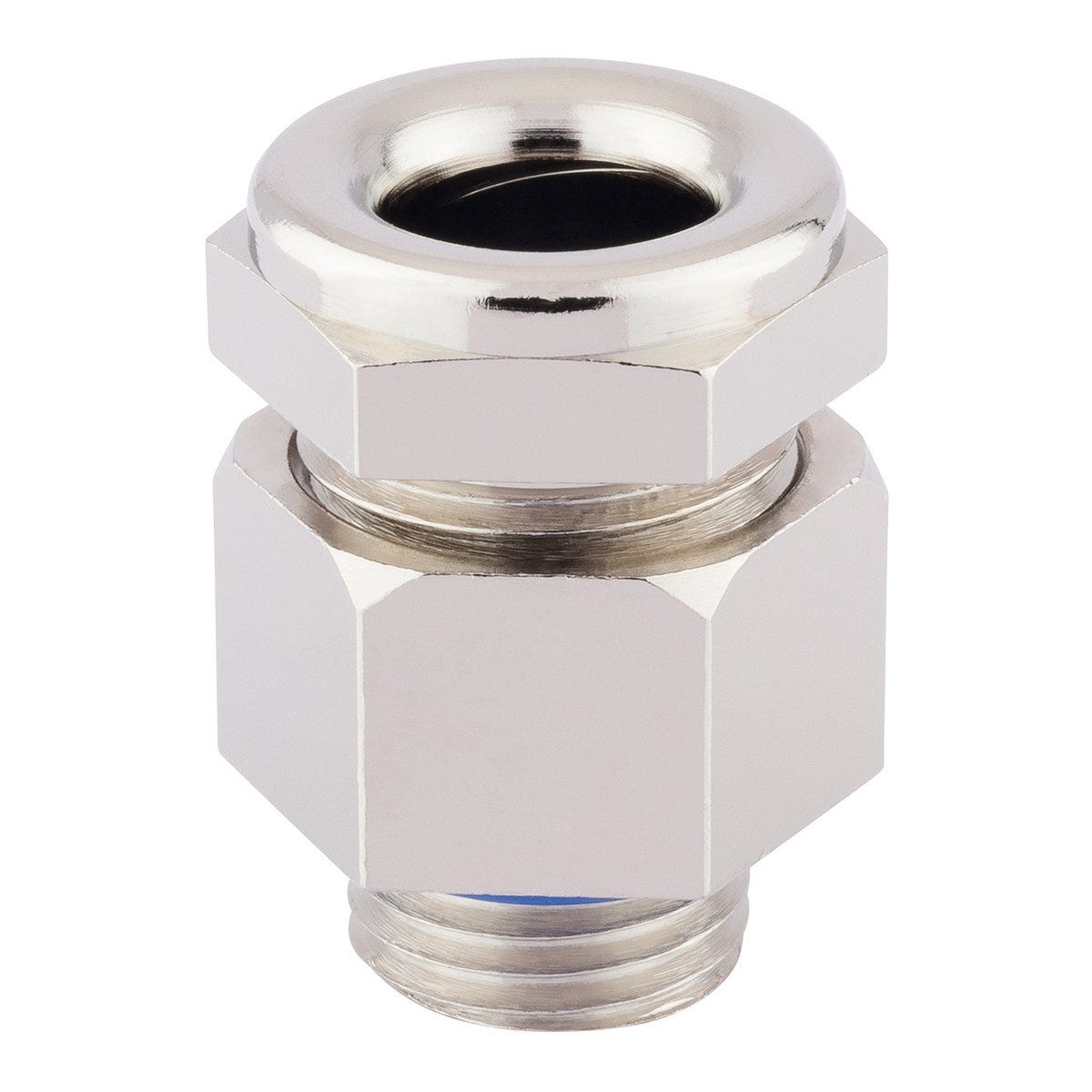

SKINDICHT® MINI M6X1 COLD
Cable gland; M 6; Clamping range (min./max.): 2.0 - 3.0 mm; Wrench width 1: 9; Brass Nickel-plated; Halogenfree; UV-resistant; IP 68 - 5 bar (30 min), IP 66;
SKINDICHT® MINI M6X1 COLD
98.643₫
/
SKINDICHT® MINI M6X1 COLD
98.643₫
/
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
flame-retardant
halogen-free
oil resistant
uv-resistant.
Certificate
CE marked
Benefits

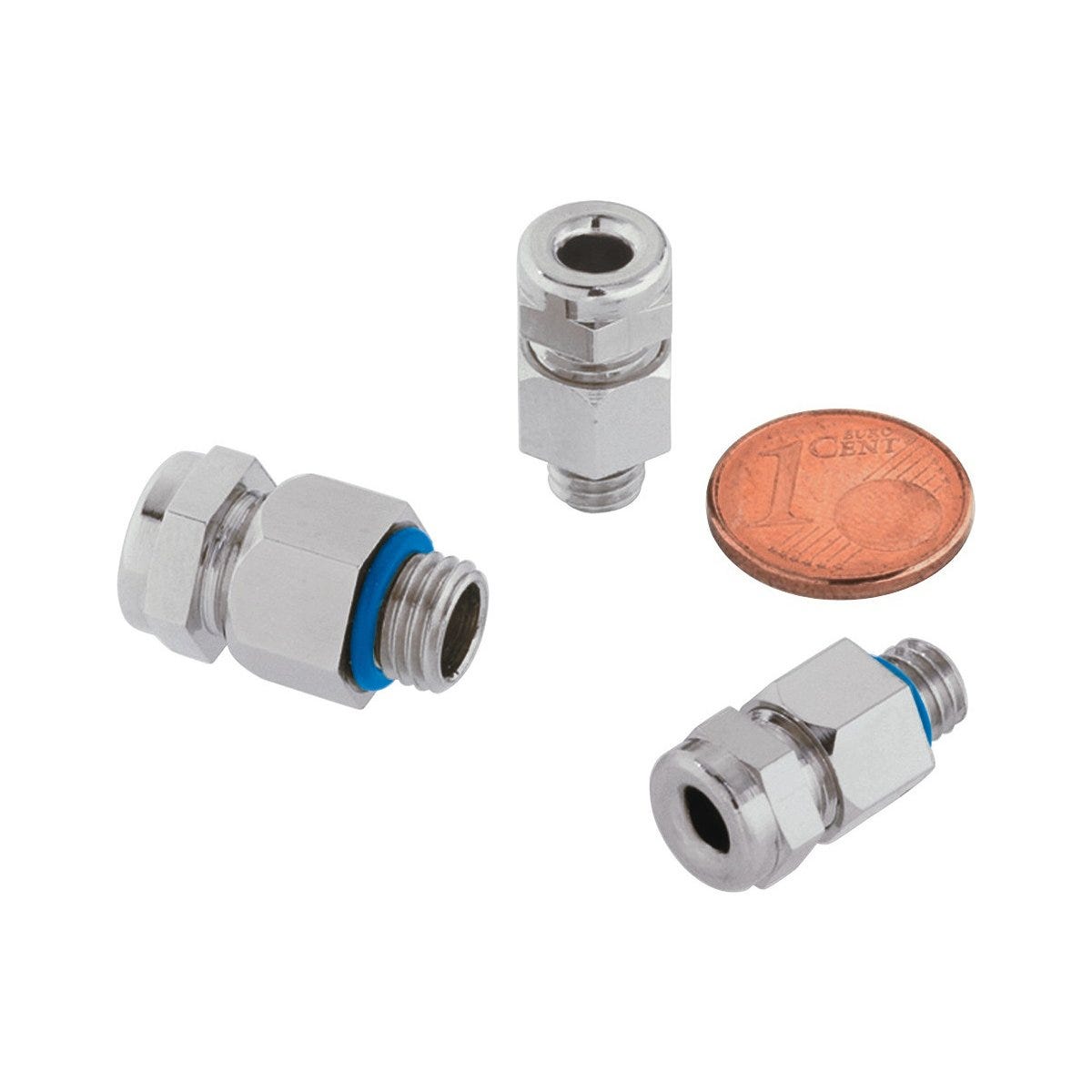

Its very small size makes it ideal for applications with limited space, to achieve a high packing density
Suitable for particularly thin cables with outer diameters from 2.0 to 7.0 mm
Thanks to silicone seal, extremely flexible at cold temperatures and suitable for use at extreme sub-zero temperatures (up to -60°C)
Gentle cable clamping due to high elasticity of the sealing insert material
The best possible sealing enables protection class IP 68 (5 bar).
Applications
For sealing and strain relieving cable insertion into a housing
Especially for areas with high demands on cold resistance. Typical areas of application are air-conditioning, frozen food systems and cold storage
Can be used in dry and damp environments
Withstands high mechanical stress
Suitable for outdoor use.
Technical Attributes
General Information
| Including lock nut |
|
| Including o-ring |
|
| Brand | SKINDICHT® |
| Product type | Cable gland |
| Scope of delivery | including O-ring |
| Packaging type | Bag |
| Installation type | in threaded borehole, screw |
| Delivery Unit | 50.000 |
| Weight | 0.005 kg |
Electrical Characteristics
Product Design
| Total length | 19.7 |
| Number of cable entries | 1 |
| Material body | Brass |
| Thread type | Metric |
| Cable gland design | Straight |
| thread-sided sealing element | O-ring |
| EMC screening |
|
| Cable-side sealing element | Conduit sealing ring |
| Material body shortname | CuZn |
| Thread size | M 6 |
| Colour | metal |
| Thread length | 5.0 |
| Hexagon corner dimensions | 10.4 |
| Bending protection |
|
| Clear width | 3.0 |
| Max. clamping range | 3.0 |
| Seal type | Conduit sealing ring |
| O-ring material | Silicone |
| Glass-fibre reinforced |
|
| Pitch of thread | 1 |
| Surface protection | Nickel-plated |
| Spanner size 1 | 9 |
| Min. clamping range | 2.0 |
| For armoured cables |
|
| Spanner size 2 | 9 |
| Sealing material | Silicone |
Product Characteristics
| Flame-retardant |
|
| IP protection rating | IP 68 - 5 bar (30 min), IP 66 |
| Temperature static min. | -60 |
| UV-resistant |
|
| Temperature (max.) | 100 |
| Oil-resistant |
|
| Temperature (min.) | -60 |
| Strain relief |
|
| Suitable for EX-applications |
|
| Impact-resistant |
|
| Vibration protection |
|
| Temperature static max. | 100 |
| Halogenfree |
|
Certifications and Standards
| EHEDG certified |
|
| DNV-certified |
|
| cUR recognized |
|
| CSA certified |
|
| FDA certified |
|
| GGVS certified |
|
| Tested for fire protection for railway vehicles |
|
| Ecolab certified |
|
| cUL listed |
|
| UL listed |
|
| For Ex zone gas | without |
| For Ex-zone dust | without |
| CE marked |
|
| UL recognized |
|
| NSF certified |
|
| VDE certified |
|
Documentation
Downloads
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Product Family List

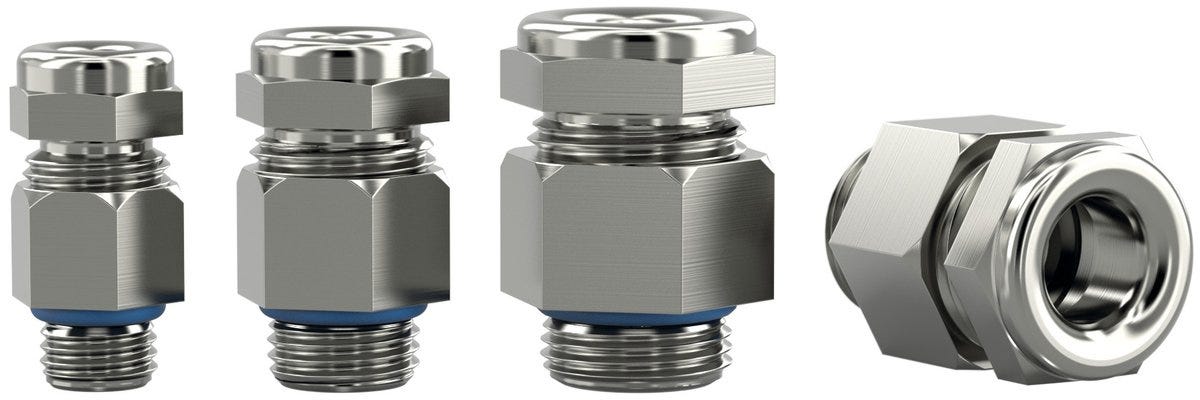

All articles from SKINDICHT® MINI COLD
