EPIC® SOLAR 4 M 2.5 mm²

Name: EPIC® SOLAR 4 M 2.5 mm²
Brand: LAPP
SKU: 44428260
Price: 36471 VND
Availability: OutOfStock

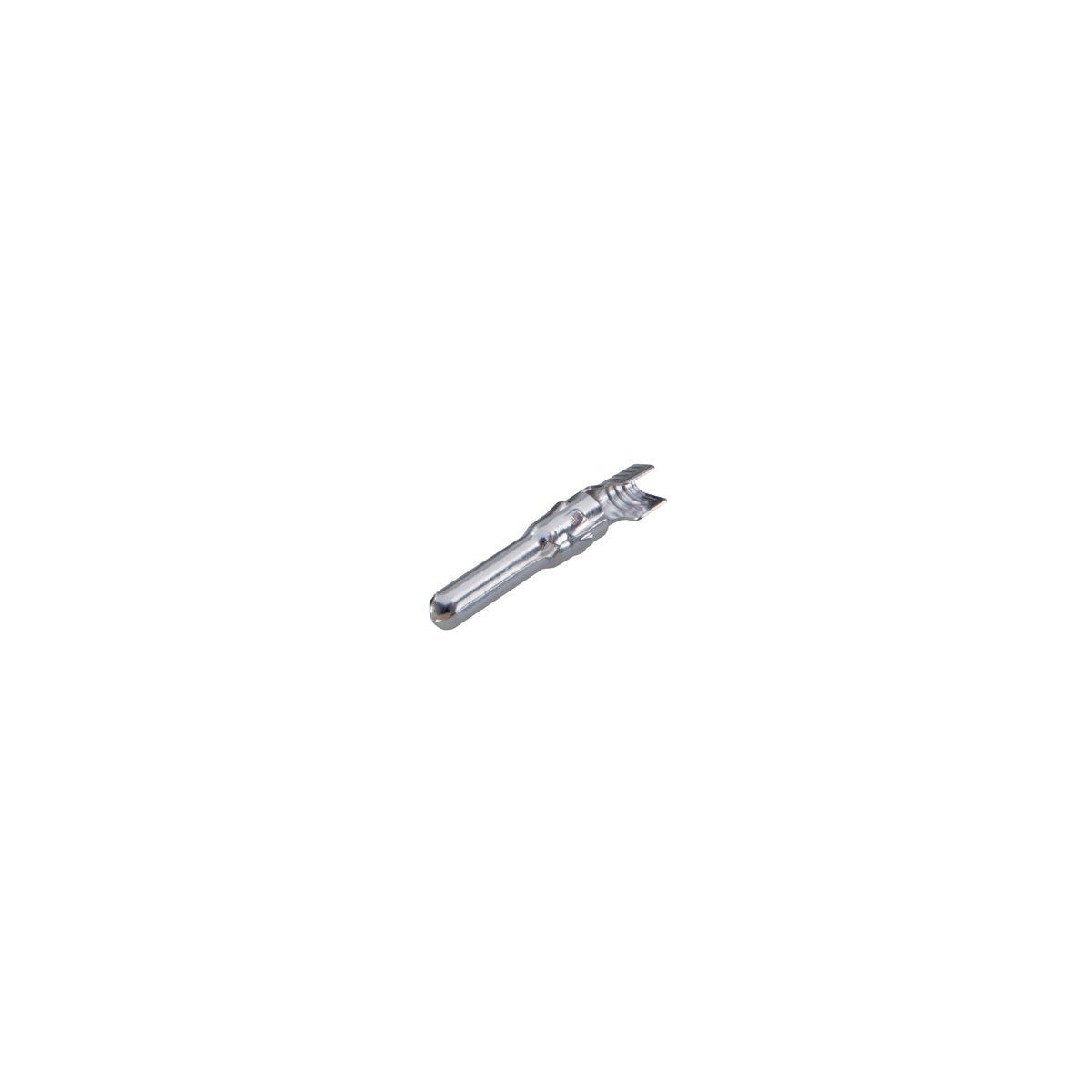

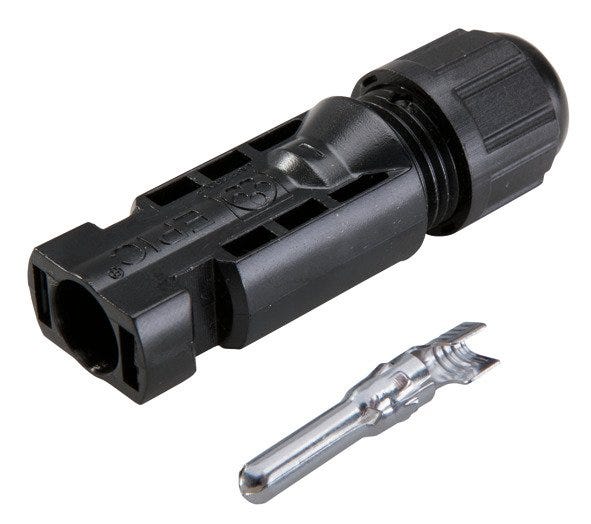

Solar connectors, Pin; Crimp termination; For cross-section (min./max.): 2.5 mm²; Housing base material: Polyamide; Material contact: Brass Tin-plated;

LAPPSKU: 44428260Article No.#: 44428260

EPIC® SOLAR 4 M 2.5 mm²

Solar connectors, Pin; Crimp termination; For cross-section (min./max.): 2.5 mm²; Housing base material: Polyamide; Material contact: Brass Tin-plated;

EPIC® SOLAR 4 M 2.5 mm²

36.471₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Benefits

Low contact-resistance for efficient power transmission, Crimp connection for reliable field mounting, Suitable for various ÖLFLEX® SOLAR cables

Applications

Photovoltaic plants, Crystalline and thin-film constructions, Solartracker

Technical Attributes

General Information

Product type	Solar connectors
Brand	EPIC®
Installation type	crimp
Contacts included
Delivery Unit	100.000
Weight	0.011 kg

Electrical Characteristics

Product Design

Material contact surface	Tin-plated
Min. cable clamping range	4.8
Contact variant	Pin
Design connector housing	Straight
Connector type	Plug
Contact manufacturing method	Stamped
Colour	black
Housing base material	Polyamide
Housing base material, short form	PA
Connectable conductor cross-section (mm²)	2.5
Contact connection type	Crimp termination
Contact material	Brass
Max. cable clamping range	6.0
Contact material, short form	CuZn

Product Characteristics

Flame-retardant
Min. number of insertion cycles	100
Acid-resistant
Impact-resistant
Pollution degree	3
Chemical resistant
UV-resistant
Operating temperature min.	-40
Protection class (IP), not installed	IP 20
Operating temperature max.	105
Protection class (IP), mounted	IP 67
Halogenfree

Certifications and Standards

TÜV certified
UR recognized
CSA certified
CE marked
VDE certified

Documentation

Downloads

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

operation instruction - de-DE (PDF)

operation instruction - en-UK (PDF)

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
