Connector Holder M17/M23 SHBD 17/23

Name: Connector Holder M17/M23 SHBD 17/23
Brand: LAPP
SKU: 44420568
Price: 475609 VND
Availability: OutOfStock

Fastening element; ; black; 18 mm; 26 mmYes

LAPPSKU: 44420568Article No.#: 44420568

Connector Holder M17/M23 SHBD 17/23

Fastening element; ; black; 18 mm; 26 mmYes

Connector Holder M17/M23 SHBD 17/23

475.609₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Benefits

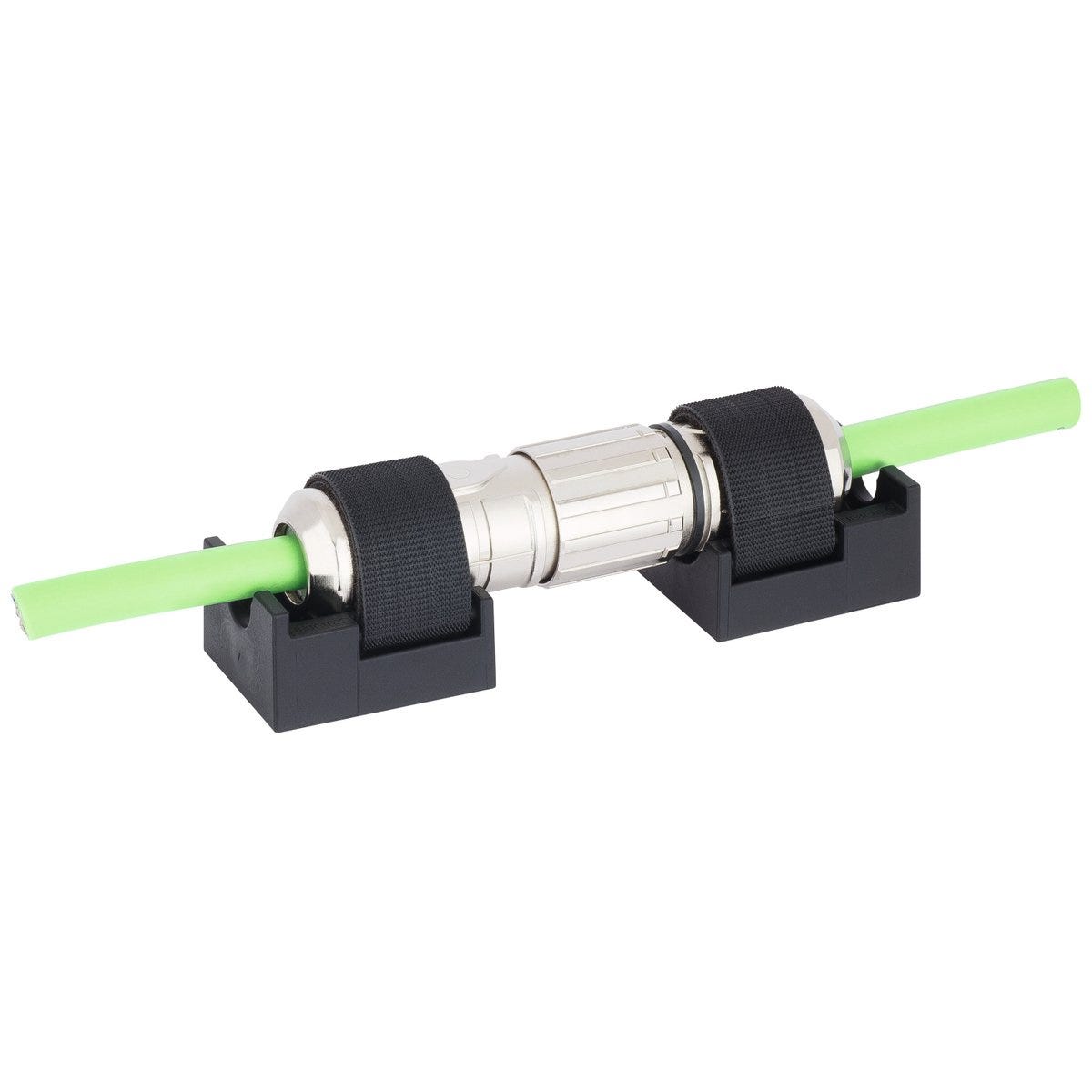

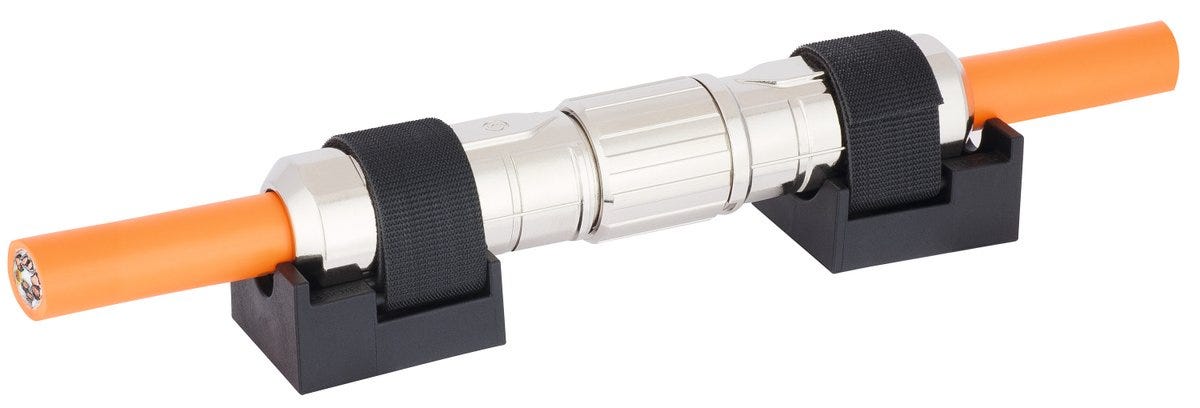

The fixed mounting of a circular connector ensures that cabling is more organised and dampens the vibrations that can affect the connector

The connector holders can be easily aligned in place thanks to an alignment aid on the underside (two connector holders are required to attach a circular connector)

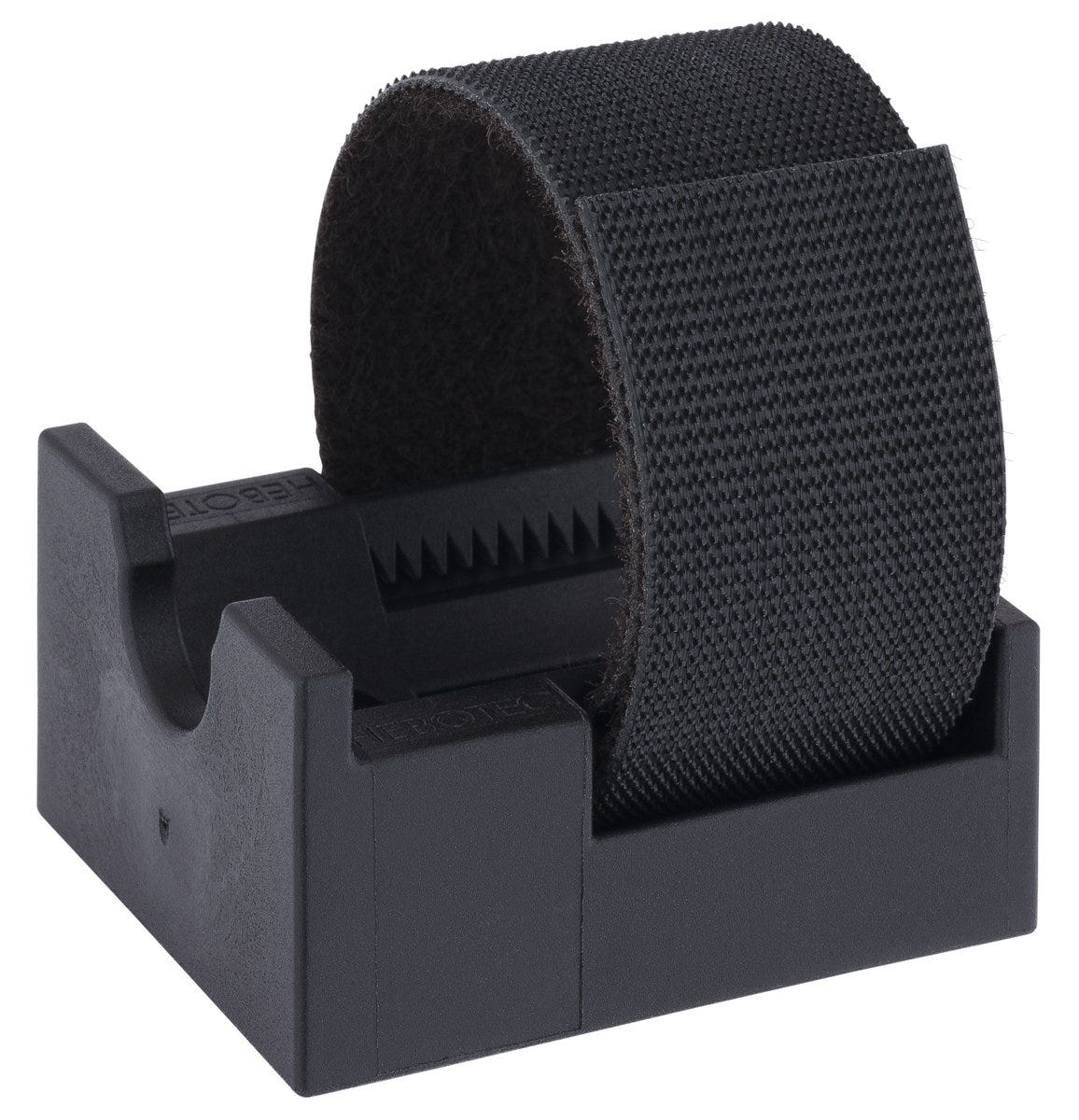

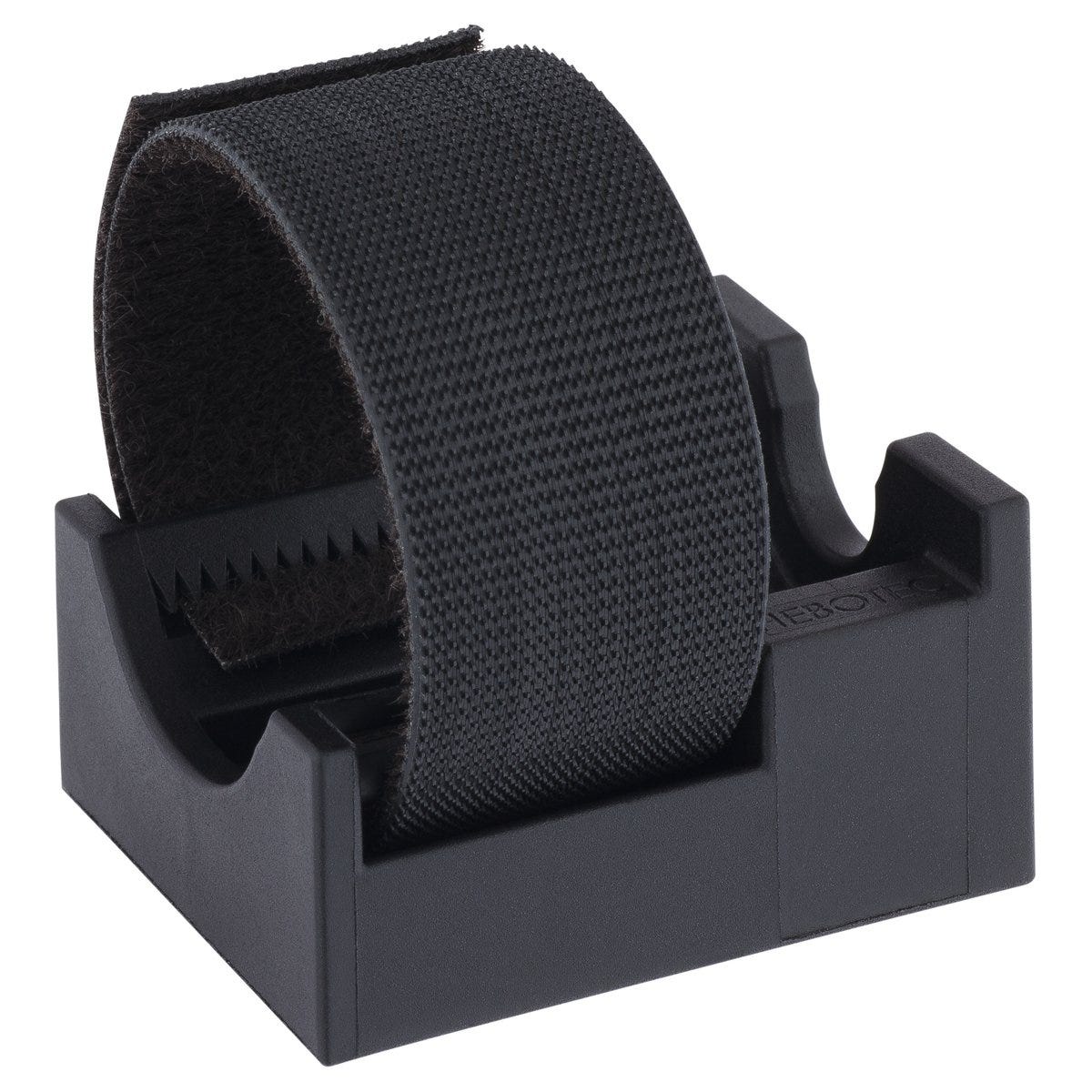

The Velcro fastening of the circular connector enables a flexible clamping range, quick lashing and a strong hold for secure connections.

Applications

For securely fastening circular connectors of sizes M17 and M23.

Technical Attributes

General Information

Product type	Fastening element
Delivery Unit	10.000
Weight	0.02 kg

Electrical Characteristics

Product Design

Colour	black
Max. clamping range	26
Min. clamping range	18

Product Characteristics

Operating temperature max.	+80
Operating temperature min.	-40
Halogenfree

Certifications and Standards

Documentation

Downloads

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
