EPIC® POWERLOCK A6 S L3/BL QP M12 (1)

Name: EPIC® POWERLOCK A6 S L3/BL QP M12 (1)
Brand: LAPP
SKU: 44420315
Price: 737110 VND
Availability: OutOfStock

Panel-mount base; For cross-section (min./max.): 50mm² - 120mm²;

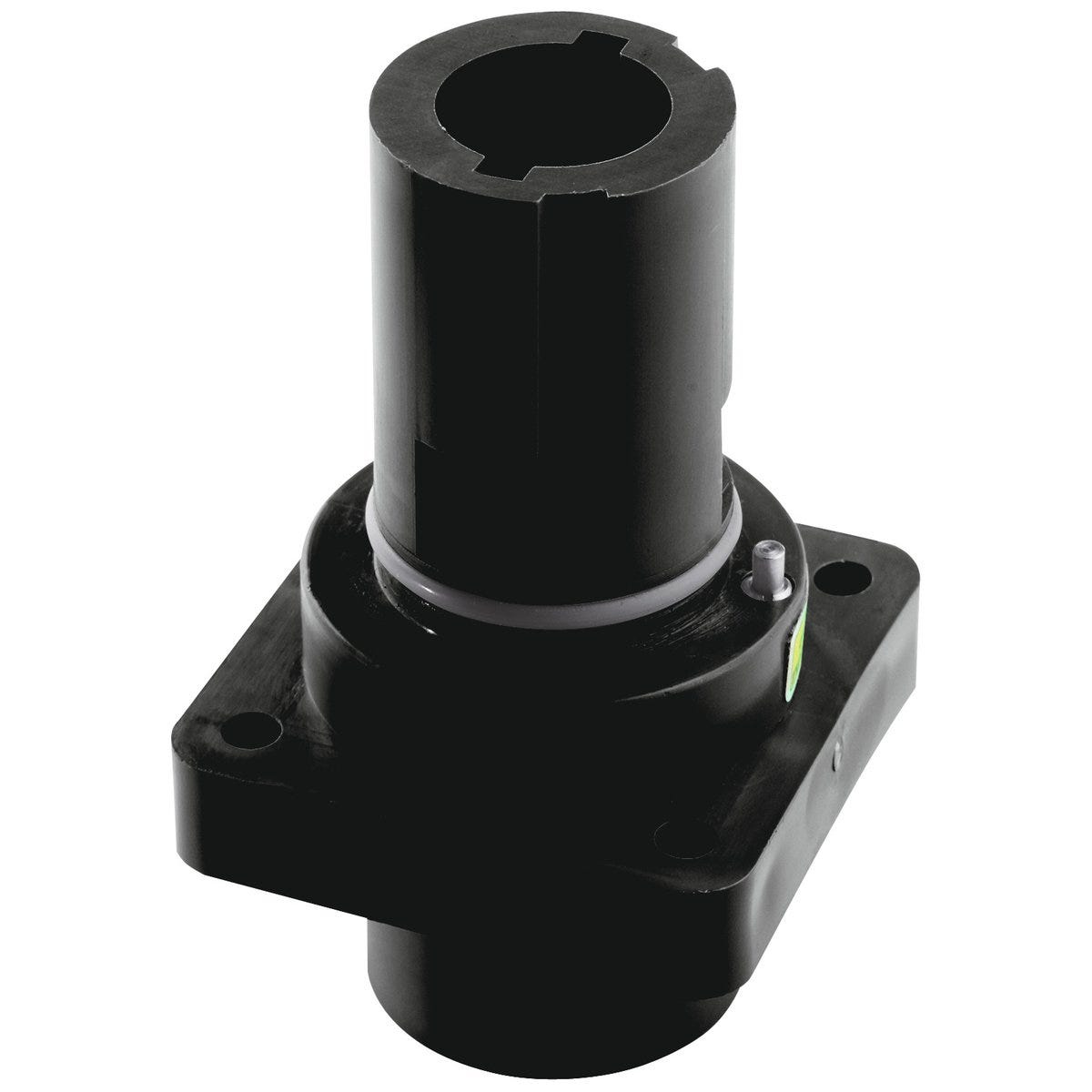

Primary Image

LAPPSKU: 44420315Article No.#: 44420315

EPIC® POWERLOCK A6 S L3/BL QP M12 (1)

Panel-mount base; For cross-section (min./max.): 50mm² - 120mm²;

EPIC® POWERLOCK A6 S L3/BL QP M12 (1)

737.110₫

Thanh toán & Bảo mật

Thông tin thanh toán của bạn được xử lý an toàn. Chúng tôi không lưu trữ chi tiết thẻ tín dụng cũng như không có quyền truy cập vào thông tin thẻ tín dụng của bạn.

Product characteristics

Certificate

Thuộc tính kỹ thuật

Thông tin chung

Brand	EPIC®
Design size	Powerlock A6 S
Contacts included
Product type	Panel-mount base
Delivery Unit	1.000
Weight	0.07 kg

Đặc tính điện

Max. contact resistance	2
Over voltage category	III
Rated current	400 A according to IEC
Rated impulse voltage	8 kV AC rms according to IEC 61984
Rated voltage	1000 V AC rms according to IEC

Thiết kế sản phẩm

Housing colour	blue
Max. connectable conductor cross-section (mm2)	120
Min. connectable conductor cross-section (mm2)	50
Connector type	Source
Contact connection type	Screw connection
Design connector housing	Straight
Locking type	Turning Lock
Stripping length of the sheathing	33
With protective conductor

Đặc điểm sản phẩm

IP protection class plugged in	IP 67
Halogenfree
Impact-resistant
Min. number of insertion cycles	500
Operating temperature max.	125
Operating temperature min.	-25
Protection class (IP), not installed	IP 20
Maximum tightening torque main contact	31.4
Max power contact tightening torque	27.5

Chứng nhận và Tiêu chuẩn

CE marked
cUR recognized
Product standard according to IEC	IEC 61984
UR recognized
VDE certified
VDE registration number	D042

Tài liệu

Downloads

CE declaration of conformity - en-UK (PDF)

operation instruction - de-DE (PDF)

operation instruction - en-UK (PDF)

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
