EPIC® SIGNAL M23 G6 N (5)

Name: EPIC® SIGNAL M23 G6 N (5)
Brand: LAPP
SKU: 44420073
Price: 519950 VND
Availability: OutOfStock

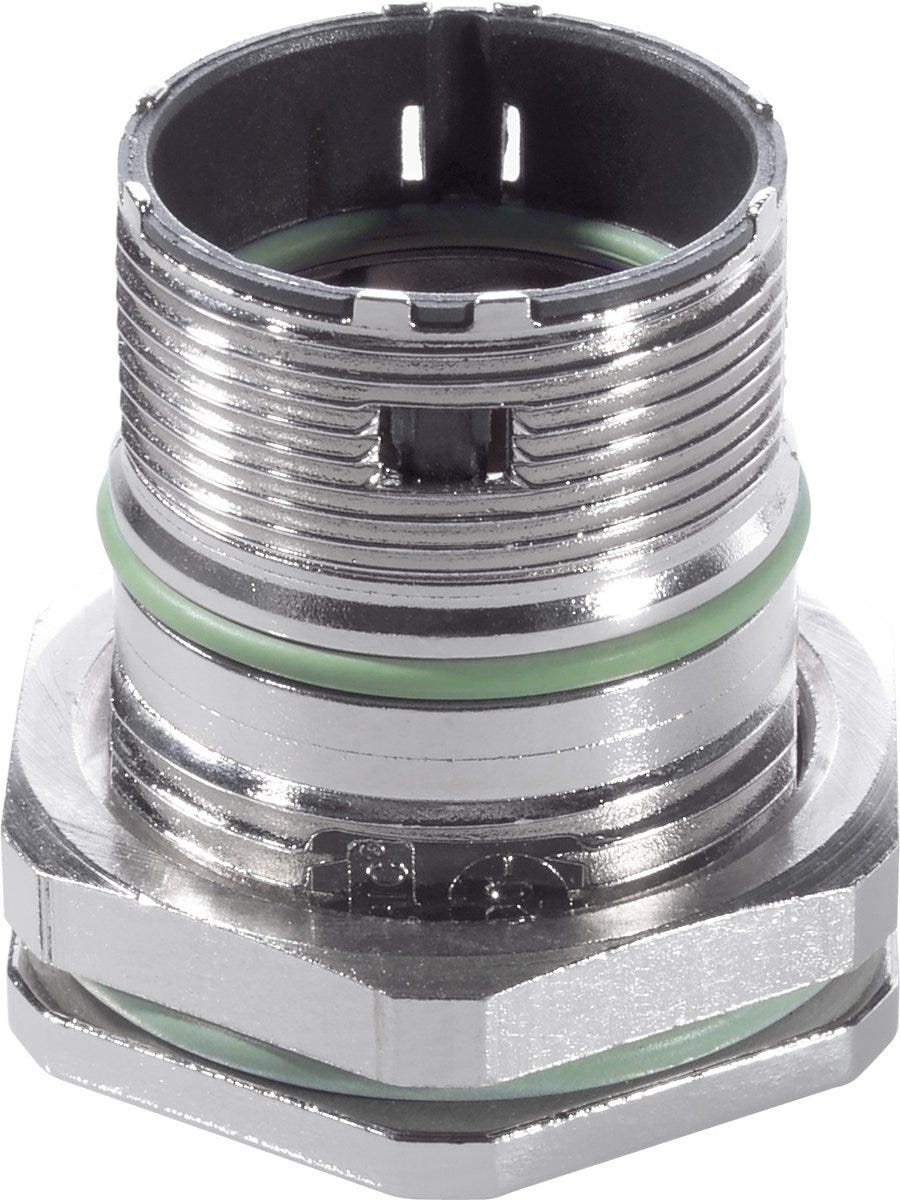

Flush-type connector, rear wall mounting; M 23 signal; M 25; Black (N);

LAPPSKU: 44420073Article No.#: 44420073

Flush-type connector, rear wall mounting; M 23 signal; M 25; Black (N);

519.950₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

Fast and easy assembly, Only one M25 bore hole necessary

Applications

Plant engineering, Servo drives and servo assemblies, Measurement and control technology

Technical Attributes

General Information

Brand	EPIC®
Contacts included
Product type	Flush-type connector, rear wall mounting
Scope of delivery	including lock nut
Delivery Unit	20.000
Weight	0.025 kg

Electrical Characteristics

Product Design

Total length	30.1
Design connector housing	Straight
Connector format	M 23 signal
Thread type	Metric
EMC screening
Thread size	M 25
Colour	green
Housing colour	silver
Connector diameter	30
Housing coating	Nickel-plated
With protective conductor
Coding type	Black (N)
Housing coating, short form	Ni
Seal type	Sealing ring
Coded
Connector type	Plug/socket
Housing base material	Zinc alloy
With thread
Housing base material, short form	Zn
Locking type	Screw lock
Screen contact
Sealing material, short form	FKM
Sealing material	Fluorinated rubber

Product Characteristics

Corrosion-resistant
Operating temperature min.	-25
Operating temperature max.	125
Min. number of insertion cycles	100
Operating temperature min. static (no plugging or unplugging)	-40
Impact-resistant
Vibration protection
IP protection class plugged in	IP 68 - 1m (10h)
Corrosion-resistant according to	DIN EN 60068-2-60, Ke 4
Halogenfree

Certifications and Standards

UR recognized
cUR recognized
CSA certified
cUR category control number	CYJV8
UL category control number	CYJV2
Product standard according to IEC	IEC 61984
UR certification	according to UL 2238 (e-file number: E249137)
cUR certification	according to CSA C22.2 No. 182.3 (e-file number: E249137)
VDE registration number	C024
CE marked
VDE certified

Documentation

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
