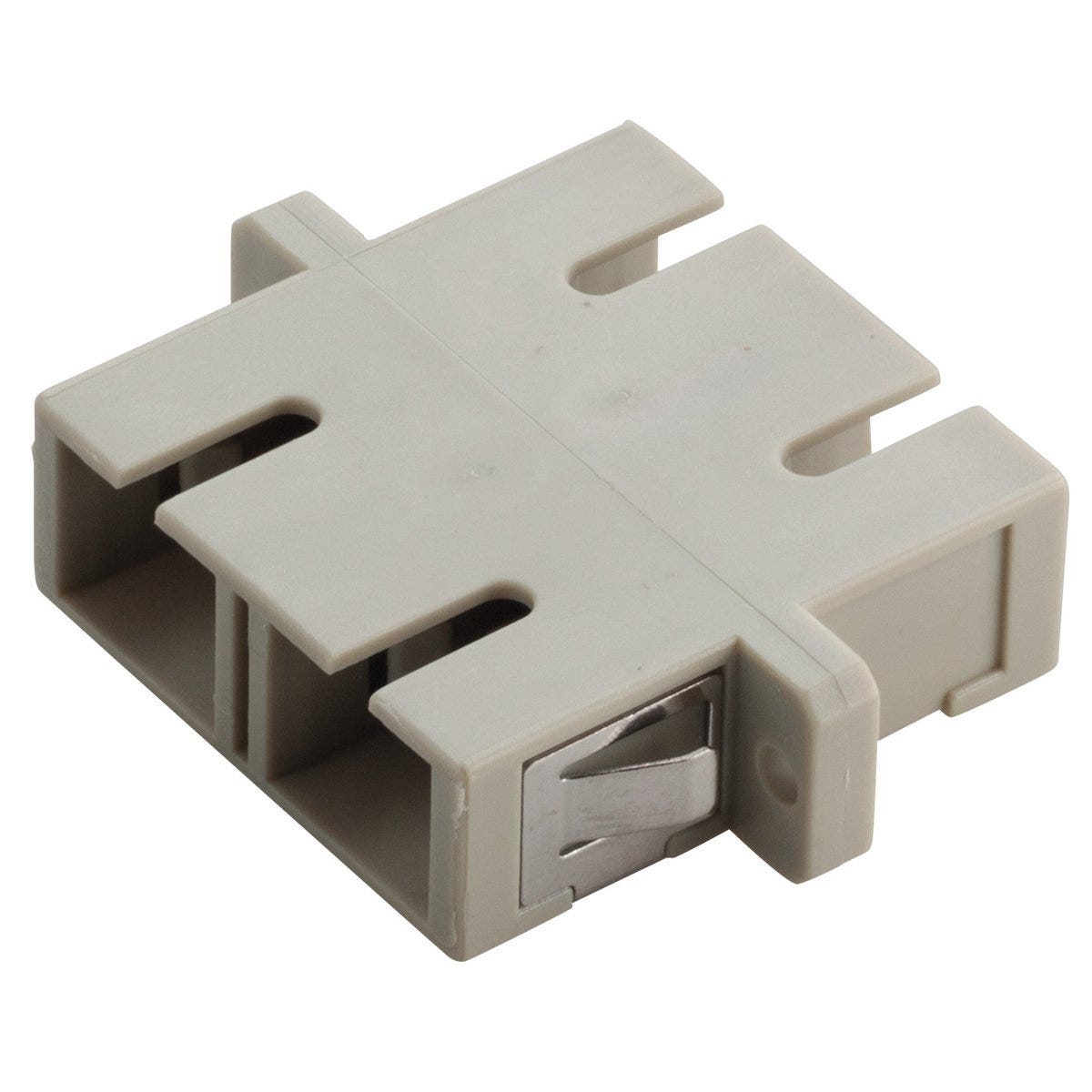

GOF Adapter Duplex SC Multimode BE /4PC

Name: GOF Adapter Duplex SC Multimode BE /4PC
Brand: LAPP
SKU: 29410199
Price: 126165 VND
Availability: OutOfStock

Fibre optic coupling; Coupling; Duplex; physical contact; PC; screw

LAPPSKU: 29410199Article No.#: 29410199

Fibre optic coupling; Coupling; Duplex; physical contact; PC; screw

126.165₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Technical Attributes

General Information

Product type	Fibre optic coupling
Scope of delivery	4 couplings, including dust protection cap
Brand	HITRONIC®
Fibre optic cable type	GOF
Installation type	screw
Delivery Unit	4.000
Weight	0.005 kg

Electrical Characteristics

Product Design

Connector housing angle	180
Total length	27.4
Flange
Design connector housing	Straight
Connector type	Coupling
Grinding contact surface	PC
Dust protection cap colour	black
Direct mounting possible
Bend protection boot
Coupling connection type	SC/SC
Cut type contact surface description	physical contact
Overall width	9.3
Housing base material	Acrylonitrile butadiene styrene plastic
Dust protection cap
Housing base material, short form	ABS
Variant of connector	Duplex
Locking type	without
Total height	34.9
Suitable type of optical fibre	Multi-mode fibre
Ferrule material	Zirconia
Suitable fibre width	125

Product Characteristics

Min. number of insertion cycles	1000
Max. assembly temperature	85
Installation temperature min.	-40
UV-resistant
Operating temperature min.	-40
Operating temperature max.	85
Contact application areact	Data / signals

Certifications and Standards

Product standard according to IEC

SC according to IEC 61754-4

Documentation

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.

Product Family List

Article number	Scope of delivery	Suitable type of optical fibre	Grinding contact surface	Cut type contact surface description
29410199	4 couplings, including dust protection cap	Multi-mode fibre	PC	physical contact
29410989	4 couplings, including dust protection cap	Single-mode fibre	APC	angled physical contact
29410999	4 couplings, including dust protection cap	Single-mode fibre	PC	physical contact
