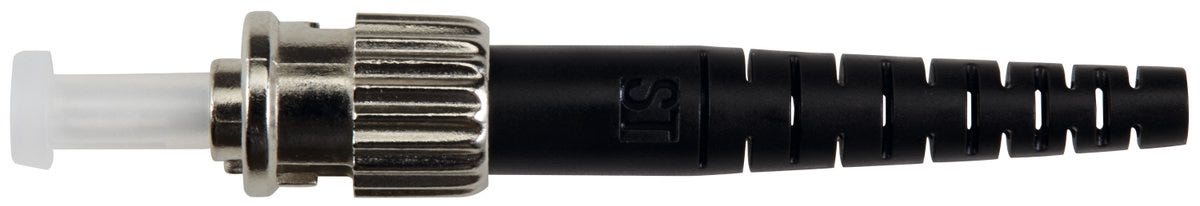

GOF Connector ST Multimode /50PC

Name: GOF Connector ST Multimode /50PC
Brand: LAPP
SKU: 29120198
Price: 75982 VND
Availability: OutOfStock

Fibre optic connector; ST; Plug; Straight; Locking type: Bayonet; Simplex;

LAPPSKU: 29120198Article No.#: 29120198

GOF Connector ST Multimode /50PC

Fibre optic connector; ST; Plug; Straight; Locking type: Bayonet; Simplex;

GOF Connector ST Multimode /50PC

75.982₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Benefits

Ideal for assembling, For assembly process: cable preparation/glueing/crimping/polishing, Assembly instructions can be found in the GOF assembly toolbox (not included in Lapp product range), Trained optical installers should be used in all connector assembly

Applications

For connector assemblies in production or laboratory environment

Technical Attributes

General Information

Product type	Fibre optic connector
Scope of delivery	50 connectors, including dust protection cap, including anti-kink sleeves (one colour)
Brand	HITRONIC®
Fibre optic cable type	GOF
Delivery Unit	50.000
Weight	0.005 kg

Electrical Characteristics

Product Design

Total length	50
Design connector housing	Straight
Connector type	Plug
Type of plug connection	ST
Direct mounting possible
Bend protection boot
Connector colour	Metal
Housing base material	Copper alloy
Dust protection cap
Variant of connector	Simplex
Connectable core diameter max. (mm)	2.8
Locking type	Bayonet
Ferrule length	8
Anti-kink sleeve colour	red/black
Suitable type of optical fibre	Multi-mode fibre
Ferrule material	Zirconia
Ferrule diameter	2.5

Product Characteristics

Max. storage temperature	85
Storage temperature min.	-40
UV-resistant
Operating temperature min.	-40
Tensile strength after assembly	100
Operating temperature max.	80
Contact application areact	Data / signals

Certifications and Standards

Product standard according to IEC	ST (BFOC) according to IEC 61754-2
EAC certification number	Отказное письмо № 481
EAC-certified	Not required

Documentation

Downloads

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

trcu declaration of conformity - ru-RU (PDF)

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
