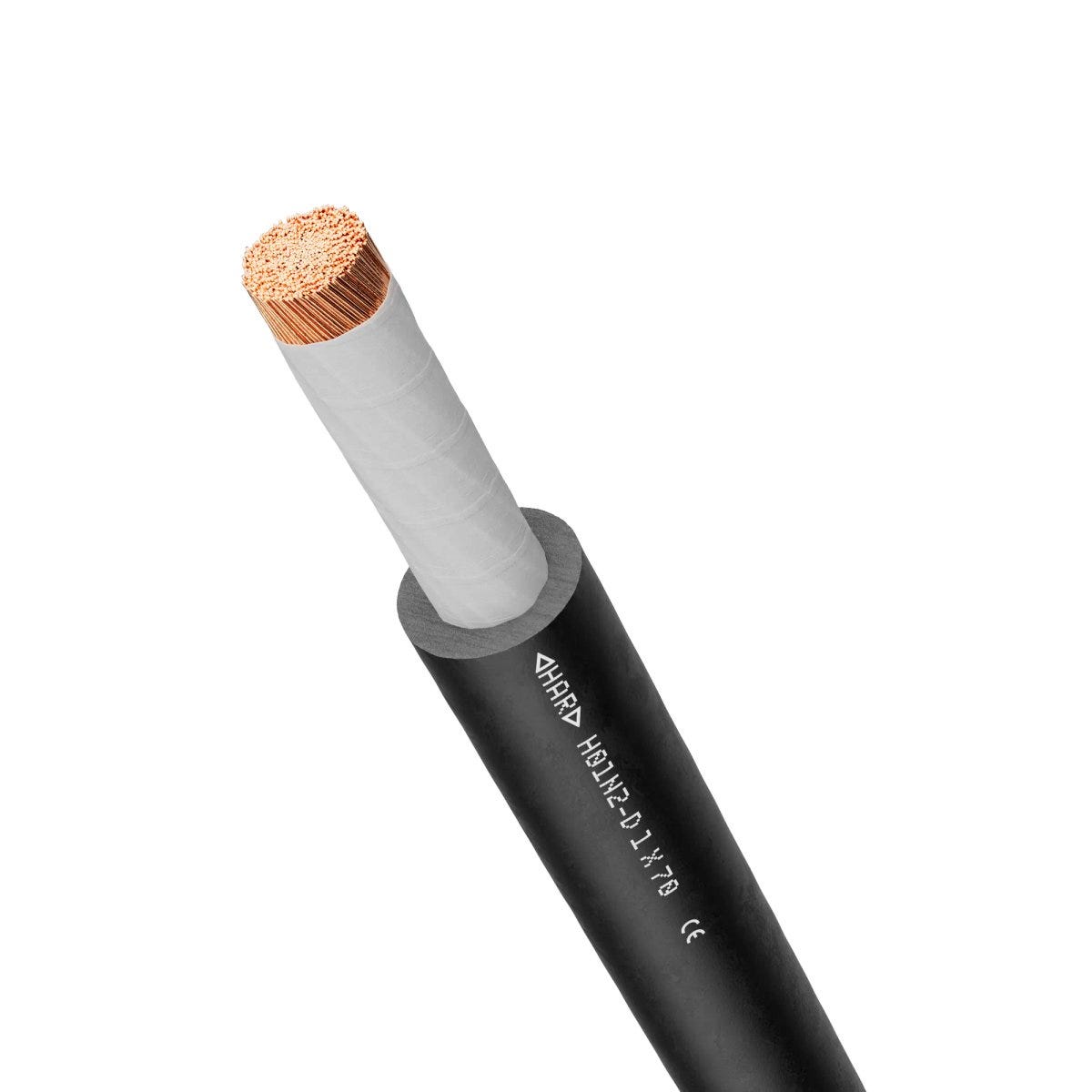

H01N2-D 1X35

Name: H01N2-D 1X35
Brand: LAPP
SKU: 2210702
Price: 444182 VND
Availability: OutOfStock

Power and control cable; 1X35; HAR-certified; U₀/U: 100/100 V; Rubber; Flexible

LAPPSKU: 2210702Article No.#: 2210702

Power and control cable; 1X35; HAR-certified; U₀/U: 100/100 V; Rubber; Flexible

H01N2-D 1X35

444.182₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

Made according to harmonised European type H01N2-D, with the ◁HAR▷ testing mark for proven reliability and quality

◁HAR▷-style cables are widely accepted and can be used in Europe

Reliable transmission of high currents thanks to the flexible and resistant cable design.

Applications

For connecting an arc welding device and manual electrode holder up to a nominal voltage of 100 V

For flexible use, free in the air, without tensile strain

Can be used in dry, damp and, especially, harsh and oily environments

Withstands high mechanical stress

Can be used for a limited period of time outdoors

Flexible use up to -25°C.

Technical Attributes

General Information

Electrical Characteristics

Nominal voltage	U₀/U: 100/100 V AC rms according to IEC
Max. conductor resistance at 20°C	0.554 Ω/km
Test voltage	1 kV
Current rating according to	VDE 0298-4

Product Design

Conductor design	EN 50525-2-81 H01N2-D
Conductor material	Bare copper
Harmonised design	H01N2-D
Min. outer diameter	11.4
Nominal conductor cross-section (metric)	35 mm²
Cable dimension	1X35
Shielded
Shape of cable	Round
Outer sheath colour	black
Number of cores	1
Basic material of outer sheath	Rubber
Including protective earth
Max. outer diameter	12.6

Product Characteristics

Flame-retardant
Storage temperature min.	-20
Installation temperature min.	-20
UV-resistant
Minimum bending radius in mm, fixed installation	63.0 mm
PWIS-free
Application area	Flexible, Fixed installation
max. conductor temperature, occasionally moved	-25 °C to 85 °C max. conductor temperature:
Oil-resistant
Max. storage temperature	40
Minimum bending radius in mm, occasionally flexing	63.0 mm
Minimum bending radius, stationary	5 x outer diameter
Minimum bending radius, occasionally flexing	5 x outer diameter
Temperature, fixed installation	-40 °C to 85 °C max. conductor temperature:
Flame retardance according to	IEC 60332-1-2
Permanently immersible in water
Oil resistance according to	EN 50363-2-2
UV-resistant according to	EN 50525-1 (cables with a black sheath are suitable for permanent outdoor use)
For torsional load
Halogenfree

Certifications and Standards

cUR recognized
CSA certified
Product standard DIN / EN	EN 50525-2-81
HAR-certified
cUL listed
Flame retardance tested according to UN/ECE-R118
UL listed
CE marked
UL recognized
VDE certified
EAC certification number	ЕАЭС N RU Д-DE.АЮ64.В.00130/20, ЕАЭС N RU Д-DE.АЮ64.В.00142/20
EAC-certified

Documentation

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Trade product, not a LAPP product.

Product Family List

Article number	Number of cores	Including protective conductor	Conductor cross-section (mm2)	Min. outer diameter	Max. outer diameter	Weight
2210700	1	No	16	8.8	9.8	198 kg/km
2210701	1	No	25	10.1	11.3	305 kg/km
2210702	1	No	35	11.4	12.6	415 kg/km
2210703	1	No	50	13.2	14.6	555 kg/km
2210704	1	No	70	15.3	16.9	765 kg/km
2210705	1	No	95	17.1	18.8	1010 kg/km
2210706	1	No	120	19.2	21.1	1262 kg/km
2210707	1	No	150	21.1	23.2	1590 kg/km
2210708	1	No	240	25.8	27.7	2361 kg/km
2310026	1	No	10	7.7	8.7	171 kg/km
