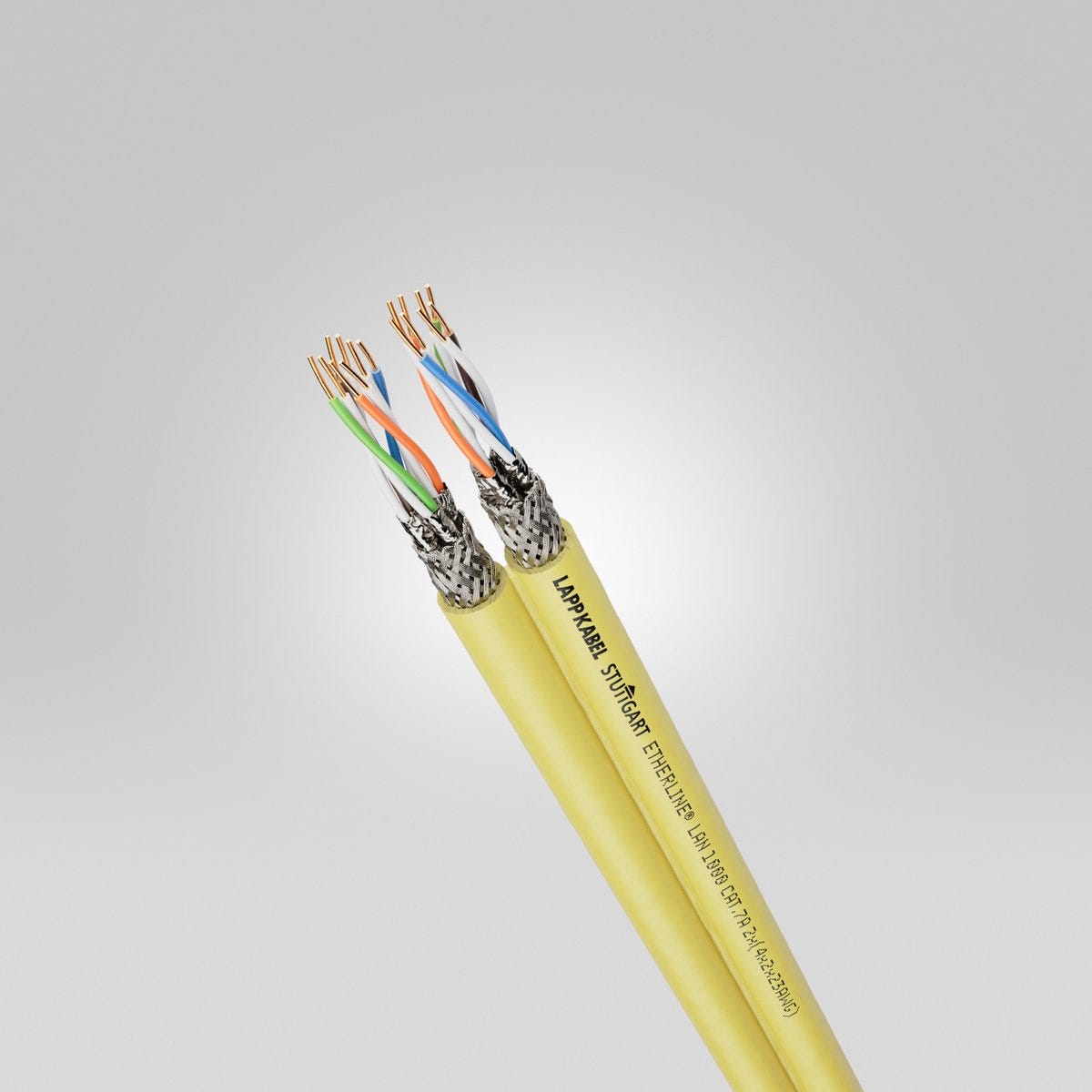

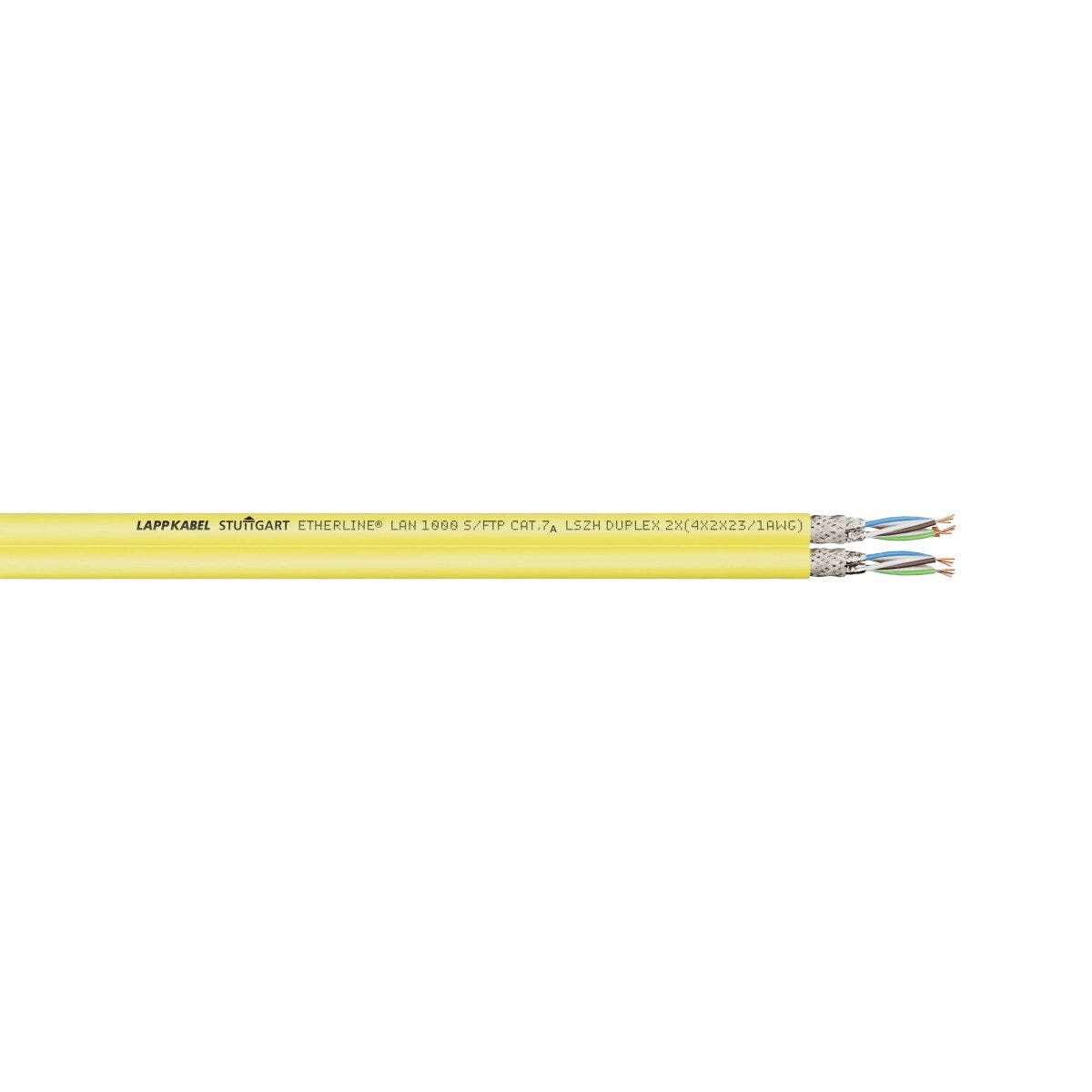

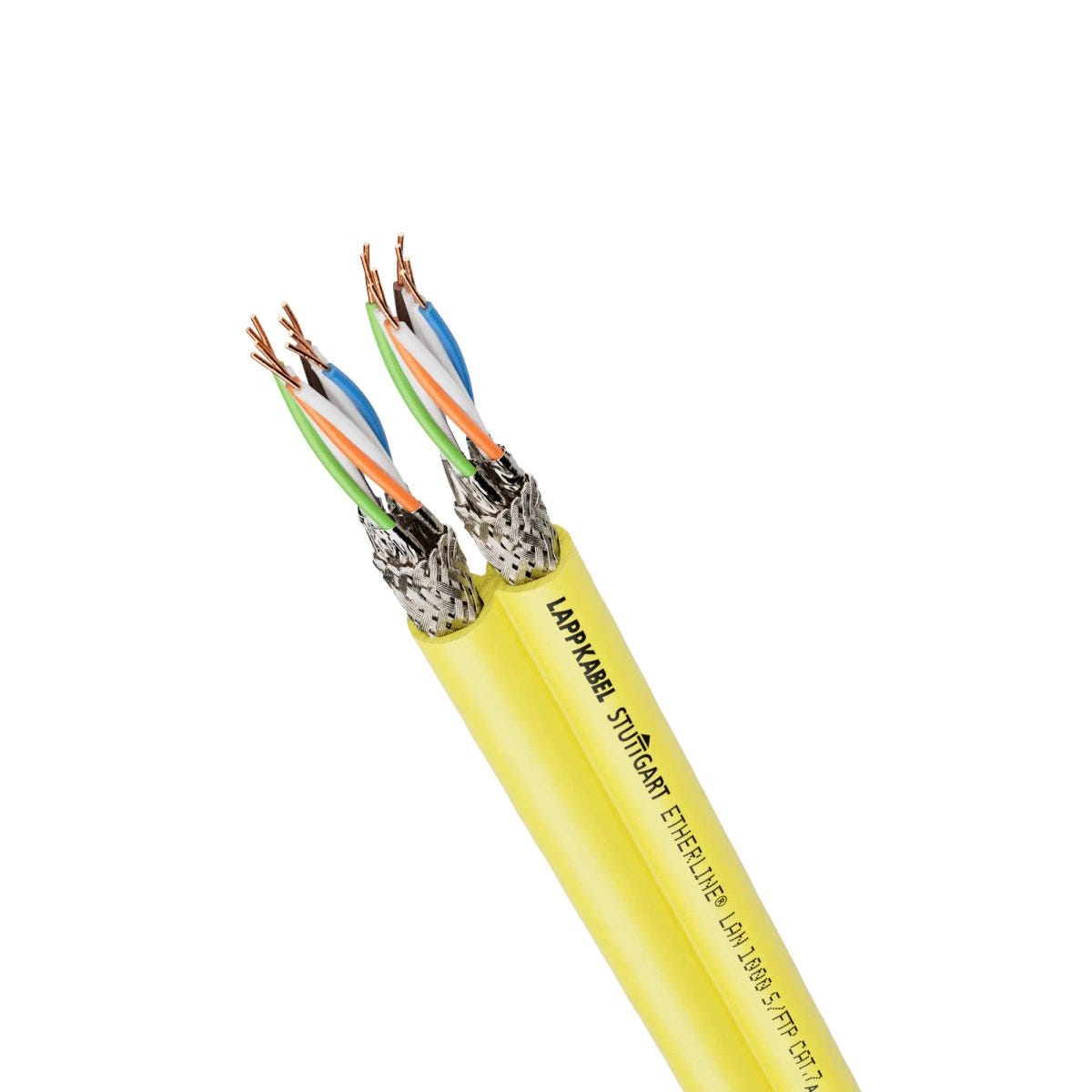

ETHERLINE® LAN 1000 Cat.7A 2x(4x2x23AWG)
Ethernet cable; Fixed installation; Ethernet, ETHERNET/IP; Cat.7A; S/FTP; LSZH; Halogenfree; yellow
ETHERLINE® LAN 1000 Cat.7A 2x(4x2x23AWG)
123.866₫
/
ETHERLINE® LAN 1000 Cat.7A 2x(4x2x23AWG)
123.866₫
/
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
flame-retardant
halogen-free
icon sturgeon signal
Certificate
CE marked
ETHERNET/IP
Benefits
Fast information exchange through Ethernet technology. , Cat.7A performance up to 10 Gbit/s
For transmission of analogue and digital signals in the frequency range up to 1000 MHz
Meets the transmission behaviour requirements as per EIA/TIA-568 and TSB36, as well as ISO/IEC 11801/EN 50173 (link class FA)
With halogen-free LSZH outer sheath to comply with special fire protection requirements
Ideal protection against electromagnetic interference due to aluminium-laminated pair shielding and copper stranded shielding as overall shielding (S/FTP)
Available as a 4-pair standard cable or as a duplex cable design for reduced cabling effort.
Applications
For structured building cabling according to EN 50173 and ISO/IEC 11801
Especially for environments where electromagnetic compatibility (EMC) is required
Suitable for all LAN networks and Ethernet applications up to 10GBase-T
Highly resistant to acids, alkalis and oils.
Technical Attributes
General Information
| Brand | ETHERLINE® |
| Product type | Ethernet cable |
| valid fieldbus or Ethernet system | Ethernet, ETHERNET/IP |
| Copper index | 60.000 kg/km |
| Copper index (lb) | 403.183 lb |
| Weight | 101 kg/km |
Electrical Characteristics
| Maximum operating voltage (not for power transmission) | 125 |
| Nominal surge impedance | 100 |
| Segregation class according to EN 50174-2 | D |
| Nominal voltage | 50 V AC rms / DC according to (manufacturer specifications) |
| Supports Power over Ethernet | IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.3bt (4PPoE) |
| Loop resistance at 20°C | 16.0 |
| Possible data transmission rates | 10000 |
| Signal propagation speed (nom.) | 0.79 |
| Test voltage core/screening | 1 |
| Test voltage core/core | 1 |
Product Design
| Nominal core diameter | 1.3 |
| Conductor design | solid conductor |
| Nominal outer diameter | 7.2 mm |
| Conductor material | Bare copper |
| Nominal conductor cross-section (metric) | 0.25 mm² |

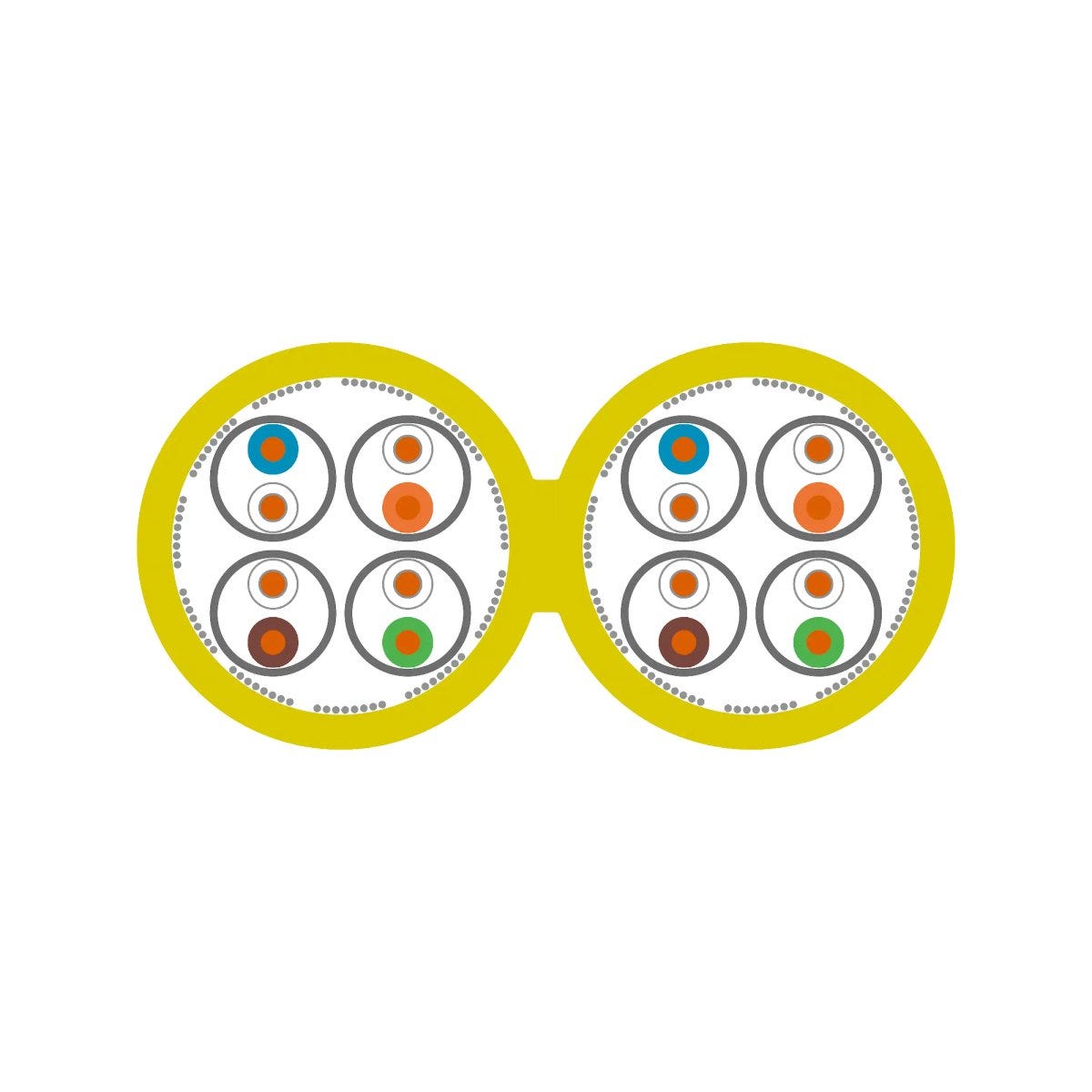

| Conductor count/size | 2x(4x2x23/1AWG) |
| Shielded |
|
| Core identification | Colours |
| Shape of cable | Separable twin |
| Number of pairs | 8 |
| Outer sheath colour | yellow |
| Stranding type | Twisted-pair |
| Pair screening type | Aluminium-laminated plastic foil |
| Leading conductor cross-section | AWG |
| Abbreviation shielding | S/FTP |
| Cable sheath RAL colour | RAL 1021 |
| With rodent protection |
|
| Conductor colour code | PROFINET Colour code 4-pair |
| Type of overall screen | Tin-plated copper braiding |
| Number of cores | 16 |
| Nominal conductor cross-section (AWG) | 23 AWG |
| Core insulation basic material | Polyethylene |
| Basic material of outer sheath | Halogen-free compound |
| Including protective earth |
|
| Core insulation basic material, short form | PE |
| With armouring |
|
| Number of wires | 1 |
| Basic material of outer sheath, short form | LSZH |
Product Characteristics
| Flame-retardant |
|
| PWIS-free according to | VDMA 24364-B2-L |
| Halogen-free according to | IEC 60754-1 |
| Corrosiveness of combustion gases according to | IEC 60754-2 |
| Fast Connect (FC) cable |
|
| UV-resistant |
|
| Minimum bending radius in mm, fixed installation | 28.8 mm |
| PWIS-free |
|
| Application area | Fixed installation |
| max. conductor temperature, occasionally moved | 0 °C to 50 °C max. conductor temperature: |
| Oil-resistant |
|
| Ethernet cable category | Cat.7A |
| Minimum bending radius in mm, occasionally flexing | 57.6 mm |
| Minimum bending radius, stationary | 4 x outer diameter |
| Minimum bending radius, occasionally flexing | 8 x outer diameter |
| Temperature, fixed installation | -20 °C to 60 °C max. conductor temperature: |
| Flame retardance according to | IEC 60332-1-2 |
| Windable |
|
| Halogenfree |
|
Certifications and Standards
| CE marked |
|
| VDE certified |
|
Documentation
Downloads
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Product Family List
All articles from ETHERLINE® LAN 1000 Cat.7A
| Article number | Conductor count/size | Imp outer dia cable sheath nom | Nominal outer diameter | Shape of cable | Flame retardance according to | Copper index calc export | Weight |
|---|---|---|---|---|---|---|---|
| 2170614 | 4x2x23/1AWG | 7.5 | Round | IEC 60332-3-24, IEC 60332-1-2 | 60 kg/km | ||
| 2170971 | 4x2x23/1AWG | 7.4 | Round | IEC 60332-3-24 | 56 kg/km | ||
| 2170972 | 2x(4x2x23/1AWG) | 7.4 | Separable twin | IEC 60332-3-24 | 113 kg/km | ||
| 2170980 | 4x2x23/1AWG | 7.2 | Round | IEC 60332-1-2 | 50 kg/km | ||
| 2170981 | 2x(4x2x23/1AWG) | 7.2 | Separable twin | IEC 60332-1-2 | 101 kg/km |
