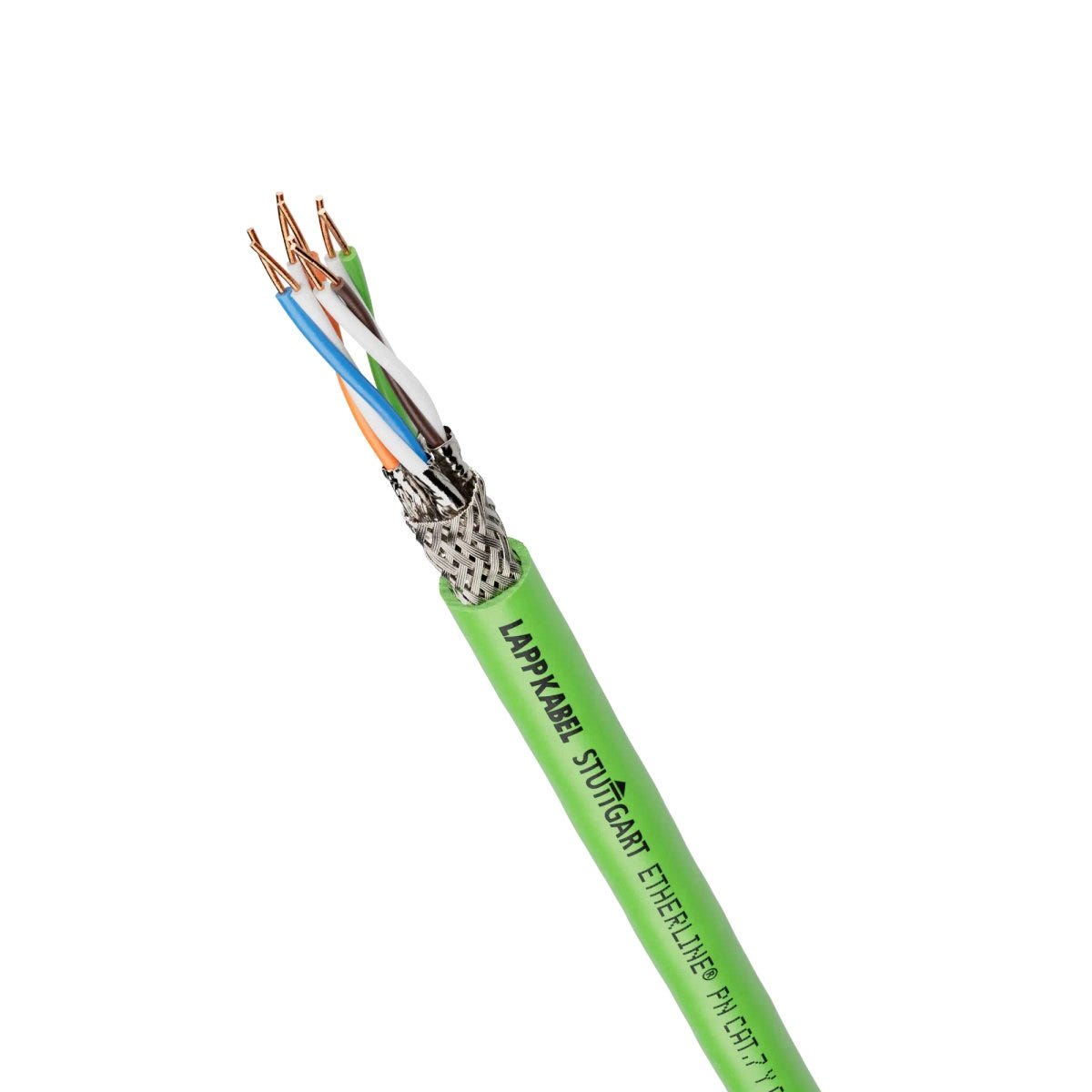

ETHERLINE® PN CAT.7 P A

Name: ETHERLINE® PN CAT.7 P A
Brand: LAPP
SKU: 2170607
Price: 182270 VND
Availability: OutOfStock

Ethernet cable; Fixed installation; ETHERNET/IP, PROFINET, Ethernet; PROFINET® application: Type A; Cat.7; S/FTP; PUR; Halogenfree; green

LAPPSKU: 2170607Article No.#: 2170607

ETHERLINE® PN CAT.7 P A

Ethernet cable; Fixed installation; ETHERNET/IP, PROFINET, Ethernet; PROFINET® application: Type A; Cat.7; S/FTP; PUR; Halogenfree; green

ETHERLINE® PN CAT.7 P A

182.270₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

Fast information exchange through Ethernet technology. , For transmission of analogue and digital signals in the frequency range up to 600 MHz

Power over Ethernet-capable cable for simultaneous power and data supply of smaller network components with low energy requirements (e.g. IP cameras, wireless access points)

Available with robust PVC outer sheath, abrasion-resistant PU outer sheath or halogen free FRNC outer sheath

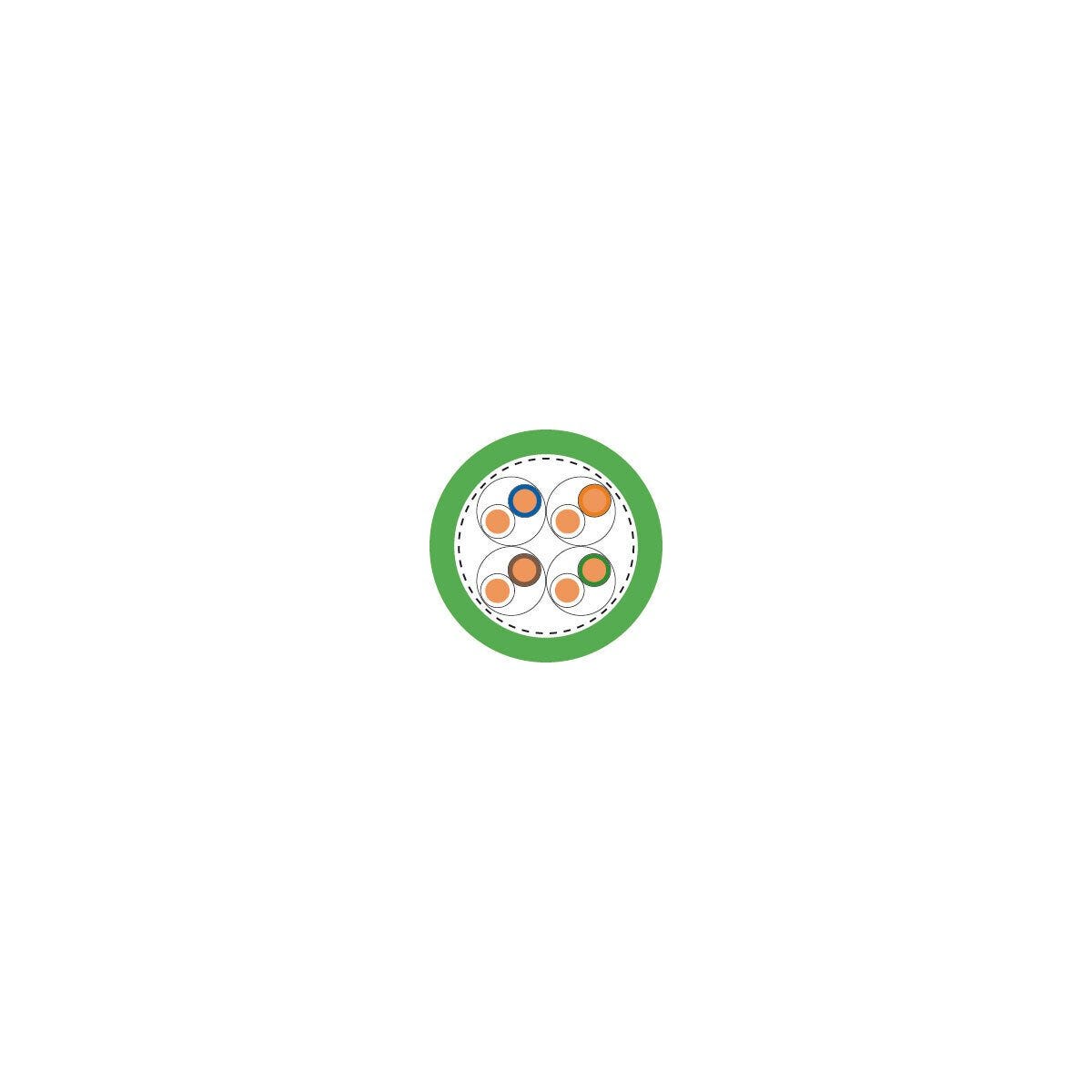

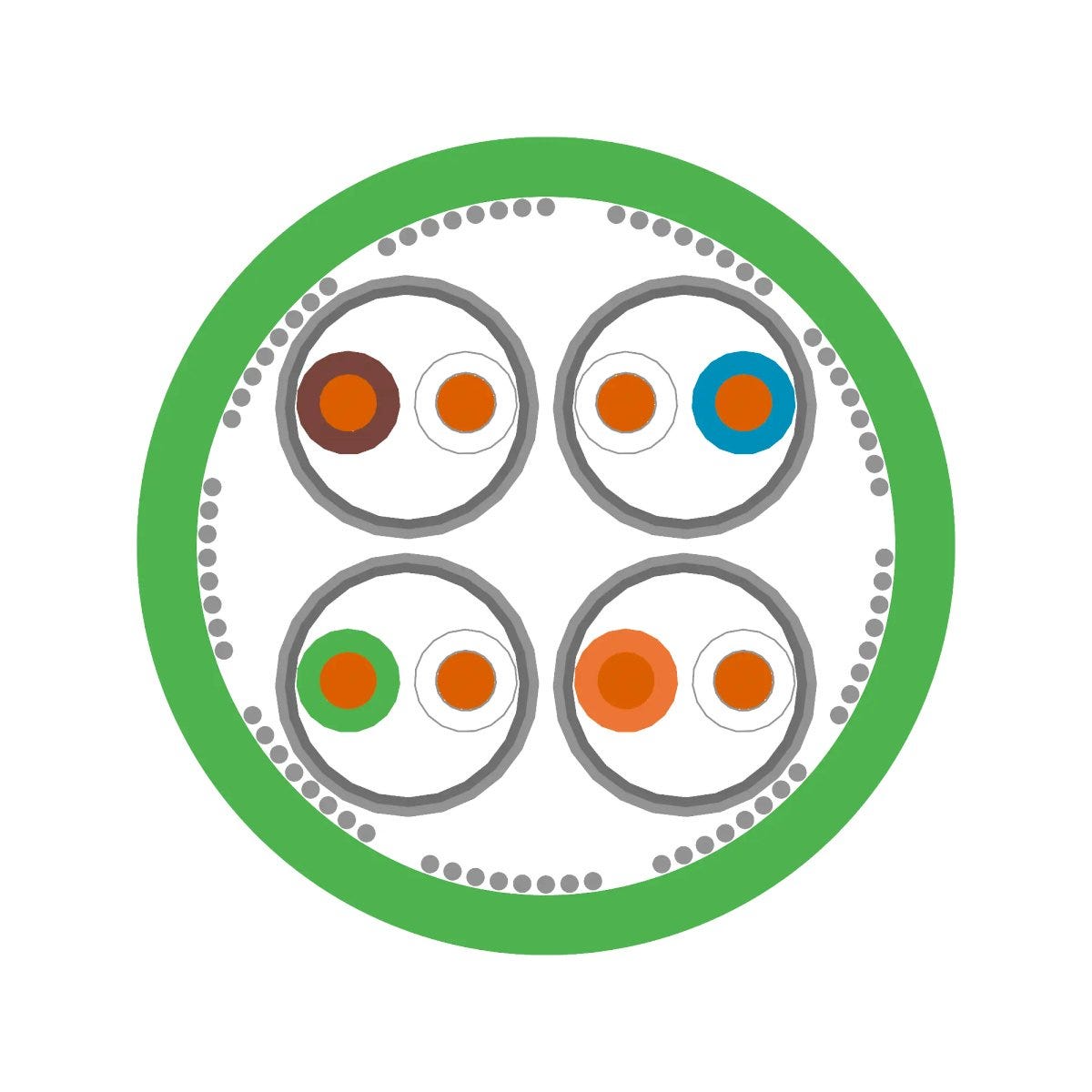

Ideal protection against electromagnetic interference due to aluminium-laminated pair shielding and copper stranded shielding as overall shielding (S/FTP)

UL/CSA certification according to technical data enables the product to be used in the North American market.

Applications

For fixed installation in the PROFINET network (type A), due to solid conductor design

Also suitable for EtherCAT and EtherNet/IP applications

Can be used in dry, damp or wet interiors

Suitable for many applications, depending on the sheath material

For fixed installation and structured building cabling according to EN 50173 and ISO/IEC 11801.

Technical Attributes

General Information

Brand	ETHERLINE®
Product type	Ethernet cable
valid fieldbus or Ethernet system	ETHERNET/IP, PROFINET, Ethernet
Copper index	40.000 kg/km
Copper index (lb)	268.789 lb
Weight	76 kg/km

Electrical Characteristics

Maximum operating voltage (not for power transmission)	125
Nominal surge impedance	100
Nominal voltage	48 V AC rms according to IEC
Supports Power over Ethernet	IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.3bt (4PPoE)
Loop resistance at 20°C	149
Possible data transmission rates	10000
Signal propagation speed (nom.)	0.77
Test voltage core/screening	1.5
Test voltage core/core	1.5
Rated voltage core to core	50 V AC rms according to IEC

Product Design

Nominal core diameter	1.4
Conductor design	solid conductor
Nominal outer diameter	8.1 mm
Conductor material	Bare copper
Nominal conductor cross-section (metric)	0.25 mm²
Conductor count/size	4x2x23AWG
Optical degree of coverage of the stranded screening, overall screen	85
Shielded
Core identification	Colours
Shape of cable	Round
Number of pairs	4
Outer sheath colour	green
Stranding type	Twisted-pair
Pair screening type	Aluminium-laminated plastic foil
Leading conductor cross-section	AWG
Abbreviation shielding	S/FTP
Cable sheath RAL colour	RAL 6018
With rodent protection
Conductor colour code	PROFINET Colour code 4-pair
Type of overall screen	Tin-plated copper braiding
Number of cores	8
Nominal conductor cross-section (AWG)	23 AWG
Core insulation basic material	Polyethylene foam
Basic material of outer sheath	Polyurethane
Including protective earth
Core insulation basic material, short form	Foam-Skin PE
With armouring
Number of wires	1
Basic material of outer sheath, short form	PUR

Product Characteristics

Flame-retardant
PWIS-free according to	VDMA 24364-B2-L
Halogen-free according to	VDE 0472-815
Fast Connect (FC) cable
PROFINET® application	Type A
Installation temperature min.	-30
UV-resistant
Minimum bending radius in mm, fixed installation	64.8 mm
PWIS-free
Application area	Fixed installation
max. conductor temperature, occasionally moved	-30 °C to 70 °C max. conductor temperature:
Oil-resistant
Ethernet cable category	Cat.7
Max. assembly temperature	70
Minimum bending radius, stationary	8 x outer diameter
Temperature, fixed installation	-40 °C to 80 °C max. conductor temperature:
Flame retardance according to	UL FT2, IEC 60332-1-2
Oil resistance according to	DIN EN 60811-2-1
Windable
Halogenfree

Certifications and Standards

cUR recognized
CSA certified
UL AWM certification	21576 according to UL 758 (e-file number: E63634)
Ecolab certified
cUL listed
UL listed
CE marked
UL recognized
VDE certified
EAC certification number	ЕАЭС N RU Д-DE.АЮ64.В.00130/20
EAC-certified

Documentation

Downloads

approval cul - en-UK (PDF)

Approval UL - en-UK (PDF)

CE declaration of conformity - en-UK (PDF)

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

declaration of conformity - de-DE (PDF)

trcu declaration of conformity - ru-RU (PDF)

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
