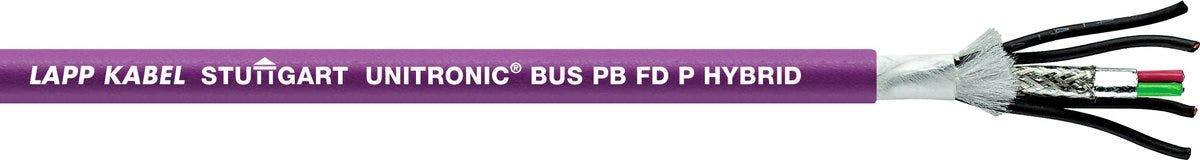

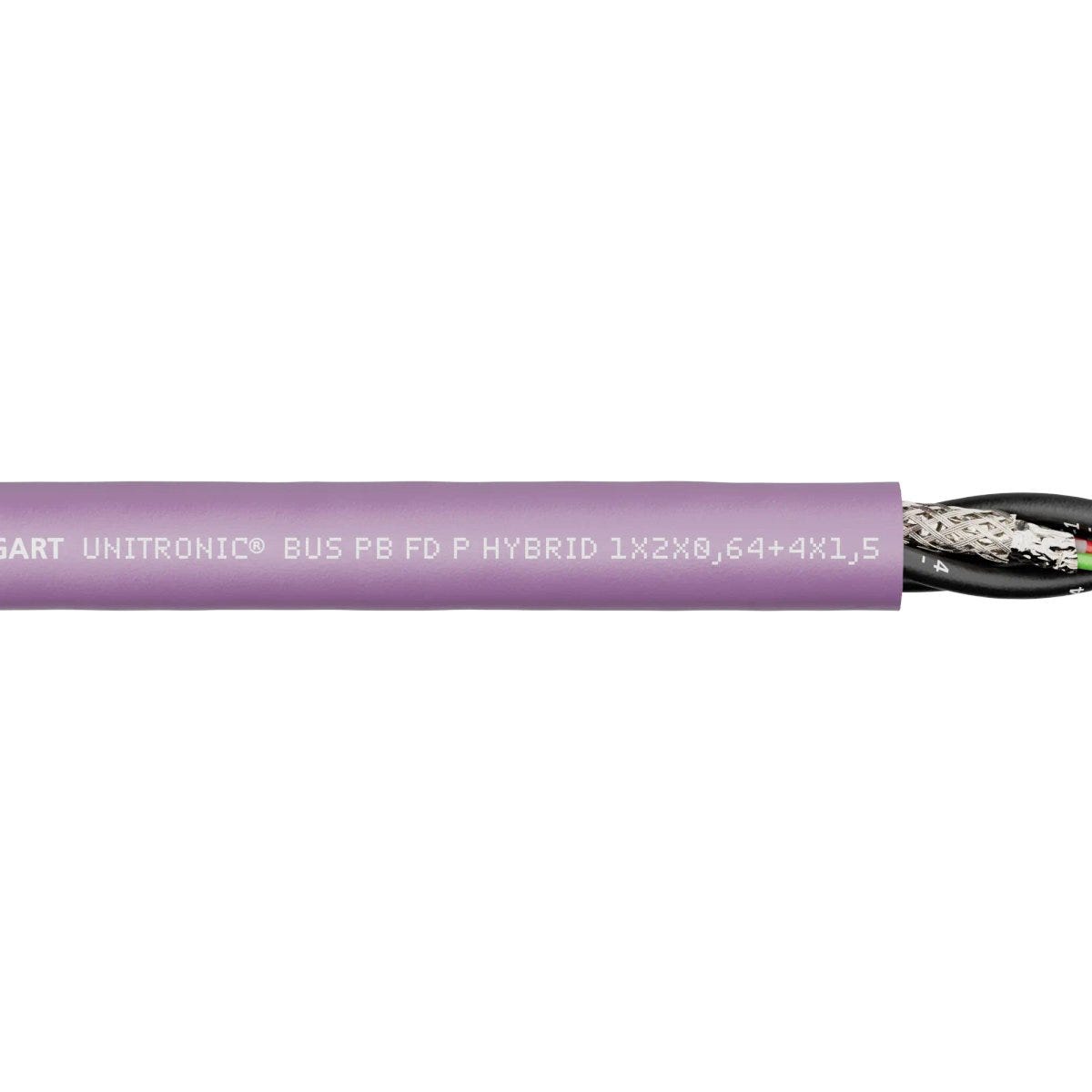

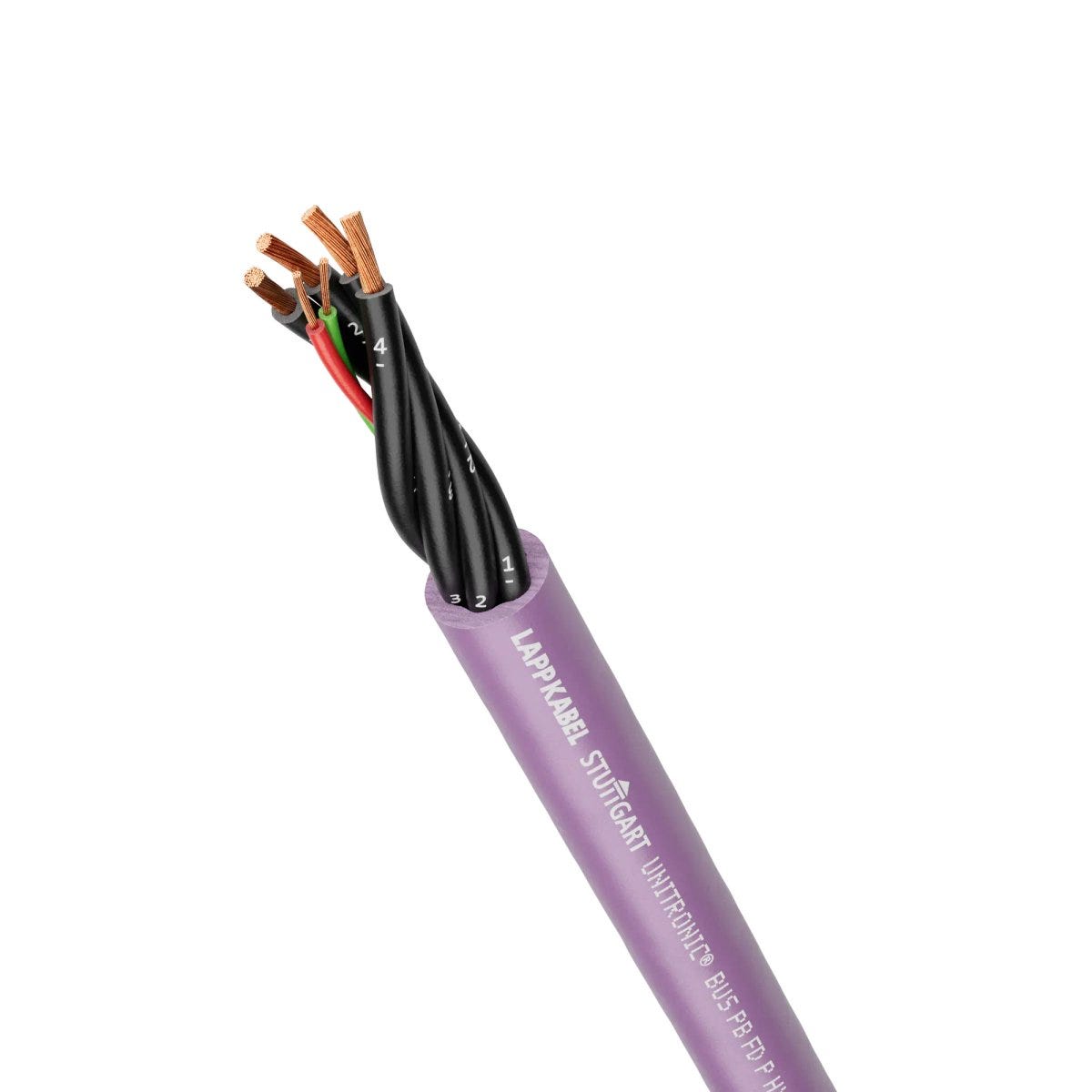

UNITR. BUS PB FD P HYBRID 1X2X0,64+4X1,5
Bus cable; PROFIBUS DP; Cable chain; Nominal surge impedance: 150; PUR; violet
UNITR. BUS PB FD P HYBRID 1X2X0,64+4X1,5
355.919₫
/
UNITR. BUS PB FD P HYBRID 1X2X0,64+4X1,5
355.919₫
/
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
flame-retardant
halogen-free
oil resistant
icon powerchain
icon sturgeon signal
Product Carbon Footprint
Certificate
PROFIBUS DP, PROFIBUS PA
Benefits
Cables can be used for PROFIBUS-DP as well as PROFIBUS-FMS and FIP, For use where the combination of a halogen-free outer sheath with properties similar to PUR and enhanced flame-retardance is required, For highly flexible applications (power chains, moving machine parts)
Applications
PROFIBUS DP (in accordance with DIN 19245 and EN 50170, e.g. for SIEMENS SIMATIC® NET, also suitable for FIP - Factory Instrumentation Protocol).
Technical Attributes
General Information
| Brand | UNITRONIC® |
| Product type | Bus cable |
| valid fieldbus or Ethernet system | PROFIBUS DP |
| Copper index | 89.000 kg/km |
| Copper index (lb) | 598.000 lb |
| Weight | 148 kg/km |
Electrical Characteristics
| Maximum operating voltage (not for power transmission) | 100 |
| Nominal surge impedance | 150 |
| Test voltage core/screening | 0.6 |
| Test voltage core/core | 0.6 |
Product Design
| Conductor design | 7-wire |
| Nominal outer diameter | 11.3 mm |
| Conductor material | Bare copper |
| Nominal conductor cross-section (metric) | 0.25 mm² |

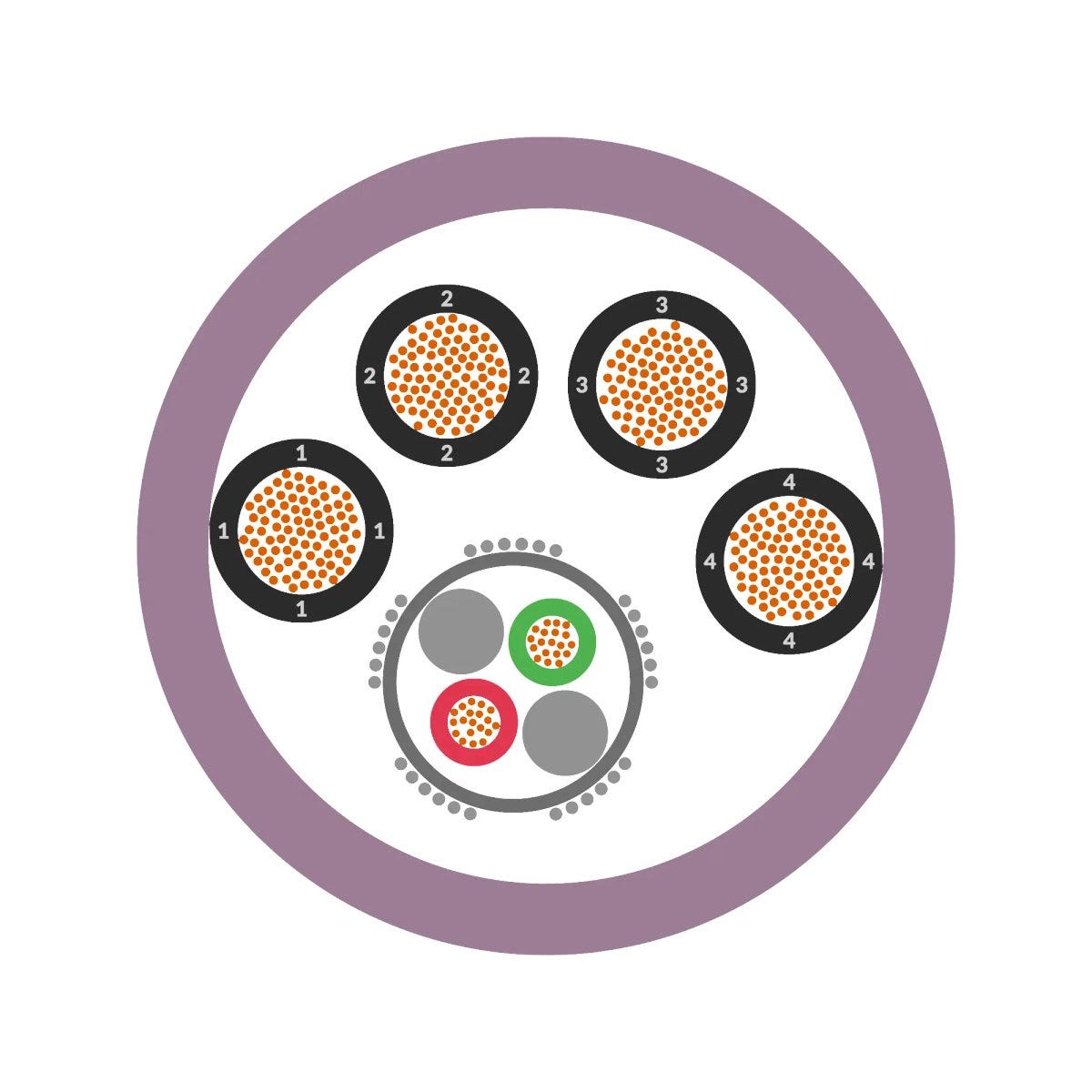

| Conductor count/size | 1X2X0,64+4X1,5 |
| With cable messenger |
|
| Shielded |
|
| Nominal conductor diameter (mm) | 0.64 |
| Core identification | Colours and numbers |
| Shape of cable | Round |
| Number of pairs | 1 |
| Outer sheath colour | violet |
| Stranding type | Twisted-pair |
| Pair screening type | Aluminium-laminated plastic foil |
| Cable sheath RAL colour | RAL 4001 |
| With rodent protection |
|
| Type of overall screen | Aluminium-laminated plastic foil, Tin-plated copper braiding |
| Cable element 1 | Signal pair: 1x(2x0.25), Shielding: Aluminium-laminated plastic foil |
| Number of cores | 6 |
| Nominal conductor cross-section (AWG) | 24 AWG |
| Core insulation basic material | Polyethylene foam |
| Basic material of outer sheath | Polyurethane |
| Including protective earth |
|
| Core insulation basic material, short form | Foam-Skin PE |
| With armouring |
|
| Cable element 2 | Power core: 4x1.5 |
| Number of wires | 7 |
| Basic material of outer sheath, short form | PUR |
Product Characteristics
| Flame-retardant |
|
| For continuous flexing |
|
| Fast Connect (FC) cable |
|
| Minimum bending radius in mm, dynamic continuously flexing | 169.5 mm |
| UV-resistant |
|
| Minimum bending radius in mm, fixed installation | 90.4 mm |
| Application area | Cable chain |
| Oil-resistant |
|
| Minimum bending radius, stationary | 8 x outer diameter |
| Temperature, fixed installation | -40 °C to 70 °C max. conductor temperature: |
| Flame retardance according to | IEC 60332-1-2, UL FT4 |
| Oil resistance according to | IEC 60811-2-1 |
| Minimum bending radius, dynamic continuously flexing | 15 x outer diameter |
| For torsional load |
|
| Halogenfree |
|
Certifications and Standards
| DNV-certified |
|
| cUR recognized |
|
| CSA certified |
|
| TÜV certified |
|
| Ecolab certified |
|
| cUL listed |
|
| UL listed |
|
| CE marked |
|
| UL recognized |
|
| VDE certified |
|
| EAC certification number | ЕАЭС N RU Д-DE.АЮ64.В.00130/20 |
| EAC-certified |
|
Documentation
Downloads
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
- SIMATIC® is a registered trademark of SIEMENS AG. FIP is a registered trademark of World FIP.
Product Family List
All articles from UNITRONIC® BUS PB FD P HYBRID
| Article number | Conductor count/size | Imp outer dia cable sheath nom | Nominal outer diameter | Copper index calc export | Weight |
|---|---|---|---|---|---|
| 2170495 | 1X2X0,64+4X1,5 | 11.3 | 148 kg/km |
