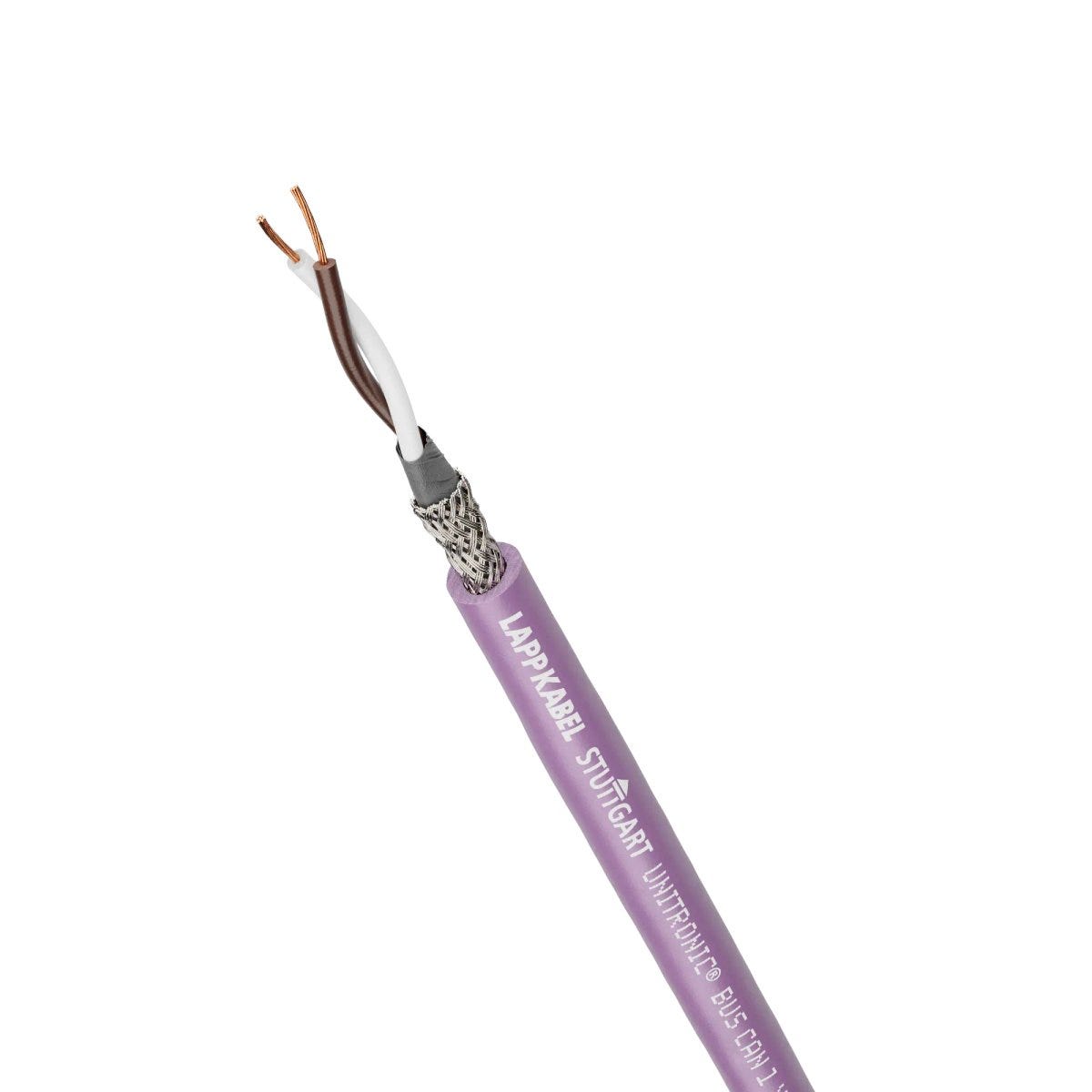

UNITRONIC® BUS CAN 1X2X0,5

Name: UNITRONIC® BUS CAN 1X2X0,5
Brand: LAPP
SKU: 2170266
Price: 93762 VND
Availability: OutOfStock

Bus cable; CAN; Fixed installation; Nominal surge impedance: 120; 1x2x0.5 mm²; PVC; violet; 7.5 mm; cUL listed

LAPPSKU: 2170266Article No.#: 2170266

Bus cable; CAN; Fixed installation; Nominal surge impedance: 120; 1x2x0.5 mm²; PVC; violet; 7.5 mm; cUL listed

93.762₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

Single- or twin-pair cable with different conductor cross-sections for reliable data transmission at increasing transmission lengths

Ideal protection against electromagnetic interference thanks to copper stranded shielding with a high degree of coverage (F/UTP)

UL certification according to technical data enables the product to be used on the North American market.

Applications

For fieldbus communication in CAN and CAN FD-based networks

For fixed installation and occasional flexing without tensile strain

Can be used in dry and damp environments

Suitable for medium mechanical stress

The PVC outer sheath is resistant to acids and alkalis and has limited oil resistance.

Technical Attributes

General Information

Brand	UNITRONIC®
Product type	Bus cable
valid fieldbus or Ethernet system	CAN
Copper index	41.600 kg/km
Copper index (lb)	279.500 lb
Weight	90 kg/km

Electrical Characteristics

Nominal surge impedance

120

Product Design

Conductor design	7-wire
Nominal outer diameter	7.5 mm
Conductor material	Bare copper
Nominal conductor cross-section (metric)	0.5 mm²

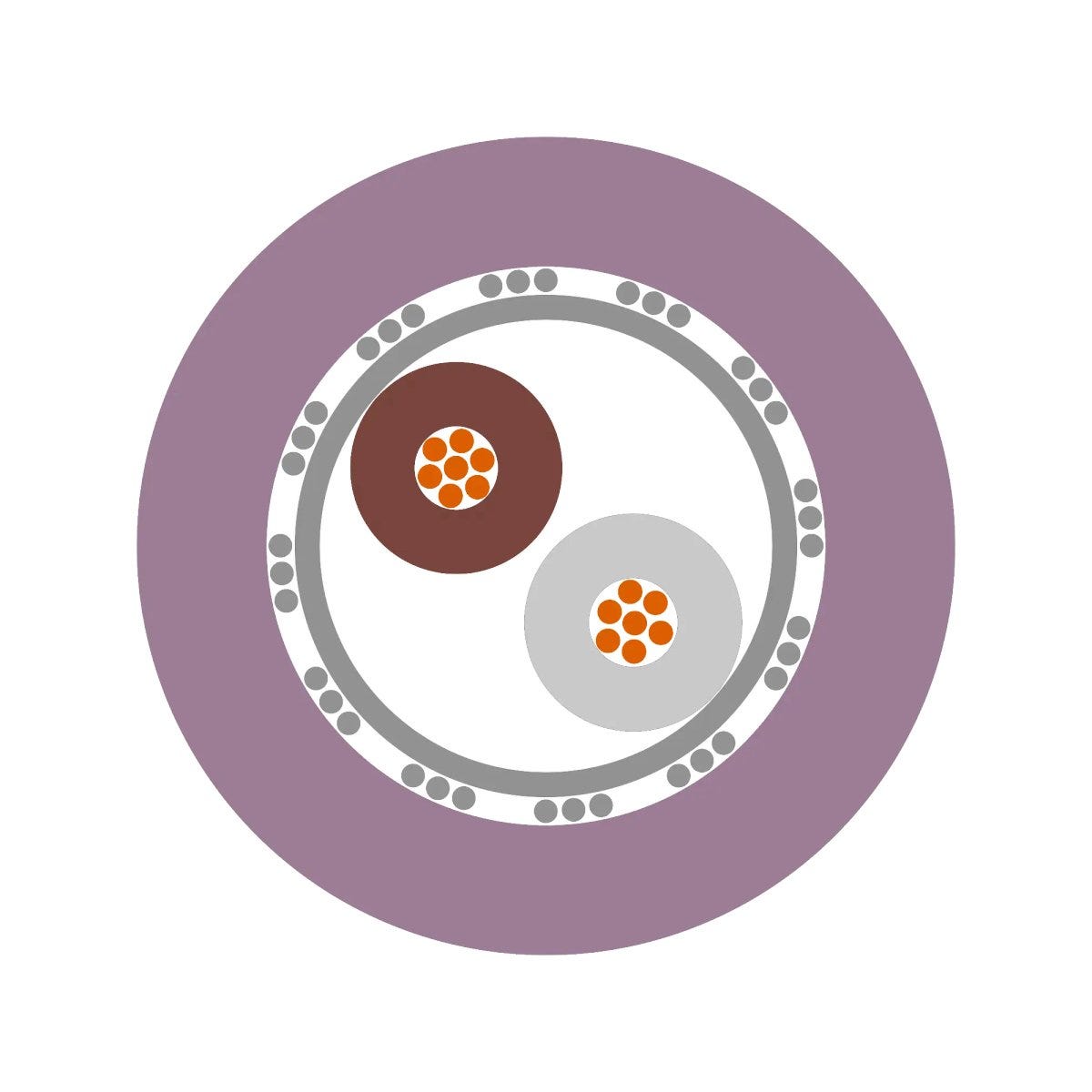

Cable dimension	1X2X0.5
Shielded
Core identification	Colours
Shape of cable	Round
Number of pairs	1
Outer sheath colour	violet
Stranding type	Twisted-pair
Leading conductor cross-section	mm²
With rodent protection
Conductor colour code	DIN 47100
Type of overall screen	Tin-plated copper braiding
Number of cores	2
Nominal conductor cross-section (AWG)	20 AWG
Core insulation basic material	Polyethylene foam
Basic material of outer sheath	Polyvinylchloride
Including protective earth
With armouring
Basic material of outer sheath, short form	PVC

Product Characteristics

Flame-retardant
PWIS-free according to	VDMA 24364-B2-L
For continuous flexing
Fast Connect (FC) cable
UV-resistant
Minimum bending radius in mm, fixed installation	75.0 mm
PWIS-free
Application area	Fixed installation
Oil-resistant
Minimum bending radius, stationary	10 x outer diameter
Temperature, fixed installation	-30 °C to 80 °C max. conductor temperature:
Flame retardance according to	IEC 60332-1-2
For torsional load
Halogenfree

Certifications and Standards

cUR recognized
CSA certified
cUL listed
Flame retardance tested according to UN/ECE-R118
UL listed
CE marked
UL recognized
VDE certified
EAC certification number	ЕАЭС N RU Д-DE.АЮ64.В.00130/20
EAC-certified

Documentation

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.

Product Family List

Article number	Cable dimension	Nominal outer diameter	Weight
2170260	1X2X0.22	5.8	42 kg/km
2170261	2X2X0.22	7.6	68 kg/km
2170263	1X2X0.34	6.8	55 kg/km
2170264	2X2X0.34	8.5	88 kg/km
2170266	1X2X0.5	7.5	90 kg/km
2170267	2X2X0.5	9.6	106 kg/km
2170269	1X2X0.75	8.7	108 kg/km
2170270	2X2X0.75	11.5	142 kg/km
