ED-IE-AX-RJ45F-6A-B-FC

Name: ED-IE-AX-RJ45F-6A-B-FC
Brand: LAPP
SKU: 21700612
Price: 594287 VND
Availability: OutOfStock

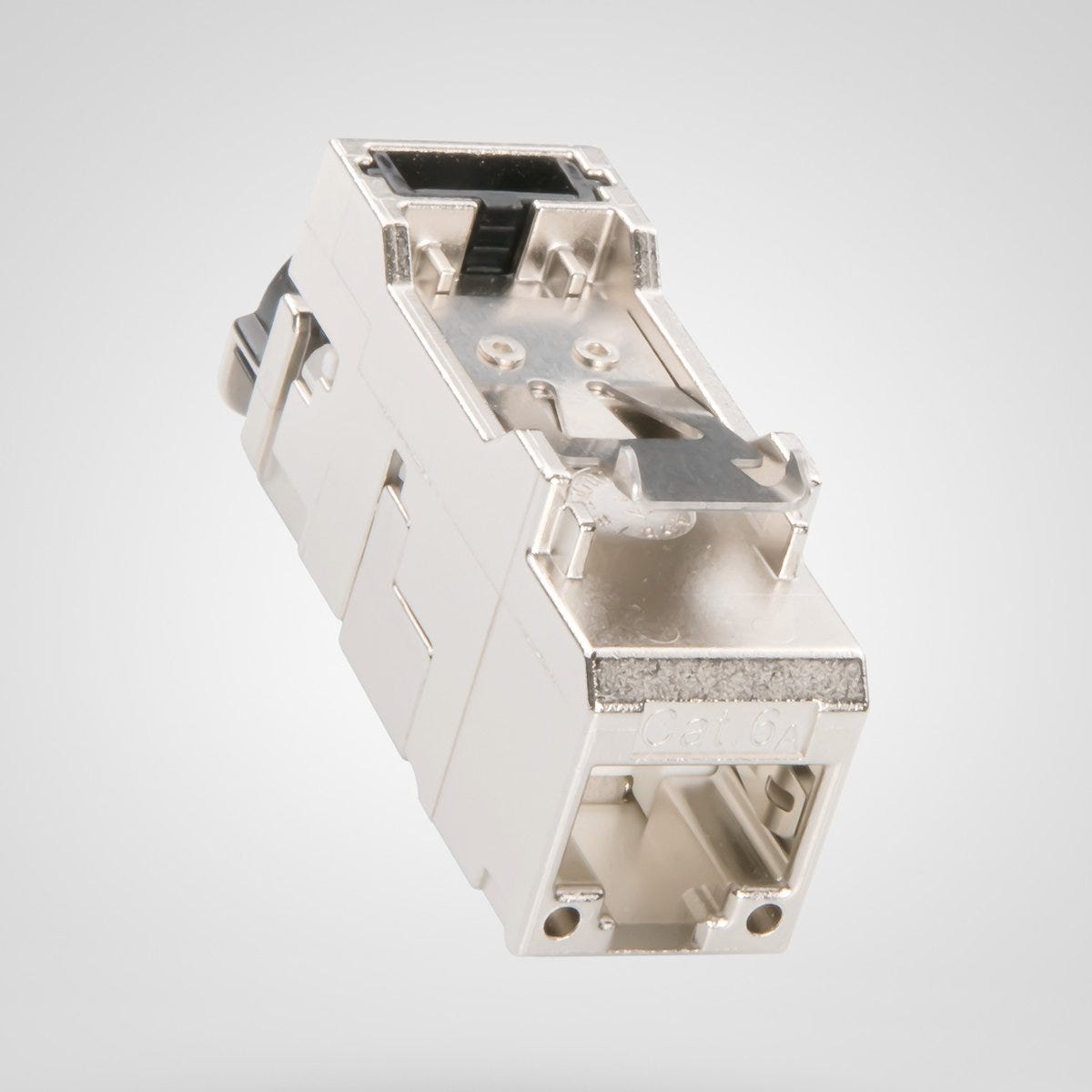

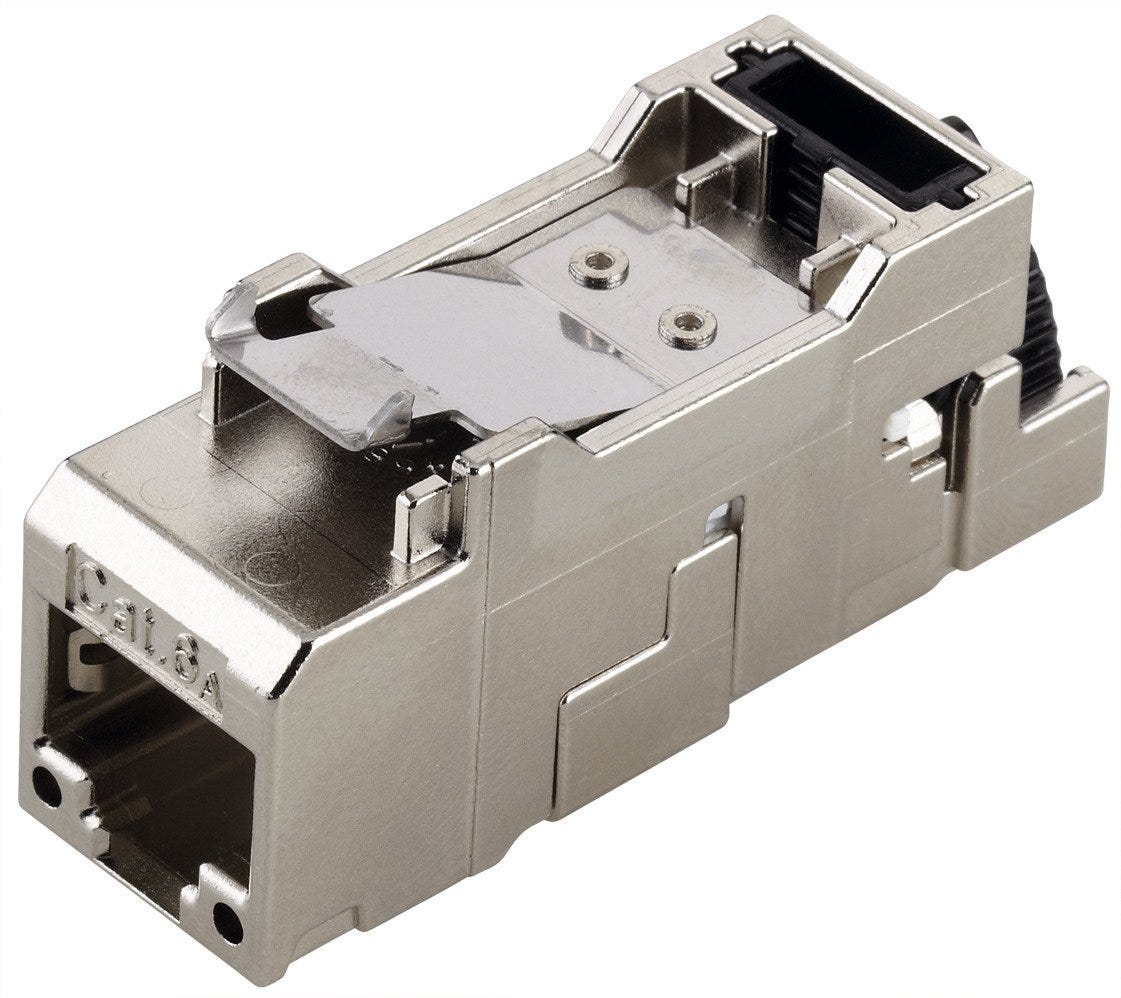

Data connector; ETHERNET/IP, PROFINET, EtherCAT, Ethernet; Cat.6A; RJ 45; Socket; Straight (180 °)

LAPPSKU: 21700612Article No.#: 21700612

Data connector; ETHERNET/IP, PROFINET, EtherCAT, Ethernet; Cat.6A; RJ 45; Socket; Straight (180 °)

594.287₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

Easy cable connection thanks to insulation displacement technology

Low error potential when connecting connectors and cores using the core manager with colour coding according to EIA/TIA standard

Stability thanks to die-cast zinc metal housing

UL certification according to technical data enables the product to be used on the North American market.

Applications

For use with Cat.6A cables

Suitable for all LAN networks and Ethernet applications up to 10GBASE-T.

Technical Attributes

General Information

Brand	EPIC®
Product type	Data connector
valid fieldbus or Ethernet system	ETHERNET/IP, PROFINET, EtherCAT, Ethernet
Delivery Unit	24.000
Weight	0.02 kg

Electrical Characteristics

Rated current	1 A according to IEC
Max. contact resistance	20

Product Design

Total length	44.1
Max. connectable conductor cross section solid-conductor (AWG)	22 AWG
Design connector housing	Straight
Connector format	RJ 45
Overall width	14.8
Housing colour	Metal
Min. connectable conductor cross-section fine-wire (AWG)	27 AWG
Dust protection cap
Number of contacts	8
Core manager colour coding	TIA 568B
Total height	21.9
Housing coating	Nickel-plated
Type of connection	Plug to socket
Shielded
For min. cable outer diameter	5
Housing coating, short form	Ni
Min. connectable conductor cross section solid conductor (AWG)	26 AWG
Material contact surface	Gold-plated
Connector housing angle	180
Coded
Contact coating material, short form	Au
Screen contact type	Shield terminal
For max. cable outer diameter	9
Connector type	Socket
Housing variant	Rectangular housing
Conductor connection type	Penetration technique
Housing base material	Zinc alloy
With thread
Locking type	Latch
Screen contact
Max. connectable conductor cross-section fine-wire (AWG)	22 AWG

Product Characteristics

IP protection rating	IP 20
Installation temperature min.	-40
UV-resistant
Operating temperature min.	-40
Operating temperature max.	70
Min. number of insertion cycles	750
Ethernet cable category	Cat.6A
Max. assembly temperature	70
Contact application areact	Data / signals

Certifications and Standards

cUR recognized
Product standard according to IEC	RJ45 according to IEC 60603-7-51
cUL listed
UL listed
CE marked
UL recognized
EAC certification number	Отказное письмо № 39
EAC-certified	Not required
