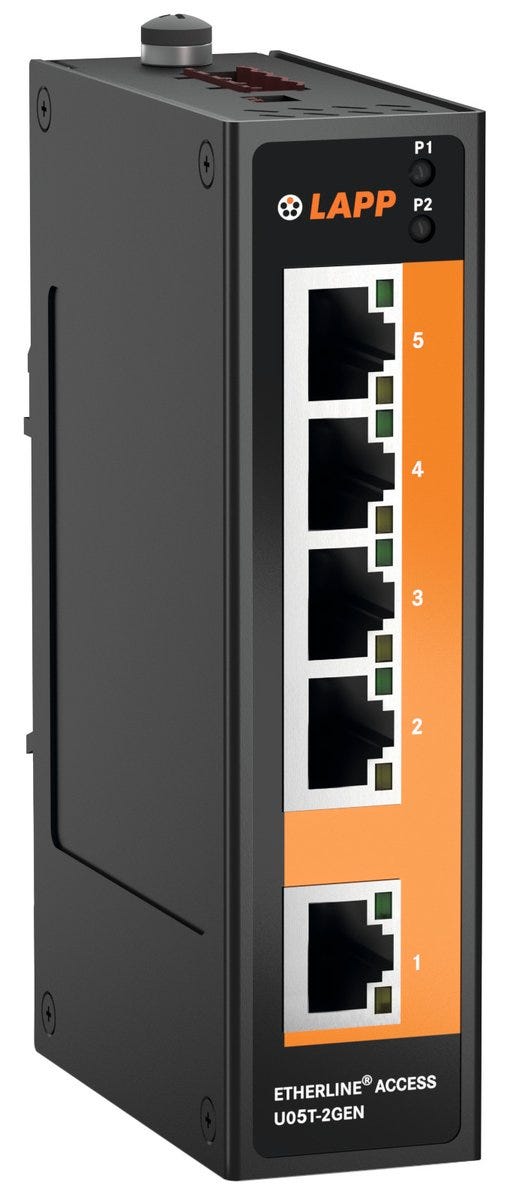

ETHERLINE® ACCESS U05T-2GEN

Name: ETHERLINE® ACCESS U05T-2GEN
Brand: LAPP
SKU: 21700123
Price: 3251578 VND
Availability: InStock

Unmanaged switch; Ethernet; Interfaces: 5xRJ 45 (10 Mbit/s; 100 Mbit/s)

LAPPSKU: 21700123Article No.#: 21700123

ETHERLINE® ACCESS U05T-2GEN

Unmanaged switch; Ethernet; Interfaces: 5xRJ 45 (10 Mbit/s; 100 Mbit/s)

ETHERLINE® ACCESS U05T-2GEN

3.251.578₫

In stock (120)

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

Low-noise and maintenance-free as it is operated without fans

For the “U” variants, redundant power supply (two connections to the device) ensures uninterrupted data communication even if the primary connection fails

“UF08T“ and “UF16T“ variants block the LLDP and PTCP functions in compliance with PROFINET (“Conformance Class A“) and thus prevent endlessly circulating data packages.

Applications

The “UF08T” and “UF16T” variants are also suitable for use in PROFINET networks (“Conformance Class A”).

Technical Attributes

General Information

Product type	Unmanaged switch
Brand	ETHERLINE®
valid fieldbus or Ethernet system	Ethernet
Delivery Unit	1.000
Weight	0.2 kg

Electrical Characteristics

Current consumption (max.)	0.3
Nominal operating voltage	24 V AC rms / DC
Operating voltage range	18 V - 30 V AC rms (50 Hz), 12 V - 48 V DC

Product Design

Interfaces (copper)	10 Mbit/s; 100 Mbit/s: 5 x RJ 45
Interfaces	Copper
Total length	68
Number of ports	5
Direct mounting possible
Overall width	29.6
Housing colour	black
Housing base material	Aluminium
Housing base material, short form	Al
Switch variant	Unmanaged
Total height	114.5
Status indication

Product Characteristics

Flame-retardant
IP protection rating	IP 30
Switching protocols	Broadcast storm protection
Package buffer size	1
Suitable for EX-applications
Data transmission rate	10, 100
Industrial protocols	Ethernet
Operating temperature min.	-10
MAC table size	2
Operating temperature max.	60

Certifications and Standards

TÜV certified
cUR recognized
cUL listed
CSA certified
UL listed
CE marked
UL recognized
VDE certified

Documentation

Downloads

Approval UL - en-UK (PDF)

CE declaration of conformity - en-UK (PDF)

Datasheet - en-UK (PDF)

Datasheet - de-DE (PDF)

Package insert - en-UK (PDF)

Further Links

EPLAN Data in EPLAN Data Portal

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
