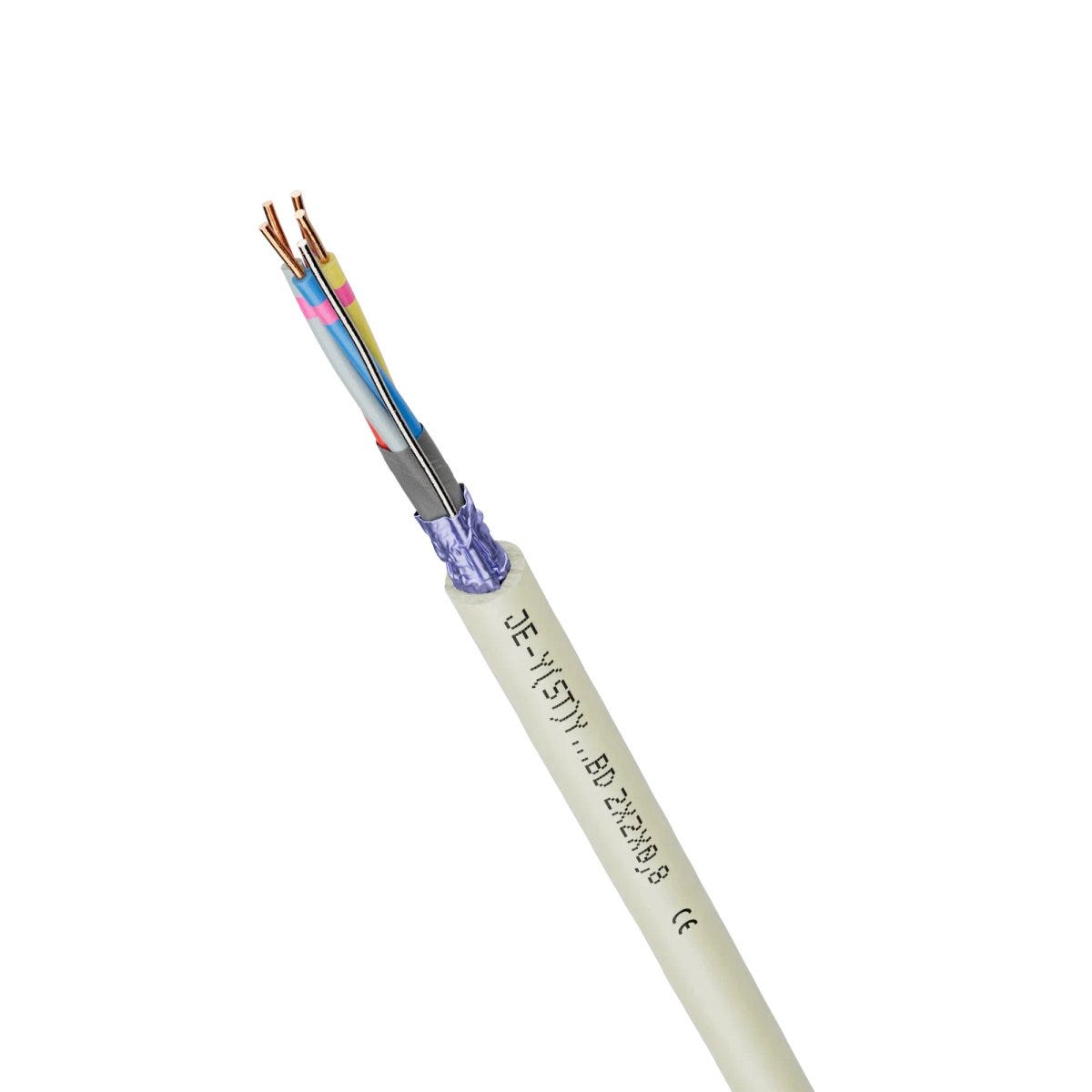

JE-Y(ST)Y...BD 8x2x0,8

Name: JE-Y(ST)Y...BD 8x2x0,8
Brand: LAPP
SKU: 0034192
Price: 147817 VND
Availability: OutOfStock

Installation data cable; 8X2X; VDE 0815; PVC; Shielded; Flexible

LAPPSKU: 0034192Article No.#: 0034192

JE-Y(ST)Y...BD 8x2x0,8

Installation data cable; 8X2X; VDE 0815; PVC; Shielded; Flexible

JE-Y(ST)Y...BD 8x2x0,8

147.817₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

Ideal protection against electromagnetic interference thanks to static shielding with aluminium-laminated foil and copper drain wire for the shield contact

Classified fire behaviour according to EU Directive 305/2011 (BauPVO/CPR) with article number selection on the LAPP website.

Applications

For use as an installation cable for telecommunications and information processing systems in accordance with DIN VDE 0815

For use in control, regulation and measurement circuits

For fixed and protected installation in an electrical installation pipe on or under plaster

Can be used in dry and damp rooms

The PVC outer sheath is somewhat oil-resistant.

Technical Attributes

General Information

Product type	Installation data cable
Copper index	85.000 kg/km
Copper index (lb)	571.100 lb
Weight	158 kg/km

Electrical Characteristics

Test voltage core/screening	2
Max. conductor resistance at 20°C	36 Ω/km
Test voltage core/core	0.5

Product Design

Core identification	Colours
Shape of cable	Round
Number of pairs	8
Outer sheath colour	grey
Stranding type	Layered stranding
Nominal outer diameter	11 mm
Conductor material	Bare copper
Conductor colour code	VDE 0815
Type of overall screen	Aluminium-laminated plastic foil
Number of cores	16
Cable dimension	8X2X
Core insulation basic material	Polyvinylchloride
Basic material of outer sheath	Polyvinylchloride
Including protective earth
Core insulation basic material, short form	PVC
Shielded
Basic material of outer sheath, short form	PVC

Product Characteristics

Flame-retardant
Application area	Flexible, Fixed installation
max. conductor temperature, occasionally moved	-5 °C to 50 °C max. conductor temperature:
PWIS-free according to	VDMA 24364-B2-L
Oil-resistant
UV-resistant
Minimum bending radius, stationary	6 x outer diameter
Water resistant
Temperature, fixed installation	-30 °C to 70 °C max. conductor temperature:
Flame retardance according to	IEC 60332-1-2
Minimum bending radius in mm, fixed installation	66.0 mm
PWIS-free
Halogenfree

Certifications and Standards

Flame retardance tested according to UN/ECE-R118
CE marked
CPR fire class	Eca
VDE certified
EAC certification number	ЕАЭС N RU Д-DE.АЮ64.В.00130/20, ЕАЭС N RU Д-DE.РА01.В.47116/21
EAC-certified

Documentation

Downloads

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

Technical table - pt-PT (PDF)

Technical table - it-IT (PDF)

Technical table - pl-PL (PDF)

Technical table - ro-RO (PDF)

Technical table - ru-RU (PDF)

Technical table - en-UK (PDF)

Technical table - fr-FR (PDF)

Technical table - es-ES (PDF)

Technical table - de-DE (PDF)

Technical table - zh-CN (PDF)

Technical table - tr-TR (PDF)

Technical table - nl-NL (PDF)

Technical table - ko-KR (PDF)

Technical table - ja-JP (PDF)

Technical table - cs-CZ (PDF)

trcu declaration of conformity - ru-RU (PDF)

Further Links

EPLAN Data in EPLAN Data Portal

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Trade product, not a LAPP product.
