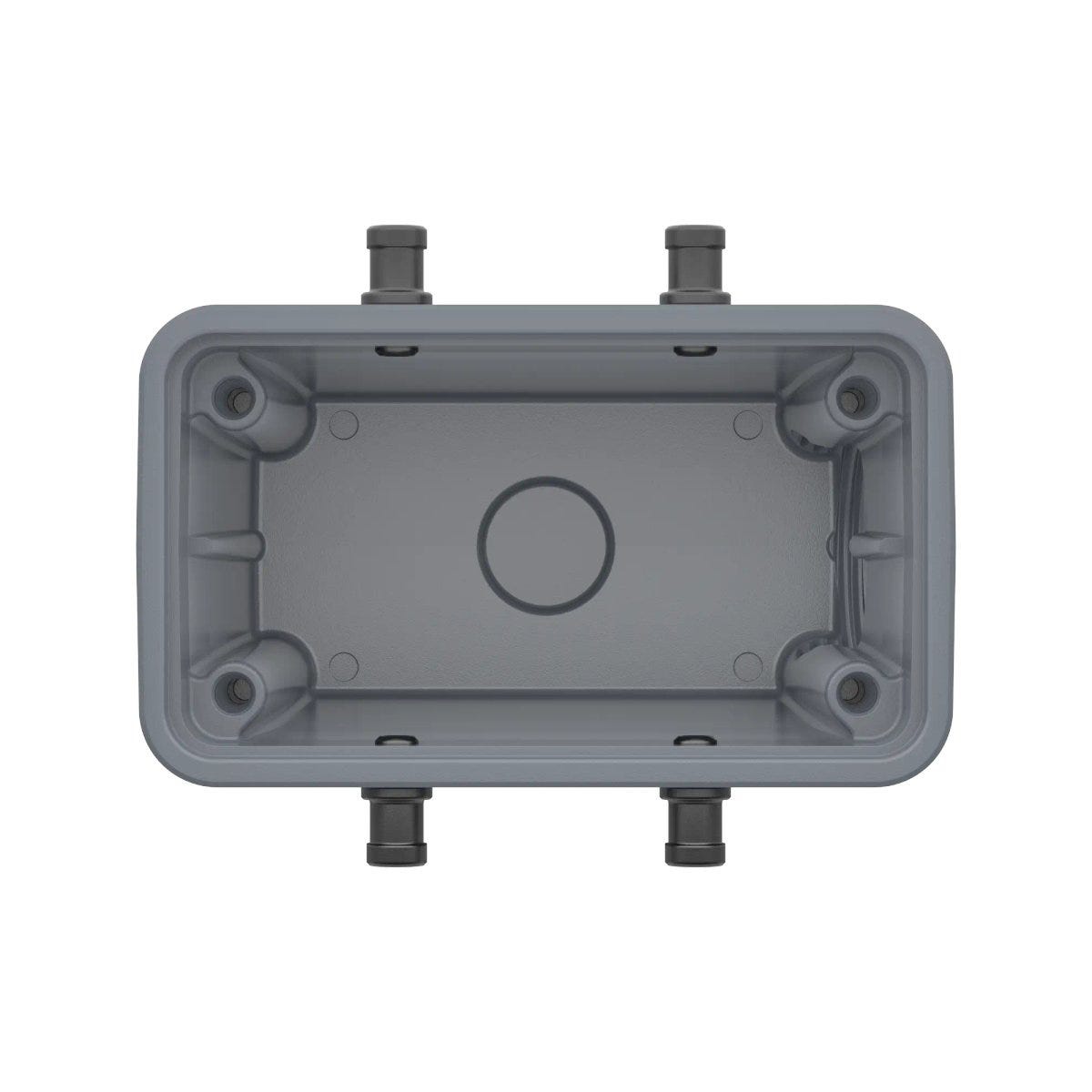

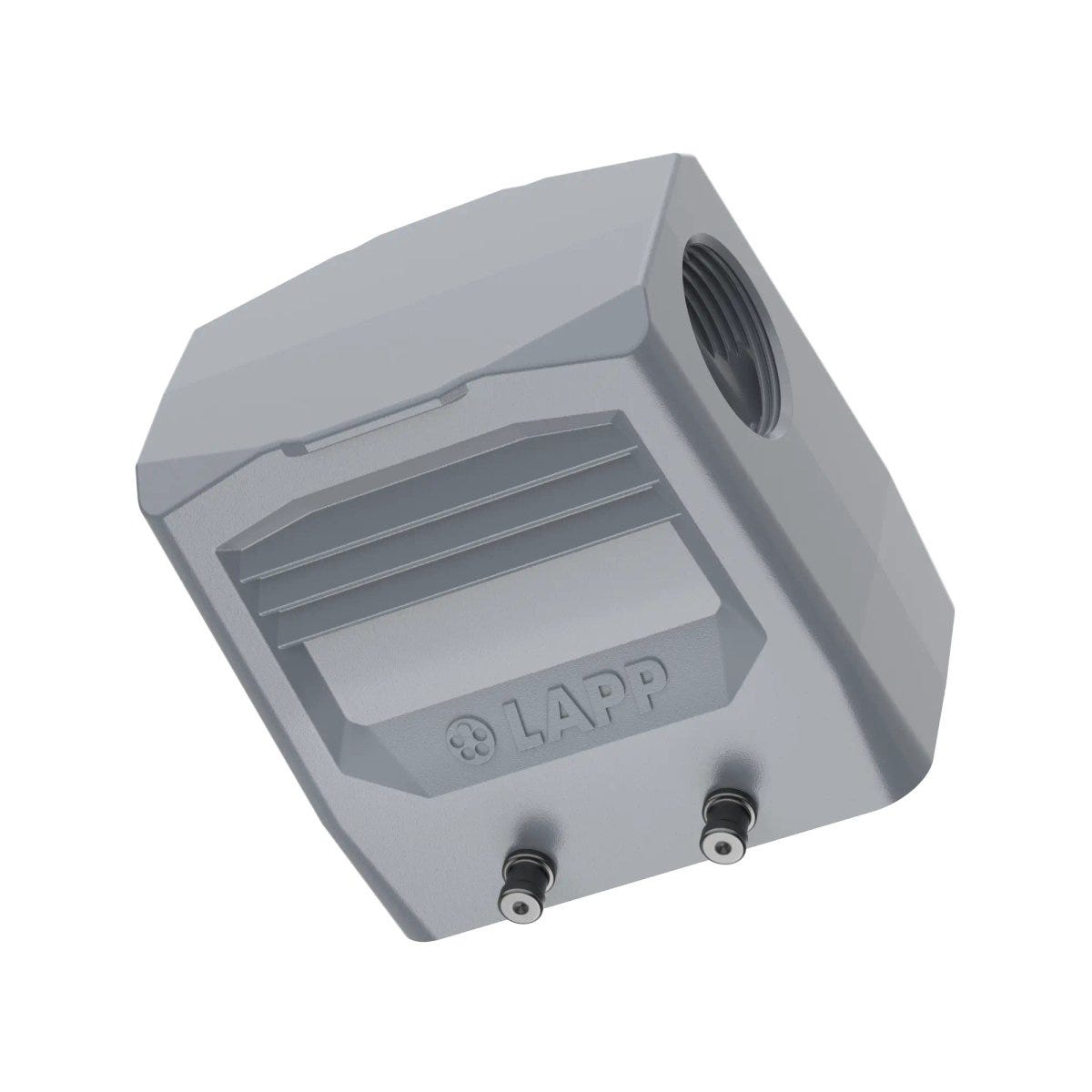

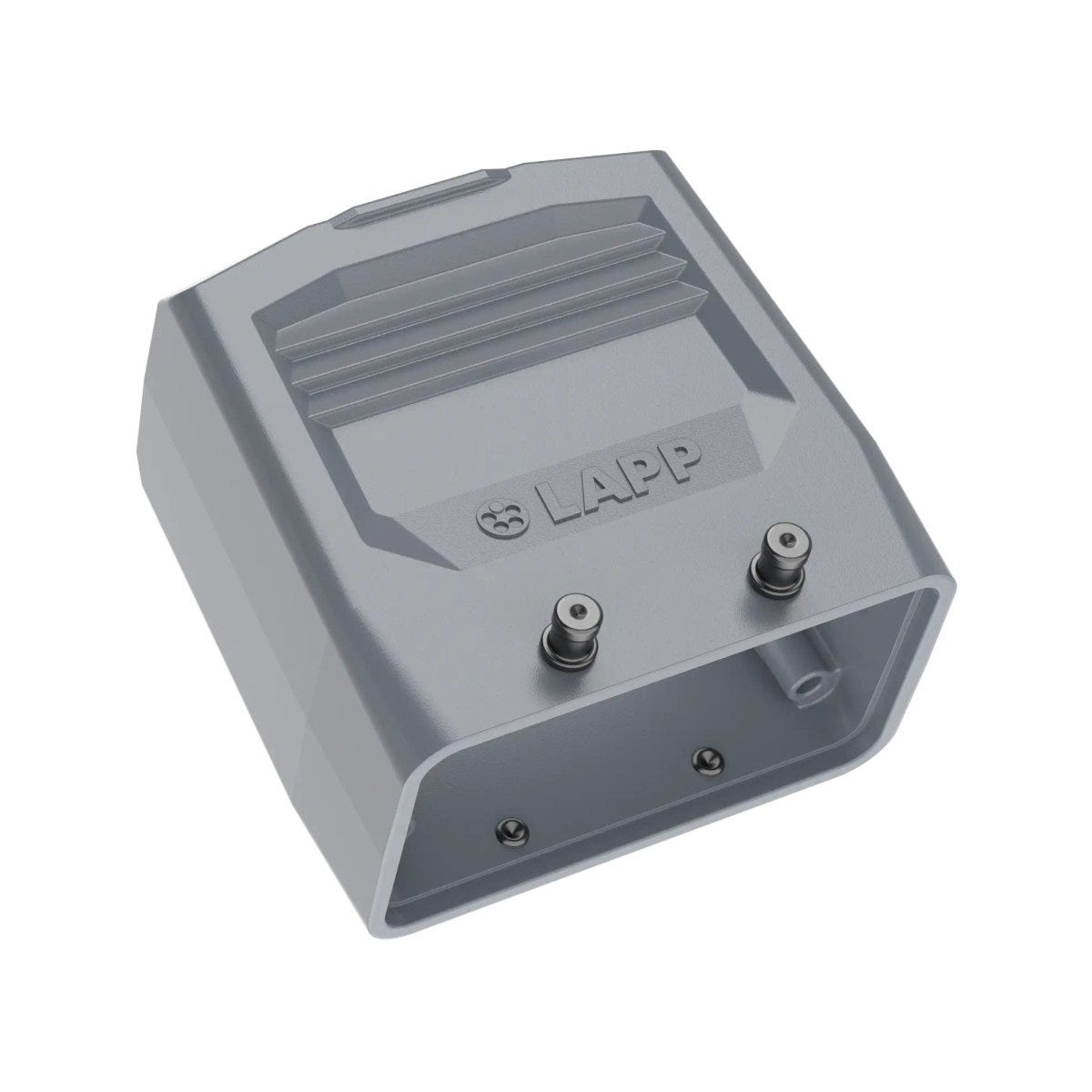

H-B 10 TSH M32

Name: H-B 10 TSH M32
Brand: LAPP
SKU: 79052600
Price: 625090 VND
Availability: OutOfStock

Hood; Design size: 10B; Connector design: High; Double lever; Number of cable entries: 1; Aluminium, Powder-coated; IP protection rating mounted: IP 65

LAPPSKU: 79052600Article No.#: 79052600

H-B 10 TSH M32

Hood; Design size: 10B; Connector design: High; Double lever; Number of cable entries: 1; Aluminium, Powder-coated; IP protection rating mounted: IP 65

H-B 10 TSH M32

625.090₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

The EPIC® H-B series of rectangular connectors includes spacious housings that offer more space for many or thicker cables

The hood can be connected with many standard housings (mount base, surface-mount base or cable coupler housings)

With side cable outlet for orderly cable laying and to prevent the cable from bending too much

The high design offers more space, making it suitable for larger inserts or applications that need more space in the housing

With threaded borehole for use with a corresponding cable gland

Meets protection class IP 65 when locked

The user-friendly design with a good grip makes the connection easy to connect and release

UL certification according to technical data enables the product to be used on the North American market.

Applications

For protecting the connector insert against environmental influences

For use with many EPIC® rectangular connector inserts or module inserts

For connecting devices and machines to a power supply in various applications

With modular connector assembly, also suitable for signal and data transmission

Suitable for outdoor use.

Technical Attributes

General Information

Brand	EPIC®
Product type	Hood
Design size	10B
Delivery Unit	10.000
Weight	0.227 kg

Electrical Characteristics

Product Design

Locking bolt variant	Bolts for double lever
Total length	73
Number of cable entries	1
Design connector housing	Angled
Thread type	Metric
EMC screening
Thread size	M 32
Housing RAL colour	RAL 7037
With cable gland
With hinged lid
Overall width	43
Housing colour	grey
Total height	72
Housing coating	Powder-coated
Number of cable entries at the top	0
Number of side cable entries	1
Connector design	High
Number of locking bolts	4
Housing variant	Hood
Pitch of thread	1,5
Housing base material	Aluminium
With thread
Housing base material, short form	Al
With collar
Locking type	Double lever
With lever
Screen contact

Product Characteristics

IP protection rating	IP 65
Corrosion-resistant
Acid-resistant
Chemical resistant
UV-resistant
Operating temperature min.	-40
Operating temperature max.	125
Impact-resistant
Vibration protection
IP protection class plugged in	IP 65
Corrosion-resistant according to	DIN EN 6988
Halogenfree
Short-term temperature peaks	125

Certifications and Standards

UR recognized
cUR recognized
CSA certified
cUR category control number	ECBT8
UL category control number	ECBT2
TÜV certified
Product standard according to IEC	IEC 61984
UR certification	according to UL 1977 (e-file number: E75770)
UL listed
cUR certification	according to CSA C22.2 No. 182.3
CE marked
VDE certified

Documentation

Downloads

approval ul epic - en-UK (PDF)

approval vde epic - de-DE (PDF)

CE declaration of conformity - en-UK (PDF)

CE declaration of conformity - de-DE (PDF)

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

material safety data sheet - de-DE (PDF)

operation instruction - de-DE (PDF)

Further Links

EPLAN Data in EPLAN Data Portal

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
