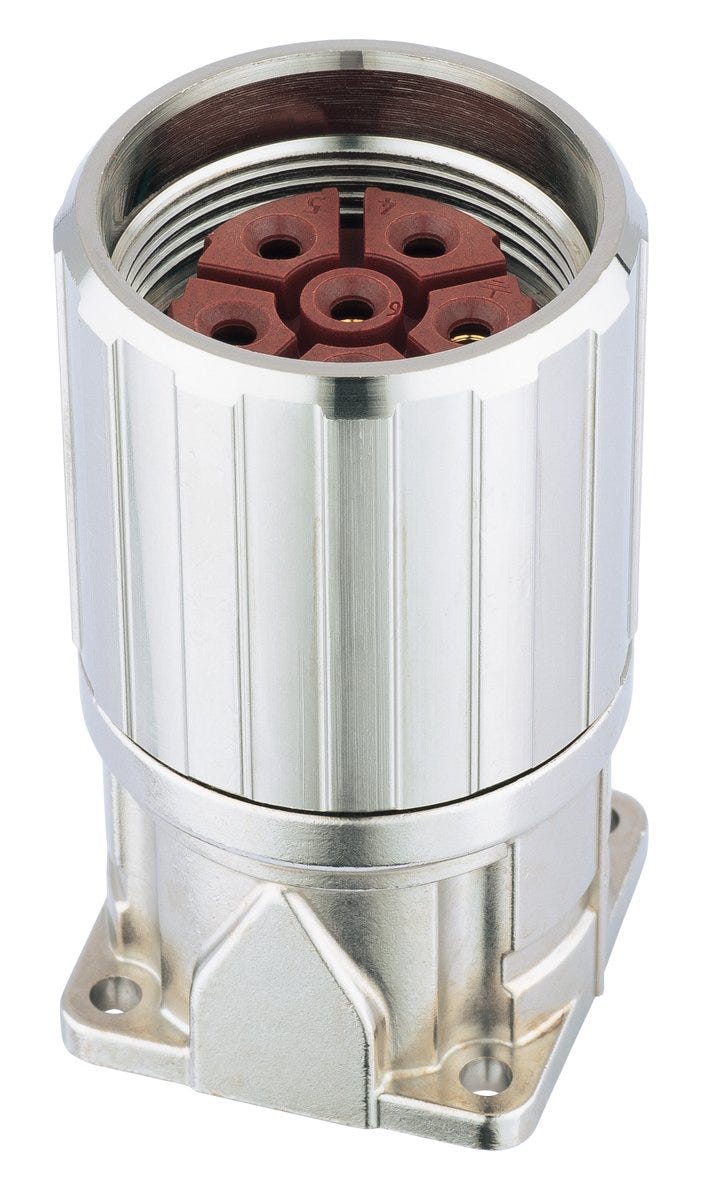

EPIC® POWER LS1 A6 5+PE K (5)

Name: EPIC® POWER LS1 A6 5+PE K (5)
Brand: LAPP
SKU: 76083000
Price: 1842754 VND
Availability: OutOfStock

Panel-mount base; M 23 power; M 23; Socket; Number of contacts: 5+PE;

LAPPSKU: 76083000Article No.#: 76083000

EPIC® POWER LS1 A6 5+PE K (5)

Panel-mount base; M 23 power; M 23; Socket; Number of contacts: 5+PE;

EPIC® POWER LS1 A6 5+PE K (5)

1.842.754₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

High power at smallest installation space, Optimal solution for electric motors, EMC-optimised design, Safety use in field environment by high protection class

Applications

Plant engineering, Servo drives and servo assemblies

Technical Attributes

General Information

Brand	EPIC®
Contacts included
Product type	Panel-mount base
Scope of delivery	including contacts
Delivery Unit	5.000
Weight	0.08 kg

Electrical Characteristics

Rated current	25 A according to IEC
Over voltage category	III
Rated impulse voltage	6 kV AC rms / DC according to IEC 61984
Rated voltage	630 V AC rms / DC according to IEC, 600 V AC rms / DC according to UL, 600 V AC rms / DC according to CSA

Product Design

Design connector housing	Straight
Connector format	M 23 power
Thread type	Metric
Max. connectable conductor cross-section of power contacts (mm2)	2.5
EMC screening
Thread size	M 23
Overall width	25.3
Housing colour	silver
Connectable conductor cross section min. (AWG)	22 AWG
Max. connectable conductor cross-section AWG	14 AWG
Number of contacts	5+PE

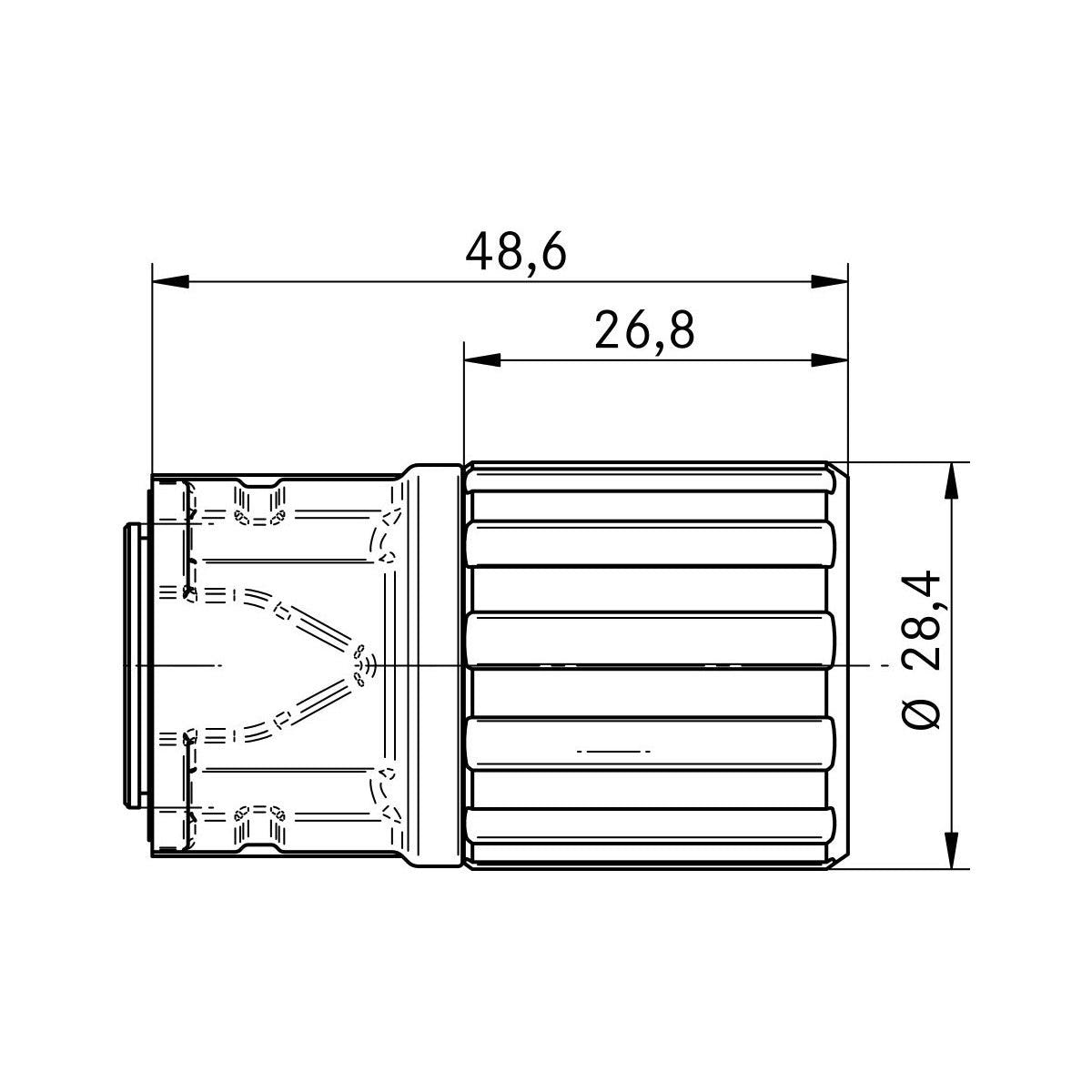

Connector diameter	28.4
Total height	48.7
Housing coating	Nickel-plated
Contact material	Brass
Stripping length, performance contact	8 mm
With protective conductor
Housing coating, short form	Ni
Contact material, short form	CuZn
Material contact surface	Gold-plated
Coded
Contact insert material, short form	PA
PE connection type	Crimp termination
Contact variant	Socket
Contact coating material, short form	Au
Connector type	Socket
Material contact insert	Polyamide
Number of PE contacts	1
Min. connectable conductor cross-section of power contacts (mm2)	0.5
Conductor connection type	Crimp termination
Housing base material	Zinc alloy
With thread
Stripping length of PE connection	8
Locking type	Screw lock
Screen contact
Number of signal contacts	0
Sealing material, short form	FKM
Sealing material	Fluorinated rubber
Number of power contacts	5

Product Characteristics

Corrosion-resistant
Operating temperature min.	-25
Operating temperature max.	125
Min. number of insertion cycles	500
Operating temperature min. static (no plugging or unplugging)	-40
Impact-resistant
Pollution degree	3
Vibration protection
IP protection class plugged in	IP 68 - 1m (10h)
Corrosion-resistant according to	DIN EN 60068-2-60, Ke 4
Protection class (IP), mounted	IP 2X
Halogenfree

Certifications and Standards

UR recognized
cUR recognized
CSA certified
cUR category control number	CYJV8
UL category control number	CYJV2
Product standard according to IEC	IEC 61984
UR certification	according to UL 2238 (e-file number: E249137)
cUR certification	according to CSA C22.2 No. 182.3 (e-file number: E249137)
VDE registration number	B25
CE marked
VDE certified
EAC certification number	Отказное письмо № 39
EAC-certified	Not required

Documentation

Downloads

approval ul epic - en-UK (PDF)

approval vde epic - de-DE (PDF)

CE declaration of conformity - en-UK (PDF)

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

operation instruction - de-DE (PDF)

trcu declaration of conformity - ru-RU (PDF)

Further Links

EPLAN Data in EPLAN Data Portal

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
