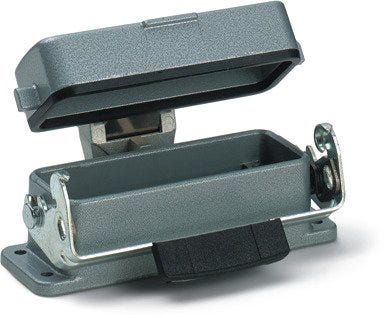

H-A 10 AD PANEL MOUNT BASE

Name: H-A 10 AD PANEL MOUNT BASE
Brand: LAPP
SKU: 70444000
Price: 738638 VND
Availability: OutOfStock

Panel-mount base; Design size: 10A; Single Lever; Number of cable entries: 1; AluminiumIP protection rating mounted: IP 65

LAPPSKU: 70444000Article No.#: 70444000

Panel-mount base; Design size: 10A; Single Lever; Number of cable entries: 1; AluminiumIP protection rating mounted: IP 65

738.638₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

Small and space-saving for narrow available space

Applications

Machine and equipment manufacturing, Control engineering, Electronic laboratory

Technical Attributes

General Information

Electrical Characteristics

Product Design

Number of cable entries	1
Design connector housing	Straight
EMC screening
With cable gland
With hinged lid
Housing base material	Aluminium
With thread
Housing base material, short form	Al
With collar
Locking type	Single lever
With lever
Screen contact
Sealing material, short form	NBR
Number of cable entries at the top	1
Sealing material	Acrylonitrile butadiene rubber

Product Characteristics

Corrosion-resistant
Acid-resistant
Impact-resistant
Vibration protection
IP protection class plugged in	IP 65
Chemical resistant
Corrosion-resistant according to	DIN EN 6988
UV-resistant
Protection class (IP), not installed	IP 65
Operating temperature max.	-40
Halogenfree

Certifications and Standards

TÜV certified
UR certification	according to UL 1977 (e-file number: E75770), according to UL 50E (e-file number: E75770)
UR recognized
cUR recognized
CSA certified
cUR certification	according to CSA C22.2 No. 182.3 (e-file number: E75770)
VDE registration number	B437
CE marked
cUR category control number	ECBT8
VDE certified
UL category control number	ECBT2

Documentation

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
