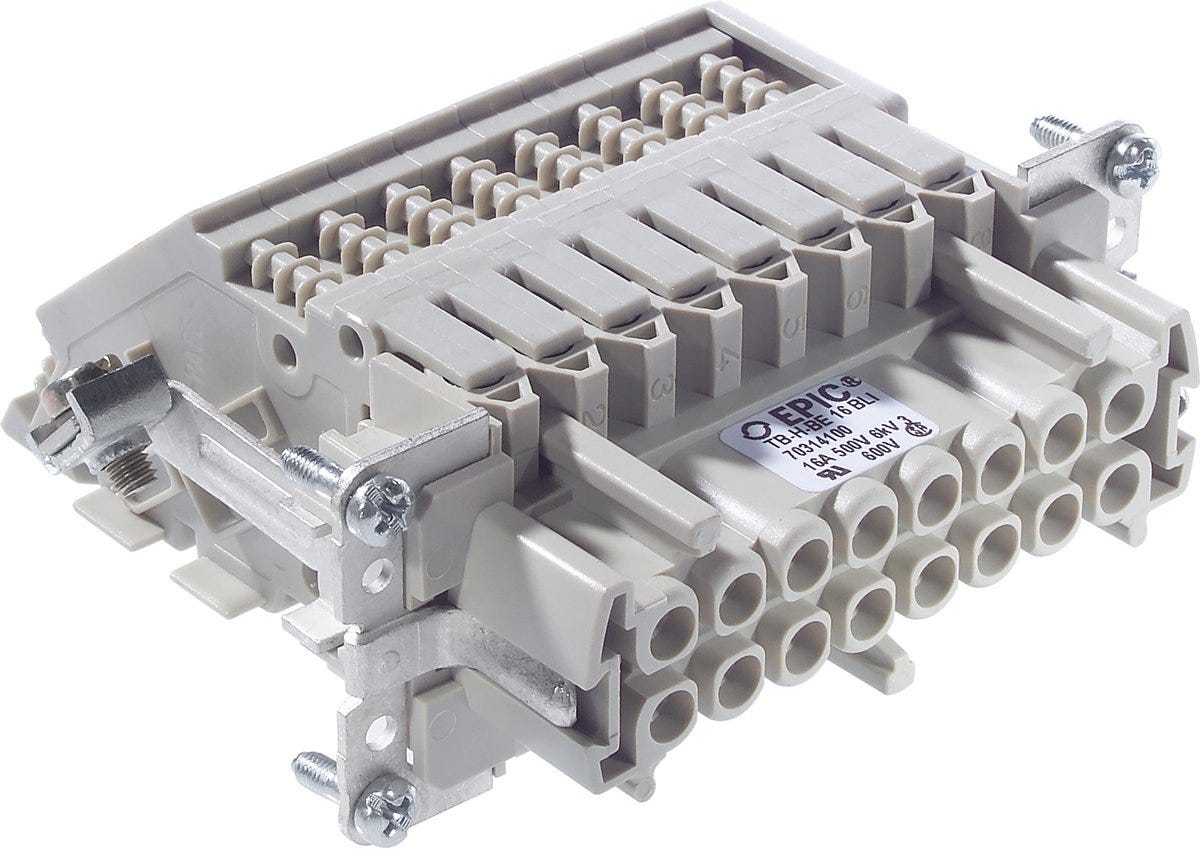

TB-H-BE 16 BLI TERM. BLOCK ADAPTER 1-16

Name: TB-H-BE 16 BLI TERM. BLOCK ADAPTER 1-16
Brand: LAPP
SKU: 70314100
Price: 1798349 VND
Availability: OutOfStock

Insert with screw connection Socket; Number of contacts: 16+PE; Design size: 16B; 600 V AC rms / DC according to CSA; 16 A according to UL; For cross-section (min./max.): 0.5mm² - 4mm²; Contacts included; Polycarbonate

LAPPSKU: 70314100Article No.#: 70314100

TB-H-BE 16 BLI TERM. BLOCK ADAPTER 1-16

TB-H-BE 16 BLI TERM. BLOCK ADAPTER 1-16

1.798.349₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

Standard H-BE inserts for use with switch cabinets, Pluggable with H-BE male inserts in hoods, "Fastening on side = ""left"" means that when mounting the terminal adapter on the left wall of a control cabinet, the PE connection and pin ""1"" are on the ""top"" side"

Applications

Control cabinet manufacturing, Plant engineering

Technical Attributes

General Information

Brand	EPIC®
Contacts included
Product type	Insert with screw connection
Design size	16B
Delivery Unit	10.000
Weight	0.183 kg

Electrical Characteristics

Rated current	16 A according to UL, 16 A according to CSA, 16 A according to IEC
Protective conductor integrated into insert
Rated impulse voltage	6 kV AC rms / DC according to IEC 61984
Rated voltage	600 V AC rms / DC according to CSA, 500 V AC rms / DC according to IEC, 600 V AC rms / DC according to UL

Product Design

EMC screening
With wire protection
Colour	grey
Connectable conductor cross section min. (AWG)	20 AWG
Max. connectable conductor cross-section AWG	12 AWG
Min. connectable conductor cross-section (mm2)	0.5
Number of contacts	16+PE
Contact material	Brass
With protective conductor
Max. connectable conductor cross-section (mm2)	4
Contact material, short form	CuZn
Contact insert type	Socket
Material contact surface	Silver-plated
Contact insert material, short form	PC
PE connection type	Screw connection
Stripping length of single core	13
Contact variant	Socket
Contact coating material, short form	Ag
Connector type	Socket
Material contact insert	Polycarbonate
Contact manufacturing method	Stamped
Number of PE contacts	1
Conductor connection type	Screw connection
Contact insert without contacts
Contact diameter	2.5
Number of signal contacts	0
Number of power contacts	16

Product Characteristics

Flame-retardant
Minimum tightening torque for PE connection	1.2
Acid-resistant
Chemical resistant
UV-resistant
Operating temperature min.	-40
Maximum tightening torque for PE connection	1.2
Operating temperature max.	100
Min. number of insertion cycles	200
Suitable for EX-applications
Impact-resistant
Pollution degree	3
Vibration protection
Flame retardance according to	UL 94 V-0
Halogenfree
Short-term temperature peaks	125

Certifications and Standards

UR recognized
cUR recognized
CSA certified
UL category control number	ECBT2
Tested for fire protection for railway vehicles
TÜV certified
Product standard according to IEC	IEC 61984
UR certification	according to UL 1977 (e-file number: E75770)
CE marked
VDE certified
EAC certification number	Отказное письмо № 39
EAC-certified	Not required
