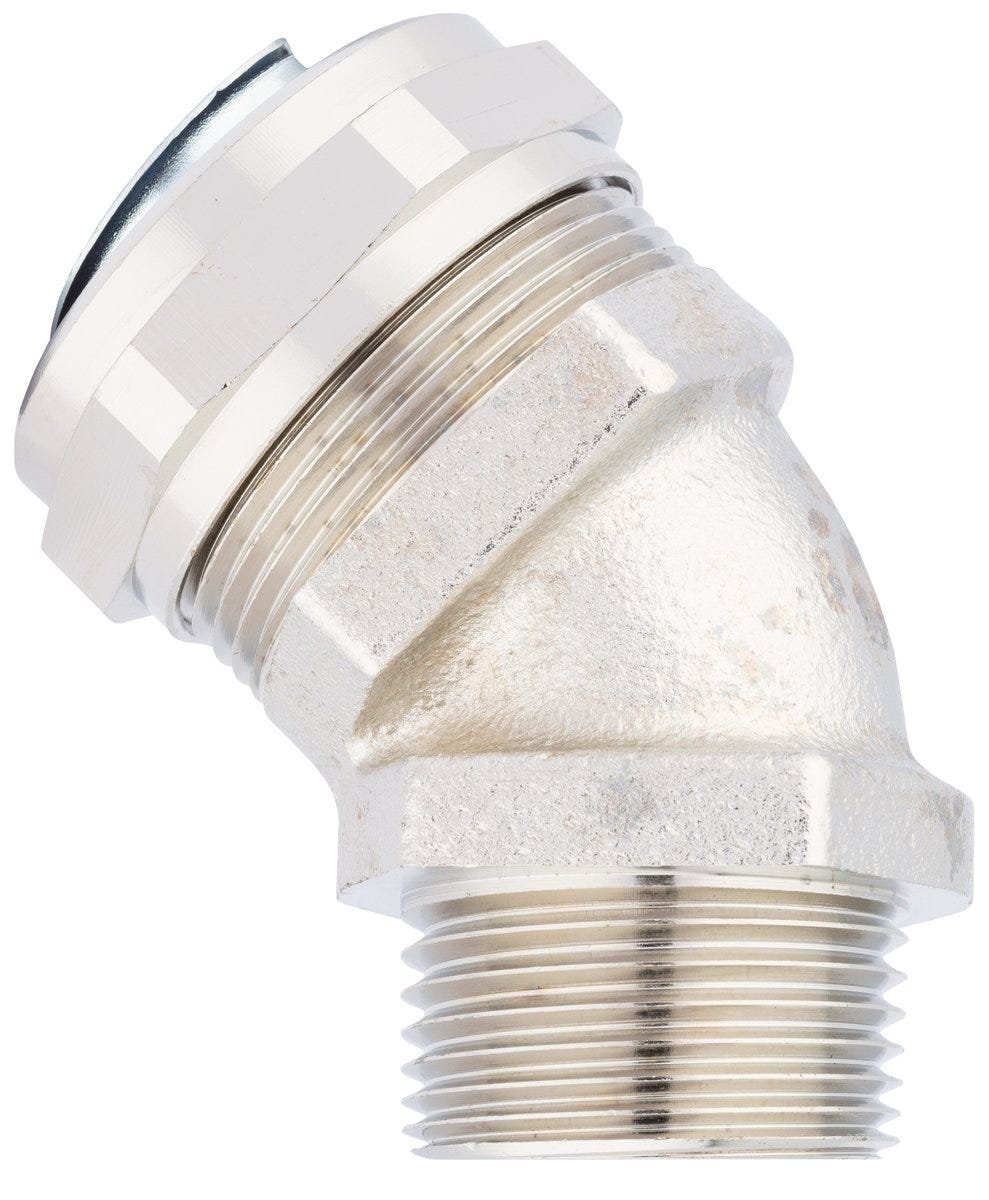

SILVYN® COMPACT 45° M16X1.5 - 5/16 NPB

Name: SILVYN® COMPACT 45° M16X1.5 - 5/16 NPB
Brand: LAPP
SKU: 61803848
Price: 617820 VND
Availability: OutOfStock

Conduit gland; M 16; Suitable for protective cable conduit size: 5/16; Halogenfree; UV-resistant;

LAPPSKU: 61803848Article No.#: 61803848

Conduit gland; M 16; Suitable for protective cable conduit size: 5/16; Halogenfree; UV-resistant;

617.820₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

High tensile strength, For high mechanical stress, Space-saving application, Corrosion-resistant

Applications

In combination with protective conduit:, Suitable for SILVYN® HTDL/EF/OR/HCX/HFX, Mechanical engineering, Railway applications

Technical Attributes

General Information

Electrical Characteristics

Product Design

Suitable protective conduit	SILVYN® HTDL, SILVYN® EF, SILVYN® OR, SILVYN® HCX, SILVYN® HFX
Thread type	Metric
EMC screening
Thread size	M 16
Screw-in sleeve material	Steel
Gland body material	Brass
Conduit gland design	45° angle
Suitable for protective cable conduit size	5/16
Cable gland body material, short form	CuZn
Bending protection
O-ring material, short form	NBR
Bending protection fixed installation
O-ring material	Acrylonitrile butadiene rubber
Pitch of thread	1,5
Surface protection	Nickel-plated
Flexibly installed bending protection
Thread standard	DIN EN 60423
Sealing material, short form	PA
Sealing material	Polyamide

Product Characteristics

Flame-retardant
Acid-resistant
Chemical resistant
UV-resistant
Oil-resistant
Suitable for EX-applications
Impact-resistant
Vibration protection
Halogenfree

Certifications and Standards

EHEDG certified
DNV-certified
cUR recognized
CSA certified
FDA certified
GGVS certified
Tested for fire protection for railway vehicles
Ecolab certified
cUL listed
UL listed
CE marked
UL recognized
NSF certified
VDE certified

Documentation

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Trade product, not a LAPP product.
