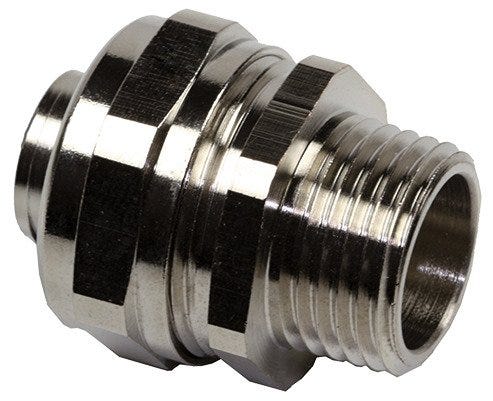

SILVYN® COMPACT NPT 2" NPB

Name: SILVYN® COMPACT NPT 2" NPB
Brand: LAPP
SKU: 61803838
Price: 3021803 VND
Availability: OutOfStock

Conduit gland; NPT 2"; Nominal size: 2; Halogenfree; UV-resistant; IP 67;

LAPPSKU: 61803838Article No.#: 61803838

Conduit gland; NPT 2"; Nominal size: 2; Halogenfree; UV-resistant; IP 67;

3.021.803₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

High tensile strength, For high mechanical stress, Space-saving application, Corrosion-resistant

Applications

In combination with protective conduit:, Suitable for SILVYN® HTDL/EF/OR/HCX/HFX, Mechanical engineering, Railway applications

Technical Attributes

General Information

Electrical Characteristics

Product Design

Lockable (two-part)
Nominal size	2
Total length	56
Divisible fitting
Suitable protective conduit	SILVYN® FG, SILVYN® FG NM
EMC screening
Thread size	NPT 2"
Screw-in sleeve material	Steel
Inner diameter	49
Thread length	20
Gland body material	Brass
Conduit gland design	Straight
Cable gland body material, short form	CuZn
Spanner size	76
Bending protection
Clear width	49
Bending protection fixed installation
Pitch of thread	2,21
Surface protection	Nickel-plated
Flexibly installed bending protection
Rotatable thread
Spanner size 1	76
Sealing material, short form	PA
Spanner size 2	72
Sealing material	Polyamide

Product Characteristics

Flame-retardant
IP protection rating	IP 67
Acid-resistant
IP-protection class cable side	IP 67
Chemical resistant
UV-resistant
Oil-resistant
Strain relief
Suitable for EX-applications
Impact-resistant
Vibration protection
Halogenfree

Certifications and Standards

EHEDG certified
DNV-certified
cUR recognized
CSA certified
FDA certified
GGVS certified
Tested for fire protection for railway vehicles
Product standard according to IEC	IEC 61386-23
Ecolab certified
cUL listed
UL listed
CE marked
UL recognized
NSF certified
VDE certified

Documentation

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Trade product, not a LAPP product.
