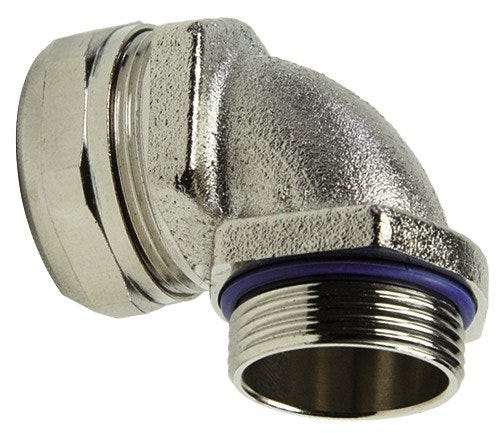

SILVYN® COMPACT 90° PG 48 NPB

Name: SILVYN® COMPACT 90° PG 48 NPB
Brand: LAPP
SKU: 61803831
Price: 5685770 VND
Availability: OutOfStock

Angled conduit gland; PG 48; Suitable for protective cable conduit size: 2; Brass Nickel-plated; Halogenfree; UV-resistant; IP 67;

LAPPSKU: 61803831Article No.#: 61803831

Angled conduit gland; PG 48; Suitable for protective cable conduit size: 2; Brass Nickel-plated; Halogenfree; UV-resistant; IP 67;

5.685.770₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

High tensile strength, For high mechanical stress, Space-saving application, Corrosion-resistant

Applications

In combination with protective conduit:, Suitable for SILVYN® HTDL/EF/OR/HCX/HFX, Mechanical engineering, Railway applications

Technical Attributes

General Information

Electrical Characteristics

Product Design

Lockable (two-part)
Divisible fitting
Suitable protective conduit	SILVYN® HTDL, SILVYN® EF, SILVYN® OR, SILVYN® HCX, SILVYN® HFX
Material body	Brass
Thread type	PG
EMC screening
Material body shortname	CuZn
Thread size	PG 48
Screw-in sleeve material	Steel
Inner diameter	49
Thread length	16
Gland body material	Brass
Conduit gland design	90° angle
Suitable for protective cable conduit size	2
Cable gland body material, short form	CuZn
Spanner size	76
Bending protection
Clear width	49
O-ring material, short form	NBR
Bending protection fixed installation
O-ring material	Acrylonitrile butadiene rubber
Pitch of thread	1,588
Surface protection	Nickel-plated
Flexibly installed bending protection
Rotatable thread
Spanner size 1	76
Sealing material, short form	PA
Spanner size 2	72
Sealing material	Polyamide

Product Characteristics

Flame-retardant
IP protection rating	IP 67
Acid-resistant
IP-protection class cable side	IP 67
Chemical resistant
UV-resistant
Oil-resistant
Strain relief
Suitable for EX-applications
Impact-resistant
Vibration protection
Halogenfree

Certifications and Standards

EHEDG certified
DNV-certified
cUR recognized
CSA certified
FDA certified
GGVS certified
Tested for fire protection for railway vehicles
Product standard according to IEC	IEC 61386-23
Ecolab certified
cUL listed
UL listed
CE marked
UL recognized
NSF certified
VDE certified

Documentation

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Trade product, not a LAPP product.

Product Family List

Article number	Thread size	Suitable for protective cable conduit size	Delivery Unit
61803824	PG 11	3/8	10.000
61803825	PG 13,5	3/8	10.000
61803826	PG 16	1/2	10.000
61803827	PG 21	3/4	5.000
61803828	PG 29	1	5.000
61803829	PG 36	1.25	2.000
61803830	PG 42	1.5	2.000
61803831	PG 48	2	2.000
