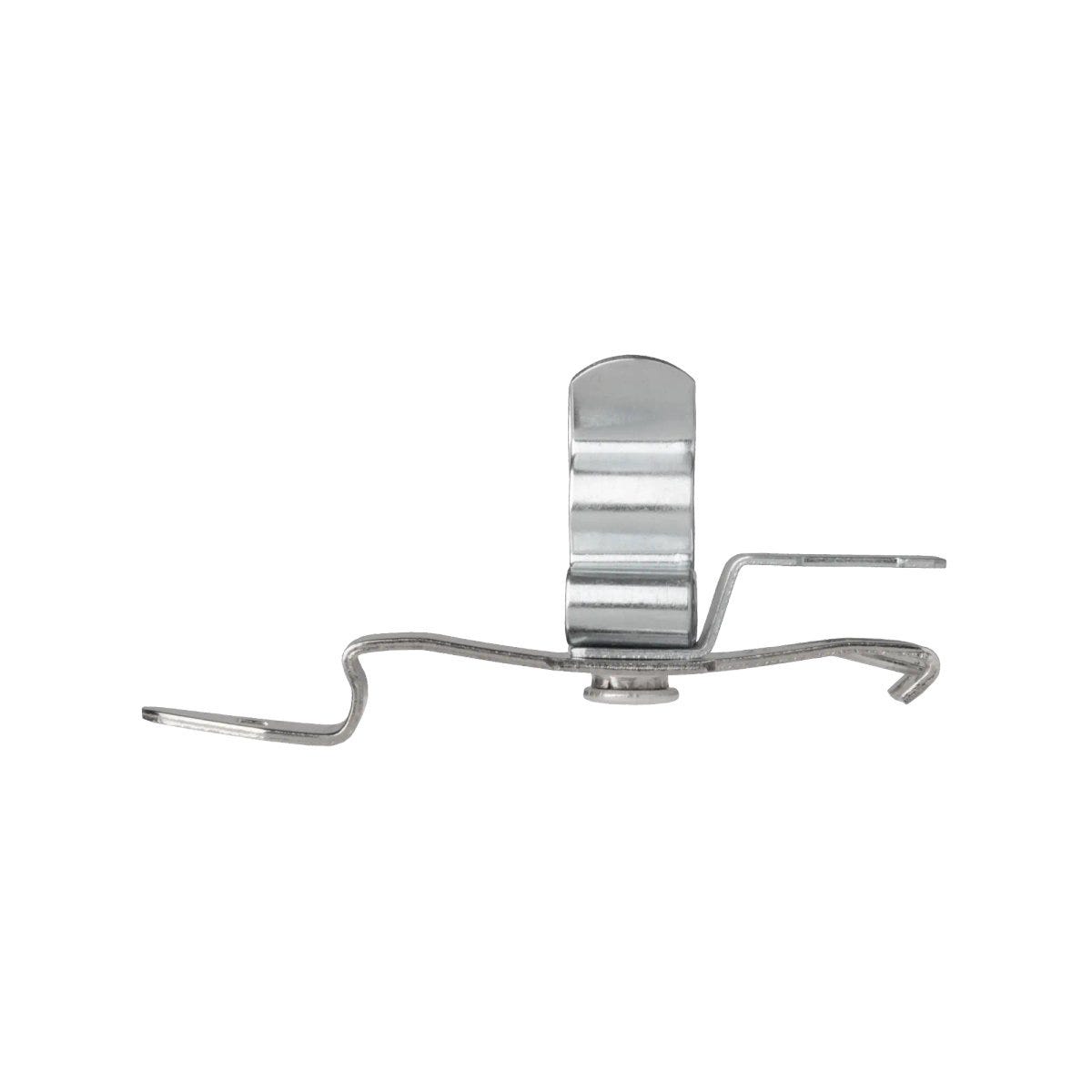

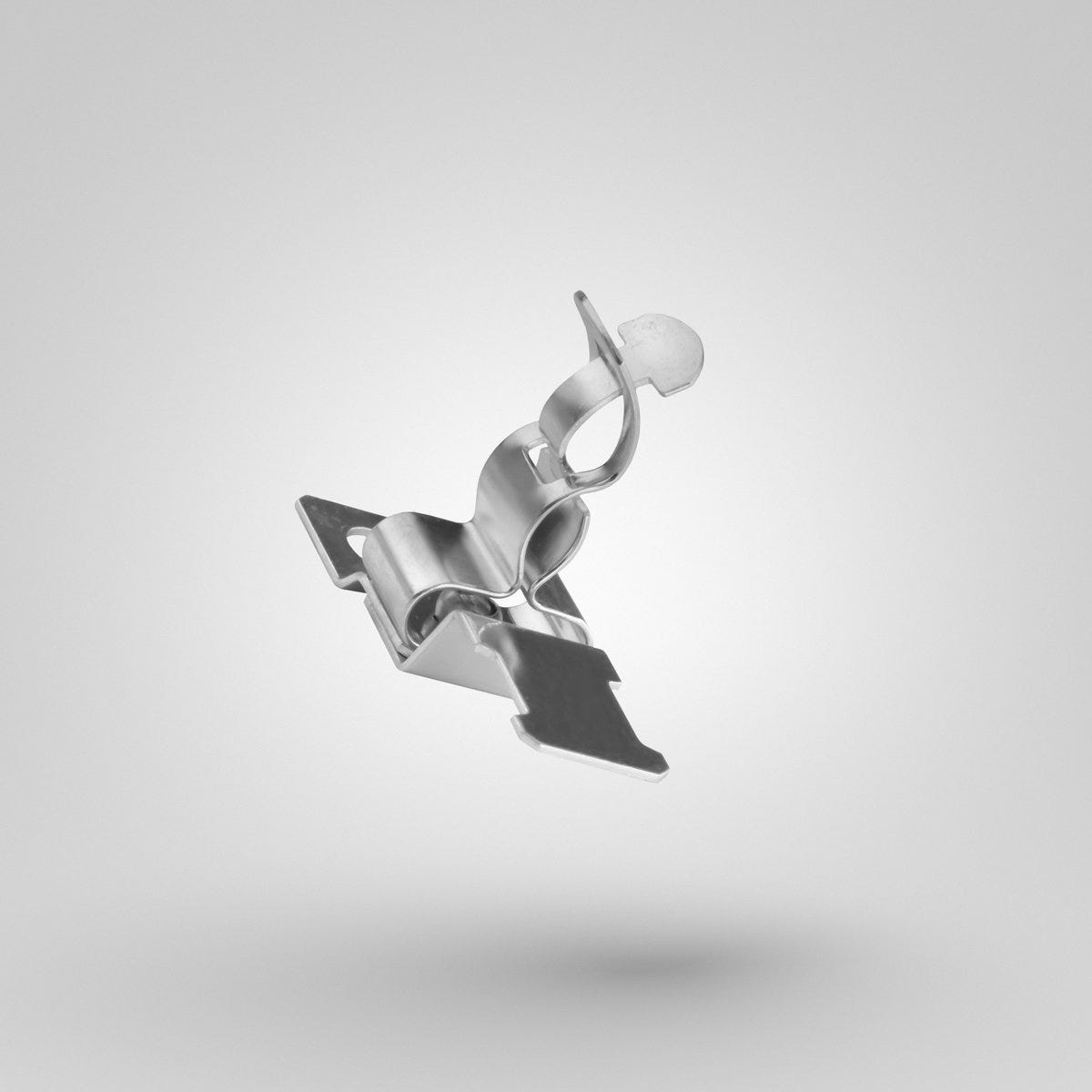

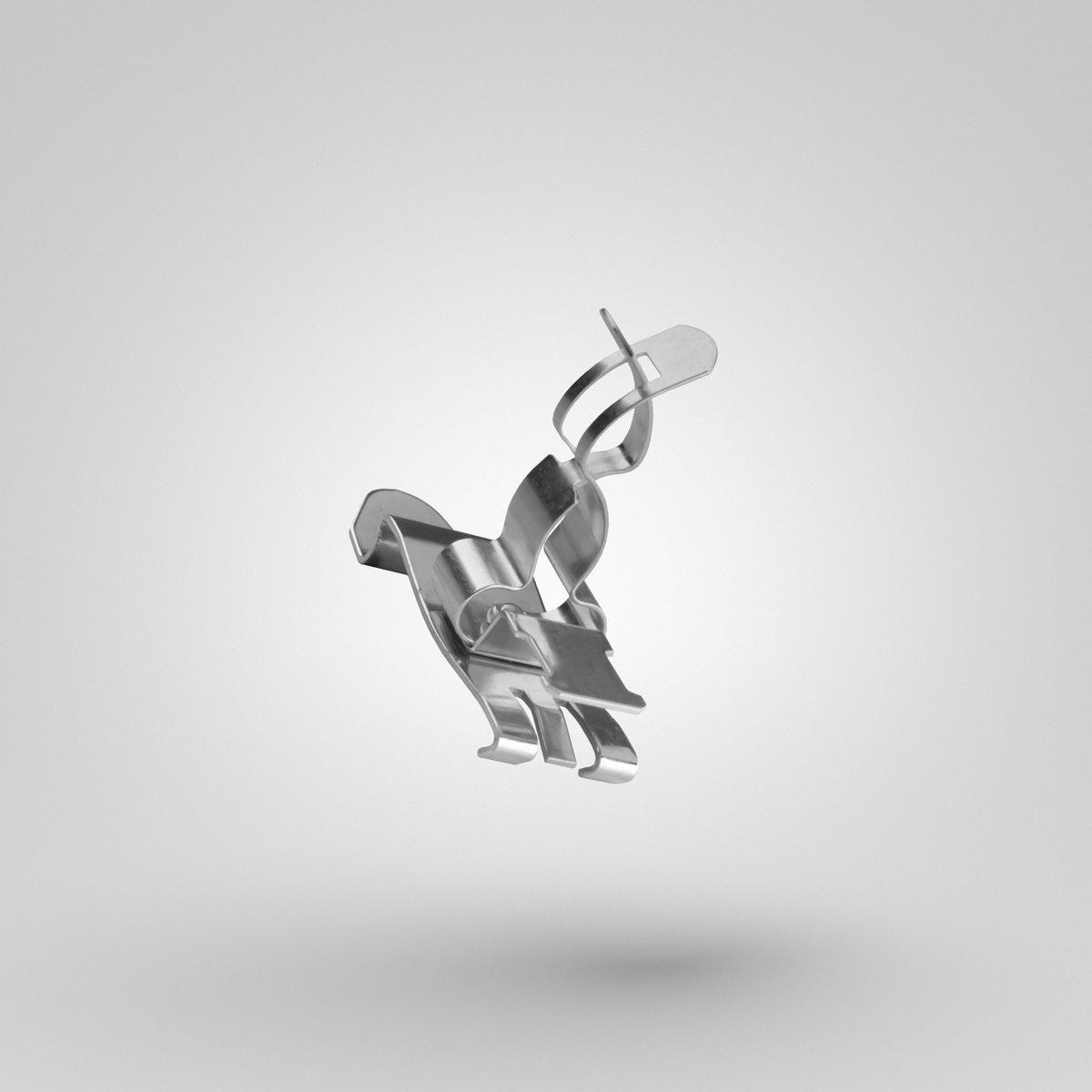

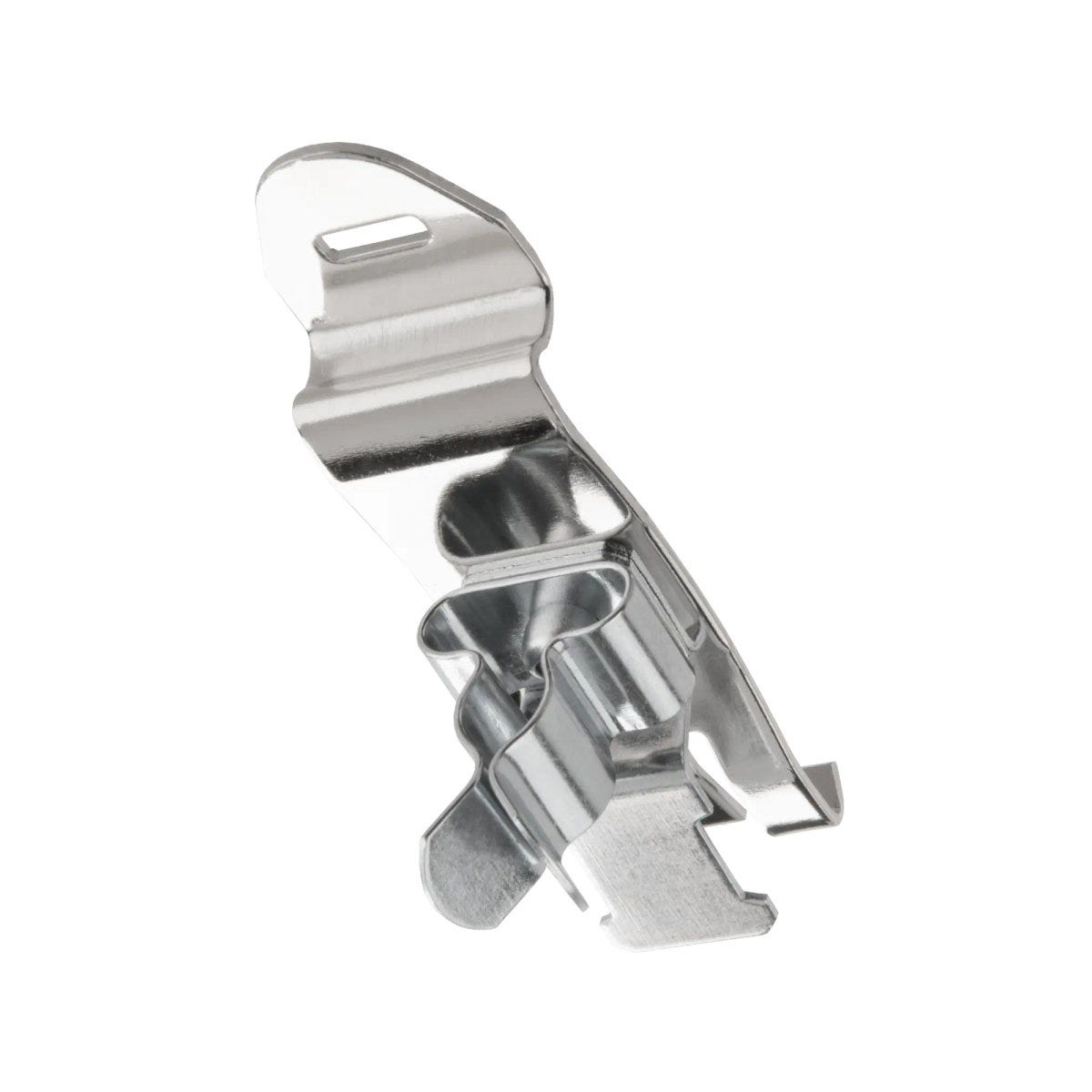

EMC-GUARD MOUNT-LSR 3-12
Shield terminal; screw, Direct assembly; Shield diameter (min./max.): 3mm - 12mm; Steel Electrogalvanised
EMC-GUARD MOUNT-LSR 3-12
212.570₫
/
EMC-GUARD MOUNT-LSR 3-12
212.570₫
/
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
corrosion resistant
icon sturgeon signal
Benefits
Allows the stripped, shielded cable to be pressed down quickly and without any tools
The strong spring effect ensures consistent shielding contact and constant conductivity
The electrically conductive coating on the galvanised surface and the large-scale shield contact ensure a low-resistance transition between the copper stranded shielding and the shield terminal, thereby safely deflecting high-frequency interference (EMC)
Optimum strain relief via strain relief clamp, which is attached to the cable outer sheath with cable ties
Rounded material without sharp edges for optimum protection of the cable
Compact dimensions enable easy integration into the machine concept
Available with different clamping ranges for individual, space-saving assembly

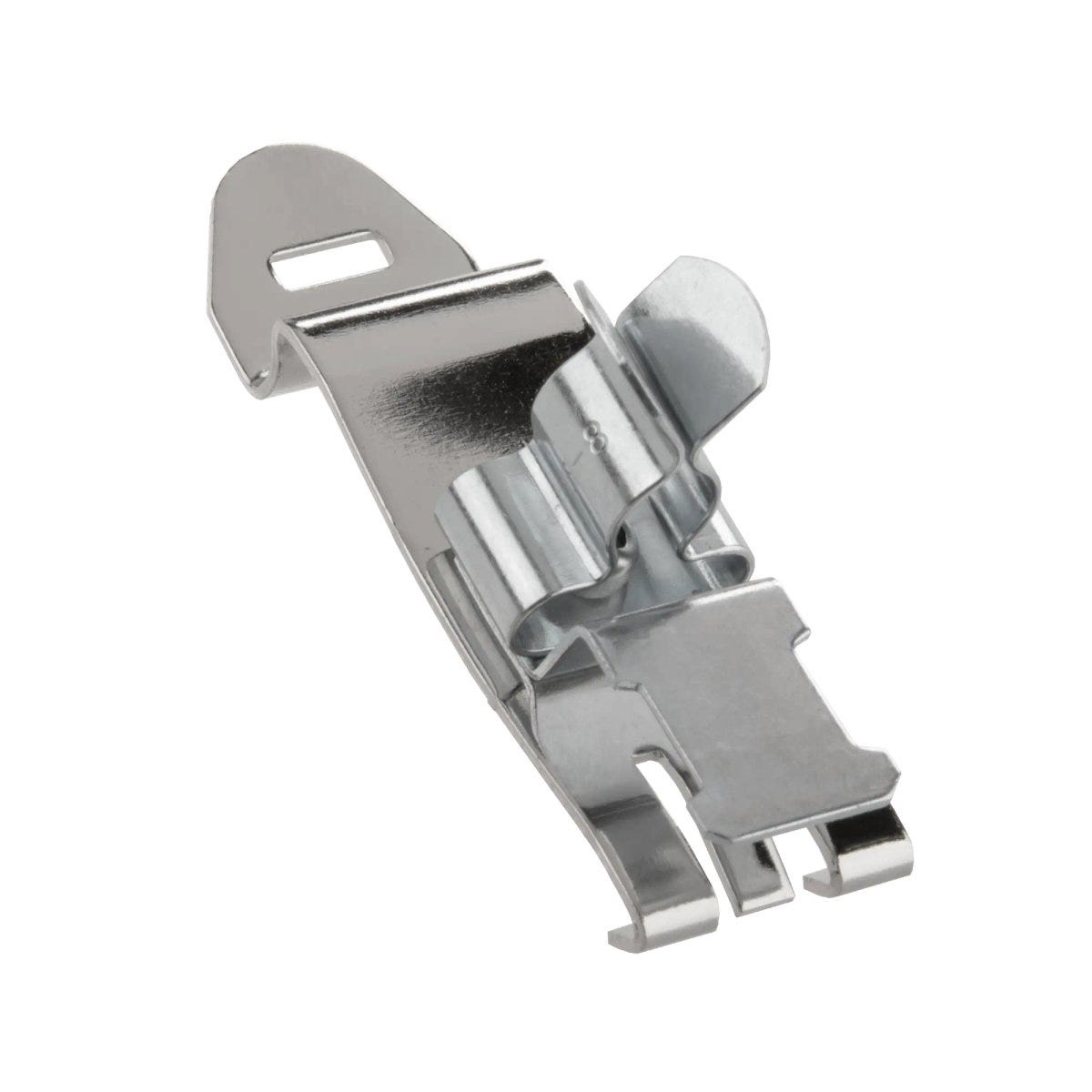

The "DINrail" version with detachable mounting bracket for 35 mm top-hat rails can be mounted without tools
"MOUNT" version for direct mounting on installation sheet / sheet metal constructions, e.g. using M4 screws.
Applications
For contacting shielded cables with earth potential
For protection against electromagnetic interference and for equipotential bonding
Can be used in control cabinets, as well as motor controls, enclosures or machinery
Suitable for outdoor use.
Technical Attributes
General Information
| Product type | Shield terminal |
| Pieces per PU | 10 |
| Installation type | screw, Direct assembly |
| Delivery Unit | 10.000 |
| Weight | 0.004 kg |
Electrical Characteristics
Product Design
| Overall width | 10 |
| Colour | metal |
| Max. clamping range | 12 |
| Min. clamping range | 3 |
| Total length | 35.4 |
| Total height | 25.6 |
| Screen diameter (max.) | 12 |
| Material processing | Hardened |
| Material | Steel |
| Screen diameter (min.) | 3 |
| EMC screening |
|
| Surface protection | Electrogalvanised |
Product Characteristics
| Corrosion-resistant |
|
| Strain relief |
|
Certifications and Standards
| CE marked |
|
Documentation
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
- Trade product, not a LAPP product.
Product Family List
All articles from Shield clamp EMC-Guard
| Article number | Installation type | Imp shield diameter min | Screen diameter (min.) | Imp shield diameter max | Screen diameter (max.) | Pieces per PU | Delivery Unit |
|---|---|---|---|---|---|---|---|
| 61721300 | lock, on top-hat rail | 3 | 6 | 10 | 10.000 | ||
| 61721301 | lock, on top-hat rail | 6 | 8 | 10 | 10.000 | ||
| 61721302 | lock, on top-hat rail | 8 | 11 | 10 | 10.000 | ||
| 61721303 | lock, on top-hat rail | 3 | 12 | 10 | 10.000 | ||
| 61721304 | lock, on top-hat rail | 7 | 18 | 10 | 10.000 | ||
| 61721305 | screw, Direct assembly | 3 | 6 | 10 | 10.000 | ||
| 61721306 | screw, Direct assembly | 6 | 8 | 10 | 10.000 | ||
| 61721307 | screw, Direct assembly | 8 | 11 | 10 | 10.000 | ||
| 61721308 | screw, Direct assembly | 3 | 12 | 10 | 10.000 | ||
| 61721309 | screw, Direct assembly | 7 | 18 | 10 | 10.000 |
