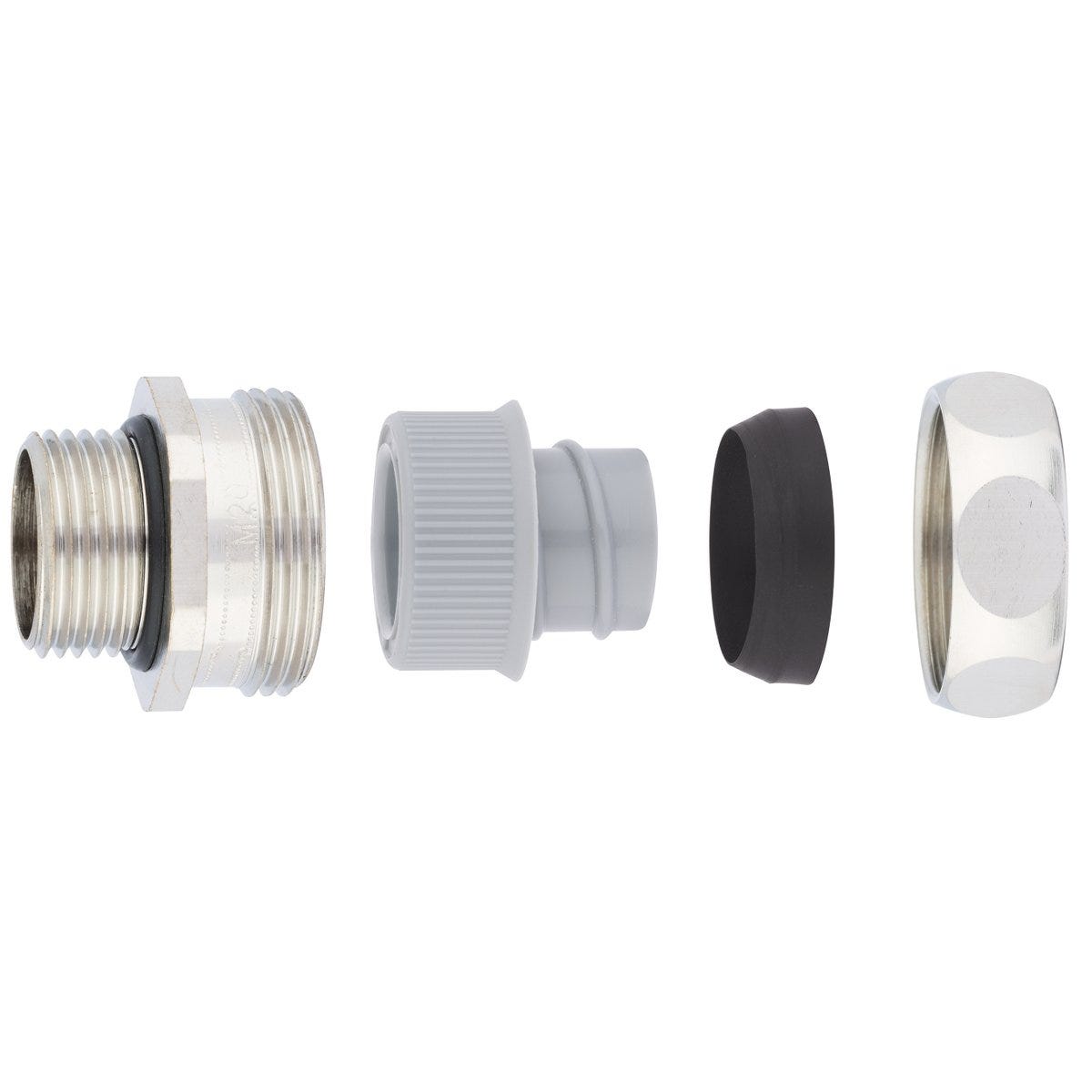

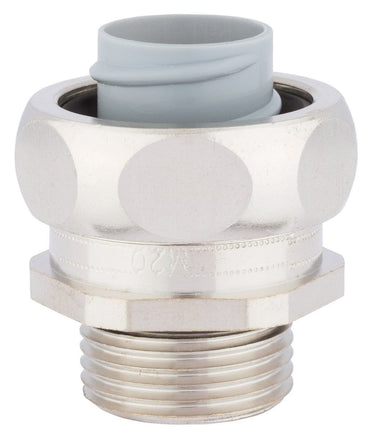

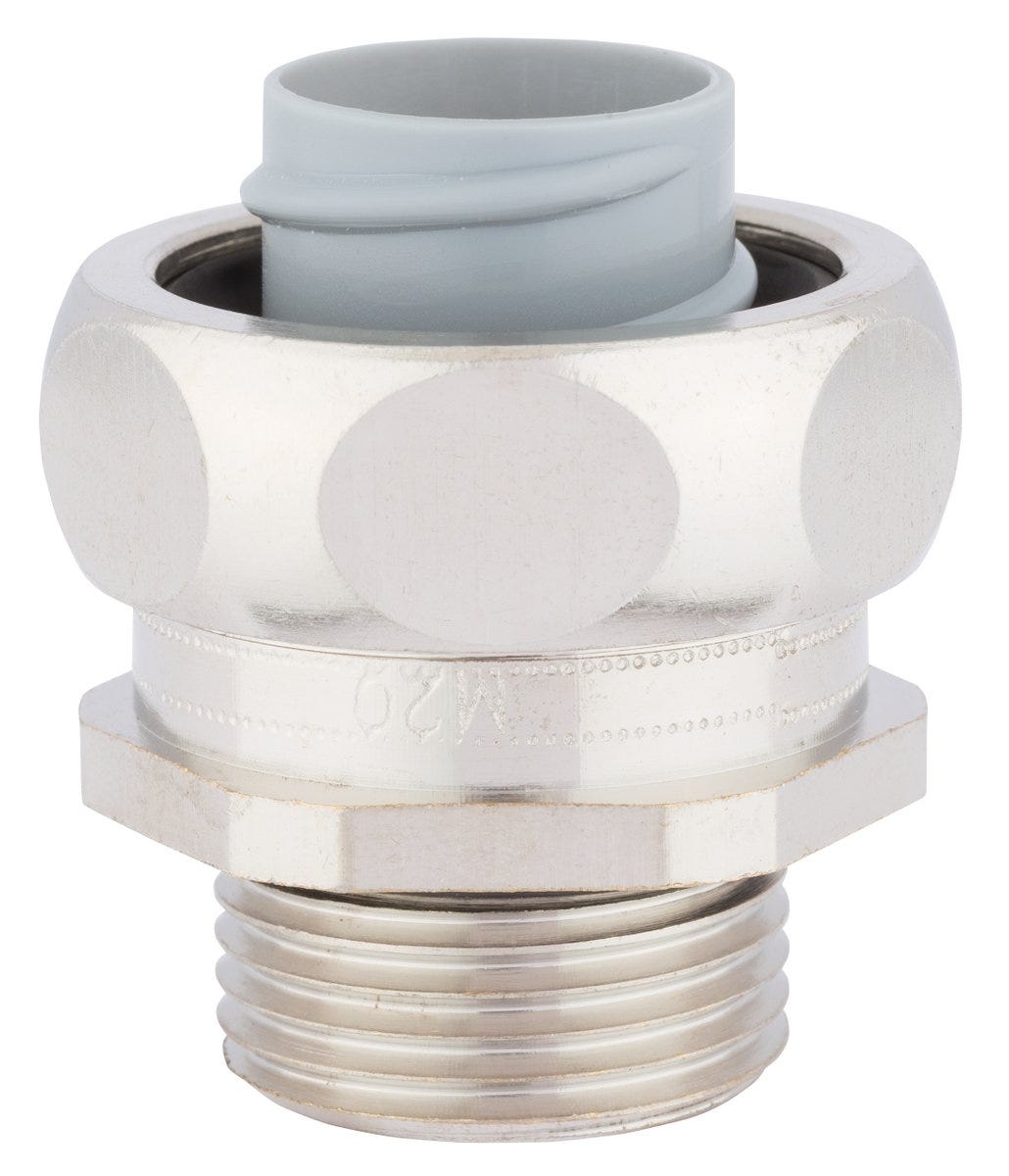

SILVYN® US PG 7 EE-K

Name: SILVYN® US PG 7 EE-K
Brand: LAPP
SKU: 55502651
Price: 472766 VND
Availability: OutOfStock

Conduit gland; PG 7; Nominal size: 10; Halogenfree; UV-resistant; IP 54;

LAPPSKU: 55502651Article No.#: 55502651

Conduit gland; PG 7; Nominal size: 10; Halogenfree; UV-resistant; IP 54;

472.766₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

High tensile strength, Space-saving, Fast and easy assembly, Vibration protection, All-purpose

Applications

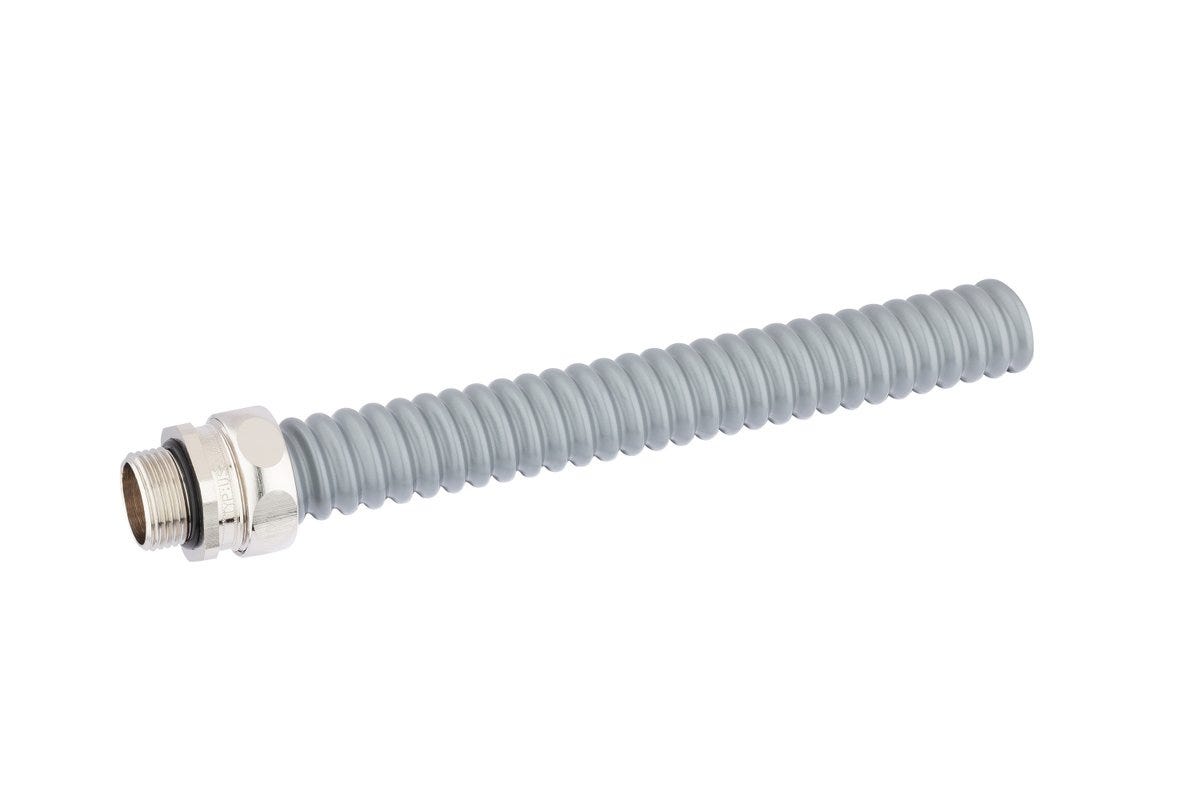

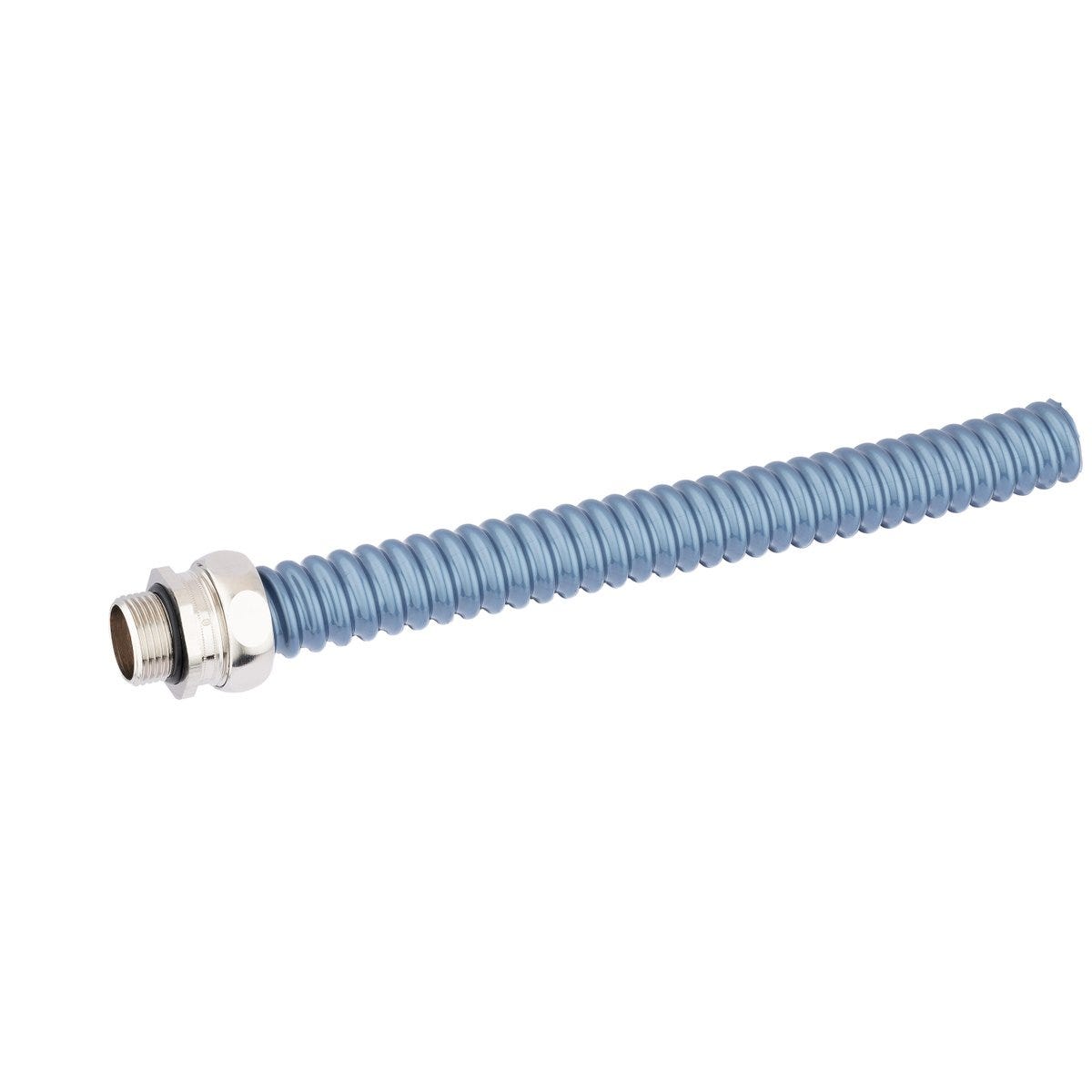

In combination with protective conduit:, SILVYN FPS, SILVYN® FD-PU, Mechanical engineering, Plant engineering

Technical Attributes

General Information

Electrical Characteristics

Product Design

Lockable (two-part)
Nominal size	10
Total length	28
Divisible fitting
EMC screening
Thread size	PG 7
Outer diameter	19
Inner diameter	6
Thread length	7
Gland body material	Brass
Conduit gland design	Straight
Cable gland body material, short form	CuZn
Hexagon corner dimensions	19
Spanner size	15
Bending protection
Clear width	6
O-ring material, short form	NBR
Bending protection fixed installation
O-ring material	Acrylonitrile butadiene rubber
Pitch of thread	1,27
Surface protection	Nickel-plated
Flexibly installed bending protection
Rotatable thread
Spanner size 1	15
Spanner size 2	17

Product Characteristics

Flame-retardant
IP protection rating	IP 54
Acid-resistant
IP-protection class cable side	IP 54
Chemical resistant
UV-resistant
Oil-resistant
Suitable for EX-applications
Impact-resistant
Vibration protection
Halogenfree

Certifications and Standards

EHEDG certified
DNV-certified
cUR recognized
CSA certified
FDA certified
GGVS certified
Tested for fire protection for railway vehicles
Product standard according to IEC	IEC 61386-1, IEC 61386-23
Ecolab certified
cUL listed
UL listed
CE marked
UL recognized
NSF certified
VDE certified

Documentation

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.

Product Family List

Article number	Thread size	Delivery Unit
55502651	PG 7	50.000
55502652	PG 9	50.000
55502653	PG 11	50.000
55502654	PG 13,5	50.000
55502655	PG 16	50.000
55502656	PG 21	25.000
55502657	PG 29	25.000
55502658	PG 36	20.000
55502659	PG 48	10.000
