SILVYN® LGS-2-M 50X1.5

Name: SILVYN® LGS-2-M 50X1.5
Brand: LAPP
SKU: 55502062
Price: 5249658 VND
Availability: OutOfStock

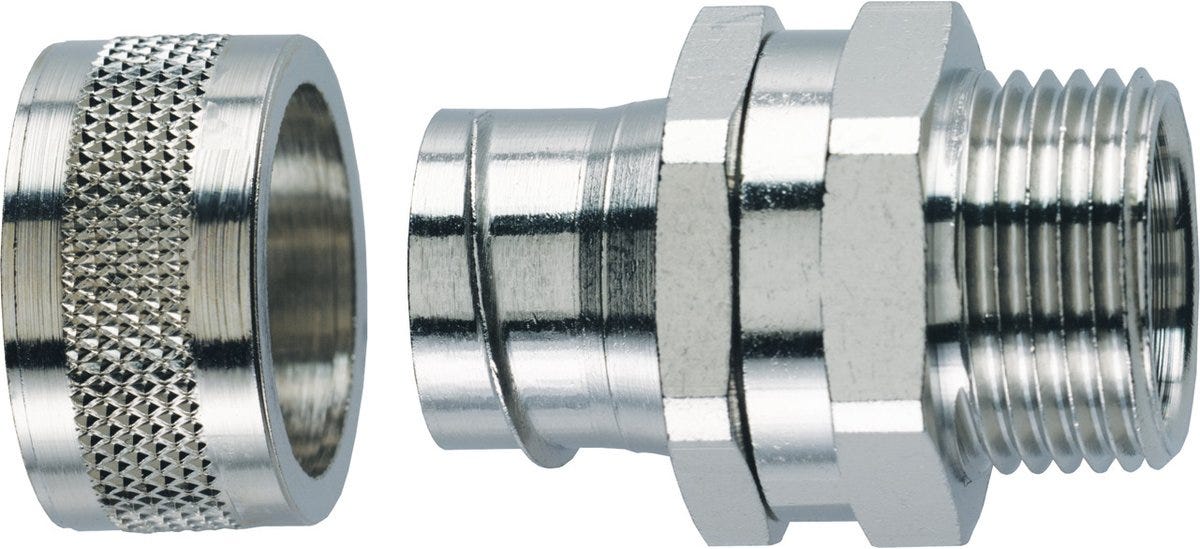

Conduit gland; M 50; Nominal size: 50; Halogenfree; UV-resistant; IP 54;

LAPPSKU: 55502062Article No.#: 55502062

Conduit gland; M 50; Nominal size: 50; Halogenfree; UV-resistant; IP 54;

5.249.658₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

For rotating applications, High tensile strength, Space-saving

Applications

In combination with protective conduit:, SILVYN® LCC-2, SILVYN® LCCH-2, Outdoors, Applications with high mechanical stress

Technical Attributes

General Information

Electrical Characteristics

Product Design

Bending protection fixed installation
Nominal size	50
Total length	54.2
Pitch of thread	1,5
EMC screening
Surface protection	Nickel-plated
Thread size	M 50
Flexibly installed bending protection
Rotatable thread
Inner diameter	44.8
Thread length	15
Gland body material	Brass
Conduit gland design	Straight
Cable gland body material, short form	CuZn
Thread standard	DIN EN 60423
Spanner size	58
Bending protection
Clear width	44.8

Product Characteristics

Flame-retardant
IP protection rating	IP 54
Oil-resistant
Suitable for EX-applications
UV-resistant
Halogenfree

Certifications and Standards

Documentation

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.

Product Family List

Article number	Thread size	Delivery Unit
55501982	M 12	10.000
55502003	M 16	10.000
55502004	M 16	10.000
55502023	M 20	10.000
55502024	M 20	10.000
55502032	M 25	10.000
55502042	M 32	10.000
55502052	M 40	4.000
55502062	M 50	4.000
55502072	M 63	1.000
