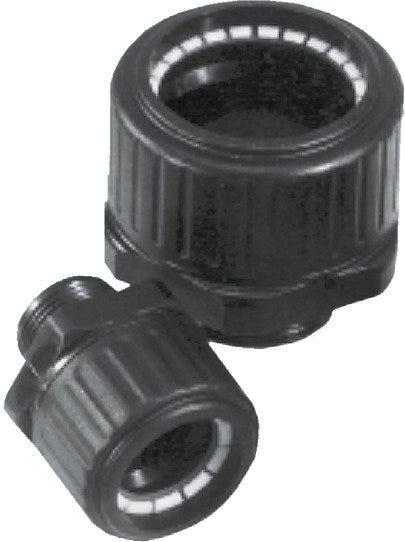

SILVYN® HG-M 40X1.5 BK

Name: SILVYN® HG-M 40X1.5 BK
Brand: LAPP
SKU: 55501650
Price: 279405 VND
Availability: OutOfStock

Conduit gland; M 40; Nominal size: 40; Suitable for protective cable conduit size: 40; Halogenfree; UV-resistant; IP 65;

LAPPSKU: 55501650Article No.#: 55501650

Conduit gland; M 40; Nominal size: 40; Suitable for protective cable conduit size: 40; Halogenfree; UV-resistant; IP 65;

279.405₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

Easy to disassemble, High-tensile, Sealing

Applications

In combination with protective conduit, SILVYN® HCC

Technical Attributes

General Information

Electrical Characteristics

Product Design

O-ring material, short form	NBR
Bending protection fixed installation
O-ring material	Acrylonitrile butadiene rubber
Nominal size	40
Total length	53
Suitable protective conduit	SILVYN® HCC
Thread type	Metric
Pitch of thread	1,5
EMC screening
Thread size	M 40
Flexibly installed bending protection
Overall width	56.2
Gland body material	Polyamide
Suitable for protective cable conduit size	40
Cable gland body material, short form	PA
Thread standard	DIN EN 60423
Spanner size	57
Bending protection

Product Characteristics

Flame-retardant
IP protection rating	IP 65
Oil-resistant
Suitable for EX-applications
UV-resistant
Halogenfree

Certifications and Standards

Documentation

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
