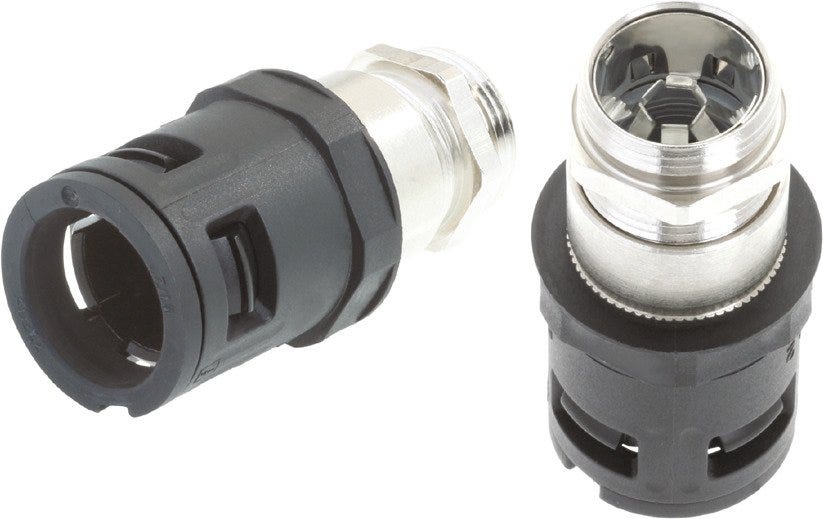

SILVYN® KSE PG 16 BK

Name: SILVYN® KSE PG 16 BK
Brand: LAPP
SKU: 55001230
Price: 591492 VND
Availability: OutOfStock

Conduit gland; PG 16; Suitable for protective cable conduit size: 21; Polyamide; Halogenfree; UV-resistant; IP 66; EMC screening

LAPPSKU: 55001230Article No.#: 55001230

SILVYN® KSE PG 16 BK

Conduit gland; PG 16; Suitable for protective cable conduit size: 21; Polyamide; Halogenfree; UV-resistant; IP 66; EMC screening

SILVYN® KSE PG 16 BK

591.492₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

Fast assembly, Additional cable strain relief, Additional cable sealing, Optimum screen connection (EMC)

Applications

In combination with protective conduit, SILVYN® RILL PA 6, SILVYN® RILL PA 12, Used in areas where screened cables and wires need to have additional protection

Technical Attributes

General Information

Including lock nut
Product type	Conduit gland
Packaging type	Bag
Including o-ring
Brand	SILVYN®
Installation type	in threaded borehole
Delivery Unit	10.000
Weight	0.065 kg

Electrical Characteristics

Product Design

O-ring material, short form	NBR
Bending protection fixed installation
O-ring material	Acrylonitrile butadiene rubber
RAL colour	RAL 9005
Total length	70
Suitable protective conduit	SILVYN® RILL PA 6, SILVYN® RILL PA 12
Material body	Polyamide
Thread type	PG
Pitch of thread	1,41
EMC screening
Material body shortname	PA
Thread size	PG 16
Flexibly installed bending protection
Colour	black
Conduit gland design	Straight
Suitable for protective cable conduit size	21
Bending protection

Product Characteristics

Flame-retardant
IP protection rating	IP 66
Oil-resistant
Strain relief
Suitable for EX-applications
Chemical resistant
UV-resistant
Halogenfree

Certifications and Standards

EHEDG certified
Ecolab certified
DNV-certified
cUR recognized
cUL listed
CSA certified
UL listed
CE marked
GGVS certified
UL recognized
NSF certified
VDE certified

Documentation

Downloads

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
