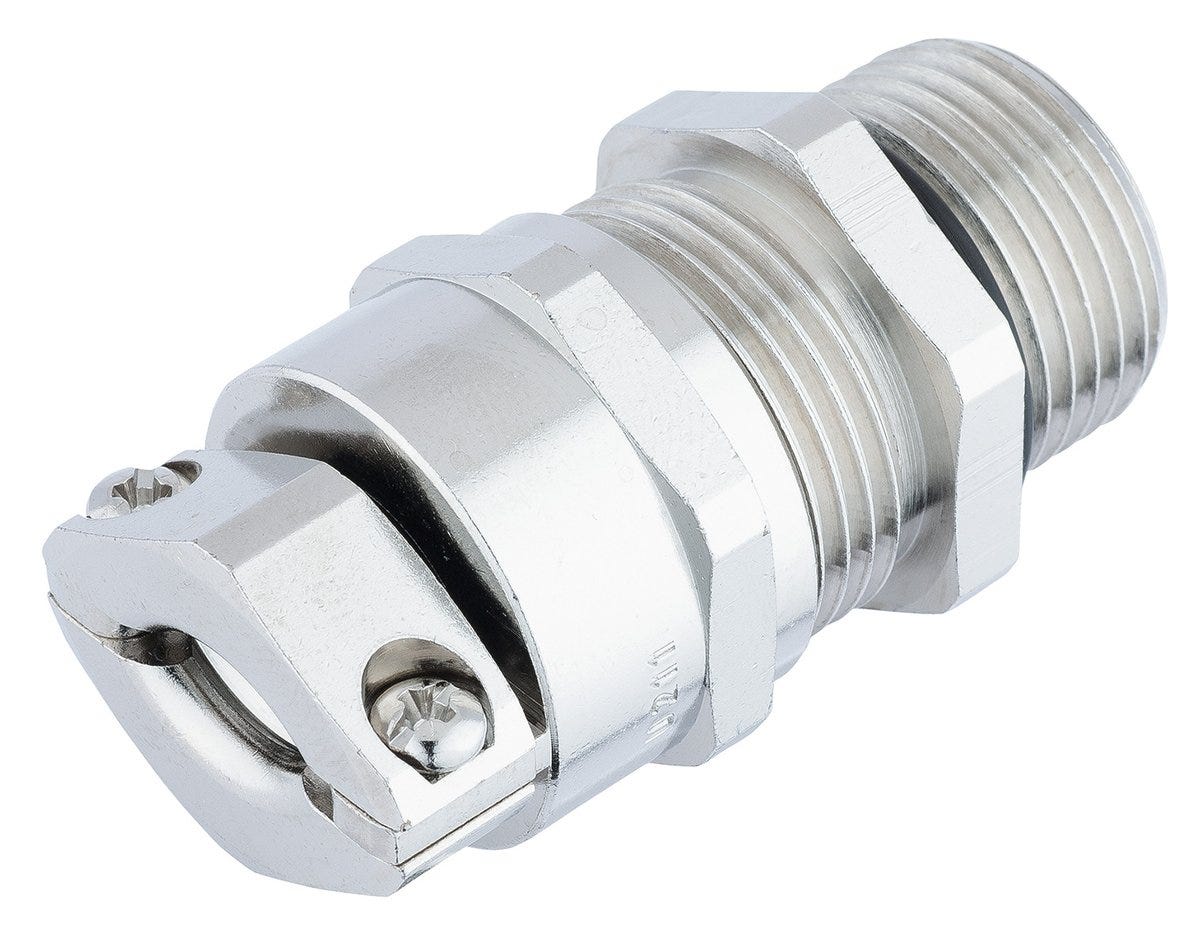

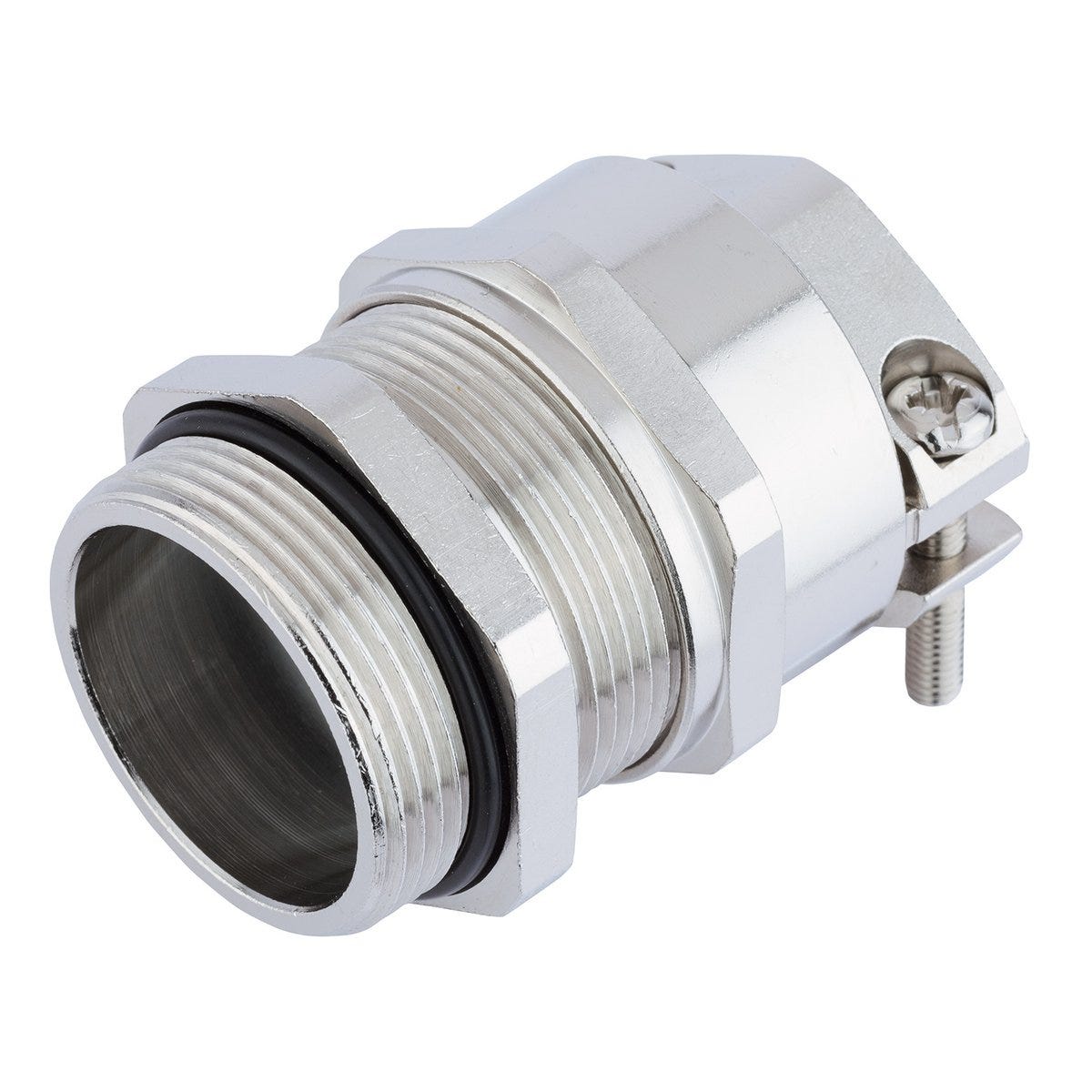

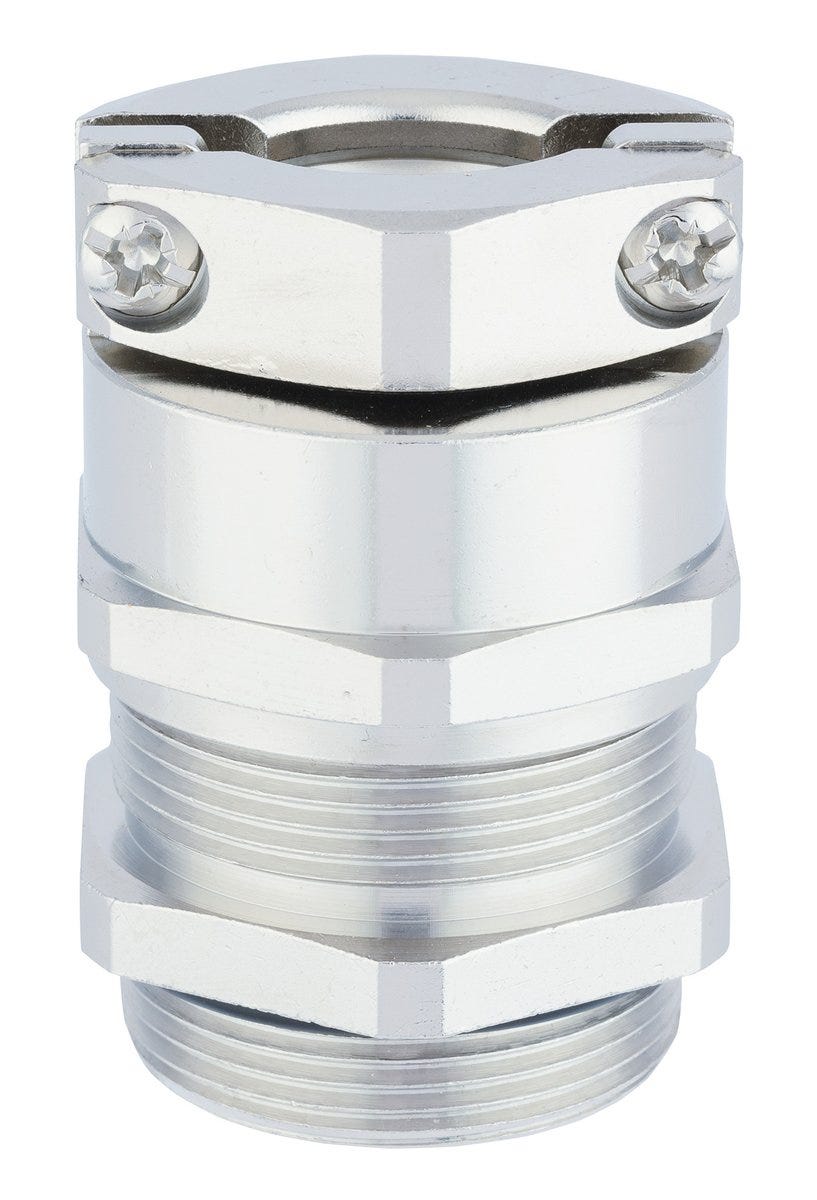

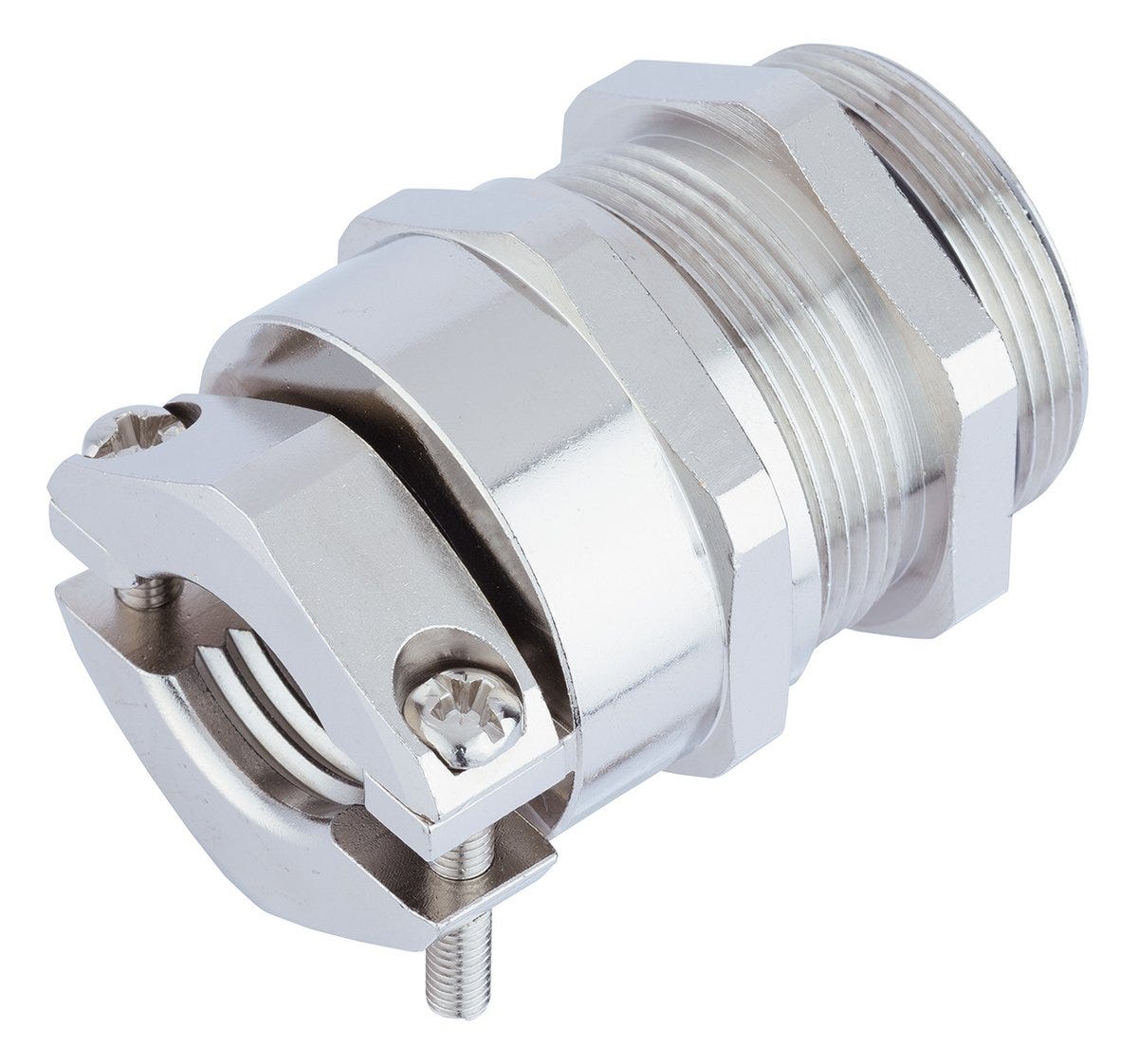

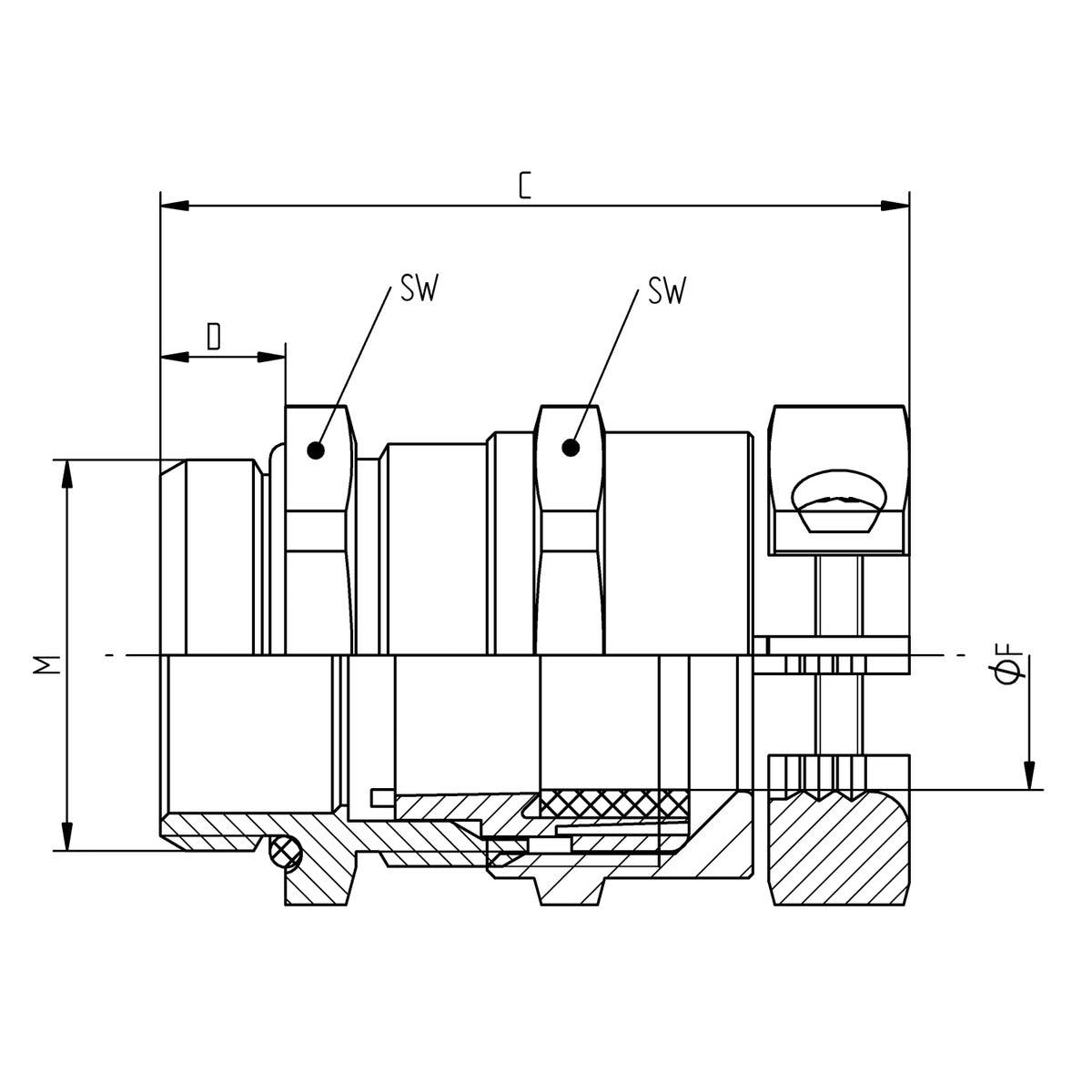

SKINTOP® GRIP M16X1.5
Cable gland; M 16; Clamping range (min./max.): 4.5 - 10 mm; Wrench width 1: 20; Brass Nickel-plated; UV-resistant; IP 68 - 10 bar (30 min), IP 69;
SKINTOP® GRIP M16X1.5
128.261₫
/
SKINTOP® GRIP M16X1.5
128.261₫
/
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
cold resistance
flame-retardant
oil resistant
corrosion resistant
chemical resistance
uv-resistant.
Certificate
CE marked
Benefits

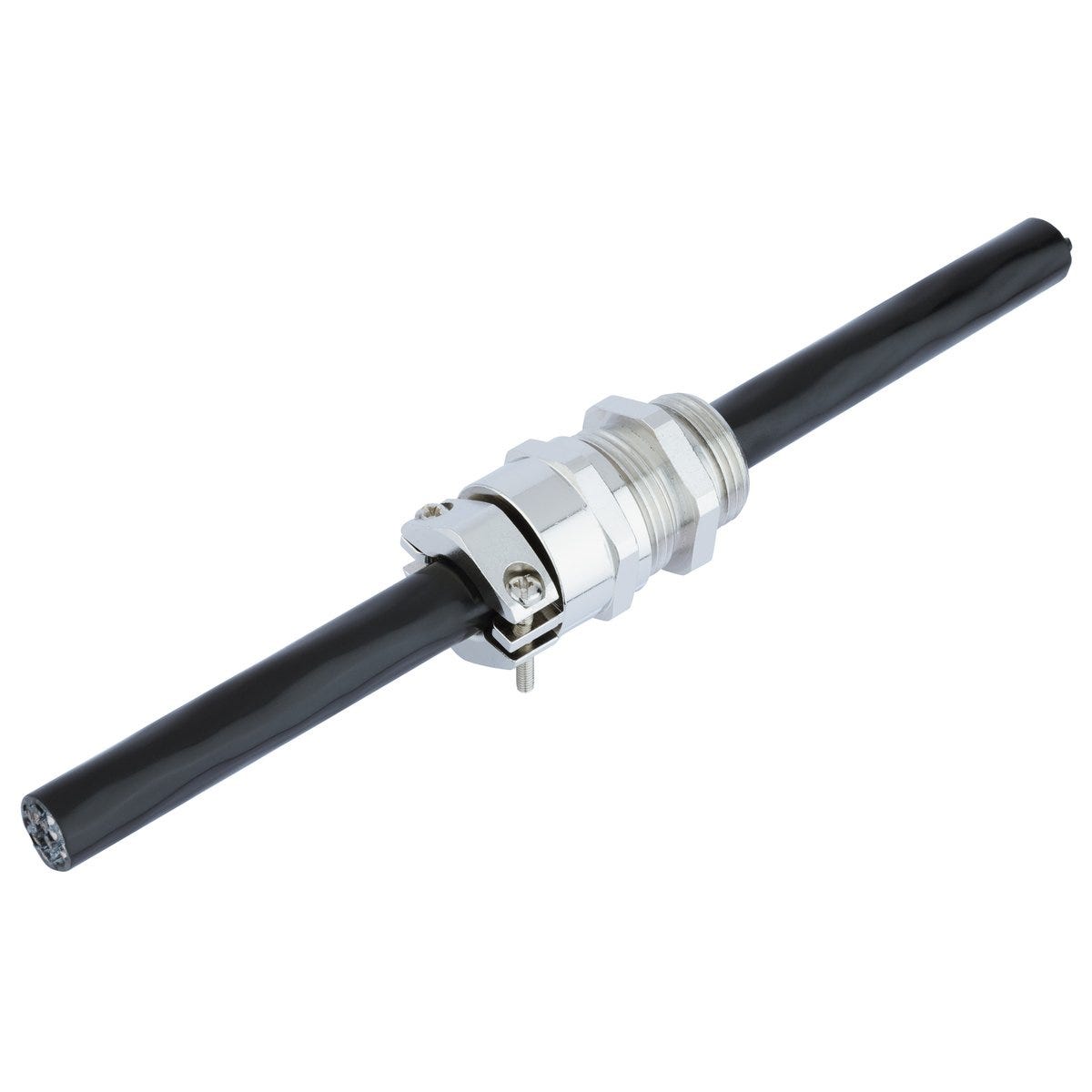

Clamping the cable using the double lever above the domed cap nut enables a much higher strain relief than with conventional cable glands, even under mechanical stress
Double levers ensure reliable bending protection of the cable, since the cable is clamped on all sides
Gentle cable clamping due to high elasticity of the sealing insert material
Optimum sealing through O-ring and sealing ring enables protection class IP 68 (10 bar) and IP 69
Large, variable clamping range for different cable outer diameters.
Applications
Especially for use in mobile equipment where a high strain relief of the clamped cable is required
Can be used in dry, damp and, especially, harsh environments
Withstands high mechanical stress
The "XL" version is particularly suitable for thick-walled housing thanks to the exceptionally long connection thread.
Technical Attributes
General Information
| Including lock nut |
|
| Including o-ring |
|
| Brand | SKINTOP® |
| Product type | Cable gland |
| Packaging type | Bag |
| Delivery Unit | 25.000 |
| Weight | 0.038 kg |
Electrical Characteristics
Product Design
| Total length | 41 |
| Number of cable entries | 1 |
| Material body | Brass |
| Thread type | Metric |
| Cable gland design | Straight |
| thread-sided sealing element | O-ring |
| EMC screening |
|
| Cable-side sealing element | Conduit sealing ring |
| Material body shortname | CuZn |
| Thread size | M 16 |
| Colour | metal |
| Insert material, short form | PA |
| Thread length | 7 |
| Hexagon corner dimensions | 22 |
| Bending protection |
|
| Clear width | 10 |
| O-ring material, short form | NBR |
| Max. clamping range | 10 |
| Seal type | Conduit sealing ring |
| O-ring material | Acrylonitrile butadiene rubber |
| Glass-fibre reinforced |
|
| Pitch of thread | 1,5 |
| Insert material | Polyamide |
| Surface protection | Nickel-plated |
| Spanner size 1 | 20 |
| Min. clamping range | 4.5 |
| For armoured cables |
|
| Thread standard | DIN EN 60423 |
| Sealing material, short form | CR |
| Spanner size 2 | 20 |
| Sealing material | Chloroprene rubber |
Product Characteristics
| Flame-retardant |
|
| IP protection rating | IP 68 - 10 bar (30 min), IP 69 |
| Corrosion-resistant |
|
| Acid-resistant |
|
| Temperature static min. | -40 |
| Chemical resistant |
|
| UV-resistant |
|
| Temperature (max.) | 100 |
| Temperature dynamic min. | -25 |
| lead free |
|
| Oil-resistant |
|
| Max. dynamic temperature | 100 |
| Temperature (min.) | -40 |
| Strain relief |
|
| Suitable for EX-applications |
|
| Impact-resistant |
|
| Vibration protection |
|
| Temperature static max. | 100 |
| Halogenfree |
|
Certifications and Standards
| EHEDG certified |
|
| DNV-certified |
|
| cUR recognized |
|
| CSA certified |
|
| FDA certified |
|
| GGVS certified |
|
| Tested for fire protection for railway vehicles |
|
| Ecolab certified |
|
| cUL listed |
|
| UL listed |
|
| For Ex zone gas | without |
| For Ex-zone dust | without |
| CE marked |
|
| UL recognized |
|
| NSF certified |
|
| VDE certified |
|
Documentation
Downloads
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Product Family List
All articles from SKINTOP® GRIP-M / SKINTOP® GRIP-M-XL
| Article number | Thread size | Imp thread length | Thread length | Imp clamping range min | Min. clamping range | Imp clamping range max | Max. clamping range | Imp wrench width 1 | Spanner size 1 | Delivery Unit |
|---|---|---|---|---|---|---|---|---|---|---|
| 53113180 | M 16 | 7 | 4.5 | 10 | 20 | 25.000 | ||||
| 53113185 | M 16 | 12 | 4.5 | 10 | 20 | 25.000 | ||||
| 53113200 | M 20 | 8 | 7 | 13 | 24 | 25.000 | ||||
| 53113205 | M 20 | 12 | 7 | 13 | 24 | 25.000 | ||||
| 53113210 | M 25 | 8 | 9 | 17 | 29 | 25.000 | ||||
| 53113215 | M 25 | 12 | 9 | 17 | 29 | 25.000 | ||||
| 53113220 | M 32 | 9 | 11 | 21 | 36 | 25.000 | ||||
| 53113225 | M 32 | 15 | 11 | 21 | 36 | 25.000 |
