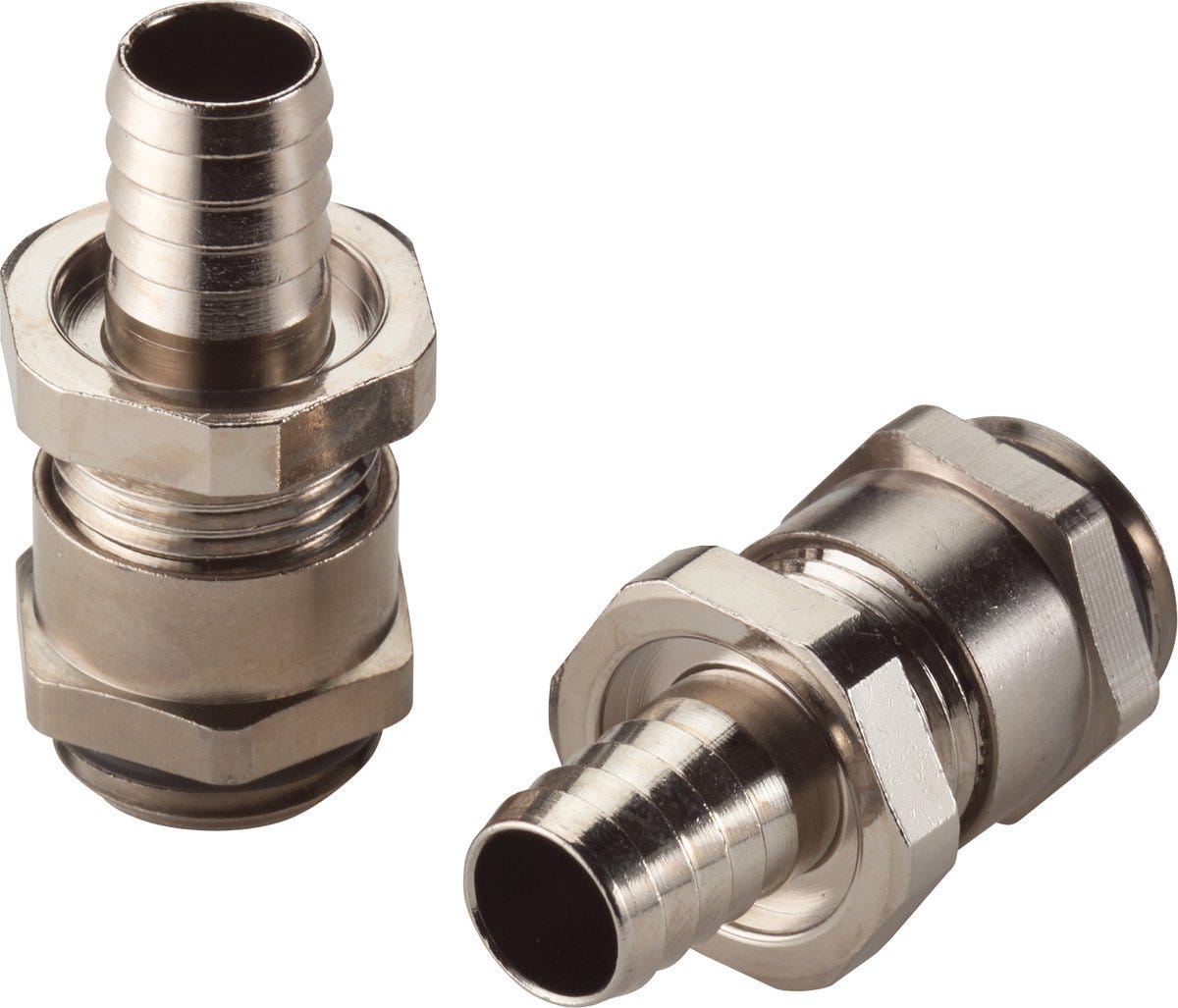

SILVYN® SSVZ PG 11/1

Name: SILVYN® SSVZ PG 11/1
Brand: LAPP
SKU: 52003020
Price: 272345 VND
Availability: OutOfStock

Conduit gland; PG 11; Nominal size: 18; IP 68, IP 54;

LAPPSKU: 52003020Article No.#: 52003020

Conduit gland; PG 11; Nominal size: 18; IP 68, IP 54;

272.345₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

Conduit gland with high tensile strength for plastic conduits, High-tensile cable protection

Applications

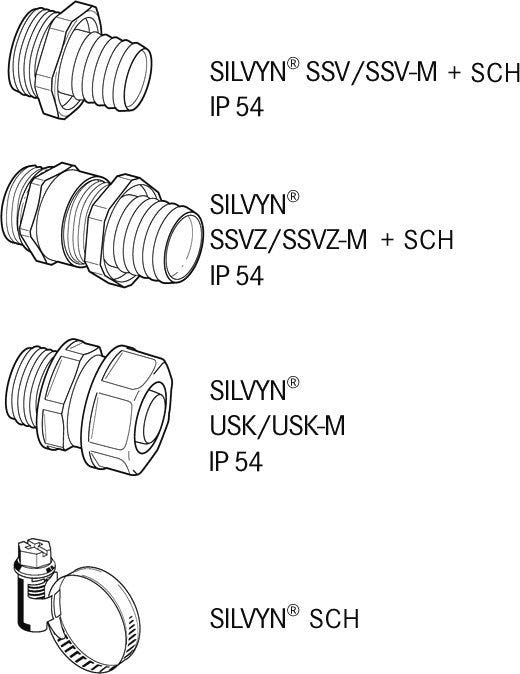

In combination with protective conduit:, SILVYN® SI, SILVYN® SP, SILVYN® SP-PU

Technical Attributes

General Information

Electrical Characteristics

Product Design

Nominal size	18
Total length	39.6
Divisible fitting
Protection against hot chips
EMC screening
Slit
Thread size	PG 11
For conduit outer diameter	14
Outer diameter	20
Incised sealing ring material, short form	CR
Thread length	6
Gland body material	Brass
Conduit gland design	Straight
Cable gland body material, short form	CuZn
Bending protection
Clear width	12
O-ring material, short form	NBR
Seal type	Incised sealing ring
Bending protection fixed installation
O-ring material	Acrylonitrile butadiene rubber
Pitch of thread	1,41
Surface protection	Nickel-plated
Flexibly installed bending protection
Incised sealing ring material	Chloroprene rubber
Rotatable thread
Spanner size 1	20
Sealing material, short form	NBR
Spanner size 2	22
Sealing material	Chloroprene rubber

Product Characteristics

Flame-retardant
IP protection rating	IP 68, IP 54
Acid-resistant
Chemical resistant
UV-resistant
Oil-resistant
Strain relief
Suitable for EX-applications
Impact-resistant
Halogenfree

Certifications and Standards

EHEDG certified
DNV-certified
cUR recognized
CSA certified
FDA certified
GGVS certified
Tested for fire protection for railway vehicles
Ecolab certified
cUL listed
UL listed
CE marked
UL recognized
NSF certified
VDE certified

Documentation

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.

Product Family List

Article number	Thread size	Delivery Unit
52003020	PG 11	50.000
52003030	PG 13,5	50.000
52003040	PG 16	25.000
52003050	PG 21	25.000
52003060	PG 29	25.000
52021070	PG 9	50.000
52021080	PG 9	50.000
52024670	PG 11	50.000
52024680	PG 29	25.000
