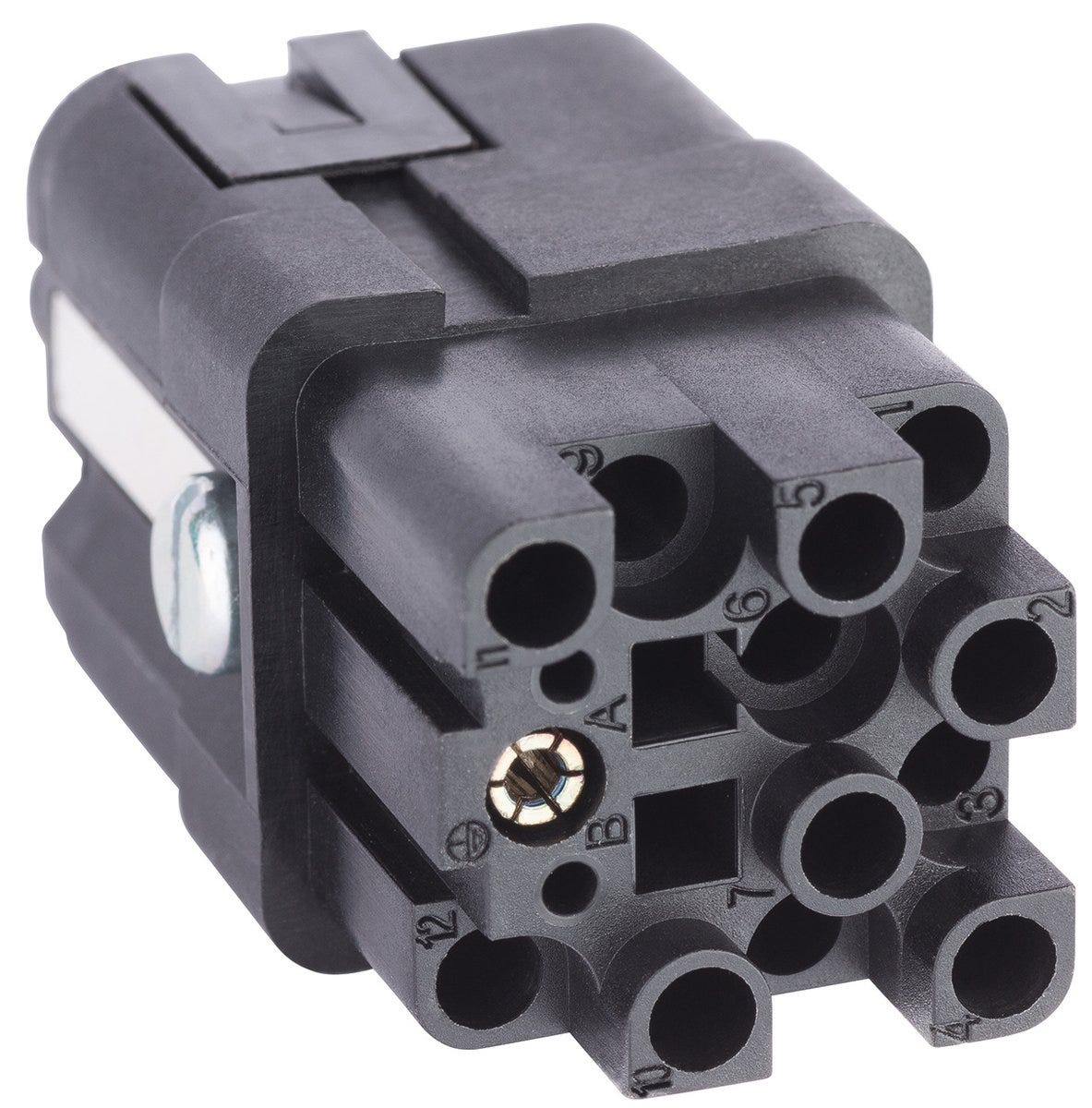

EPIC® H-Q 12 BCM (10)

Name: EPIC® H-Q 12 BCM (10)
Brand: LAPP
SKU: 44424050
Price: 414373 VND
Availability: OutOfStock

Crimping insertNumber of contacts: 12+PE; Design size: 3A; 230 V AC rms / DC according to IEC; 14 A according to UL; For cross-section (min./max.): 0.14mm² - 2.5mm²; Polyamide

LAPPSKU: 44424050Article No.#: 44424050

EPIC® H-Q 12 BCM (10)

Crimping insertNumber of contacts: 12+PE; Design size: 3A; 230 V AC rms / DC according to IEC; 14 A according to UL; For cross-section (min./max.): 0.14mm² - 2.5mm²; Polyamide

EPIC® H-Q 12 BCM (10)

414.373₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

High power up to 10 A despite extremely space-saving design for very small devices

Crimp termination creates a vibration-proof connection, provides maximum contact protection between the contact and cable and is suitable for automated assembly

Can be connected to market-standard connectors

Made of robust plastic (flammability class V-0 according to the UL94 testing procedure for the flammability of plastics)

UL certification according to technical data enables the product to be used on the North American market.

Applications

For connecting devices and machines to a power supply in various applications

Typical areas of application are electric motors and servo drives

For use with housings from the EPIC® H-A 3 series.

Technical Attributes

General Information

Brand	EPIC®
Contacts included
Product range	RECTANGULAR
Product type	Crimping insert
Scope of delivery	Order contacts separately
Design size	3A
Delivery Unit	10.000
Weight	0.015 kg

Electrical Characteristics

Rated current	14 A according to UL, 10 A according to CSA, 10 A according to IEC
Protective conductor integrated into insert
Over voltage category	III
Rated impulse voltage	6 kV AC rms / DC according to IEC 61984
Rated voltage	230 V AC rms / DC according to IEC, 600 V AC rms / DC according to UL, 600 V AC rms / DC according to CSA
Max. contact resistance	3

Product Design

EMC screening
With wire protection
Colour	black
Connectable conductor cross section min. (AWG)	26 AWG
Max. connectable conductor cross-section AWG	14 AWG
Min. connectable conductor cross-section (mm2)	0.14
Number of contacts	12+PE
With protective conductor
Max. connectable conductor cross-section (mm2)	2.5
Contact insert type	Socket
Contact insert material, short form	PA
PE connection type	Screw connection
Connector type	Socket
Material contact insert	Polyamide
Number of PE contacts	1
Conductor connection type	Crimp termination
Contact insert without contacts
Contact diameter	1.6
Number of power contacts	12

Product Characteristics

Flame-retardant
Acid-resistant
Chemical resistant
UV-resistant
Operating temperature min.	-40
Operating temperature max.	120
Min. number of insertion cycles	200
Suitable for EX-applications
Impact-resistant
Pollution degree	3
Vibration protection
Flame retardance according to	UL 94 V-0
Halogenfree
Short-term temperature peaks	125

Certifications and Standards

UR recognized
cUR recognized
CSA certified
UL category control number	ECBT2
Tested for fire protection for railway vehicles
TÜV certified
Product standard according to IEC	IEC 61984
UR certification	according to UL 1977 (e-file number: E75770)
CE marked
VDE certified

Documentation

Downloads

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

operation instruction - de-DE (PDF)

Further Links

EPLAN Data in EPLAN Data Portal

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
