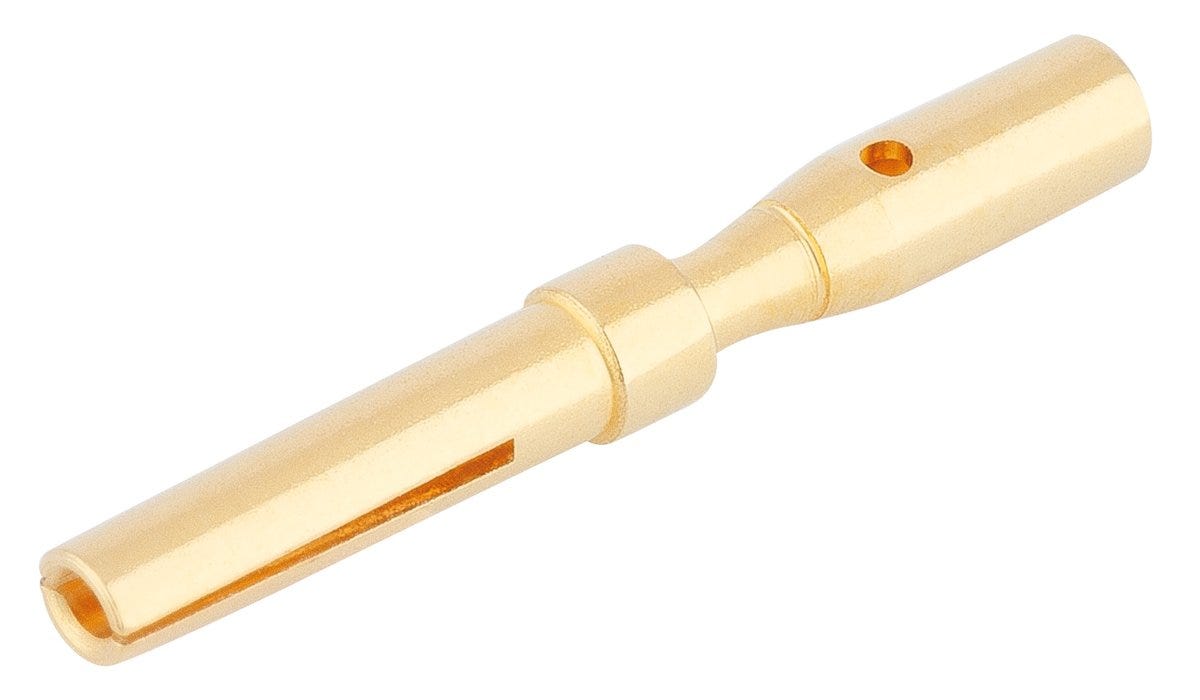

EPIC® SIGNAL D-SUB BCM 1MM AU 0.25-1.0

Name: EPIC® SIGNAL D-SUB BCM 1MM AU 0.25-1.0
Brand: LAPP
SKU: 44423356
Price: 20748 VND
Availability: OutOfStock

Contact for housing size: M23 D-SUB Einsatz; Socket; Crimp termination; For cross-section (min./max.): 0.25mm² - 1mm²; Brass Gold-plated

LAPPSKU: 44423356Article No.#: 44423356

Contact for housing size: M23 D-SUB Einsatz; Socket; Crimp termination; For cross-section (min./max.): 0.25mm² - 1mm²; Brass Gold-plated

20.748₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Benefits

Compatible with standard D-Sub connectors

Crimp contact ensures maximum contact reliability between the contact and the cable and establishes a vibration-resistant connection

Thanks to wide connection range, suitable for conductor cross-sections from 0.25 to 1.00 mm²

This enables more universal use and reduces the number of parts, therefore guaranteeing logistics savings

With corrosion-resistant gold coating for the low contact resistances and long product life.

Applications

Can be used universally on machine interfaces for many applications in data and signal transmission.

Technical Attributes

General Information

Electrical Characteristics

Rated current contact	7 A according to IEC
Max. contact resistance	4

Product Design

Material contact surface	Gold-plated
Contact for design	M23 D-SUB Einsatz
Stripping length of single core	4
Contact variant	Socket
Contact coating material, short form	Au
Contact manufacturing method	Machined
Conductor connection type	Crimp termination
Colour	gold
Connectable conductor cross section min. (AWG)	23 AWG
Max. connectable conductor cross-section AWG	18 AWG
Contact length	16.3
Min. connectable conductor cross-section (mm2)	0.25
Contact diameter	1
Contact material	Brass
Max. connectable conductor cross-section (mm2)	1
Contact material, short form	CuZn

Product Characteristics

Contact application areact

Signal

Certifications and Standards

Product standard according to IEC	IEC 61984, IEC 60352-2
UR recognized
cUR recognized
VDE certified

Documentation

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
