EPIC® MHB 8 CM

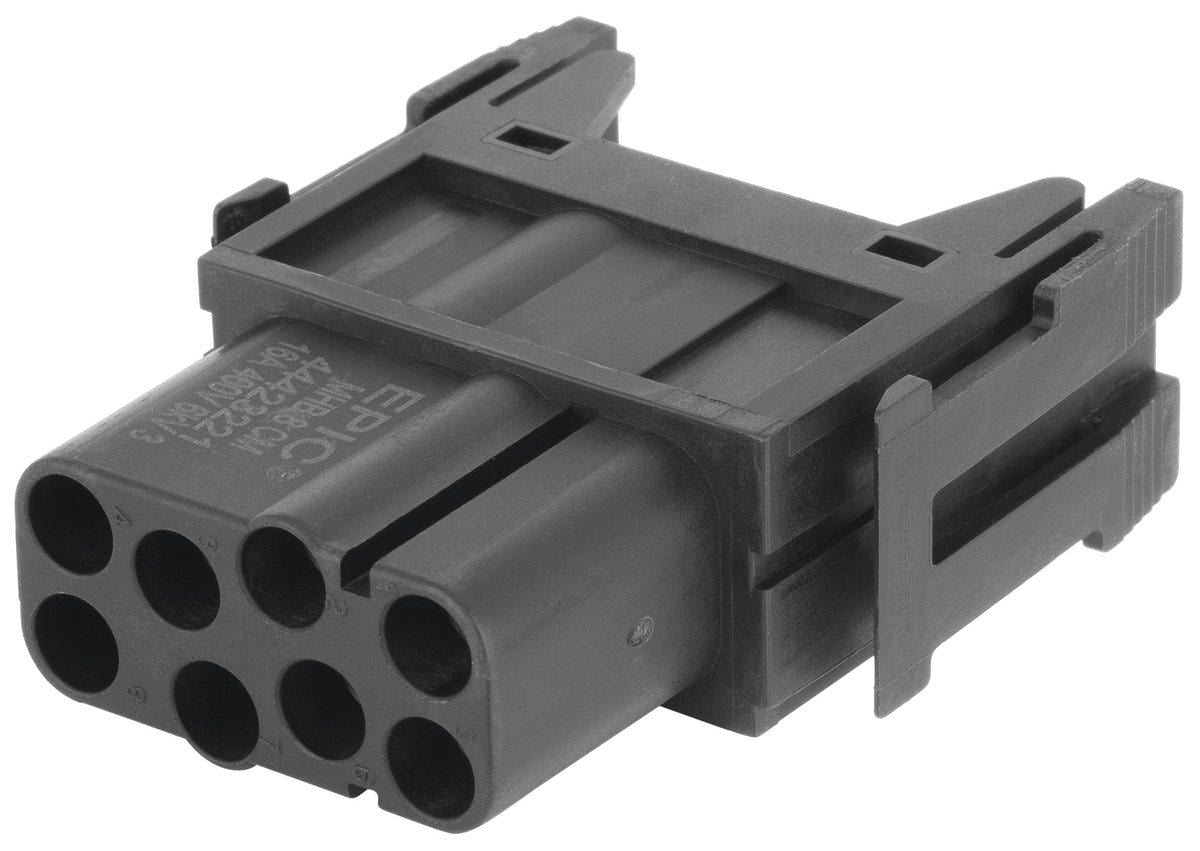

Name: EPIC® MHB 8 CM
Brand: LAPP
SKU: 44423221
Price: 119292 VND
Availability: OutOfStock

MH module modular system; Crimp termination; Number of contacts: 8; Required slots: 1; For cross-section (min./max.): 0.14mm² - 4mm²; 400 V AC rms / DC according to IEC; 16 A according to IEC

LAPPSKU: 44423221Article No.#: 44423221

EPIC® MHB 8 CM

MH module modular system; Crimp termination; Number of contacts: 8; Required slots: 1; For cross-section (min./max.): 0.14mm² - 4mm²; 400 V AC rms / DC according to IEC; 16 A according to IEC

EPIC® MHB 8 CM

119.292₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

Module for accomodating 8 signal contacts for transmissions up to 16 A

Modular connectors offer a wide range of possible combinations and can be assembled flexibly - even to create hybrid connectors for different media

Connectors with modular configurations can be connected to market-standard connectors

Different crimp contacts available for different conductor cross-sections

Locks effortlessly into the fixed EPIC® MH multi-frame with an audible click. Much easier assembly than hinged and sliding frames

Compliant with standards for use in rail vehicles (fire behaviour test according to DIN EN 45545-2:2016-02, requirements sets R22 and R23, hazard levels HL1, HL2 and HL3)

UL certification according to technical data enables the product to be used on the North American market.

Applications

For the production of a modular rectangular connector insert

Can be used universally at machine interfaces for many signal transmission applications

For power supply to lighting and devices or for the connection of smaller motors

For use with the rectangular connector module frames of the EPIC® MH series

For use with many EPIC® rectangular connector housings.

Technical Attributes

General Information

Brand	EPIC®
Contacts included
Product type	MH module modular system
Scope of delivery	Order contacts separately
Installation type	clip on
Delivery Unit	10.000
Weight	0.011 kg

Electrical Characteristics

Rated current	16 A according to IEC
Protective conductor integrated into insert
Rated impulse voltage	6 kV AC rms / DC according to DIN EN 61984
Rated voltage	400 V AC rms / DC according to IEC
Max. contact resistance	5

Product Design

EMC screening
With wire protection
Colour	black
Connectable conductor cross section min. (AWG)	26 AWG
Max. connectable conductor cross-section AWG	12 AWG
Min. connectable conductor cross-section (mm2)	0.14
Number of contacts	8
With protective conductor
Max. connectable conductor cross-section (mm2)	4
Contact insert type	Socket
Number of PE contacts	0
Number of data contacts	0
Conductor connection type	Crimp termination
Required slots	1
Screen contact
Material	Polyamide
Number of signal contacts	0
Material shortname	PA
Number of power contacts	0

Product Characteristics

Flame-retardant
Operating temperature min.	-40
Operating temperature max.	125
Min. number of insertion cycles	500
Pollution degree	3
Flame retardance according to	UL 94 V-0
Halogenfree

Certifications and Standards

UR recognized
cUR recognized
CSA certified
Fire protection for railway vehicles hazard level	EN 45545-2 HL1, EN 45545-2 HL2, EN 45545-2 HL3
Tested for fire protection for railway vehicles
TÜV certified
UR certification	according to UL 1977 (CCN: ECBT2 / e-file number: E75770)
cUR certification	according to CSA C22.2 No. 182.3 (CCN: ECBT8 / e-file number: E75770)
CE marked
VDE certified

Documentation

Downloads

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

operation instruction - de-DE (PDF)

Further Links

EPLAN Data in EPLAN Data Portal

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
