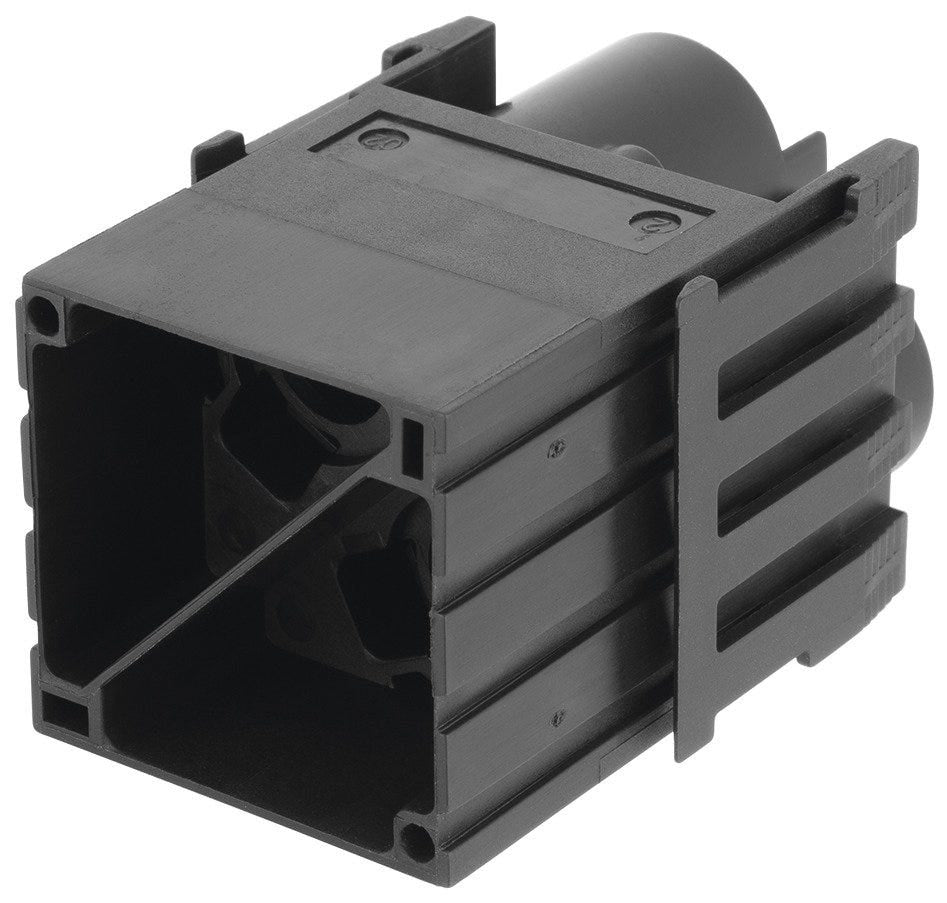

EPIC® MHS 2 CM

Name: EPIC® MHS 2 CM
Brand: LAPP
SKU: 44423212
Price: 160570 VND
Availability: InStock

MH module modular system; Crimp termination; Number of contacts: 2; Required slots: 2; Number of slots: 2; For cross-section (min./max.): 10mm² - 35mm²; 1000 V AC rms / DC according to IEC; 100 A according to IEC

LAPPSKU: 44423212Article No.#: 44423212

EPIC® MHS 2 CM

EPIC® MHS 2 CM

160.570₫

Low Stock (6)

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

Double module with 2 power contacts for high power supply up to 100 A and voltages up to 1000 V

Connectors with modular configurations can be connected to market-standard connectors

Crimp termination creates a vibration-proof connection, provides maximum contact protection between the contact and cable and is suitable for automated assembly

Different crimp contacts available for different conductor cross-sections

Locks effortlessly into the fixed EPIC® MH multi-frame with an audible click. Much easier assembly than hinged and sliding frames

UL certification according to technical data enables the product to be used on the North American market.

Applications

For the production of a modular rectangular connector insert

For connecting devices and machines to a power supply in various applications

Compliant with standards for use in rail vehicles (fire behaviour test according to DIN EN 45545-2:2016-02, requirements sets R22 and R23, hazard levels HL1, HL2 and HL3).

Technical Attributes

General Information

Brand	EPIC®
Contacts included
Product type	MH module modular system
Scope of delivery	Order contacts separately
Installation type	clip on
Delivery Unit	10.000
Weight	0.016 kg

Electrical Characteristics

Rated current	100 A according to IEC
Protective conductor integrated into insert
Rated impulse voltage	8 kV AC rms / DC according to DIN EN 61984
Rated voltage	1000 V AC rms / DC according to IEC
Max. contact resistance	5

Product Design

EMC screening
With wire protection
Colour	black
Connectable conductor cross section min. (AWG)	8 AWG
Max. connectable conductor cross-section AWG	1 AWG
Min. connectable conductor cross-section (mm2)	10
Number of contacts	2
With protective conductor
Max. connectable conductor cross-section (mm2)	35
Contact insert type	Plug
Number of PE contacts	0
Number of data contacts	0
Conductor connection type	Crimp termination
Required slots	2
Screen contact
Material	Polyamide
Number of signal contacts	0
Material shortname	PA
Number of slots	2
Number of power contacts	0

Product Characteristics

Flame-retardant
Operating temperature min.	-40
Operating temperature max.	125
Min. number of insertion cycles	500
Pollution degree	3
Flame retardance according to	UL 94 V-0
Halogenfree

Certifications and Standards

UR recognized
cUR recognized
CSA certified
Fire protection for railway vehicles hazard level	EN 45545-2 HL1, EN 45545-2 HL2, EN 45545-2 HL3
cUR category control number	ECBT8
UL category control number	ECBT2
Tested for fire protection for railway vehicles
TÜV certified
UR certification	according to UL 1977 (CCN: ECBT2 / e-file number: E75770)
cUR certification	according to CSA C22.2 No. 182.3 (CCN: ECBT8 / e-file number: E75770)
CE marked
VDE certified

Documentation

Downloads

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

operation instruction - de-DE (PDF)

Further Links

EPLAN Data in EPLAN Data Portal

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
